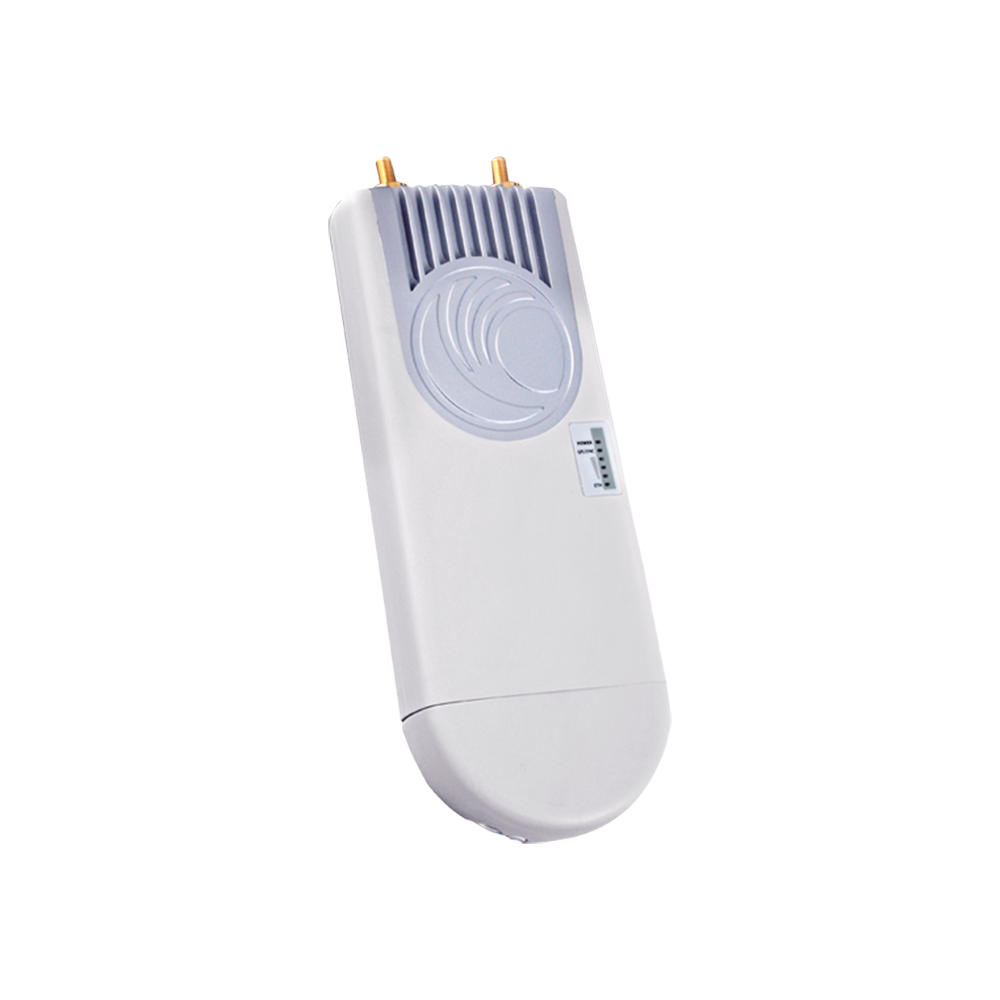

ePMP -Punto a Punto/ Multipunto en banda libre Conectorizado 120 Suscriptores (SIN GPS) - C050900A021A

ePMP - Point to Point/Multipoint in free band Connectorized 120 Subscribers (WITHOUT GPS) - C050900A021A

Sale price  $639,380 Regular price  $799,175
Skip to product information
ePMP -Punto a Punto/ Multipunto en banda libre Conectorizado 120 Suscriptores (SIN GPS) - C050900A021A

ePMP - Point to Point/Multipoint in free band Connectorized 120 Subscribers (WITHOUT GPS) - C050900A021A

Sale price  $639,380 Regular price  $799,175
Shipping calculated at checkout.
Marca
CAMBIUM NETWORKS
Referencia / SKU
EPMP-5C
Disponibilidad
Agotado por ahora
Descripción y especificaciones

ePMP - Point to Point/Multipoint in free band Connectorized 120 Subscribers (WITHOUT GPS) - C050900A021A

5
GHz
200

120 Mbps
Subscribers

QUALITY OF SERVICE

A powerful multi-level prioritization scheme that can be configured by the network operator to enable the delivery of differentiated services.

SECURITY

128-bit AES encryption, L2 and L3 firewall rules, support for different user levels, HTTP/SSH support provide enhanced security.

FLEXIBLE MODES OF OPERATION

Provides extremely low latency for PTP deployments, highly scalable mode without GPS synchronization and TDD operation for synchronized towers

ROBUST DESIGN

Operates in ambient temperatures as high as 60 degrees and as low as -30 degrees Celsius

Cambium Networks' ePMP solution provides stable coverage across large service areas and enhances existing infrastructure to deliver reliable, high-quality broadband connectivity that can be deployed rapidly.

MIMO and modulation 2x2 MIMO/OFDM
Bandwidth 5 | 10 | 20 | 40 MHz
Frequency range 4910 - 5970 MHz
Output power range -17 dBm to +30 dBm
Revenue Depending on the connected antenna
Maximum power consumption 7 W Maximum, 5 W Typical
Exterior protection / Temperature IP55 / -30°C to +60°C (-22°F to +140°F)
Management HTTPS, SSH, FTP, SNMPv2c
Antenna connector External (RP-SMA connectors) 50 ohm
Channel spaces Configurable in 5 MHz increments
MAC Layer Cambium Proprietary
Ethernet structure 100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)
Protocols used IPv4, UDP, TCP, IP, ICMP, SSH, SNMPv2c, HTTPs, FTP
VLAN 802.1Q with 802.1p priority
Input voltage 10 to 30 V
Encryption 128-bit AES (CCMP mode)
Dimensions 269 ​​x 110 x 77 mm
Weight 520 g
Number of subscribers 120
PoE included and power connection cable

* 3 years warranty


cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide.

Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.

Firmware Update Guide










Facility
