C000065L002D - IDU Advanced Power Supply for AC and/or DC Current with Protector, Compatible with PTP300/400/500/600 Radios

C000065L002D - IDU Advanced Power Supply for AC and/or DC Current with Protector, Compatible with PTP300/400/500/600 Radios

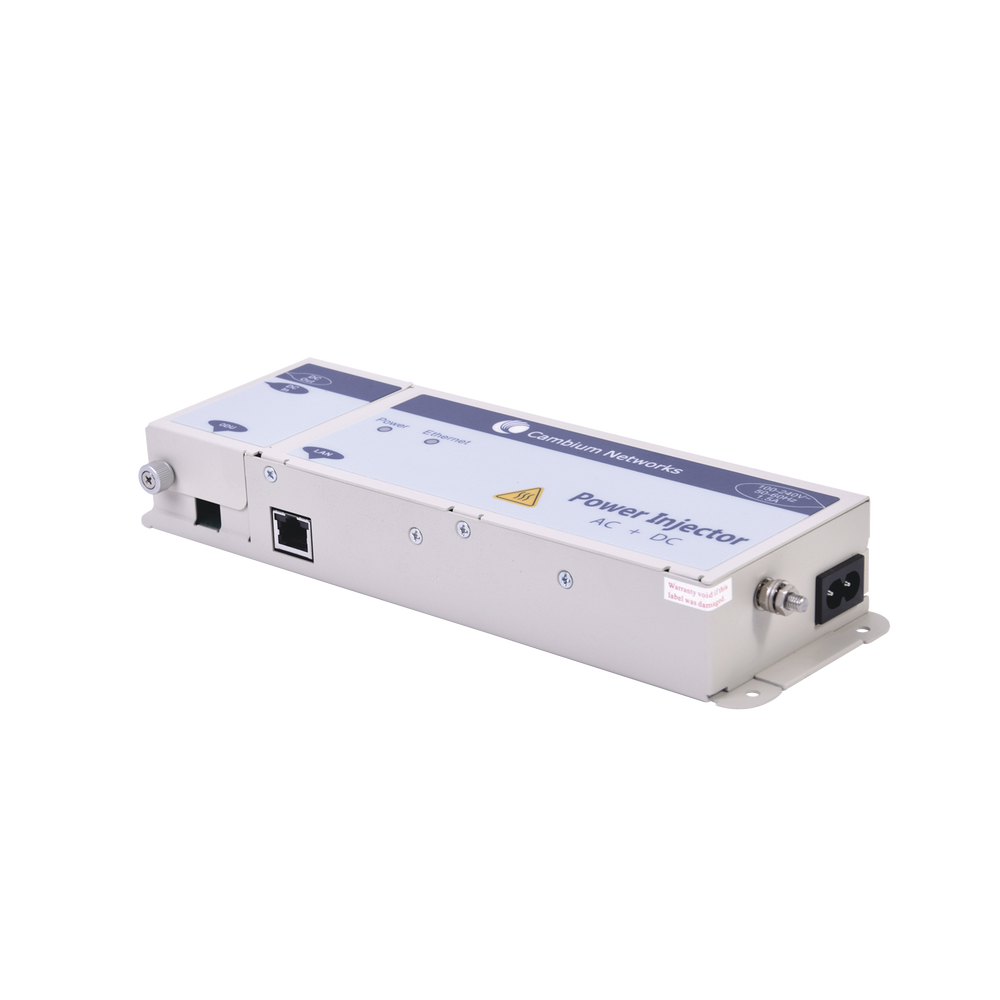

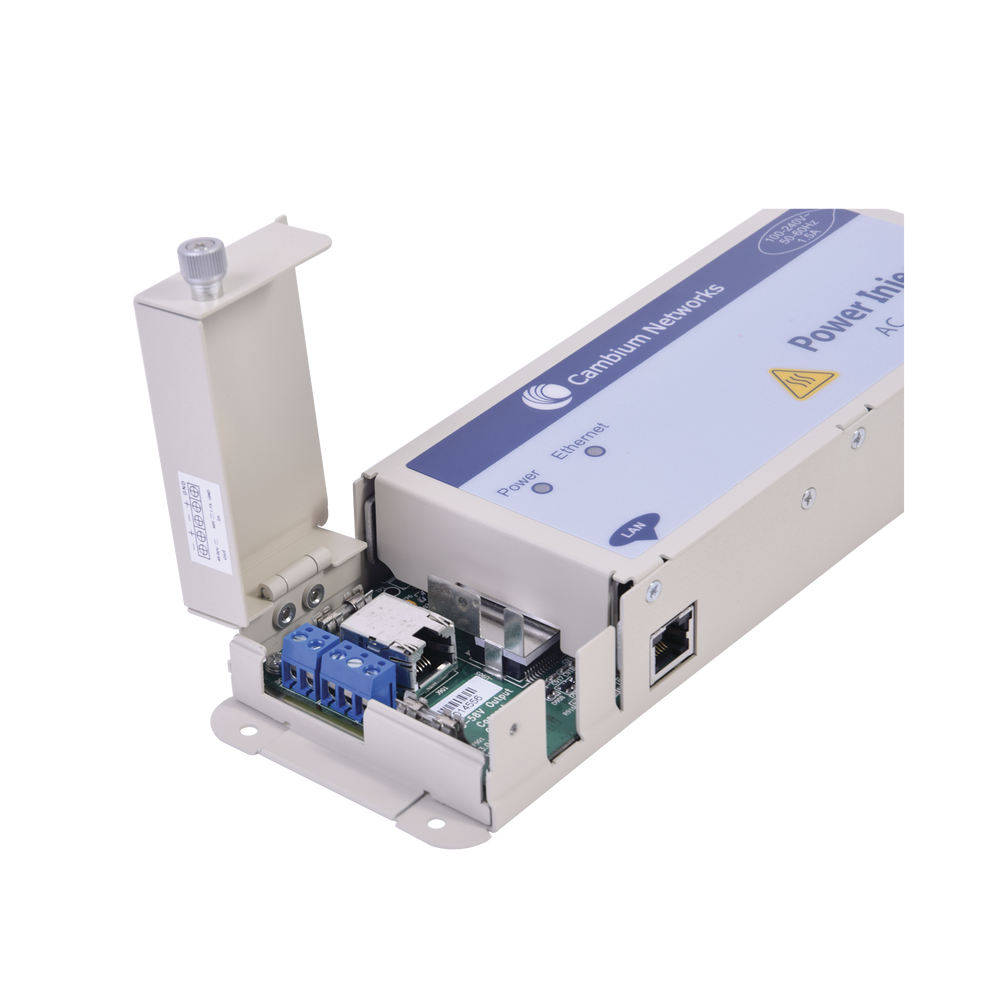

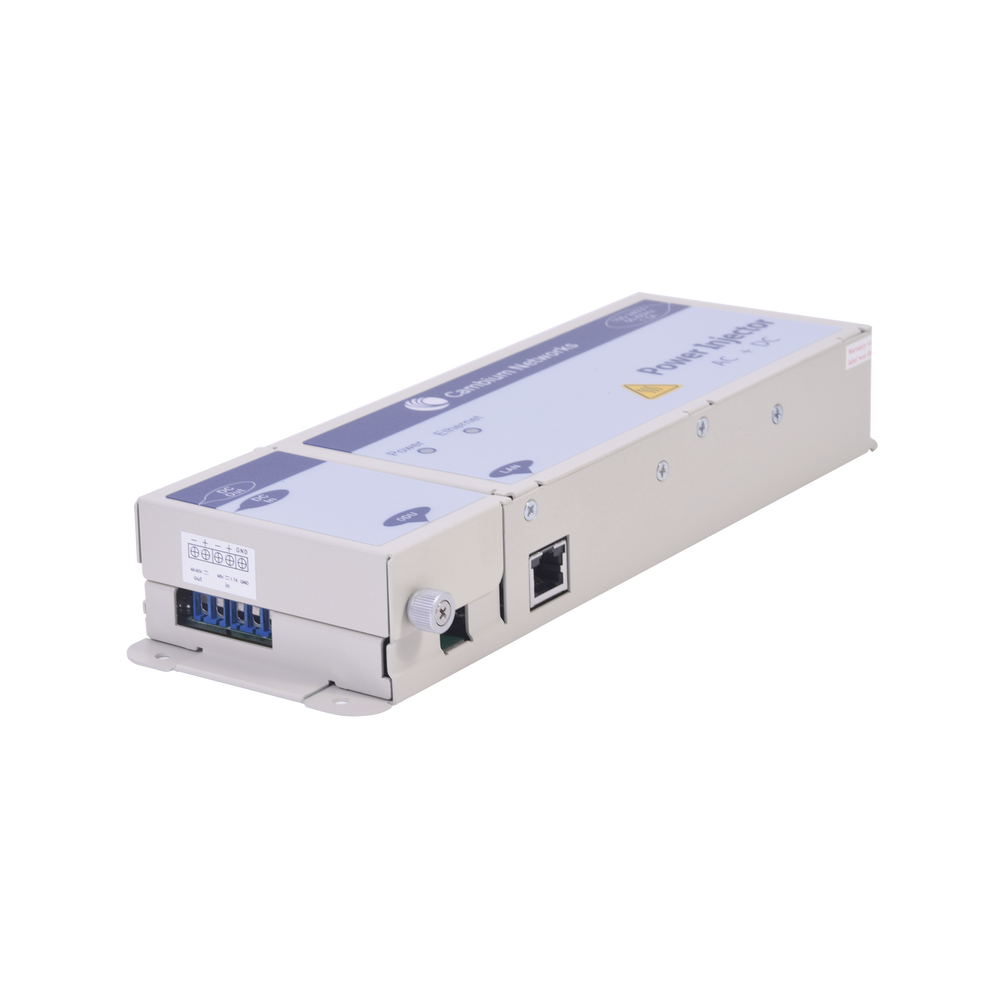

Advanced Power Supply (IDU) to power PTP300, PTP400, PTP500 and PTP600 Series equipment, with solar power arrays or alternating current.

'There is redundancy between Alternating Current and Direct Current, with Alternating Current taking priority.'

Ideal for applications where the link is critical and cannot be left without power for any reason.

Part number: C000065L002D

PHYSICAL CHARACTERISTICS

ELECTRICAL

AC Input: 90 - 264 Vac, 47-60 Hz

DC input: 37-60 Vdc

Output Vcc: Network output: 58 V, +2 V, -0 V

Vcc Input: Output voltage at maximum rated output current, no more than 1.5V below Vcc input voltage.

Maximum length of Vcc output cable: 3 meters

AC input connector: IEC-320-C8

Output Amperage: 1.7A

Efficiency: More than 84%

Wait Time: 20 Milliseconds

Efficiency: More than 84%

1 YEAR WARRANTY
