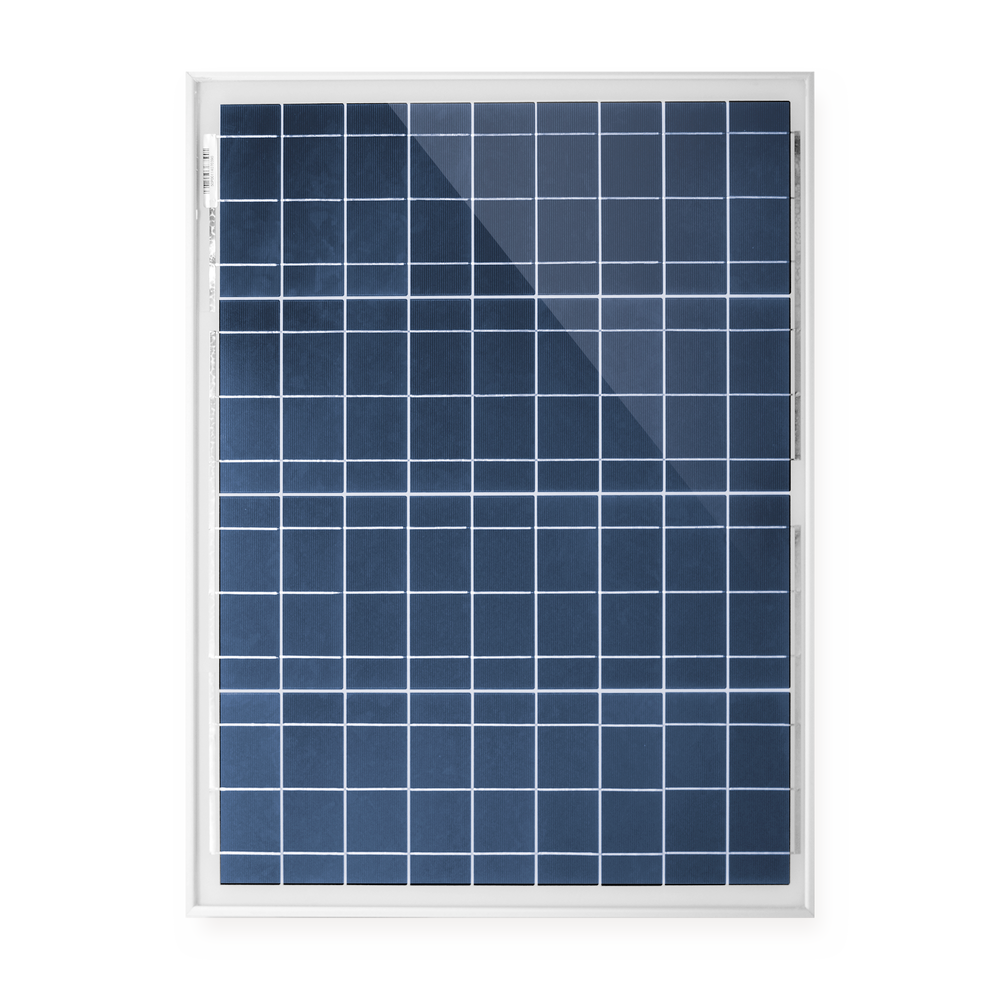

Polycrystalline Photovoltaic Module 50 Watts for 12 Volt system

Polycrystalline Photovoltaic Module 50 Watts for 12 Volt system

High Quality Cells

Encapsulated in transparent EVA and 4 mm tempered glass. The back of the module is protected with a UV-resistant TEDLAR sheet. The laminates are mounted on an anodized aluminum frame, ensuring maximum protection.

Applications:
• Radio communication repeater stations.
• Electrification in rural areas.
• Emergency communication systems.
• Supplying medical equipment in rural areas.
• Water pumping systems.
• Air traffic obstruction lights.
• Cathodic protection systems.
• Railway track signaling.

Warranty
4-year warranty against manufacturing defects and 40-year useful life.

Technical Specifications
Maximum power 50 Watts
Voltage 18 V
Amperage 2.86 A
Open circuit voltage (Voc) 21.6 V
Short circuit current (Isc) 3.01 A
Dimensions 680 x 535 x 35 mm
Weight 3.5 kg
Ambient temperature -40 to 80 ºC
Maximum system voltage 600 V
Note: Electrical specifications are listed under a
irradiance of 1000 W/ m2 and temperature of 25 ºC.
