Card type source with 1 selectable output in 6, 12 and 24Vdc @ 2.5 A with backup capacity, requires input transformer

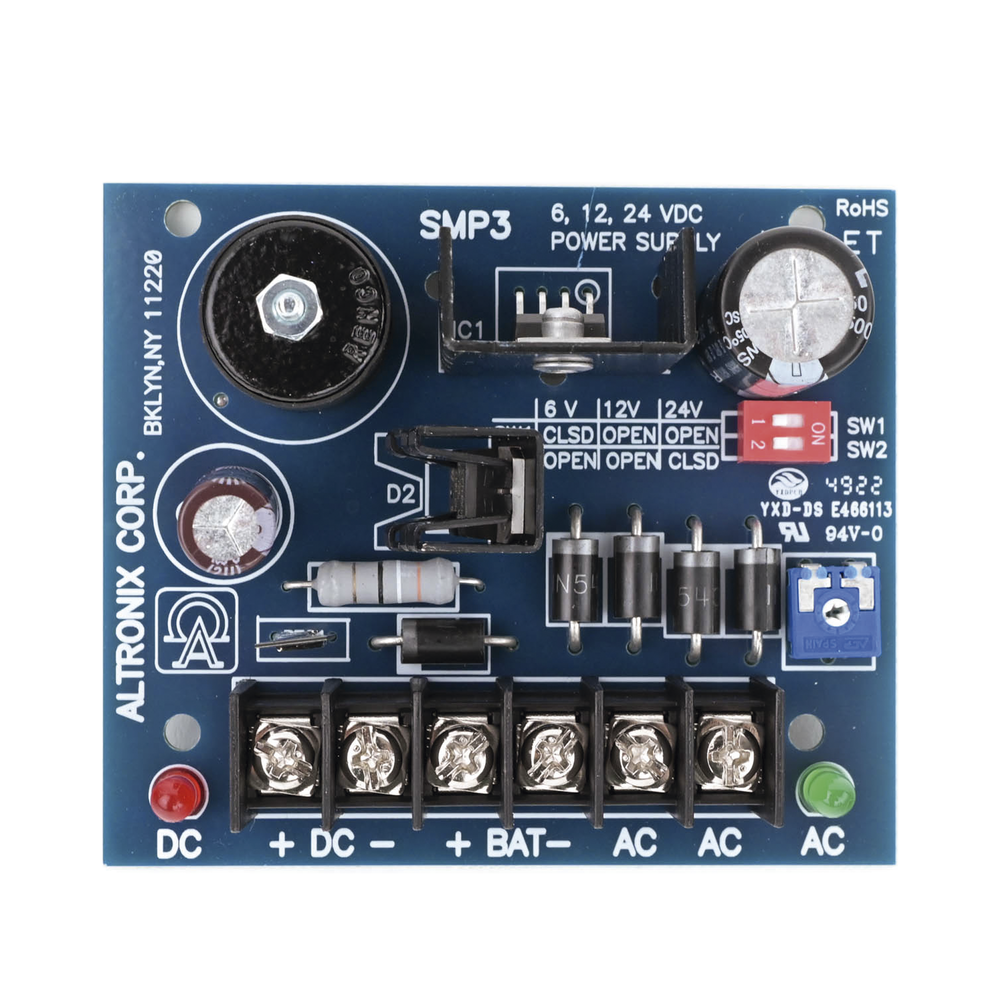

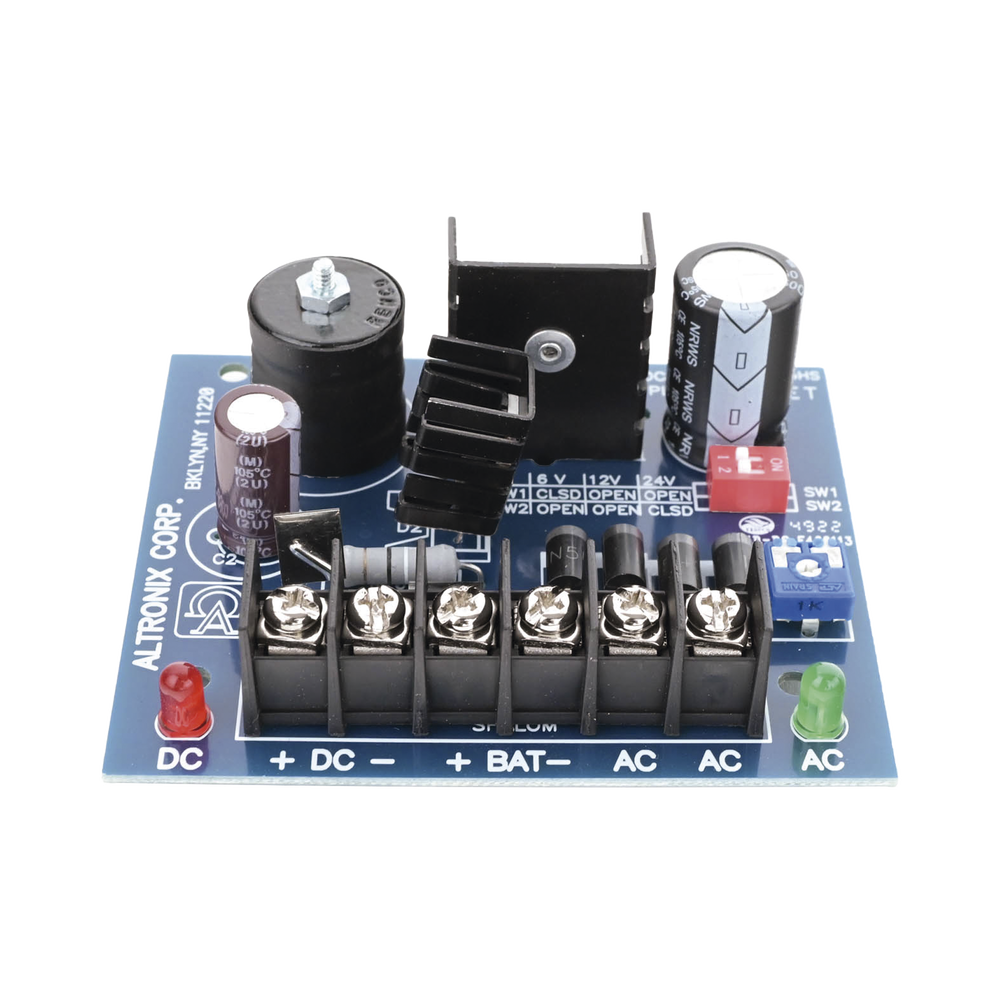

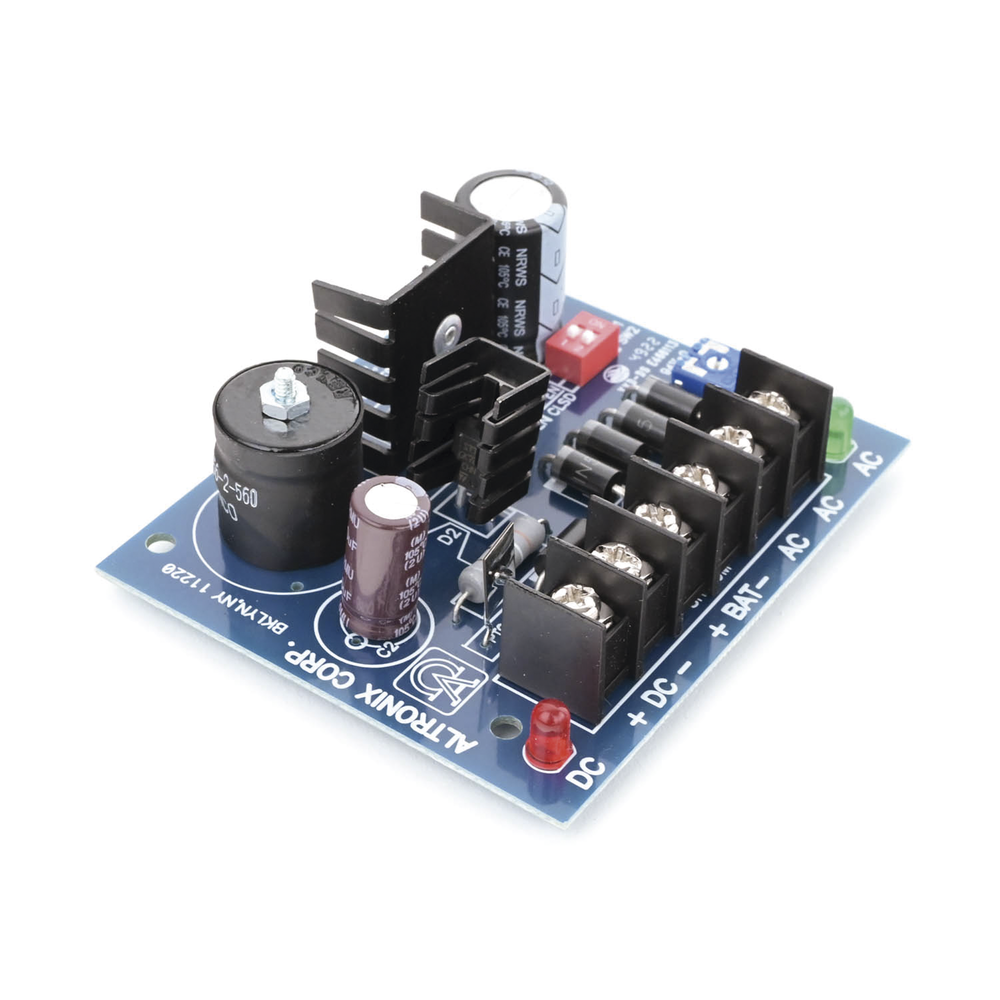

SMP3

Power Supply Charger, Single Output, 6/12/24 V DC to 2.5 A, 24/28 V AC, Board

The Altronix SMP3 power supply/charger converts a low-voltage AC input to a 6V DC, 12V DC, or 24V DC output. This unit has a wide range of applications for access control accessories, security, and CCTV systems that require additional power.

...

Main Features:

  • Selectable output of 6VDC, 12VDC or 24VDC
  • Continuous supply current of 2.5A.
  • Electronically regulated and filtered output.
  • Requires 16 Vac to 24 Vac input transformer
  • Protection against short circuits and thermal overloads.

...

Physical and Electrical Characteristics:

  • Dimensions: 76.2 mm wide x 88.9 mm long x 50.8 mm high.
  • Operating Temperature: 0°C to 49°C (32°F to 120°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Product Weight: 0.25 lbs. (0.113 kg).
  • Shipping Weight: 0.35 Lbs. (0.158 kg)

...

Highlighted Features:

  • Integrated charger for sealed lead-acid or gel batteries.
  • AC input and DC output LED indicators.
  • Automatic switchover to battery backup when AC fails.

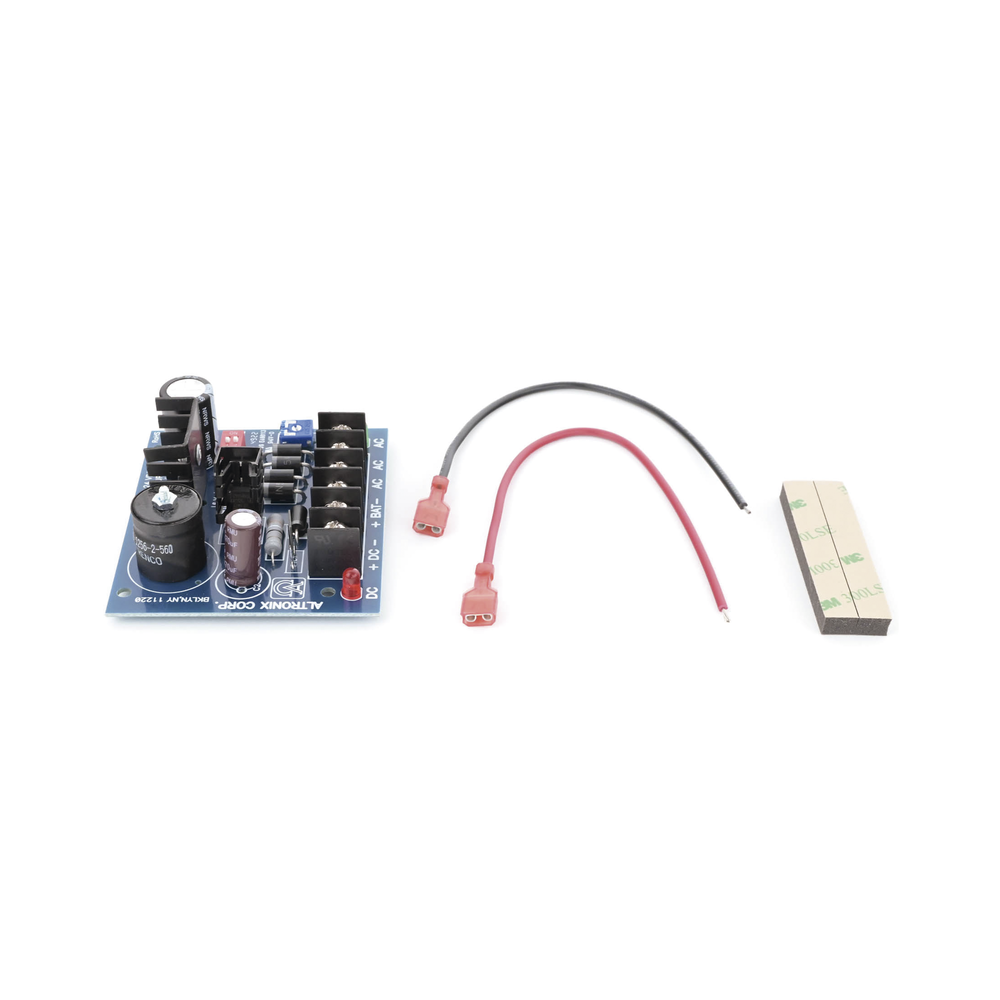

  • Includes battery cables.
  • Extremely compact design.
