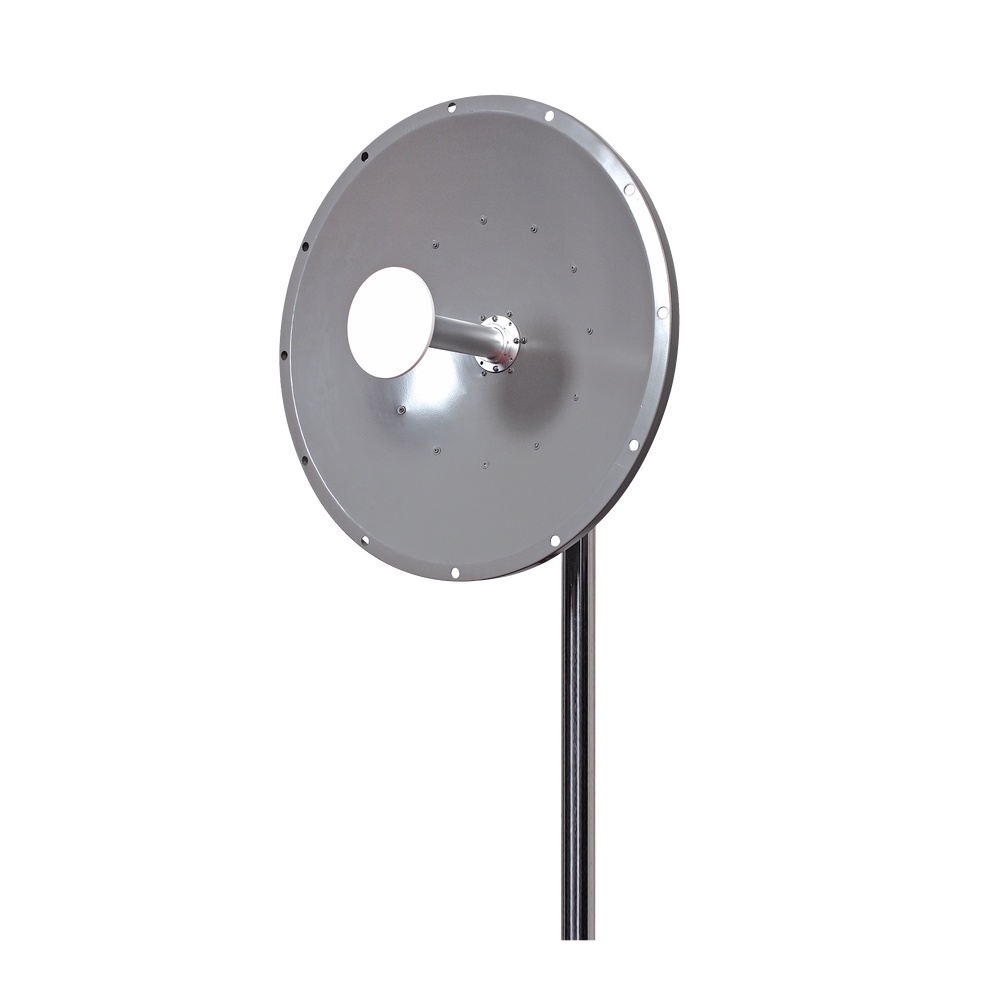

2 ft Directional Antenna, 5.1 - 5.8 GHz, 30 dBi Gain, N-Female Connectors, Mounting and Jumper included

2 ft Directional Antenna, 5.1 - 5.8 GHz, 30 dBi Gain, N-Female Connectors, Mounting and Jumper included

Compatible with Cambium, Mimosa and Ubiquiti brand equipment

-Frequency Range: 5150-5850 MHz

-Weight: 3 kg

-Gain: 30 dBi

-VSWR <1.5:1

-Polarization: Horizontal and Vertical

-Horizontal beamwidth: 5º

-Vertical beamwidth: 5º

-Insulation > 30 dB

-Cross polarization: >15 dB (+/- 60º > 10)

Impedance: 50 ohm

Maximum input power: 100 W

1 5 dB ( ± 6 0 ° ≥ 1 0 )

-Frequency Range: 5150-5850 MHz

-It has 2 N-Female connectors (includes jumpers).

-Includes Tower Assembly .

Mechanical data.

-Connector 2 female connectors.

-Weight: 3 kg/ 6.6 lb

-Material: Aluminum.

-Installation of the tower or mast: 30 to 50 mm

-Wind resistance: 210 km/hr

-Shipping dimensions: 27.56 x 27.56 x 7.48' (700 x 700 x 190 mm)

- Operational temperature: -40 to 65 ºC

Fully directional antenna, with a 5° beamwidth, helps maintain link stability even in harsh conditions

Weight 3 kg, Compatible with Mimosa, Cambium, and Ubiquiti radios, Ranges up to 30 km, Jumper and mount included
