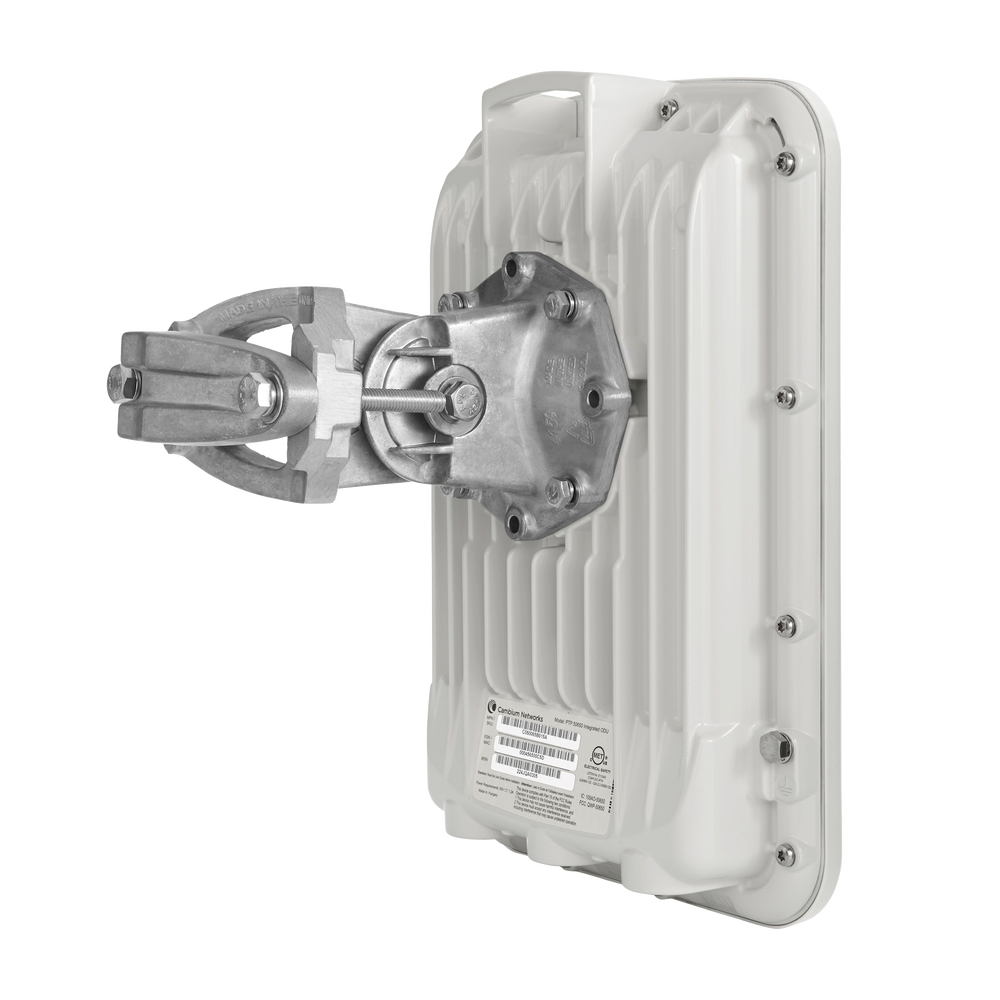

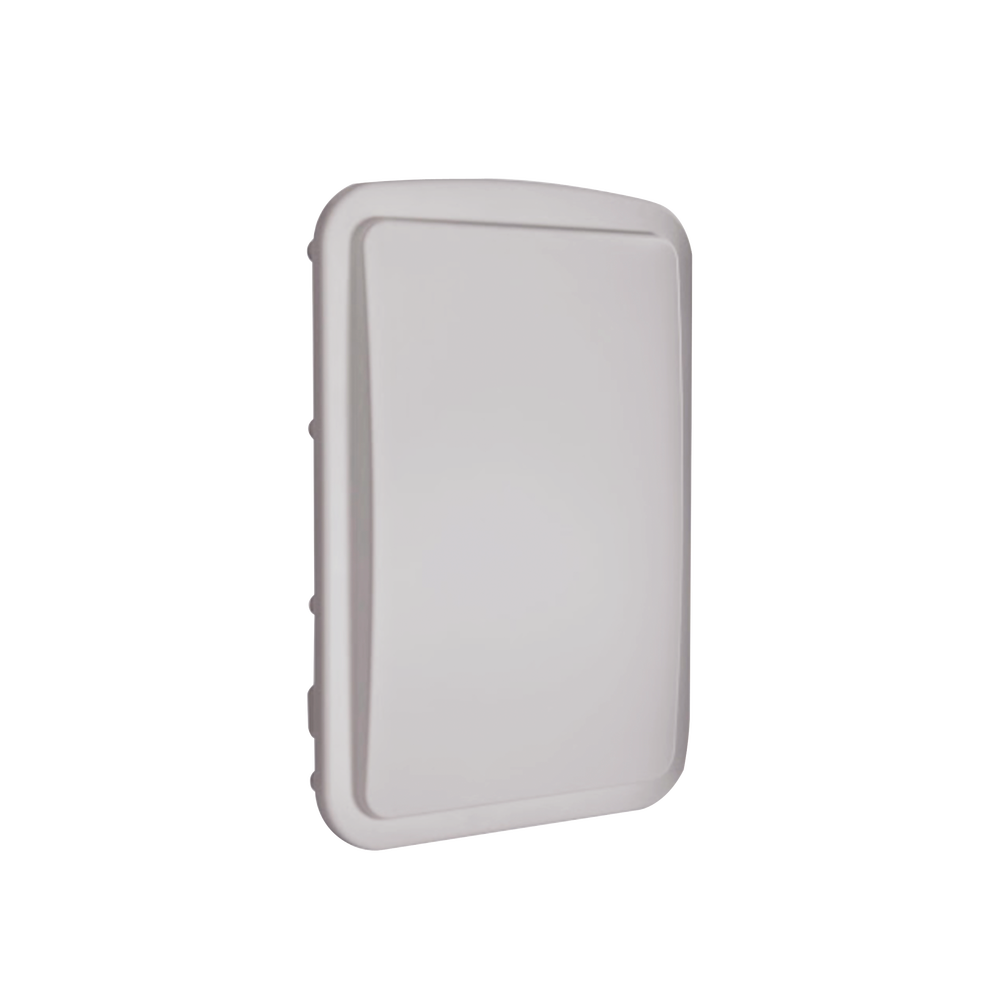

C050065H037A - BackHaul PTP 650 - Point-to-Point (PTP) Link for Licensed and Open-Use Bands. With integrated 19 dBi antenna, 4.9 - 6.05 GHz, 300 Mbps real time.

C050065H037A - BackHaul PTP 650 - Point-to-Point (PTP) Link for Licensed and Open-Use Bands. With integrated 19 dBi antenna, 4.9 - 6.05 GHz, 300 Mbps real time.

---

• Non-Line-of-Sight (NLOS) links up to 6 km (requires prior analysis).

• 99.999% link viability, operating under normal conditions.

• Dynamic modulation up to 256 QAM.
• ATEX (explosive atmospheres) and HAZLOC (hazardous areas) certifications. Intrinsically safe.
• Simultaneous vertical/horizontal polarity (MIMO 2X2).
• Channel width: 5, 10, 15, 20 and 30 (adjustable depending on frequency).
• QoS (802.1p, 8 levels), VLAN (802.1ad, 802.1Q with 802.1p priority).
• Support for IPV6 and IPV4.
• 2 Gigabit Ethernet ports (one of them 802.3 af) and one SFP (fiber optic).
• Supports medium-range links (9 km).
• Operating temperature: -40 to 60 ºC.
• Proprietary encryption: FIPS 197 AES 128/256 bits, FIPS 140-2 optional.
• PoE power supply: 55 Vdc (included).
• Very high quality video surveillance systems (megapixel).
• Sending/receiving up to 8 dedicated E1/T1 lines (requires additional accessory).
• Extension or replacement of applications with single-mode or multimode optical fiber.
• High definition video conferencing (720p, 1080p).
• Emergency services.
• Telemedicine.
• Backhaul systems for LTE.
• Typical consumption 30 W; maximum consumption can be up to 70 W if powered by a
802.3at device from the auxiliary port.
• Dimensions 204 x 318 x 90 mm / Weight: 3.1 kg.


Warranty: 1 Year
