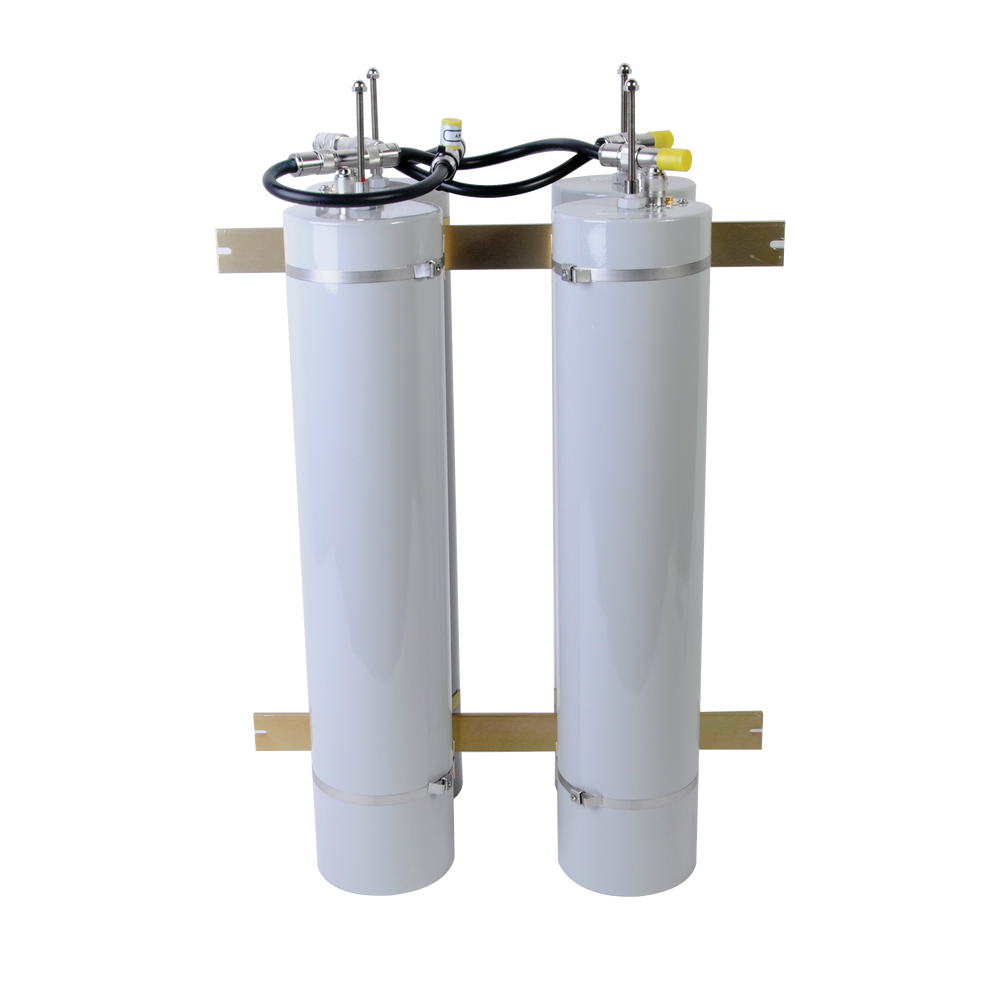

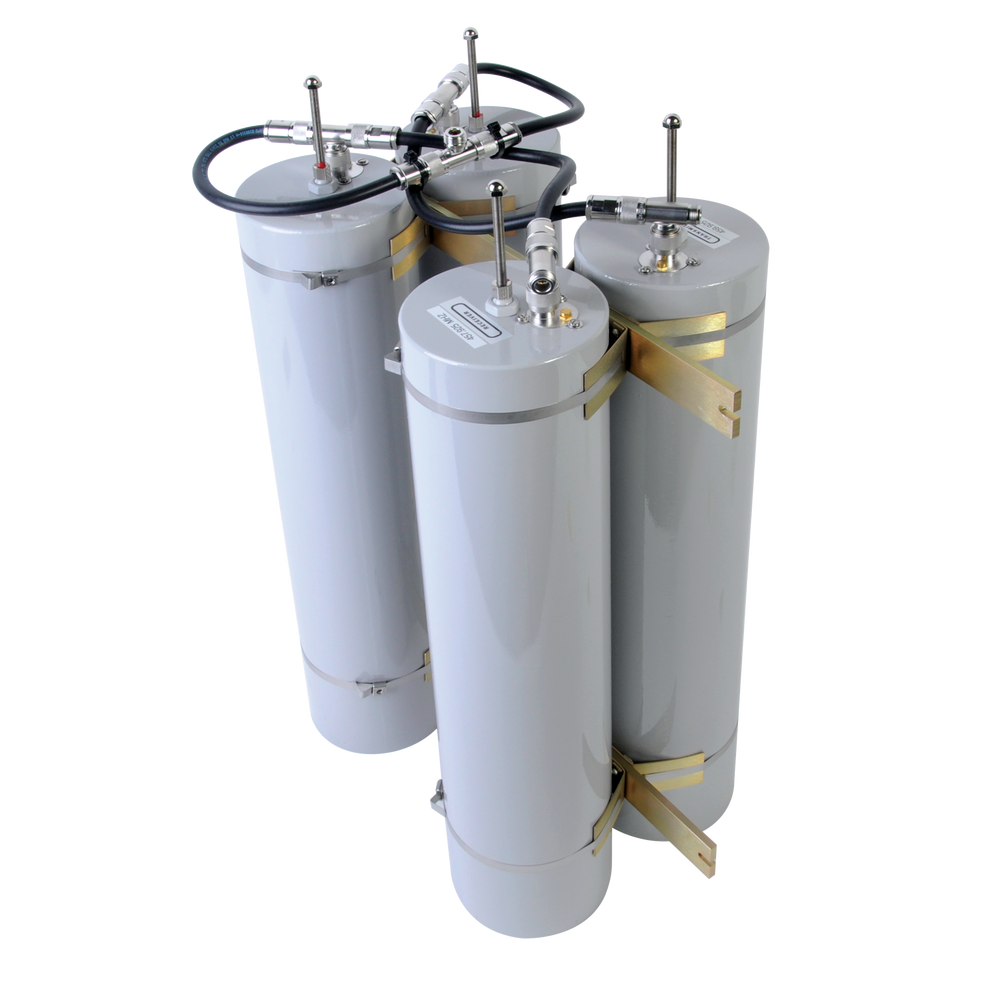

Bandpass-Band Reject Duplexer, 400-512 MHz, 4 Cavities (5" Dia.) 1MHz, 350Watt, N Females.

Bandpass-Band Reject Duplexer, 400-512 MHz, 4 Cavities (5" Dia.) 1MHz, 350Watt, N Females.

Bandpass-Bandreject Duplexer for 400-512 MHz, 4 cavities, 1 MHz.

• Bandpass-Band Reject Duplexer for UHF.
• Tuning Range: 400-512 MHz
• Frequency separation (min): 1 MHz.
• Maximum input power : 350 W.
• VSWR (max.): 1.5:1
• TX/RX insertion loss to antenna: 1.5 dB.
• RX isolation to TX frequency: 80 dB @1 MHz.
• Number of cavities: 4 of 5" diameter.
• Dimensions: 483 X 711 X 280 mm.
