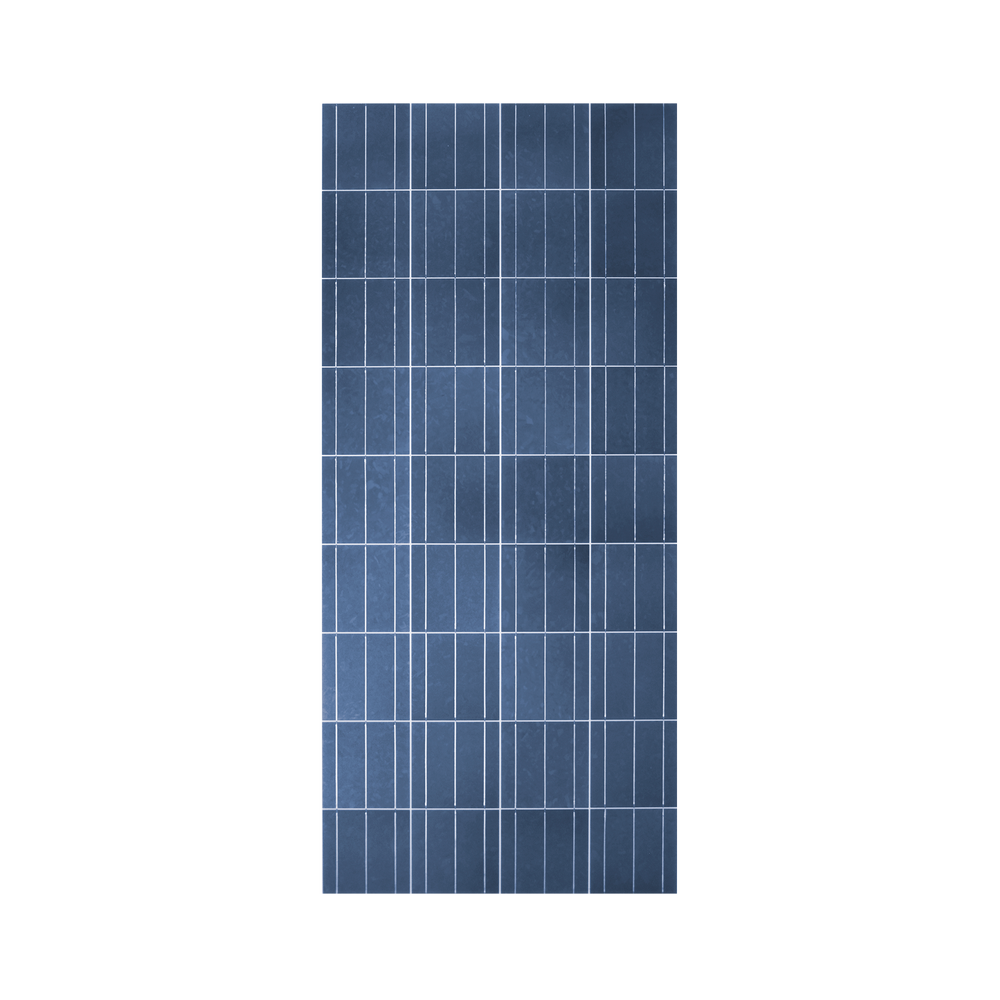

Polycrystalline Photovoltaic Module 150 W 12 Vcd

Polycrystalline Photovoltaic Module 150 W 12 Vcd

High Quality Cells

Encapsulated in transparent EVA and 4 mm tempered glass. The back of the module is protected with a UV-resistant TEDLAR sheet. The laminates are mounted on an anodized aluminum frame, ensuring maximum protection.

Applications:
• Radio communication repeater stations.
• Electrification in rural areas.
• For interconnection to the network.
• Emergency communication systems.
• Supplying medical equipment in rural areas.
• Water pumping systems.
• Air traffic obstruction lights.
• Cathodic protection systems.
• Railway track signaling.

Warranty
4-year warranty against manufacturing defects and 40-year useful life.

Technical Specifications
Maximum power 150 Watts
Voltage 18 V
Amperage 8.59 A
Open circuit voltage (Voc) 21.6 V
Short circuit current (Isc) 9.02 A
Dimensions 1480 x 680 x 35 mm
Weight 10 kg
Ambient temperature -40 to 80 oC
Maximum system voltage 600 V
Note: Electrical specifications are given under an irradiance of 1000 W/m2 and a temperature of 25 °C.
