With excellent UV resistance, which allows it to be used in severe environments. The cable connection is easy to install and works as a lock to prevent counterfeiting contacts.
This model does not require any type of punch-down, the punch-down is done with the coupling to this connector model PROSECA01

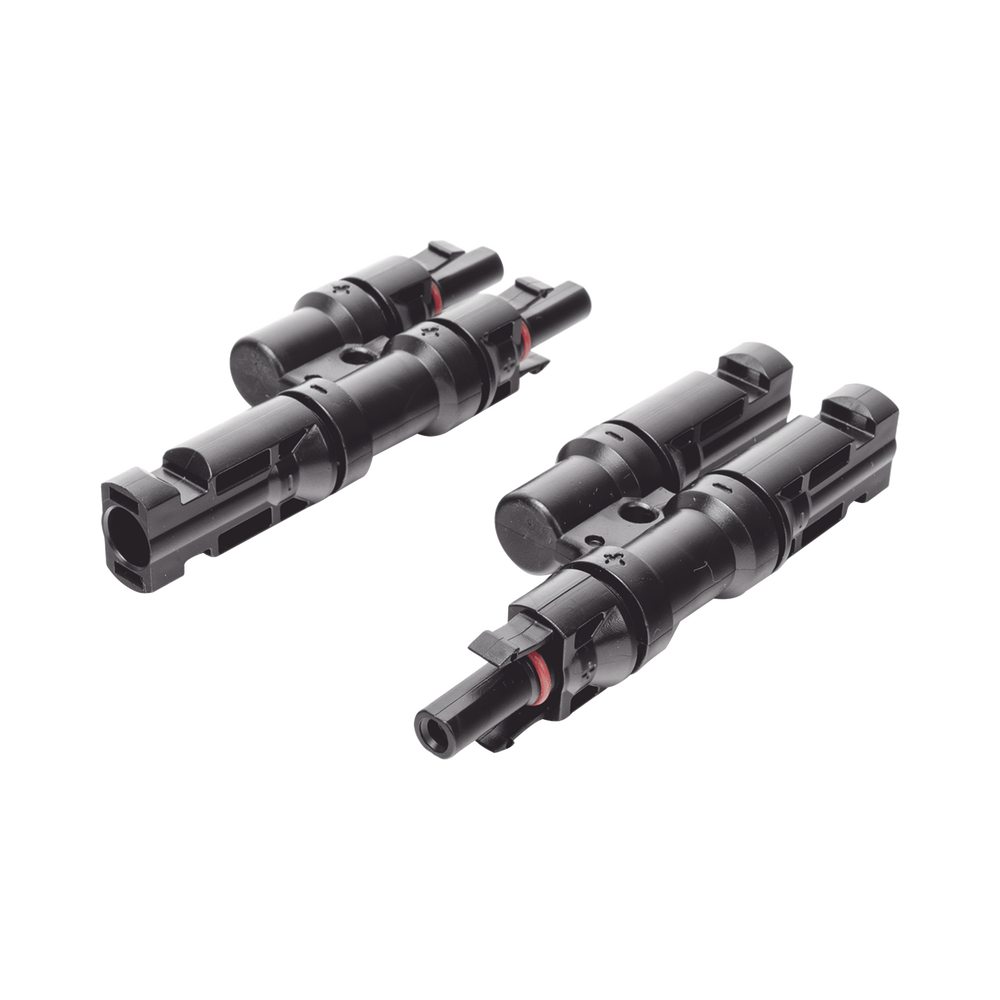

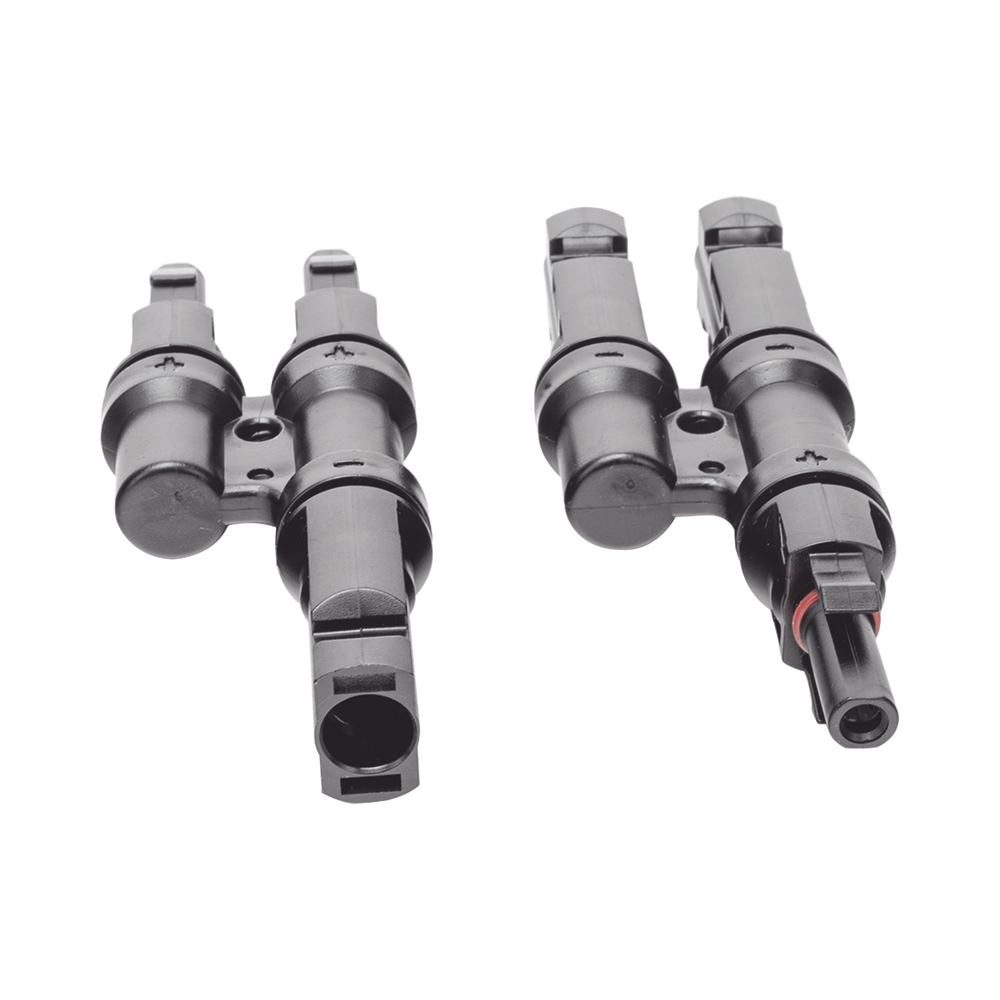

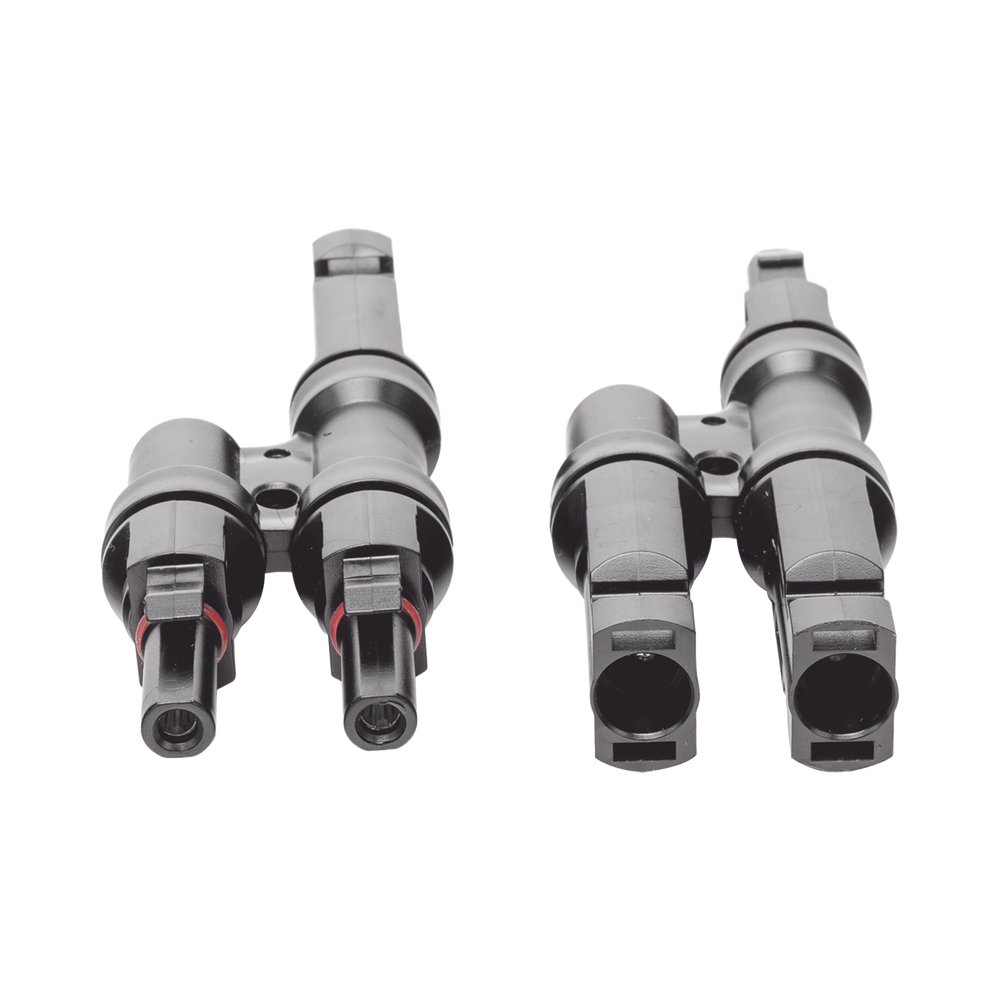

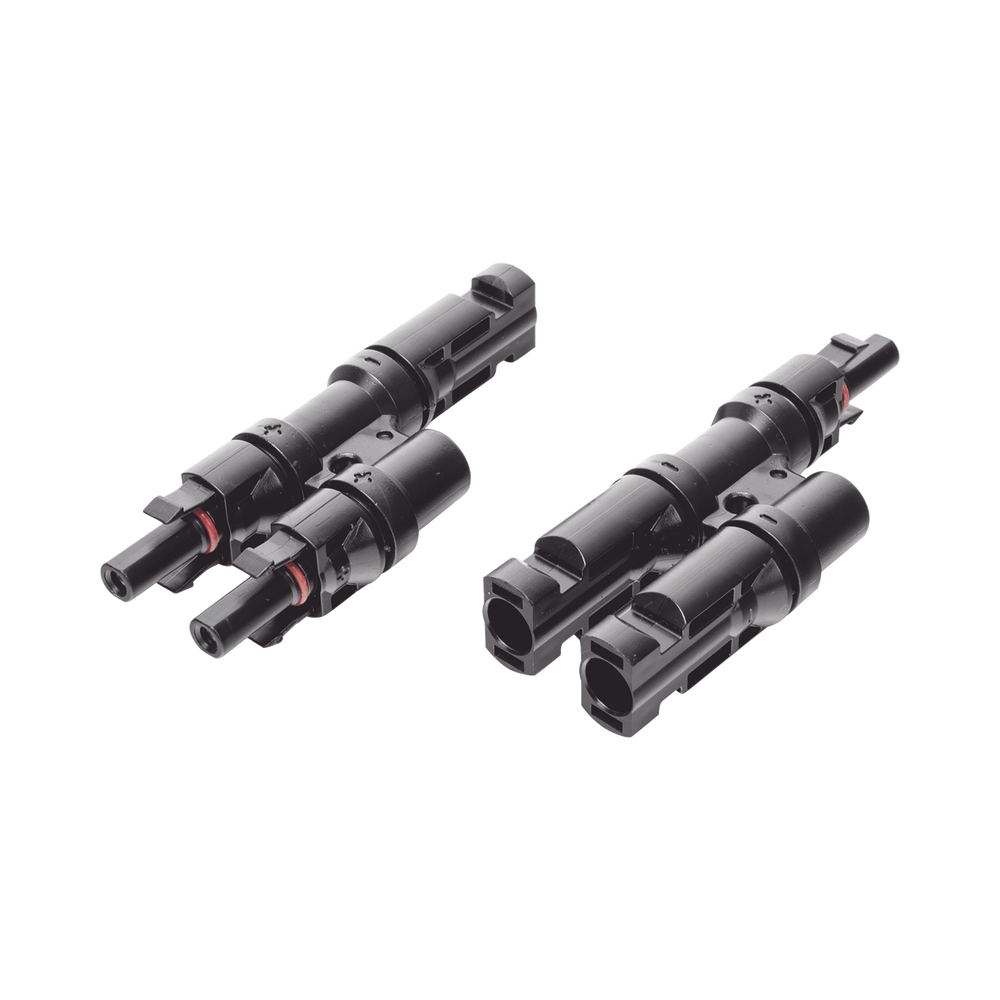

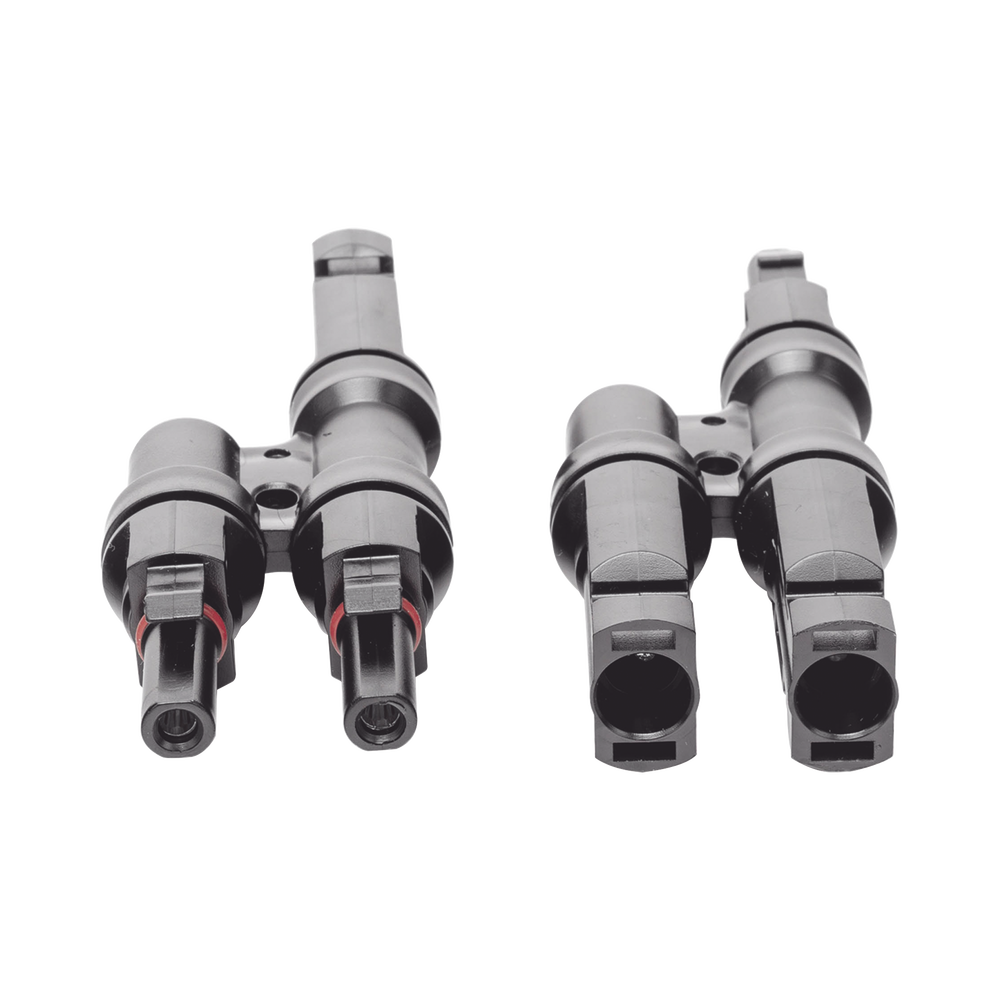

PROSECB-02
Technical specification: • Maximum working voltage: 1000 Vdc. • Nominal current: 30 A. • Flame class: UL94-V0. • Pollution level: 2. • Contact resistance: ≤5 mmΩ. • Protection level: IP67. • Connection line specification: 4 mm2. • Ambient temperature range: -40 to 85 ºC. • Security level: class II. • Insertion force: ≤50 N. • Extraction force: ≥50 N.
