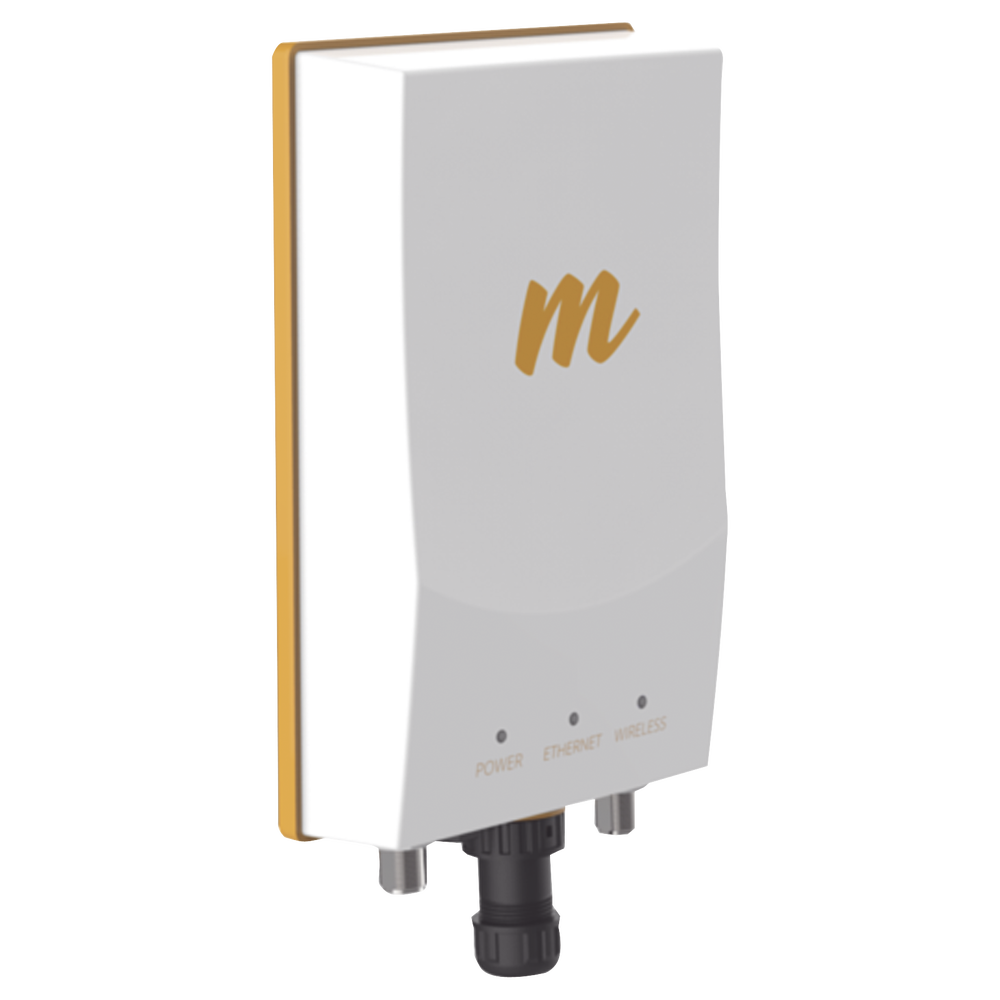

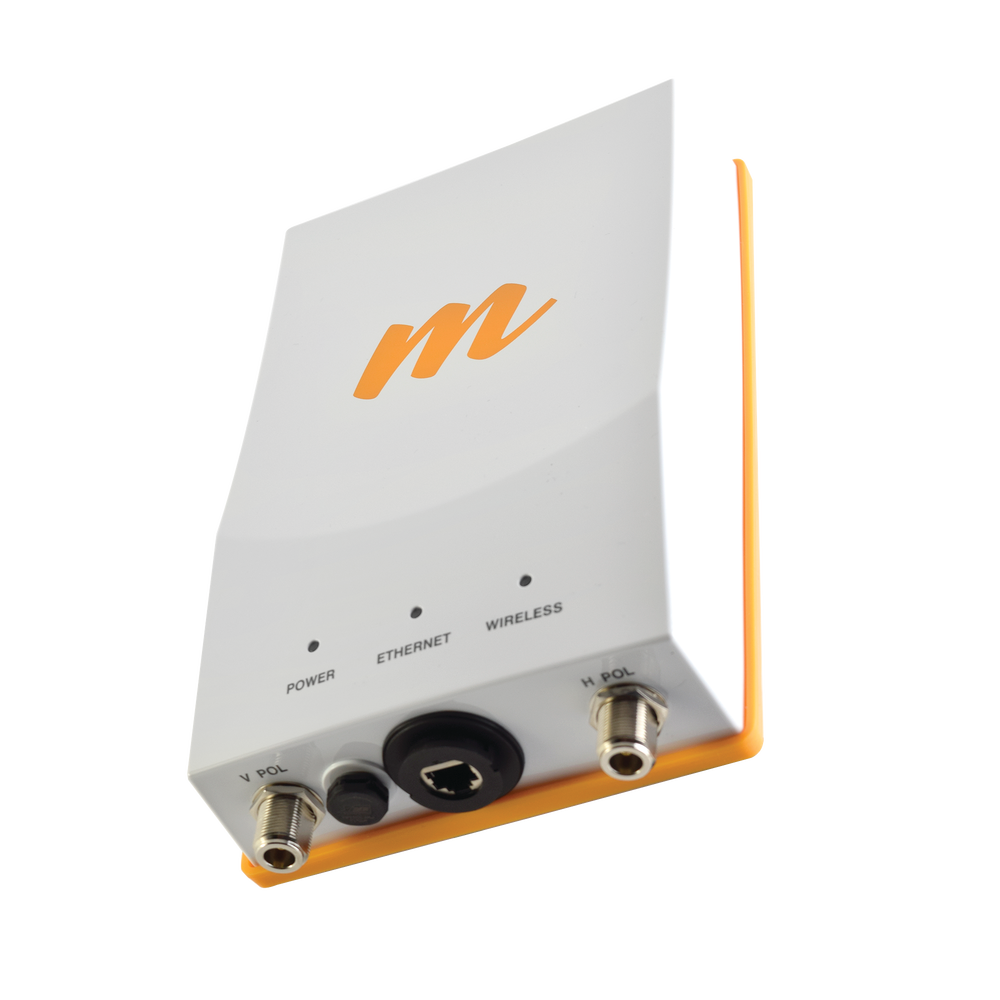

PTP Backhaul Radio, 4X4 MIMO, 4.9 - 6.2 GHz, IP67, Speed ​​up to 1.5 Gbps, Automatic adaptation to the environment, Monitoring via the cloud

Ports:

1 10/100/1000 Mbps data port.

Modes of operation :

PTP:

• Access point.
• Season.

Characteristics :

Adjustable channel widths:

• PtP: single or dual 20/40/80 MHz

Outdoor ingress protection rating : IP67

Maximum performance:

• PTP 1.5 Gbps Aggregate IP UL/DL (1.7 Gbps PHY)

Security

• 128-bit AES PSK with hardware acceleration

Frequency range

• PTP: 4.9 to 6.2 GHz

Maximum output power :

• 30 dBm (2 chains)
• 27 dBm (4 chains)

Management services:

• Mimosa cloud monitoring and HTTPS handling of legacy SNMPv2 and Syslog monitoring

Physical and electrical characteristics:

• Passive PoE power supply (48 -56 Vdc 1.2 A.).
• Maximum power consumption: 20 W.

Dimensions :

• Depth: 267 mm
• Width: 158 mm
• Height: 74 mm

Connector Type : N-Female Connector

Weight : 1.6 gr.

Operating temperature : -40 to 55 °C.

includes POE injector

Note : the equipment already includes an internal surge protector, it is recommended to land on a physical ground.

APPLICATIONS

Long-Range Network Custom Colocation Design Licensed Public Safety Operation (4.9 GHz) High Reliability

ULTRA RESISTANT

The operator-grade IP67 design allows the B5 and B5c to withstand the harshest environmental conditions.

DOUBLE RELIABILITY

Unlicensed spectrum can be unpredictable. Therefore, Mimosa custom-designed a unique multi-channel, automatic technology to protect your links when you encounter interference. The B5 and B5c automatically maintain your links with two independent operating channels, and adapt using our auto-all technology to proactively resolve issues to deliver optimal link speed and reliability. It's like two smart links in one radio!

INCREDIBLY FAST. INCREDIBLY FLEXIBLE.

Awarded the industry's fastest unlicensed backhaul, the B5 and B5c also offer extensive bandwidth control options. Dynamic modes automatically adapt to traffic demand and provide ultra-low link latency of ~1 ms for confidential voice and video communications services. Reserved bandwidth and GPS synchronization modes enable symmetrical or 75/25 reservation in traffic direction.

MONITOR WITH EASE AND MUCH MORE

Immediately after installation, your links are ready to be monitored via the free Mimosa Cloud service. With extensive data collection and analysis, assessing link health and identifying potential issues has never been easier.

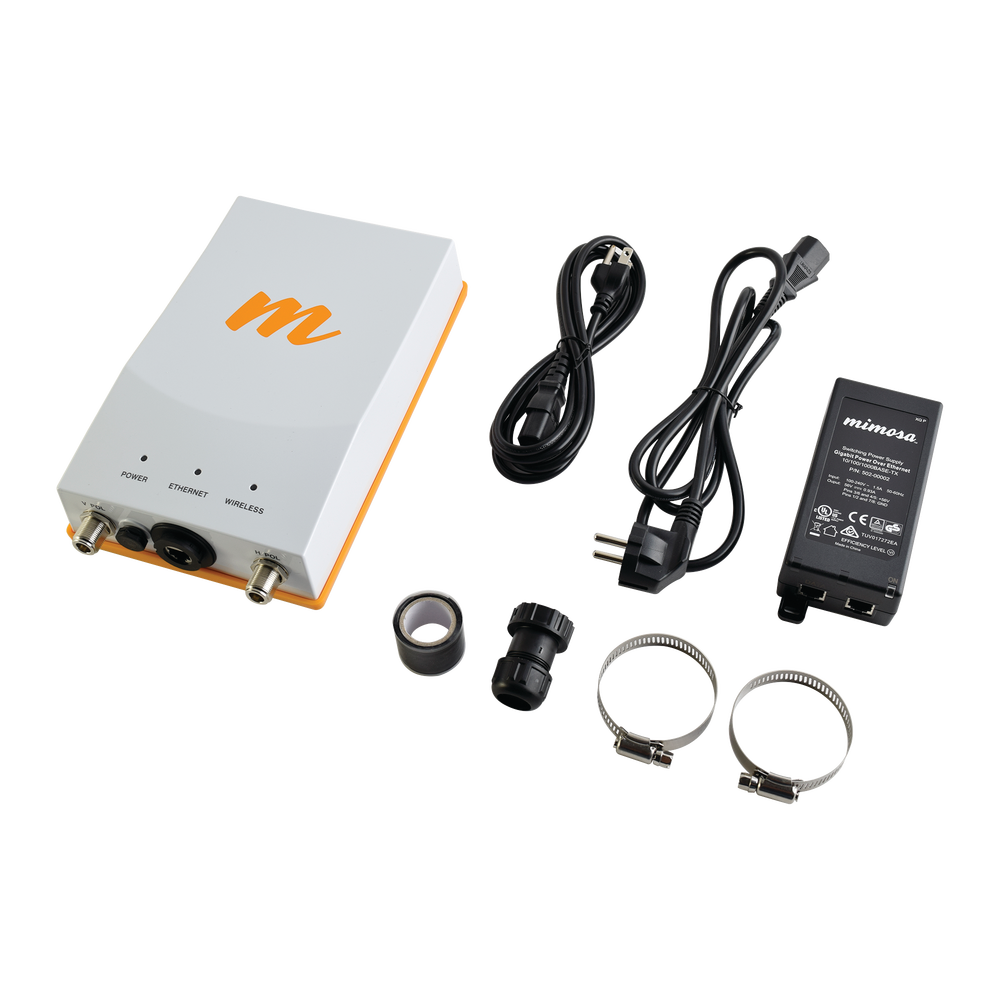

Includes mounting and PoE injector, D
