Unmanaged Industrial PoE Switch with 4 PoE Ports 10/100/1000T 802.3at, 2 10/1000X SFP Ports

Unmanaged Industrial PoE Switch with 4 PoE Ports 10/100/1000T 802.3at, 2 10/1000X SFP Ports

$1.936.446 COP
$2.117.988 COP $1.936.446 COP
Sale Sold out
Shipping calculated at checkout.

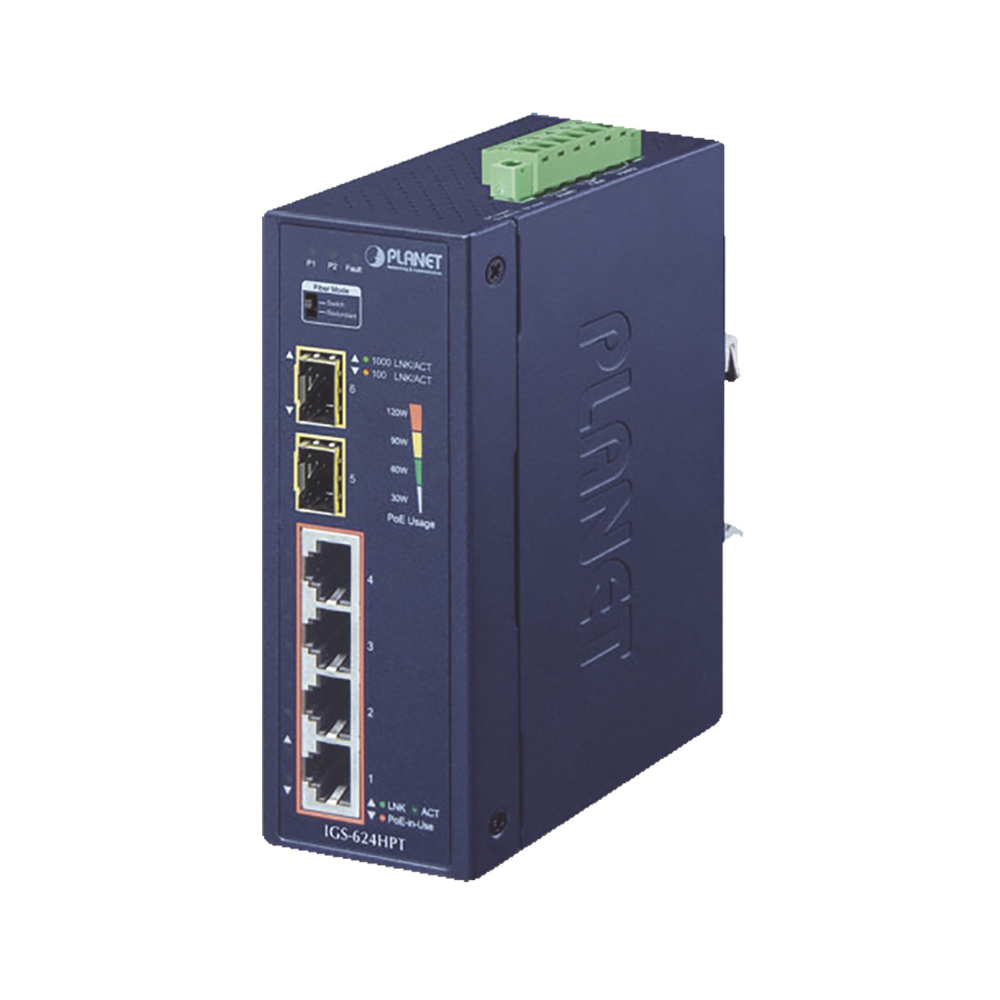

Unmanaged Industrial PoE Switch with 4 PoE Ports 10/100/1000T 802.3at, 2 10/1000X SFP Ports



Industrial-grade PoE+ switch for building automation and security

Perfect integration solution for PoE IP cameras and NVR systems


Hardware specifications

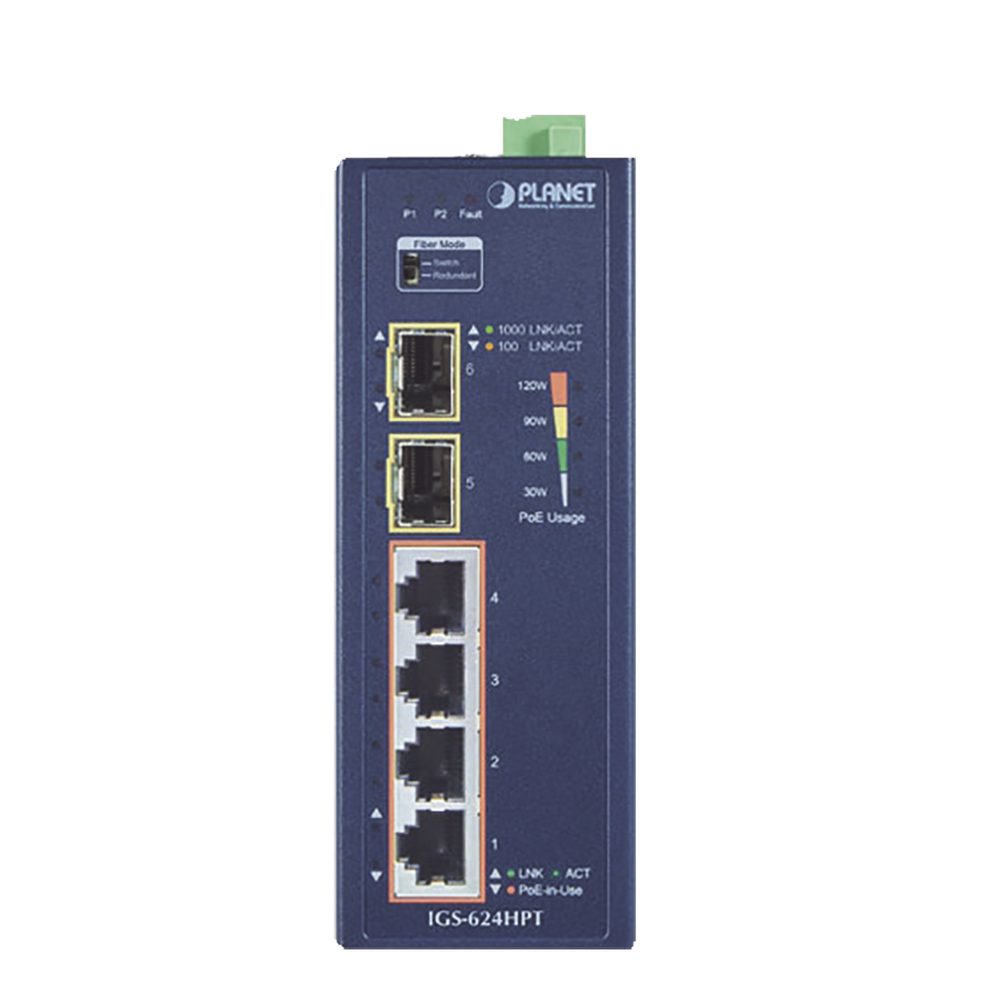

Copper ports 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE injector ports Four ports with 802.3at PoE+ injector function (port 1 to port 4)
SFP slots (auto-sensing) Two 1000BASE-SX/LX/BX SFP interfaces (port 5 to port 6)
Compatible with 100BASE-FX SFP
Dip Switch Switch (default) / Fiber redundant mode
Alarm Provides a relay output for power failures
Alarm relay current carrying capacity: 1A at 24V DC

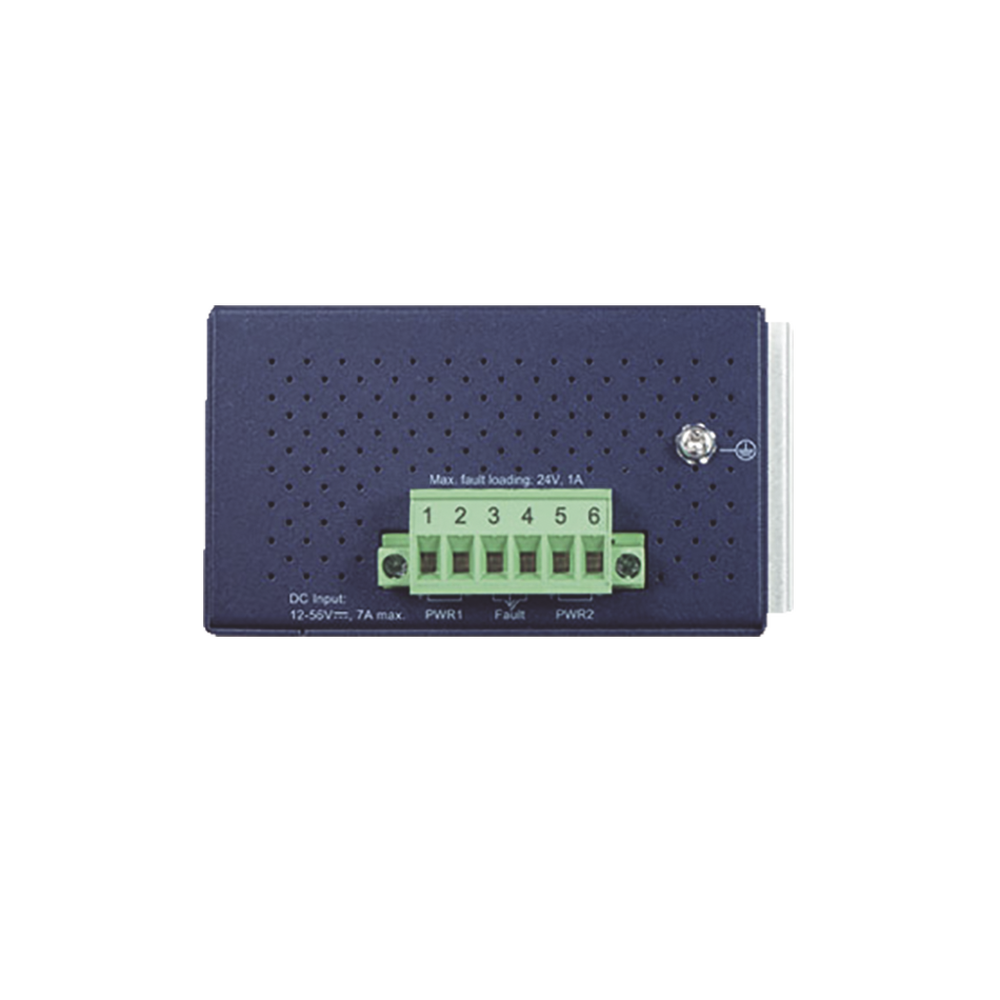

Energy requirements

(Voltage source not included)

 12~56V DC, 7A (Max.)
Redundant power with reverse polarity protection
Energy consumption Max. 7.02 Watts / 24 BTU
(full Ethernet load)
Max. 130.6 Watts / 445 BTU
(Ethernet + PoE full load)
Dimensions ( W x D x H ) 32 x 87 x 135 mm
Weight 657 g
Housing IP40
Facility DIN Rail Kit, Wall Mount Kit
PoE Standard IEEE802.3at
PoE power supply type End-Span
PoE power output IEEE 802.3af Standard
- Per port 48V ~ 51V DC (depending on power supply), max. 15.4 Watts
IEEE 802.3at Standard
- Per port 51V ~ 56V DC (depending on power supply), max. 36 Watts

PoE Power Budget (Max)

Entrance of
60 W at 12 Vdc input 90 W at 24 Vdc input
120 W at 48 V -56 V DC

Temperature

 - 40 to 75°C

Package contents

1 x IGS-624HPT Switch

1 x User Manual

1 x DIN Rail Kit

1 x Wall mounting kit

4 x RJ45 Dust Cap

2 X SFP Dust Cap

    IP40-rated housing, real-time LED PoE usage indicators, DIN-rail or wall-mount design, redundant 12-56 Vdc power supply, reverse polarity protection, temperature ratings from -40 to 75°C

Out of stock

MODELO: IGS-624HPT
