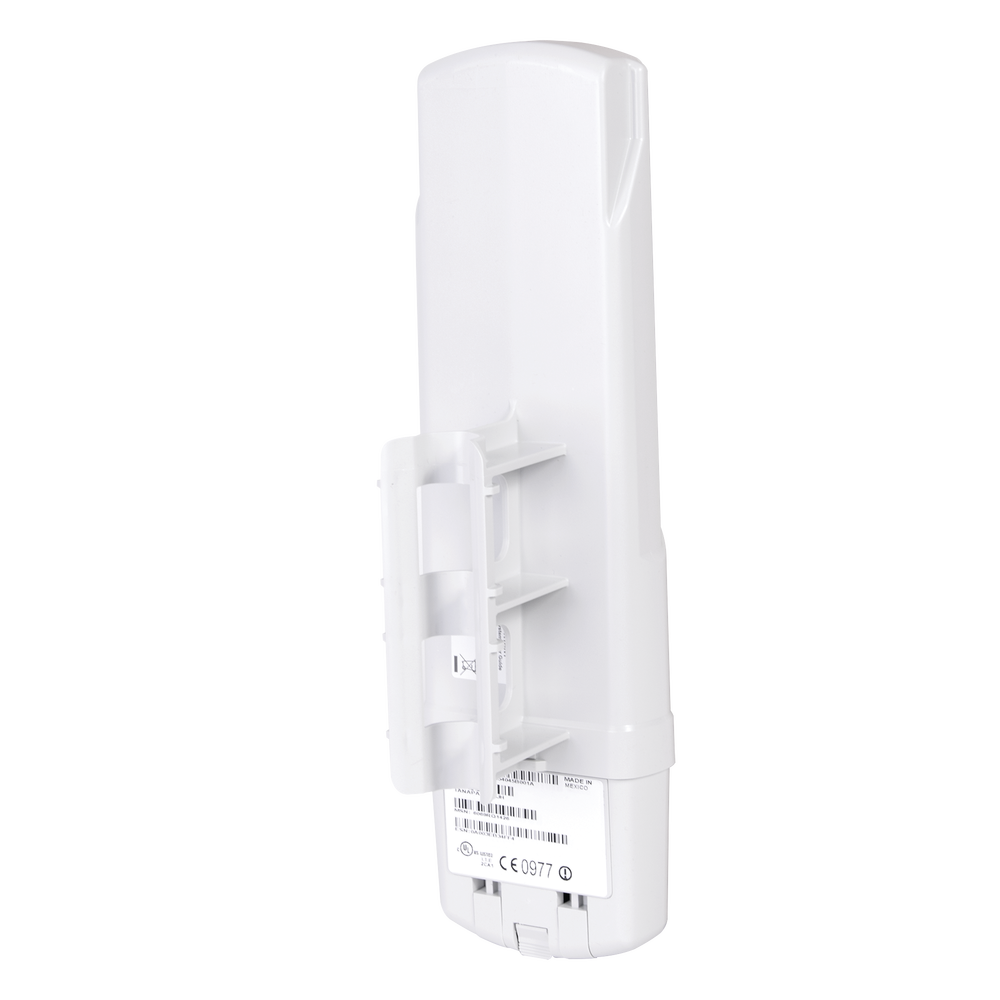

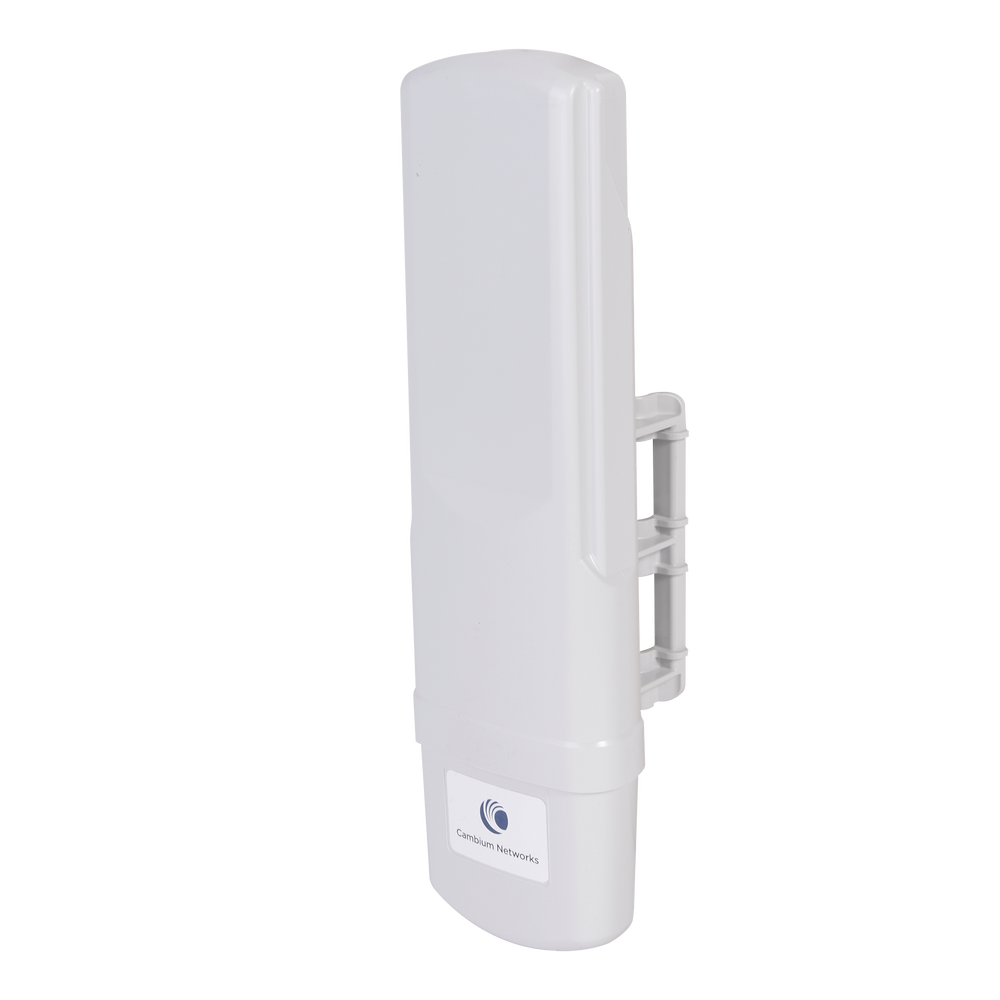

C054045B001 - PTP 450 Series - Point-to-Point (PTP) Link for Open-Use Bands with Integrated 9 dBi Antenna. IP55 Outdoor

C054045B001 - PTP 450 Series - Point-to-Point (PTP) Link for Open-Use Bands with Integrated 9 dBi Antenna. IP55 Outdoor

• 160 mW.
• 125 Mbps REAL
• 5.470 - 5.725 GHz / 5.725 - 5.875 GHz (selectable by configuration).
• Proprietary OFDM modulation.
• Interference Mitigation.
• Optional GPS synchronization (requires additional equipment).
• TDD (Time Division Duplex) technology.
• Range of up to 7 km with integrated antenna, 29 km with AN500A antenna and up to 50 km with 23 dBi reflector antenna.
• Channel width 10/20 MHz.
• Supports QoS, 802.11ad (DVLAN Q-in-Q), 802.1Q, 802.1p.
• QPSK modulation to 64-QAM.
• Operating temperature -40 to 55 °C.
• 56-bit DES encryption (128-bit AES optional).
• Power supply 24 - 30 V DC (requires PoE); maximum consumption: 9 W (at 30 V DC).
• Dimensions: 300 x 90 x 90 mm / Weight: 450 g.

Single Radio (requires 2 devices for a link)

Warranty: 1 Year
