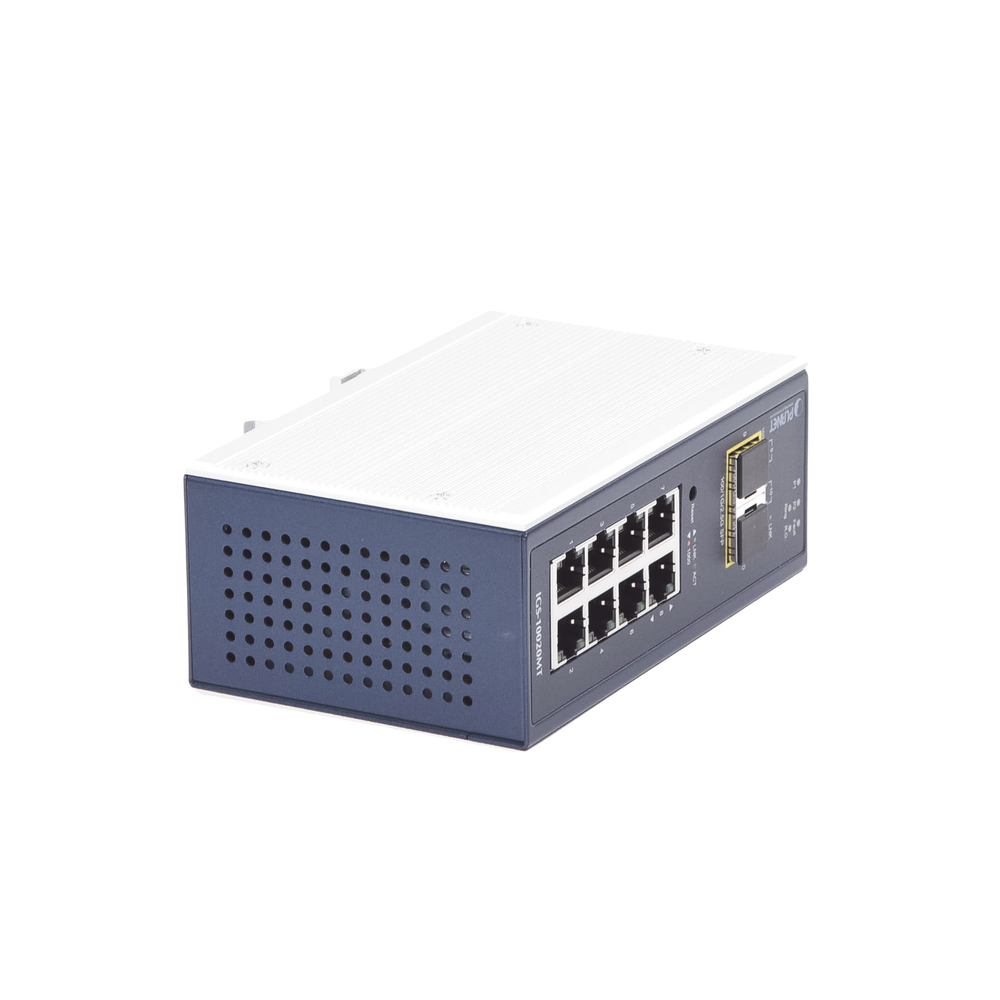

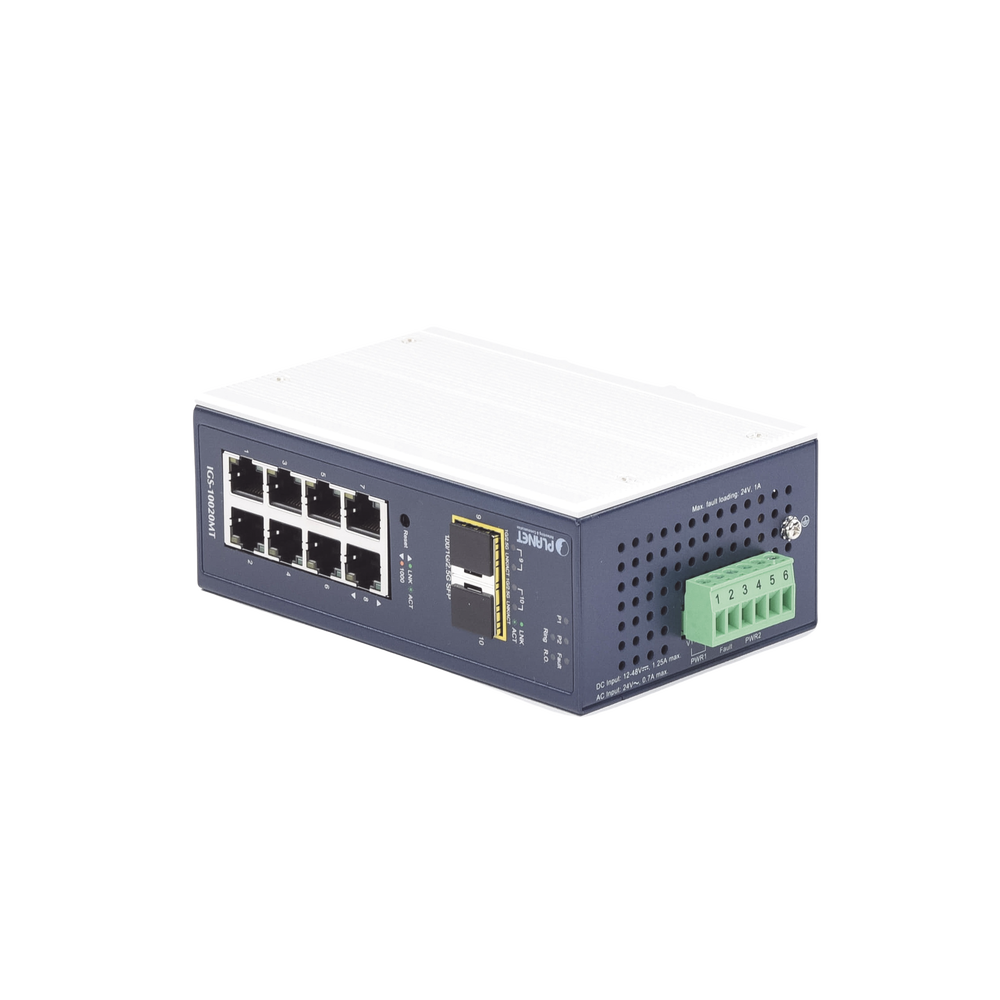

Industrial Manageable Layer 2 Switch, 8 Ports 10/100/1000T, 2 SFP Ports 1G / 2.5 G BASE

Industrial Manageable Layer 2 Switch, 8 Ports 10/100/1000T, 2 SFP Ports 1G / 2.5 G BASE

$1.735.764 COP
$1.898.492 COP $1.735.764 COP
Sale Sold out
Shipping calculated at checkout.

Industrial Manageable Layer 2 Switch, 8 Ports 10/100/1000T, 2 SFP Ports 1G / 2.5 G BASE

Applications

Redundant ring, fast recovery

for surveillance systems

Managed switches for data collection and forwarding

Fault alarm alerts

Hardware specifications

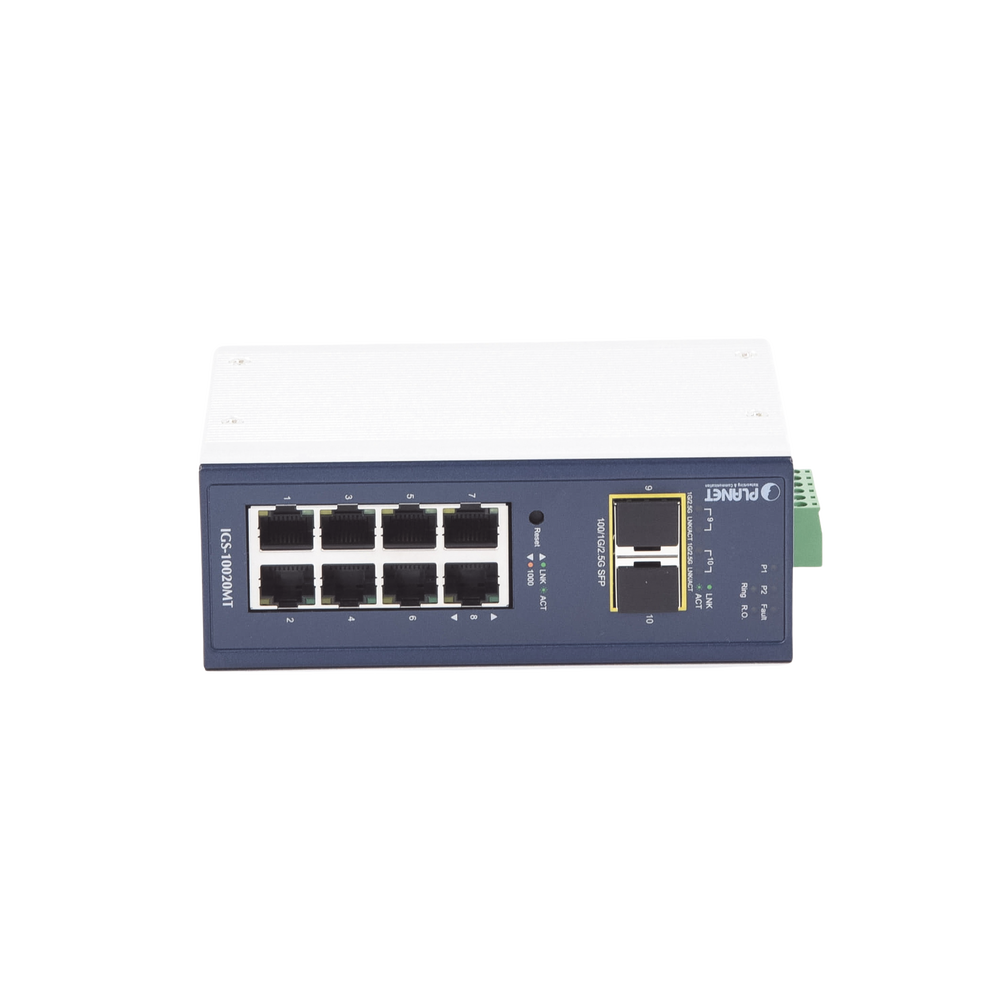

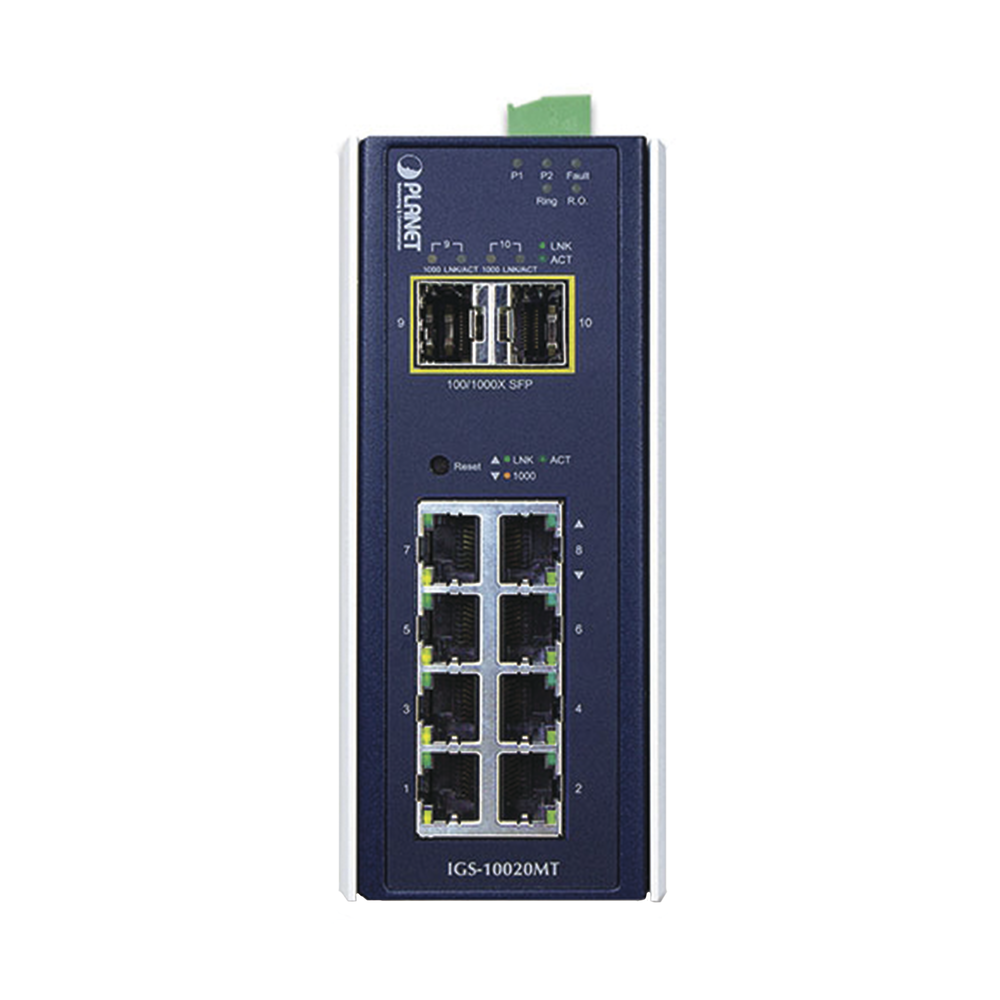

Copper ports 8 ports 10/100/1000BASE-T RJ-45 Auto-MDI/MDI-X
SFP / mini-GBIC slots 2 mini-GBIC SFP ports 100/1000/2500BASE-X (Port-9 and Port-10)
Housing IP30

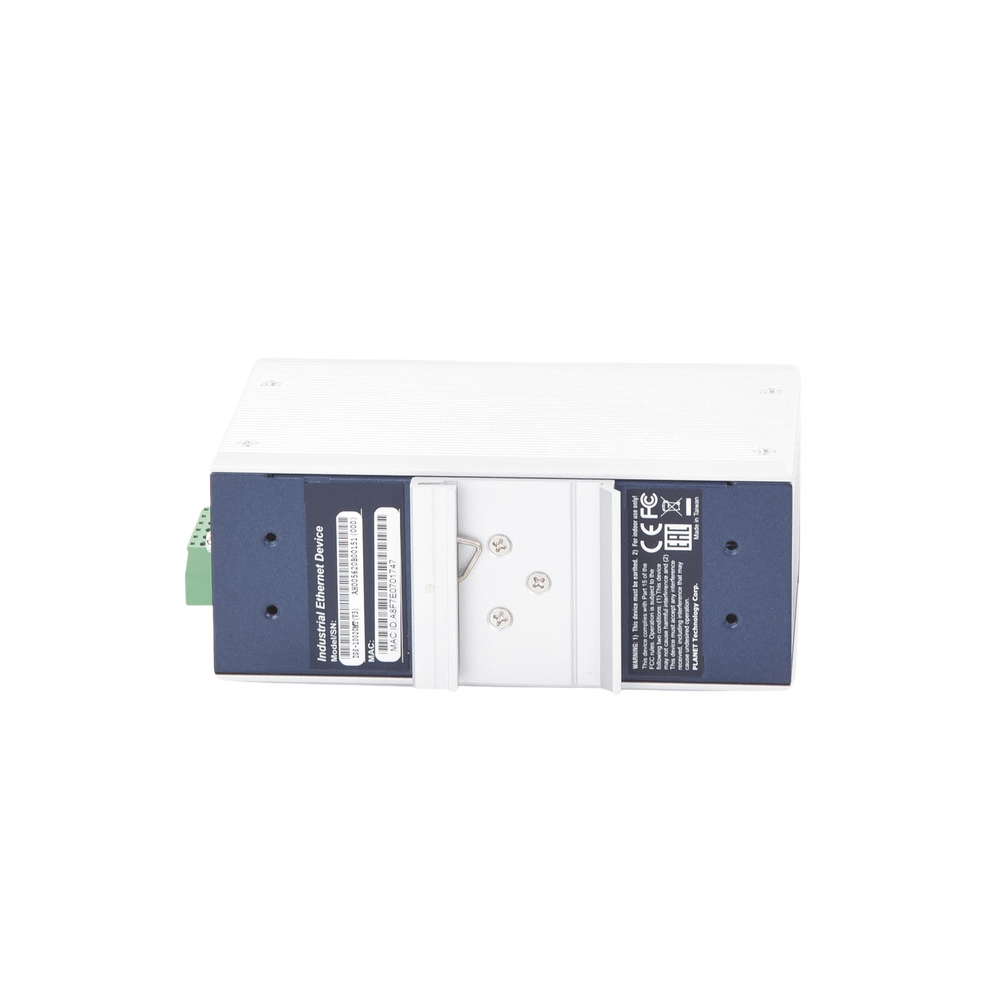

Facility DIN rail kit and wall mount kit
Alarm A power failure relay output.
Alarm relay current carrying capacity: 1 A @ 24 Vdc
Dimensions (W x D x H) 56 x 87.8 x 135 mm
Weight 720 g

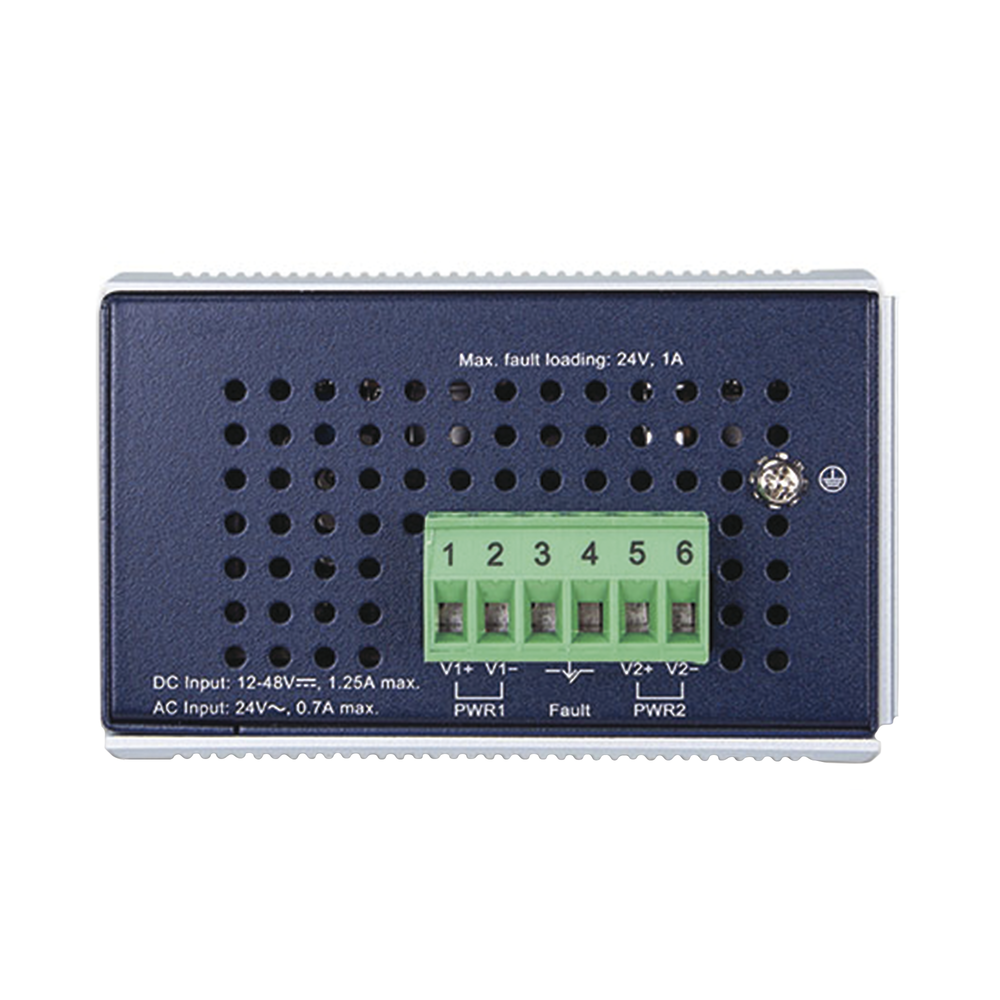

Voltage Input

(Voltage source not included)

 Dual 12 ~ 48 Vdc 24 Vac
Consumption
10 Watts / 34 BTU (full load)
Layer 2 function

Basic management interfaces Web browser, Remote Telnet, SNMP v1, v2c
Port configuration, port status, port, VLAN, Link Aggregation, QoS, IGMP Snooping, Access Control List, Bandwidth Control, SNMP MIBs
Layer 3 functions
IP interfaces Max. 8 VLAN Interfaces
Routing Table Max. 32 routing entries
Routing protocols
 		IPv4 Software Static Routing, IPv6 Software Static Routing
Temperature Temperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
Package contents

1 x IGS-10020MT Switch

1 x Installation Guide

1 x DIN Rail Kit

1 x Wall mounting kit

2 x SFP dust covers

8 x RJ45 dust covers

    IP30 rated housing, DIN rail or wall mount design, 12 to 48 V DC redundant power input, Reverse polarity protection, Temperature rating -40 to 75°C, Layer 3 IP routing capabilities

39 in stock

MODELO: IGS-10020MT
