48VDC 240W industrial power supply for DIN rail mounting

Ideal 48V DC power supply solution for industrial PoE equipment

Single output DC DIN rail industrial power supply units provide sufficient 48V power for industrial PoE equipment, such as industrial PoE Ethernet switches and industrial PoE wireless access points. The model name and specification are as follows:

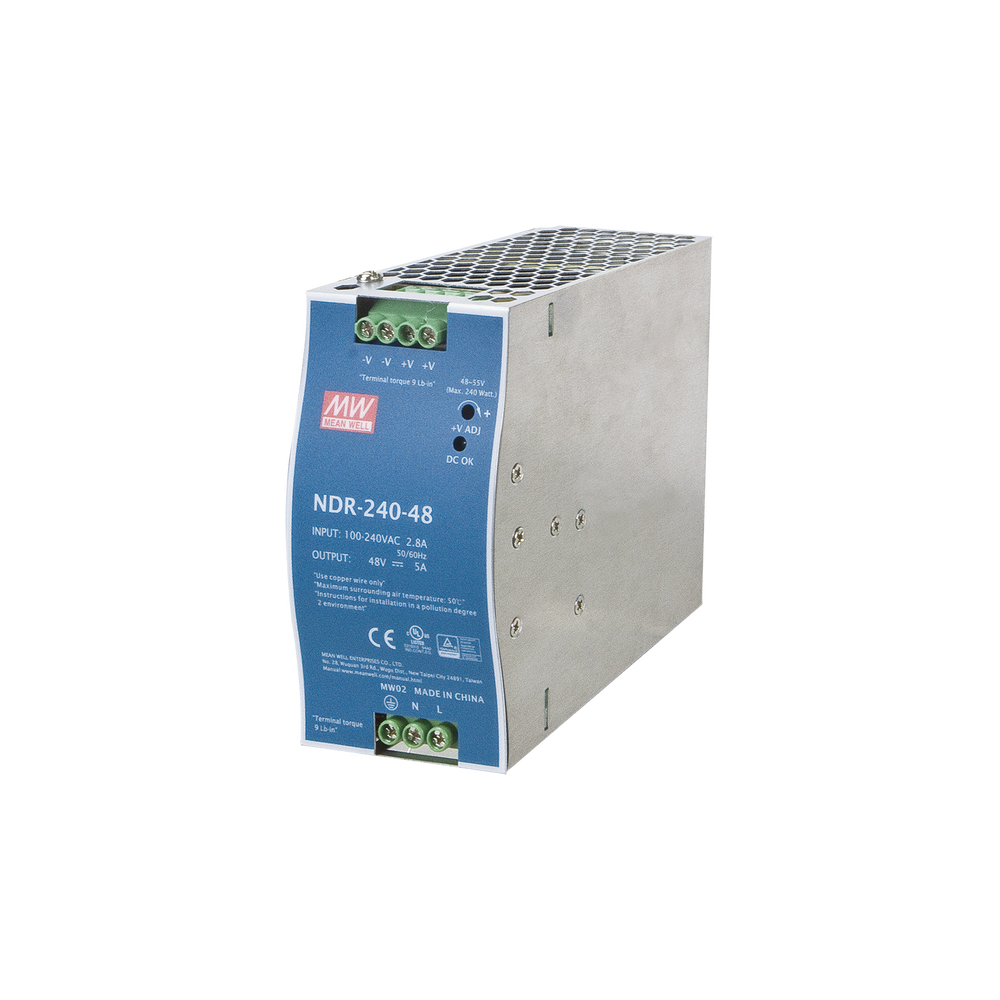

PWR-240-48 (MEANING - NDR-240-48):

• • 240W 48V DC Single Output DIN Rail Industrial Power Supply (-20~70 Degree C)

Exit:
Output voltage: 48VDC.
Current: 5A.
Power: 240W.
Adjustable voltage range: 48~53VDC.

Entrance:
Input voltage: 85~264VAC.
Frequency range: 47~63Hz.
Power factor: 0.99/115VAC, 0.96/230VAC.
Efficiency: 85%.
AC current: 2.8A/115VAC, 1.4A/230VAC.

Protection:
It shuts down automatically and recovers once the fault is corrected.
Over-load: 105~150%.
Over-voltage: 54~60V.
Over-temperature.

Physical characteristics:
Operating temperature: -10 ~ 70ºC
Dimensions: 125.5 x 125.2 x 100 mm.
Weight: 1.2 Kg.

Approvals:
UL508, UL60950-1, TUV 60950-1, EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,3, EN61000-4-2-,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2) High level industrial, Criterion A.

*Cables Not Included

Universal AC input for full operation, Built-in active PFC function, Protection functions: short circuit, overload, over voltage and over temperature., Cooling by free air convection, Installation on TS-35/7.5 or 15 DIN rail, UL 508 approved (industrial control equipment), Industrial immunity level EN61000-6-2 (EN50082-2), Burn-in test at 100% full load
