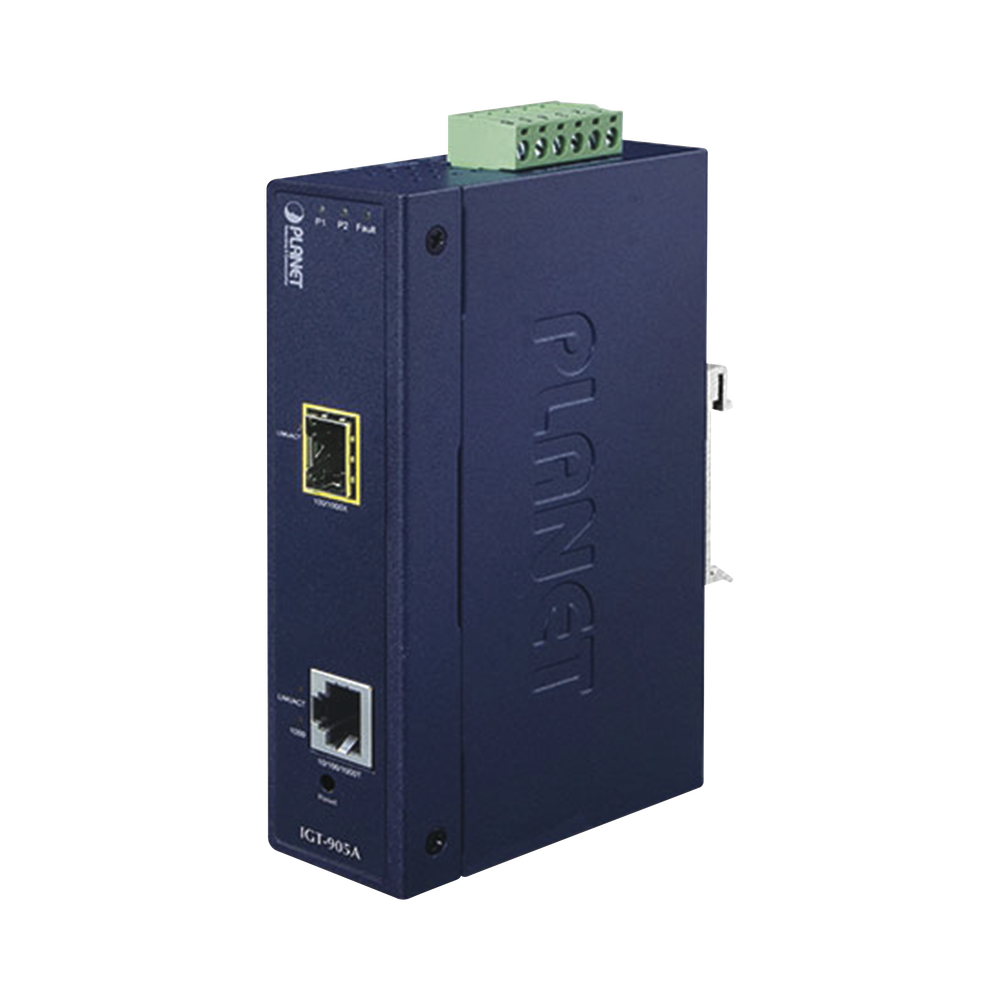

Convertidor de Medios Industrial Administrable,  Puerto Ethernet 10/100/1000 BASE-T a  Puerto SFP 100/1000X

Industrial Managed Media Converter, 10/100/1000 BASE-T Ethernet Port to 100/1000X SFP Port

Sale price  $827,230 Regular price  $1,020,717
Skip to product information
Convertidor de Medios Industrial Administrable,  Puerto Ethernet 10/100/1000 BASE-T a  Puerto SFP 100/1000X

Industrial Managed Media Converter, 10/100/1000 BASE-T Ethernet Port to 100/1000X SFP Port

Sale price  $827,230 Regular price  $1,020,717
Shipping calculated at checkout.
Marca
PLANET
Referencia / SKU
IGT-905A
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Industrial Managed Media Converter, 10/100/1000 BASE-T Ethernet Port to 100/1000X SFP Port

Common applications

The IGT-905A offers high reliability and safety to ensure that industrial operation in complex environments with extremely low or high temperatures can operate stably.

Specs

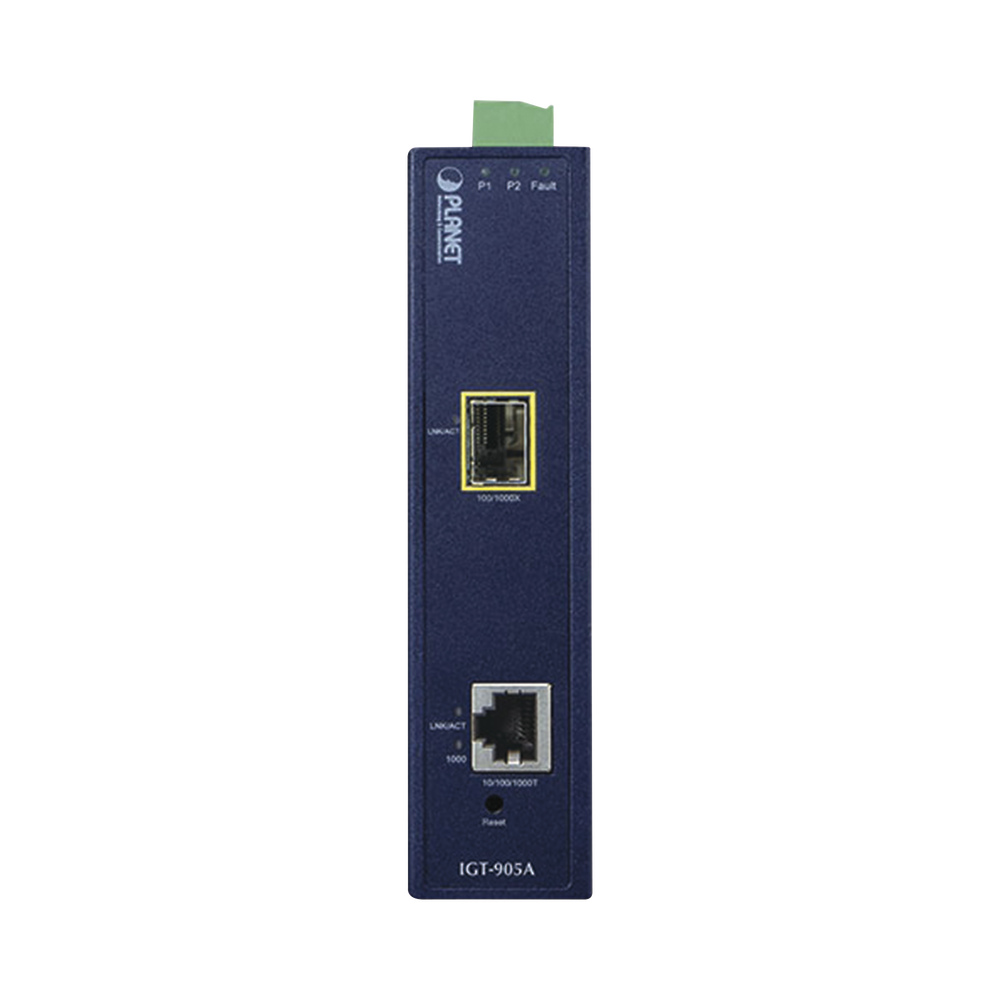

Copper interface 1 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
Optical interface SFP
Wire
Twisted pair
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 m
100BASE-TX: 2-pair UTP Cat. 5, up to 100 m
1000BASE-T:

  • Cat 5.6 4-pair STP fiber optic cable up to 100 m

  • 50/125 μm or 62.5/125 μm multimode fiber cable, up to 220/550 m.

  • 9/125μm single-mode cable, extending long distances up to 10/20/40/60/80/120km (varies depending on the fiber transceiver or SFP module)

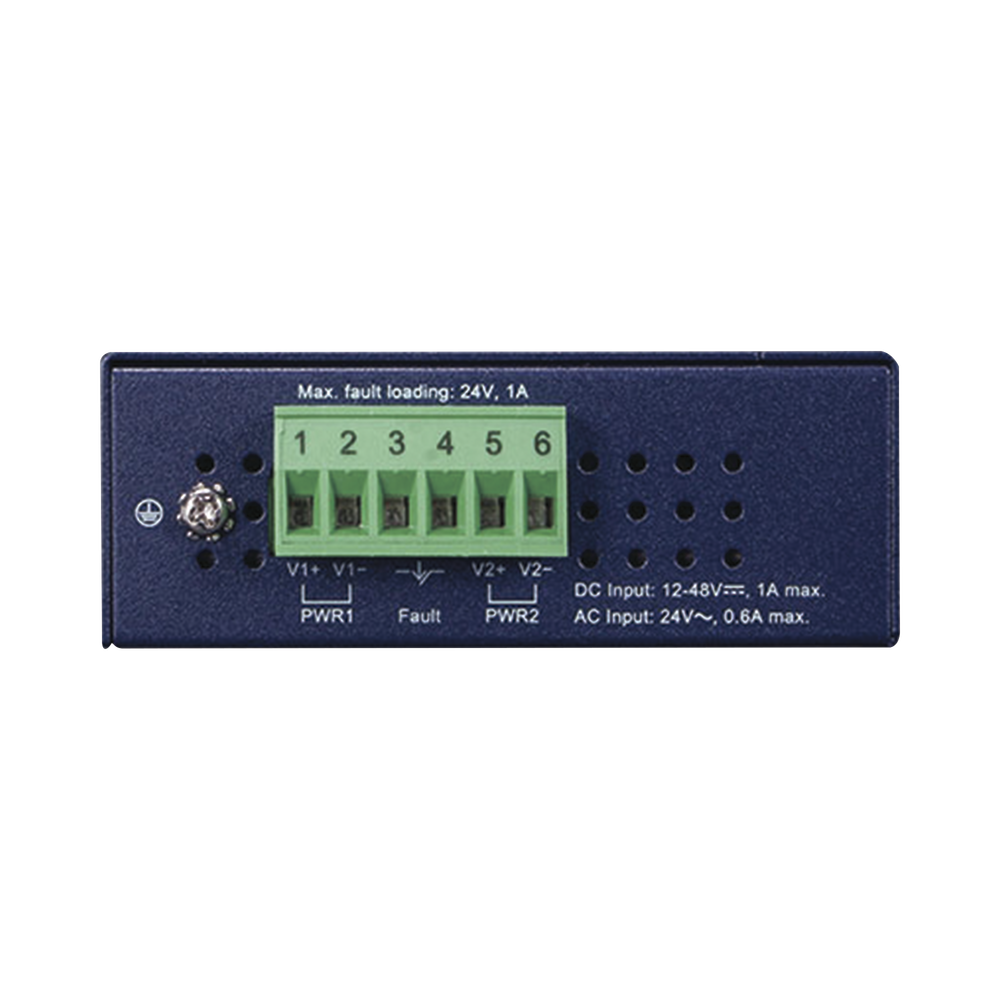

Power input

(Power supply not included)

DC 12 Vdc to 48 Vdc

With redundant source.

Reverse polarity protection

Energy consumption 7.9 Watts / 27 BTU (maximum)
Operating environment Temperature: -30~75 degrees C
Humidity: 5 ~ 90% non-condensing
Dimensions 135 x 85 x 32 mm
Weight 423 g
Facility DIN Rail and Wall Mount Ear Kit
Layer 2 management functions

Management Interface, Port Configuration

IEEE 802.1q tag-based VLAN, 4K

VLAN ID, up to 16 VLAN groups
Q-in-Q VLANQoS, Bandwidth Control

Package Included:

1 x IGT-905A Media Converter

1 x Installation Guide

1 x Wall mount

1 x DIN rail mount

    Dual input for redundant power, Temperature withstands -30 to 75°C, IP30 rated housing, Wall or DIN rail mount, Built-in IP-based web interface for remote management, VLAN support
