Hybrid Fire and Intrusion Panel, Up to 32 Wired or Wireless Zones, 24 V-Plex Zones, 2 Partitions, Compatible with AlarmNet and Total Connect

Hybrid Fire and Intrusion Panel, Up to 32 Wired or Wireless Zones, 24 V-Plex Zones, 2 Partitions, Compatible with AlarmNet and Total Connect

System
• UL, ULC, FM, CSFM and FDNY Listed
• Complies with NFPA 72
• 3 Expansion Technologies: Wired, Wireless, and Multiplexed
• 2 notification circuits of 1.7 A
• Programming by alphanumeric keyboard, software downloading.
• 31 peripheral devices such as keyboards, expansion modules and relays.
• Supports touch-sensitive keyboards.
• Entry time defined by the installer.
• 2 programmable entry and exit zones with different times.
• Automation functions.
• Auto arming and disarming function.
• Supports 4204 relay modules maximum 24.
• 512 events in memory. The memory can be read using COMPASS Download software in Spanish.
• 2 partitions
• Confirmation of arming and disarming.
• Telephone line cut detection.
• Auxiliary current of 600 mA.
• Power supply.

Zones
• 8 programmable zones, configurable with or without end-of-line resistor.
• 3 Expansion Methods: Wired, Wireless and Vplex.
• Zones can be configured for fast or slow response.
• Zones 1 and 2 support up to 16 2-wire smoke detectors each.
• Supports 4-wire smoke detectors.
• Supports up to 32 wireless zones by adding the Honeywell 5800 receiver.
• Maximum capacity of 24 Vplex Zones.
• Supports 4208U wired zone expansion module.
• 100% wireless system monitoring.
• Range of up to 60 m on the 5800 wireless series.
• Requires PL712 backup battery and 6160CR programmer keypad (Not included)

Users
• 75 user codes.
• 6 authority levels: Installer, Master, Standard, Guest, Arm Only, and Duress.
• Quick assembly system.
• 5 arming levels: full, partial, night, instant and maximum
• Open door notification (CHIME).

Communication
• Built-in telephone communicator for communication with the alarm receiving center.
• Supports 4+2 and CONTAC/ID communication formats.
• Supports dual and split reporting options.
• Compatible with 3i third-generation communication systems.

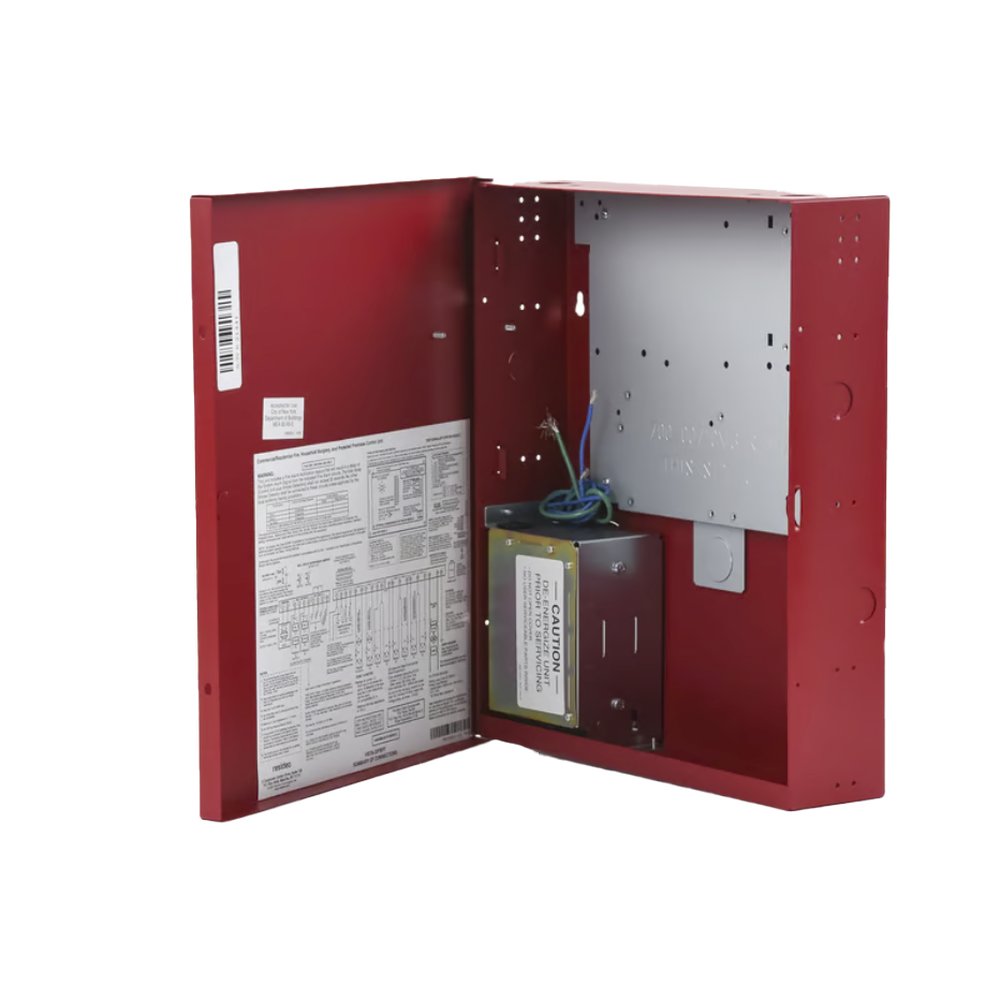

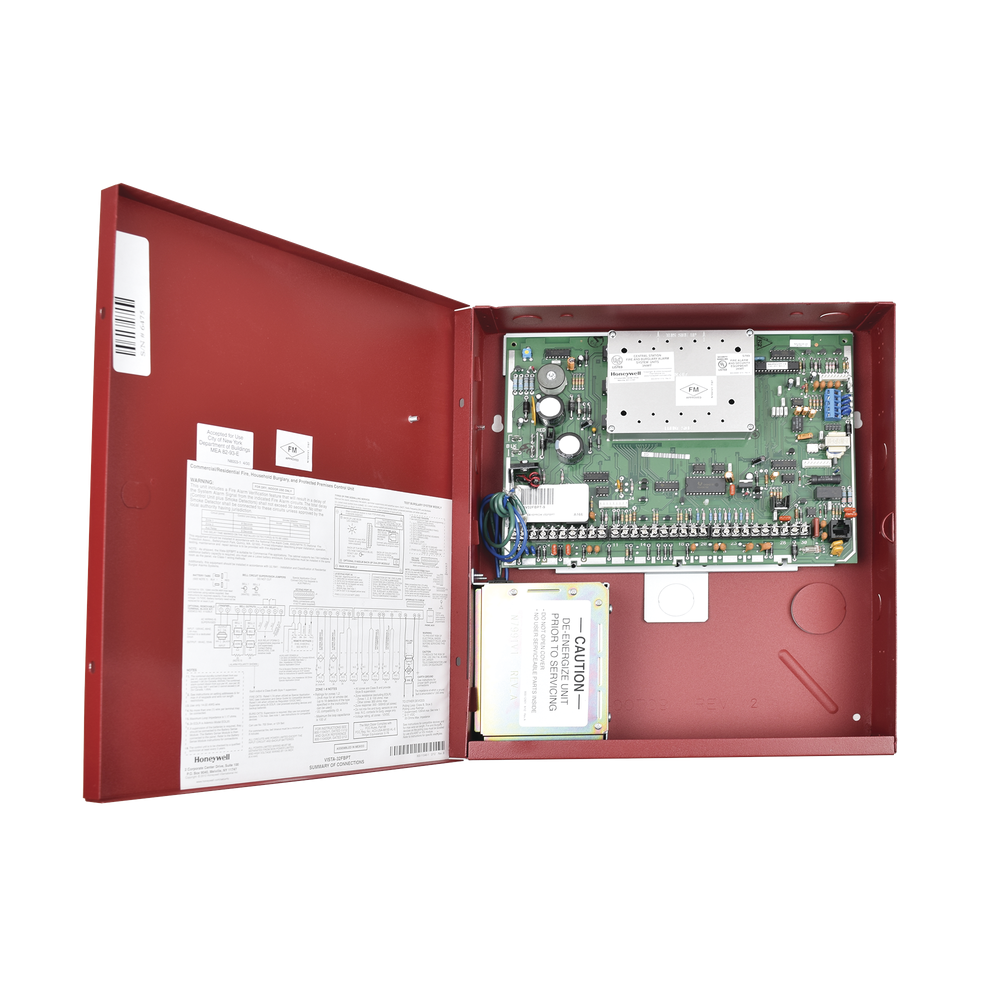

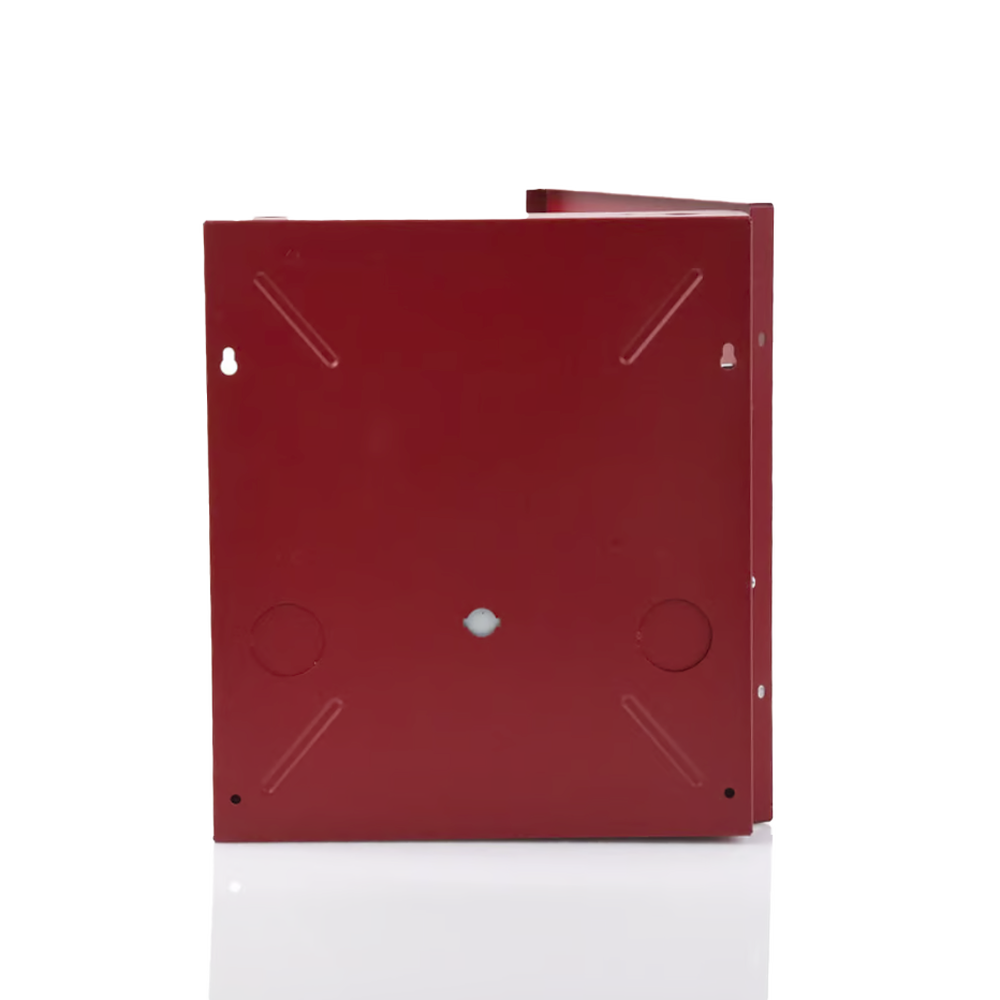

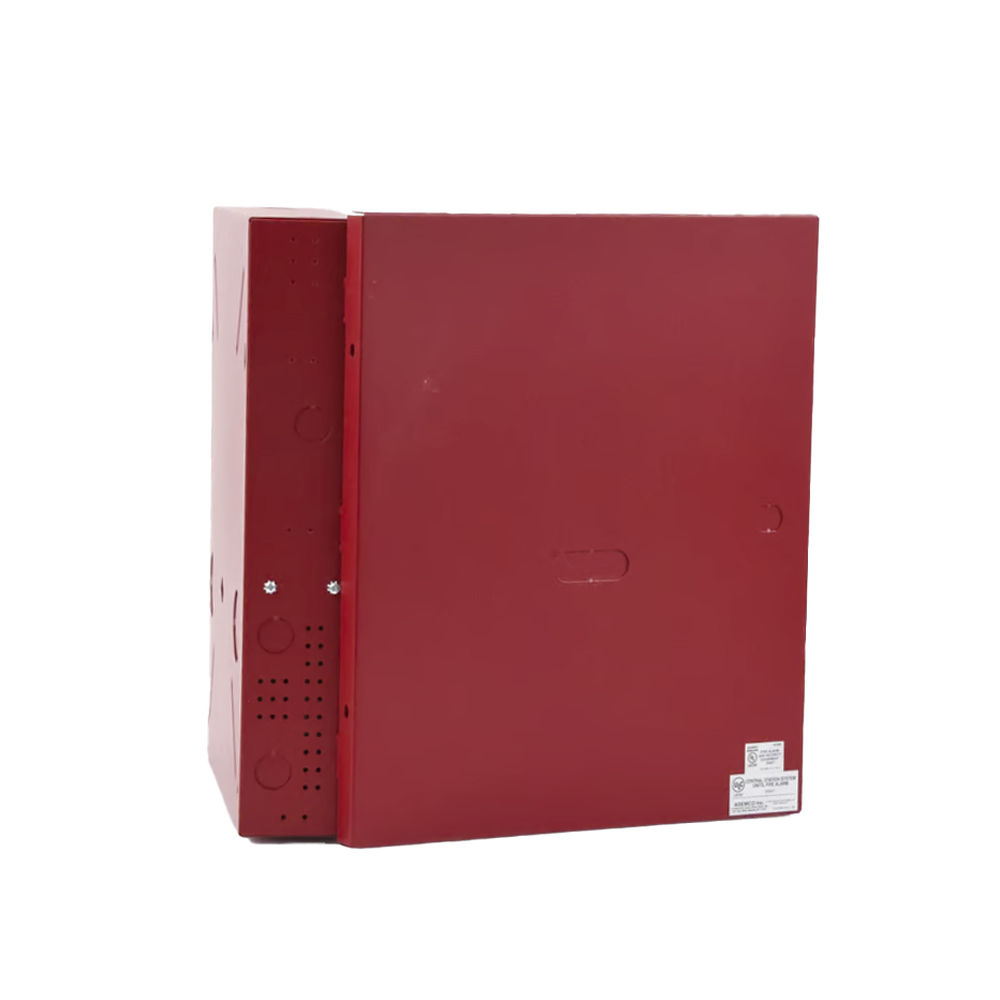

VISTA-32FBT control panel includes:
• 1 Card
• 1 Cabinet
• 1 Power supply

*Requires PL712 backup battery and 6160CR programmer keypad (Not included)
*1 Year Warranty
