• Convertidor de Medios Industrial Multimodo 10/100 Base-TX a 100 Base-FX, Interfaz SC
1 3

PLANET

Industrial Multimode Media Converter 10/100 Base-TX to 100 Base-FX, SC Interface

Industrial Multimode Media Converter 10/100 Base-TX to 100 Base-FX, SC Interface

$458.469 COP
$663.466 COP $458.469 COP
Sale Sold out
Shipping calculated at checkout.

Industrial Multimode Media Converter 10/100 Base-TX to 100 Base-FX, SC Interface

Common applications

With the IFT-80xT industrial media converter, which meets all the requirements of industrial applications, customers can enjoy high reliability, fast recovery capability, and secure Ethernet network operation.



Hardware specifications
10/100Base-TX port 1 RJ-45 auto-MDI / MDI-X port
100Base-FX port 1 SC interface
Fiber port type SC / multimode
Cable distance 2 km
Optical frequency 1310nm

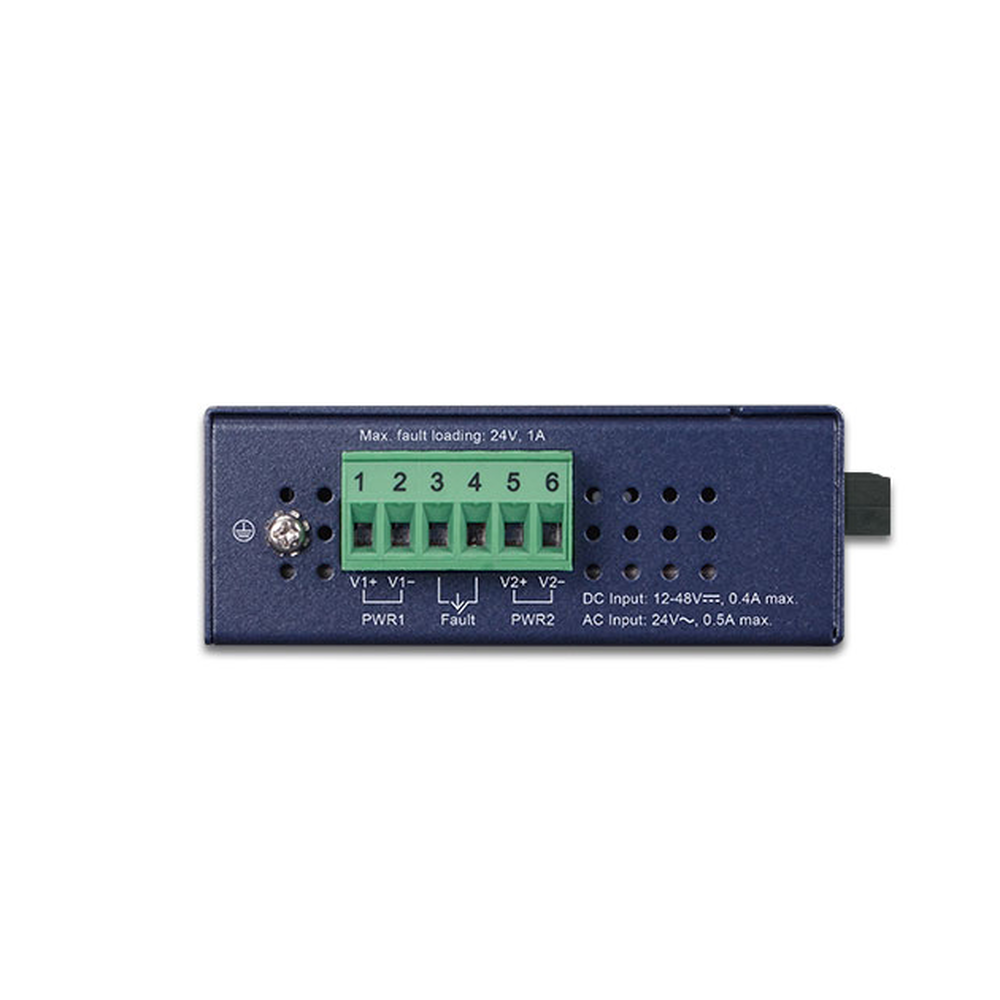

Power input

(power supply not included)

 Redundant 12 to 48 VDC power supply with reverse polarity protection function
Consumption 3 Watts / 10 BTU (maximum)
Speed

Twisted pair:

　 • 10/20 Mbps for Half/Full-duplex

• 100/200 Mbps for Half/Full-duplex

Optical fiber:

　 • 200 Mbps for Full-duplex

Dimensions 135 x 85 x 32 mm
Weight 430 g
Package contents

1 x IFT-802T

1 x User Manual

1 x DIN rail kit

1 x Wall mount

1 x screw kit



    Design for wall or DIN rail installation, 1 100Base-FX SC interface, providing a distance of up to 2 km, Redundant source from 12 to 48 Vdc, Withstands temperature from - 40 to 75°C

Out of stock

MODELO: IFT-802T
