Hybrid 1 FXS and 1 FXO Port Analog Telephone Adapter (ATA) with integrated router

Hybrid 1 FXS and 1 FXO Port Analog Telephone Adapter (ATA) with integrated router

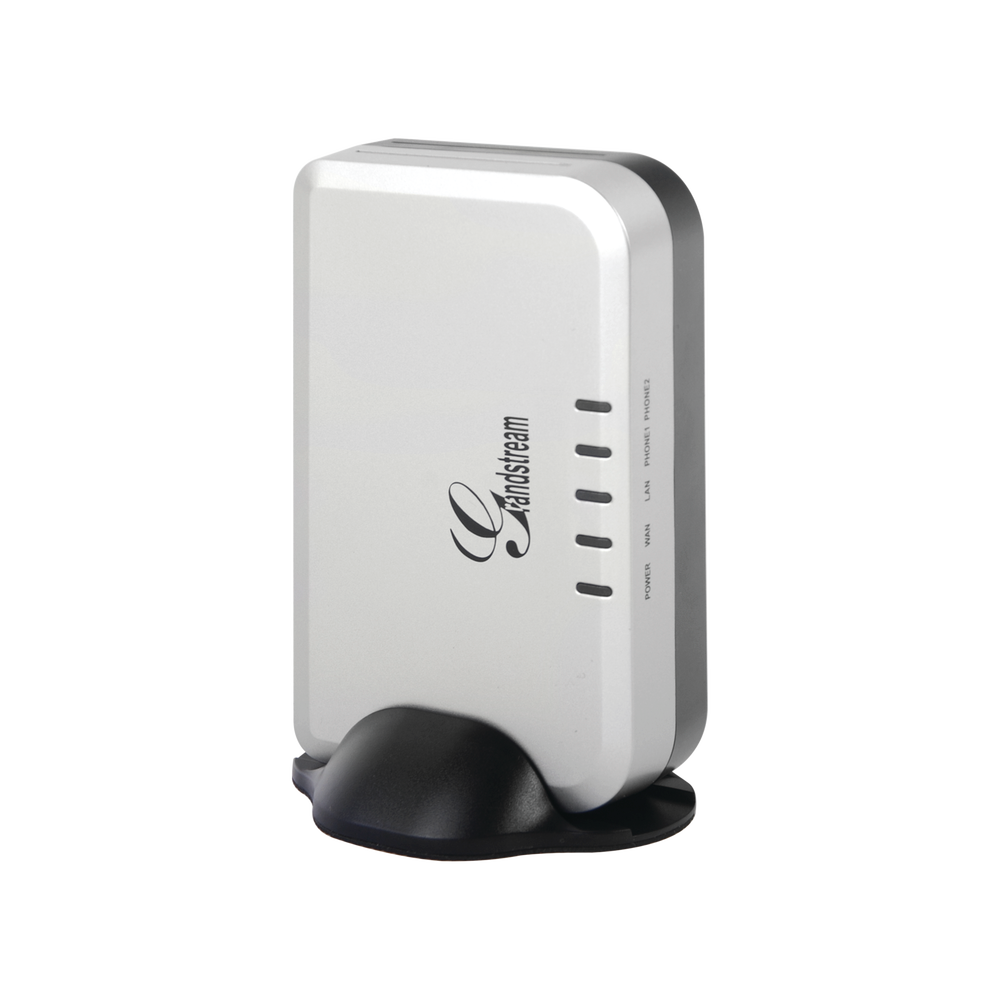

The HT503 is an Analog Telephone Adapter (ATA) with one FXS port for an analog telephone and one FXO port for a PSTN line. The integration of one FXO and one FXS port allows for originating and terminating calls from the PSTN line. The FXS port allows an analog telephone to be used as a VoIP extension.

Interfaces:

- 1 FXS port (RJ-11) for connecting a conventional analog telephone.

- 1 FXO port (RJ-11) for connecting a PSTN line with support for power failures.

- 10/100 Mbps LAN and WAN network port (RJ-45).

- LED indicators for Power, LAN, WAN, Telephone and Line Status.

- Rear reset button.

Voice, fax and modem:

- 2 Lines (SIP accounts) and 3-way conference.

- Telephone Features: Call Transfer, Call Forwarding, Call Waiting, Do Not Disturb, Message Waiting Indicator and more.

- Fax over IP: Compatible with T.38 protocol for Fax up to 14.4 kbps.

- Voice codecs: G.711 (I and II), G.723.1A, G.729A/B/E, G.728 and G.726.

Administration and security:

- Failover in case the primary SIP Server loses connection, it automatically switches to the secondary Server.

- Supports SYSLOG, Telnet and remote administration using web browser.

- SRTP, TLS, SIPS, HTTPS security.

- Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Accordance:

FCC (Part 68 & 15B), C-Tick, AS/NZS CISPR22, CISPR24, CE, EN55022, EN55024, TBR21, EN60950, EN61000-3-2, EN61000-3-3, UL (power supply).

Physical and electrical characteristics:

- Supported temperature range: 0°C to 40°C.

- Power supply: 12 Vdc, 0.5 A

- Dimensions: 115 x 25 x 75 mm.

*1 year warranty.
