Force110 PTP / Radio en 4.9-5.8 Ghz con GPS y antena de plato de 25 dBi / 220 MBps Reales / 1000 mW de Potencia - C050900R051

Force110 PTP / 4.9-5.8 GHz Radio with GPS and 25 dBi Dish Antenna / 220 Mbps Real Time / 1000 mW Power - C050900R051

Sale price  $1,737,183 Regular price  $2,143,506
Skip to product information
Force110 PTP / Radio en 4.9-5.8 Ghz con GPS y antena de plato de 25 dBi / 220 MBps Reales / 1000 mW de Potencia - C050900R051

Force110 PTP / 4.9-5.8 GHz Radio with GPS and 25 dBi Dish Antenna / 220 Mbps Real Time / 1000 mW Power - C050900R051

Sale price  $1,737,183 Regular price  $2,143,506
Shipping calculated at checkout.
Marca
CAMBIUM NETWORKS
Referencia / SKU
EPTP-5F
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Force110 PTP / 4.9-5.8 GHz Radio with GPS and 25 dBi Dish Antenna / 220 Mbps Real Time / 1000 mW Power - C050900R051


Force 110 PTP

5
GHz 220
Real Mbps

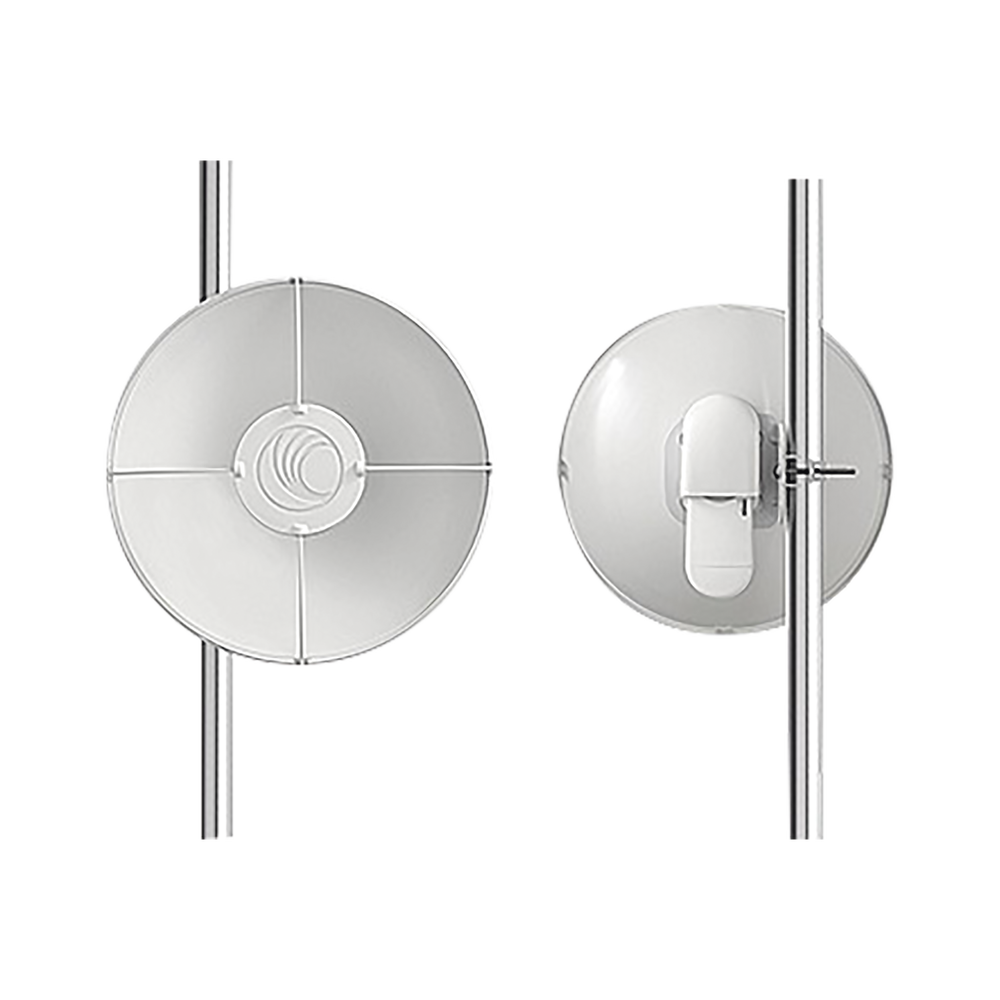

It consists of: Force 110 radio and APMPD525 antenna.

Main:

• Output power up to 1000 mW (optional, requires latest firmware version).

• IP-55 weatherproof certified.

• Integrated Ethernet surge suppressor (1 Joule).

• UPLINK / DOWNLINK Configurable (50%-50%, 75%-25%, 30%-70% or Flexible).

• Automatic power control of the Station/CPE; keeps the link calibrated at all times.

• The equipment has redundancy.

General:

• 4.9 - 5.350 GHz, 5.47-5.875 GHz.

• Mode of operation: access point, station.

• TDD (Time Division Duplex) technology.

• Latency 6 ms.

• Simultaneous vertical/horizontal polarity (2x2 MIMO).

• It has a high-performance 25 dBi dish antenna.

• Channel width 5/10/20 and 40 MHz (adjustable).

• QoS (3 levels).

• Encryption: 128 bit AES (CCMP).

• Operating temperature: -30 to 55 °C.

• Power supply: 24 - 30 Vdc, Gigabit PoE included.

• Maximum consumption: 10 W
•
Dimensions: 460 x 290 mm / Weight: 4.5 kg.

*1 year warranty.



cnMaestro

LINKPlanner

cnArcher

cnHeat

cnMaestro™ is an on-premises or cloud-based software platform for secure, end-to-end network control. cnMaestro Wireless Network Manager simplifies device management by offering complete network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize performance, and meet the emerging needs of business and residential customers.

LINKPlanner allows you to model "what-if" scenarios (based on geography, distance, antenna height, transmit power, and other factors) to optimize system performance before purchase. Quickly design networks for optimal deployment and cost-effectiveness with ease. Available for Microsoft® Windows® and Mac® systems, it is a free and easy-to-use link design tool.

LINKPlanner leads the industry as the most reliable and intuitive RF link planning tool, with tens of thousands of links successfully deployed worldwide.

Raise the bar on installation accuracy with cnArcher™, the free mobile app that provides field technicians with the information they need to properly configure and align Cambium Networks PMP and ePMP wireless broadband subscriber modules.

Built on Cambium Networks’ expertise in RF planning, propagation, and modeling as seen in LINKPlanner and integrated with GIS data up to 1 meter in accuracy, cnHeat generates highly accurate RF predictions and derived services that accurately represent the reality of the RF world.

    220 Mbps Real, 25 dBi High Performance Dish Antenna, GPS Technology, 4.9 - 5.875 GHz.
