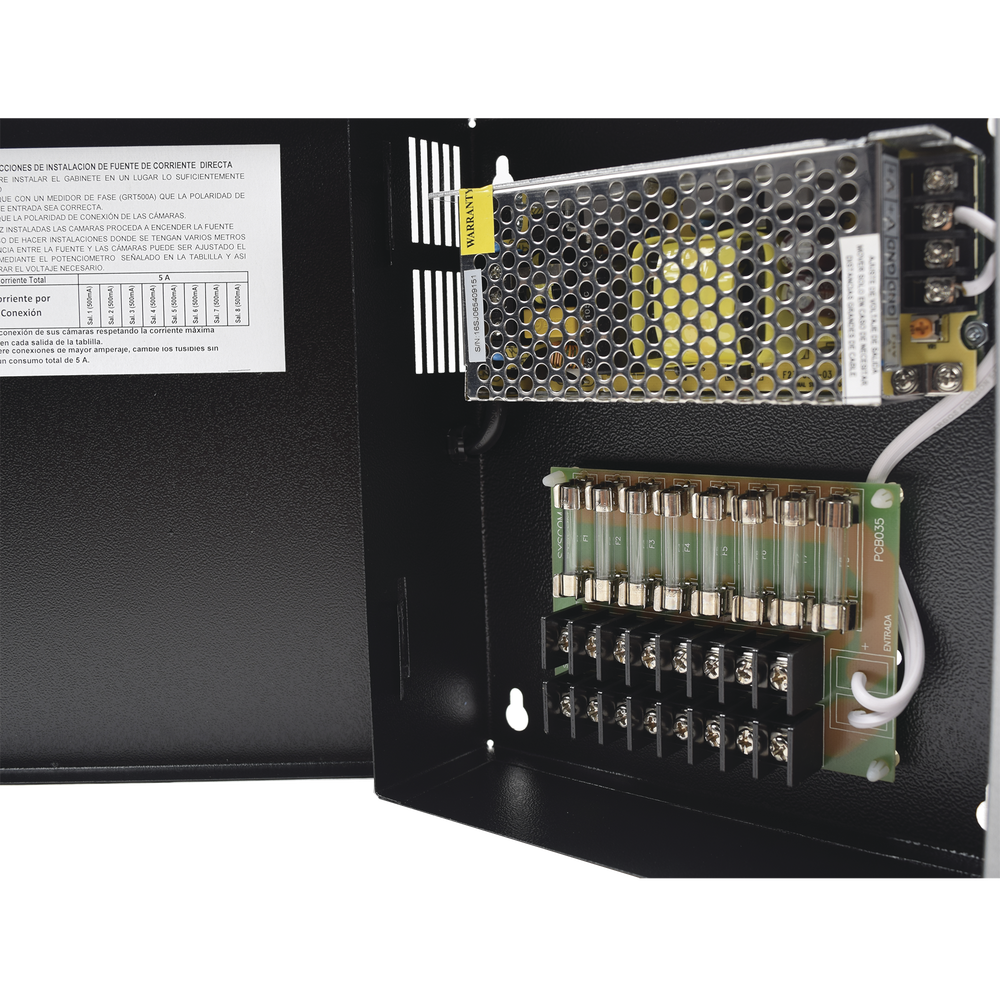

Professional CCTV power supply of 12-13.2Vdc @5A, 8 cameras, Input voltage: 100-240 Vac (Manageable Fuses)

Professional CCTV power supply of 12-13.2Vdc @5A, 8 cameras, Input voltage: 100-240 Vac (Manageable Fuses)

The line of power supplies optimized for video surveillance is manufactured to the highest quality standards to withstand demanding environments within industry and domestic use.


Functional Features:

•Configurable current distribution per output (see user manual).
•It has fast-blow fuses (bubble fuse).
•Air convection cooling system.
•It has a distribution board for connecting 8 cameras.
•Electronic protection against overload and overvoltage.
•Ideal for powering camcorders or other 12 Vdc electrical equipment.
•Compatible with the entire line of SYSCOM analog and TURBO HD cameras.

Electrical Characteristics:

•Number of Exits: 8.
•Input voltage: 100-240 Vac (Self-adjusting line voltage input).
•Output voltage: 12 Vdc Nominal (Adjustable from 11.4 to 13.2 Vdc).
•Output current: 5 Amp.
•Fuse per output: fast-blow (bubble type) 1.6 Amp

**See brochure for additional features**

Physical Characteristics:

•Paint: Electrostatic Black.
•Application: Interior.
•Material: Premium Steel Cabinet.
•Weight: 1.28 Kg (without packaging).
•External dimensions: 176 X 203 X 69 mm (Width x Height x Depth).
•Extra features:
Fully hinged door.
Closing with Phillips screws (cross).
Wall mounting via keyholes in cabinet.

Recommendations:

•The maximum wiring length allowed for DC sources is 60 m (with 24 AWG copper wire)
•Make sure the installation is performed by a trained professional.
•Ground your power source to maximize protection (<10 ohms).
•Schedule a maintenance plan to remove excess dust and dirt from the equipment.
