TT101FTURBO

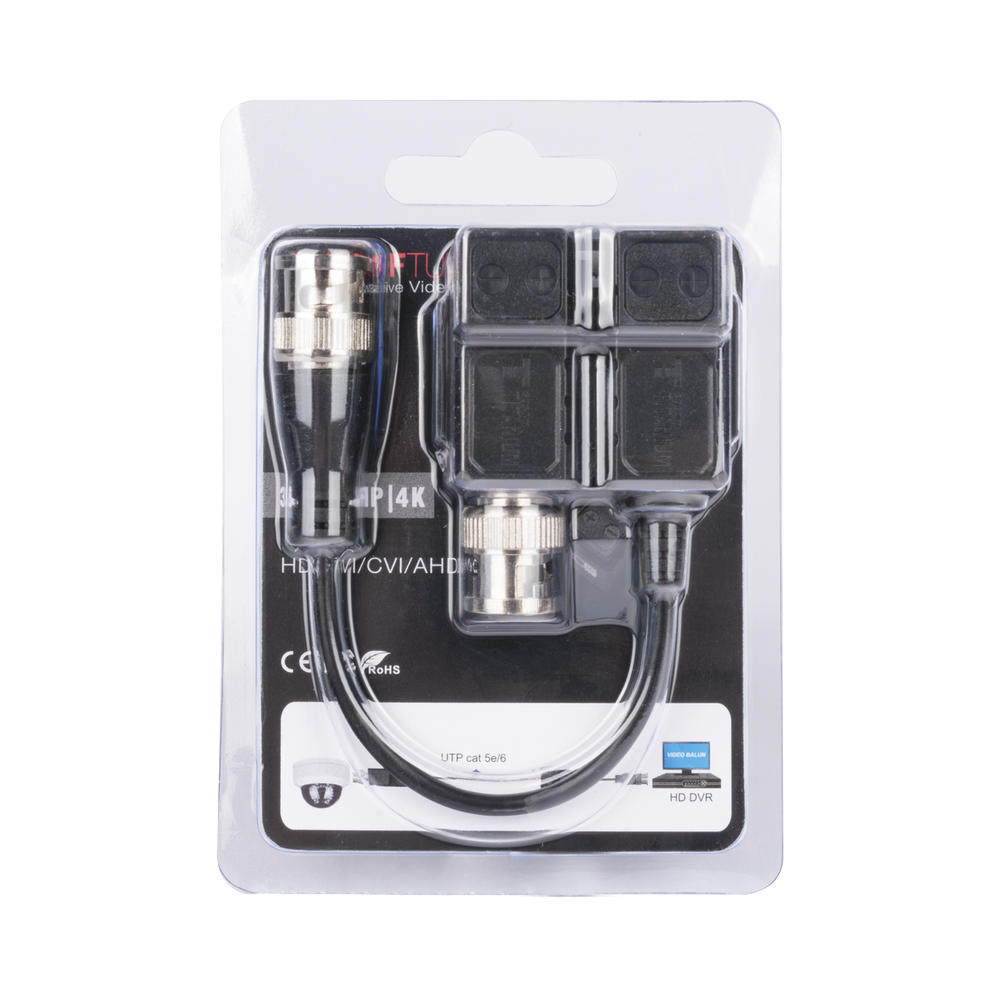

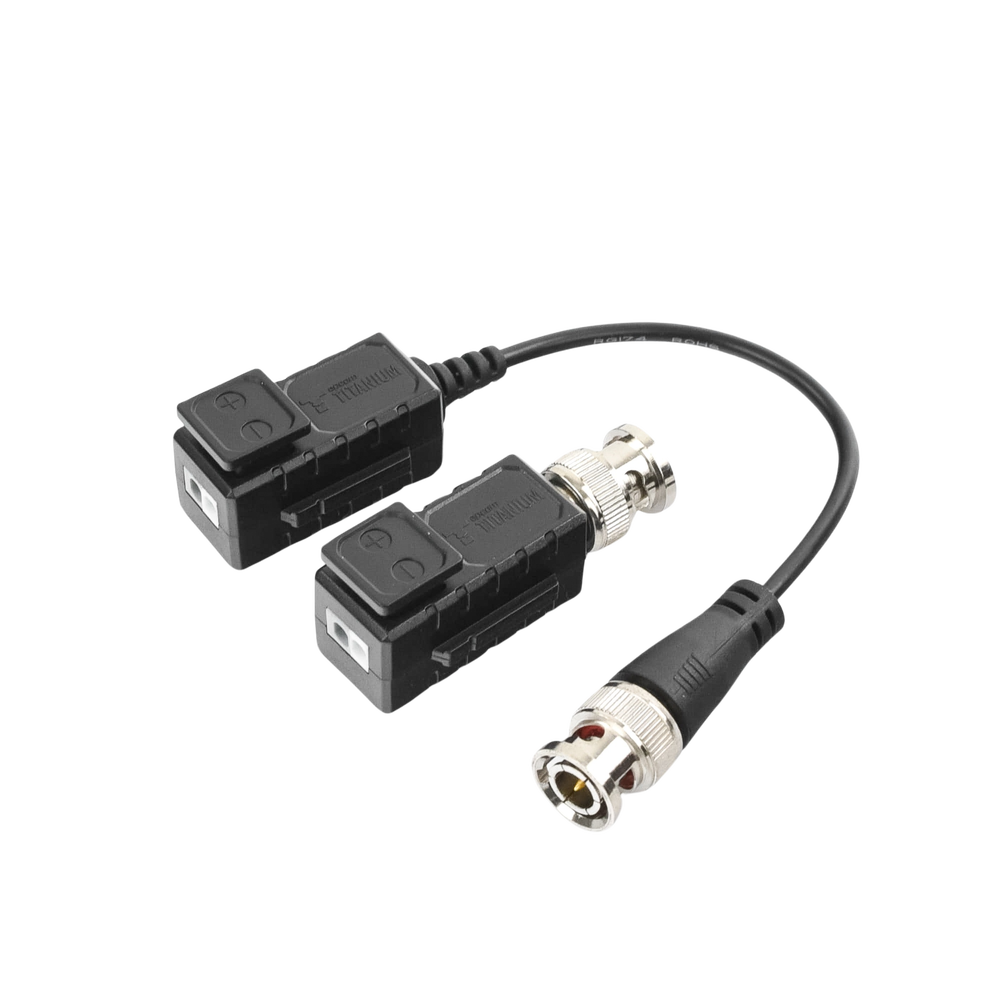

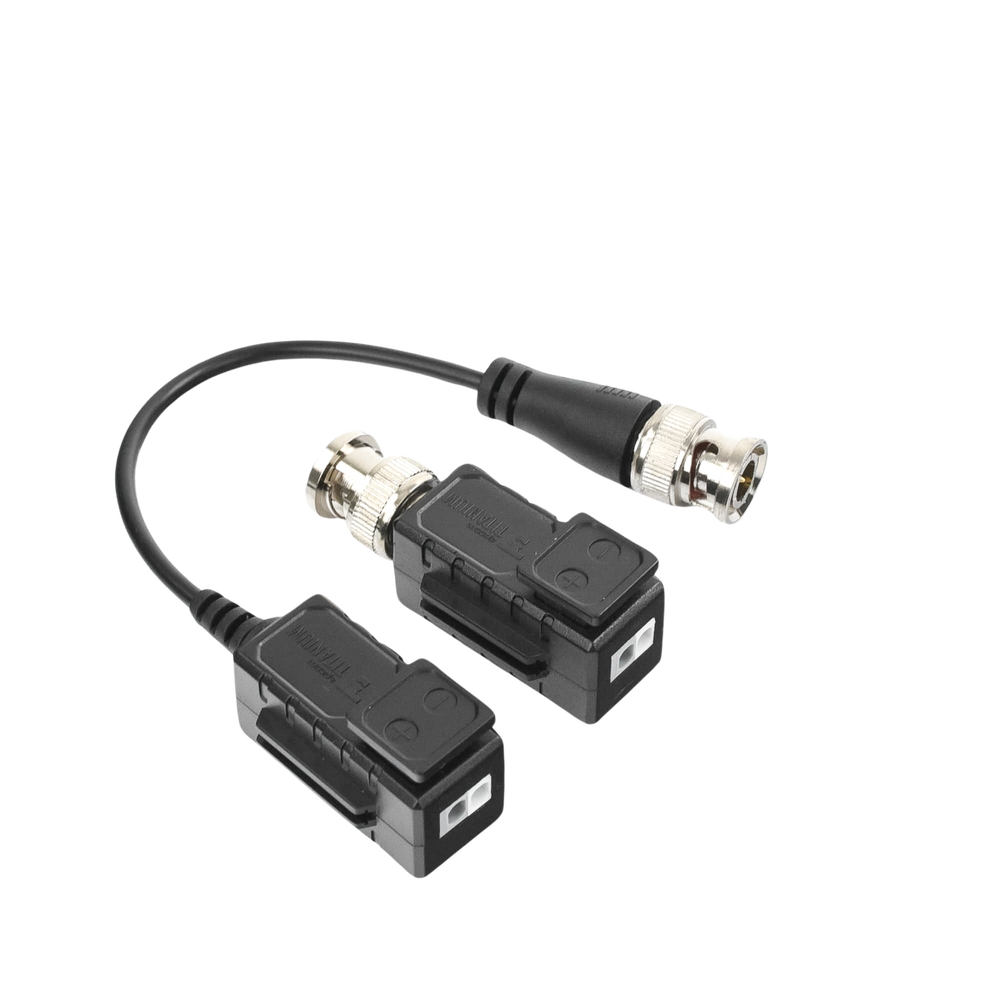

Passive Video Transceiver Kit (Balum)
The TT-101-FTURBO video balun is a passive device that allows the transmission of HD CCTV video signals in real time through a twisted pair cable, it has copper connectors that offer greater conductivity, better performance at high frequencies (HD video and long distances) and much lower attenuation, some of the main advantages of this equipment is that it has a built-in solid state TVS (transient voltage suppressor) for surge protection, it is antistatic, offers Grade 3 lightning protection, 60 dB noise and crosstalk immunity. and exceptional interference rejection. It is compatible with all HD-TVI / CVI / AHD / CVBS analog cameras and widely used in CCTV cameras, monitors, DVRs, switchers, IP encoders and other CCTV equipment. Its PUSH-PIN terminals facilitate the connection of the UTP cable pair, one of the transceivers has a pigtail (PIG TAIL) for easy connection to the DVR. Definitely in Premium equipment, the competition doesn't offer as much in their products.
Main Features:

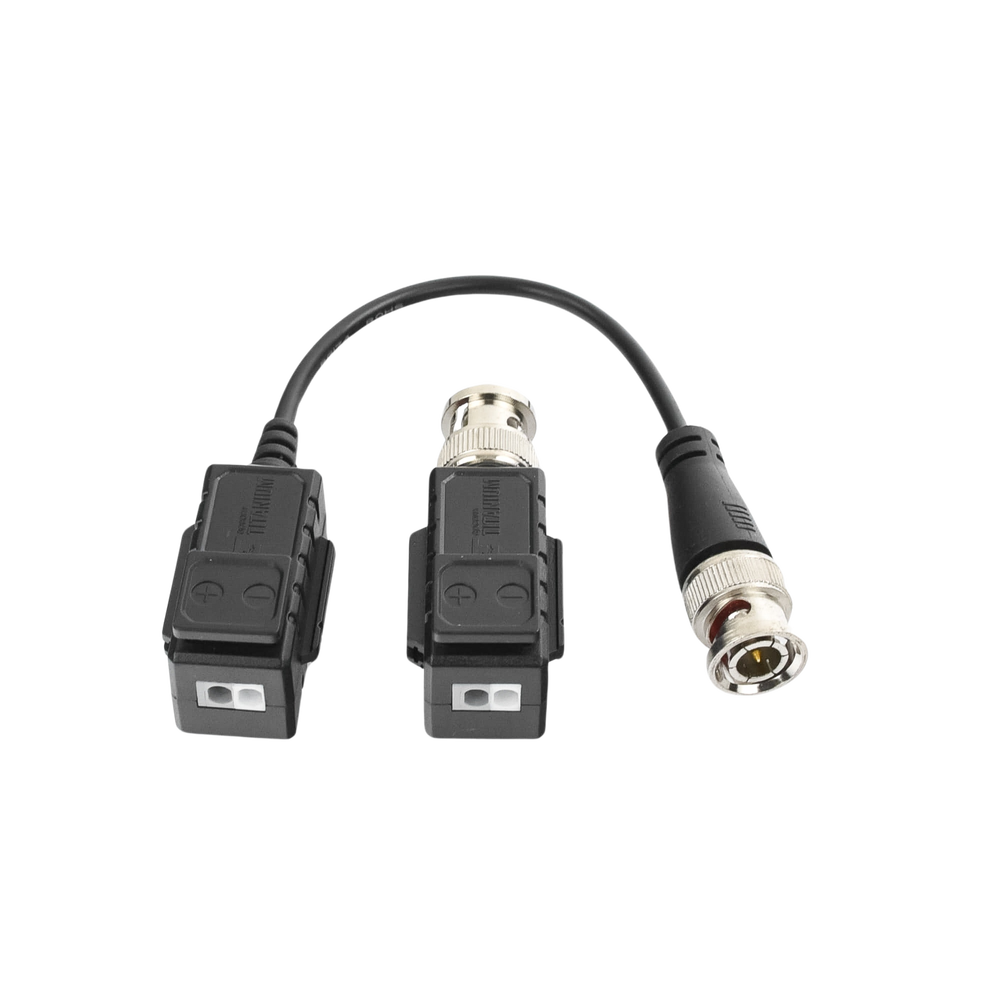

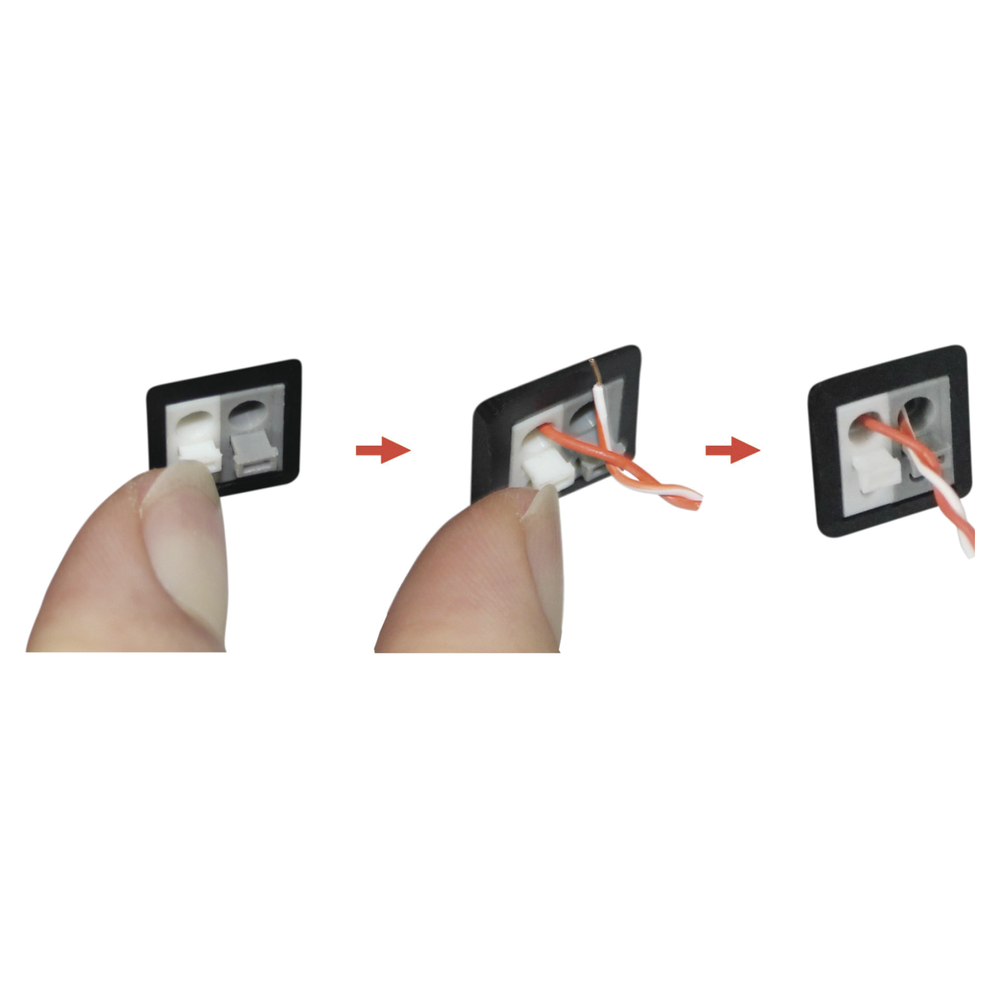

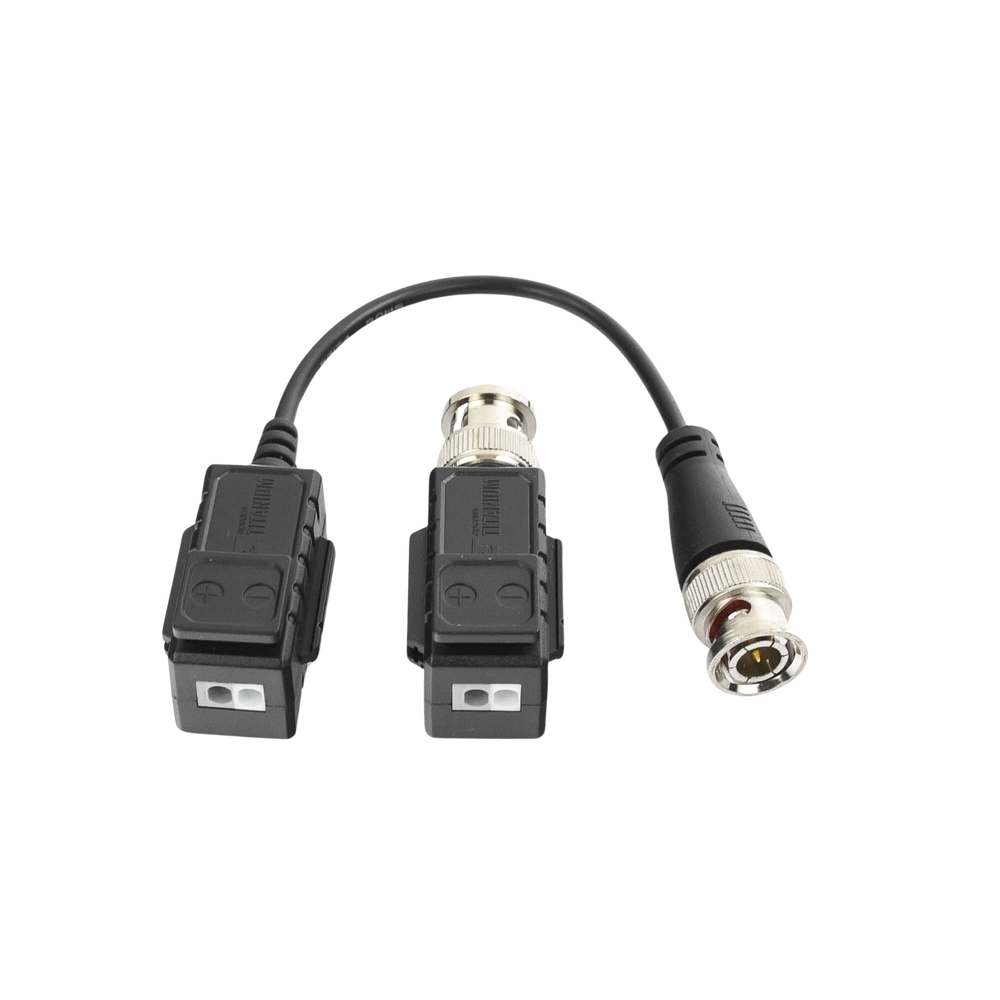

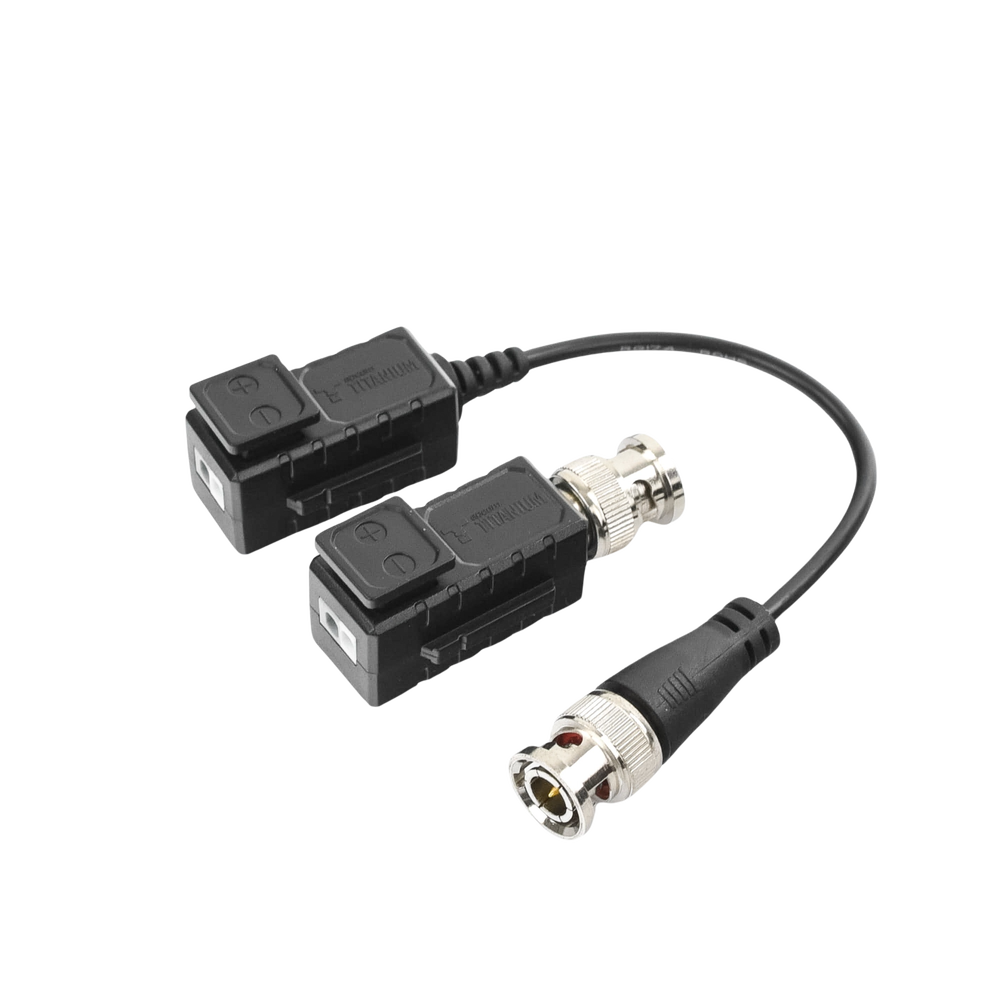

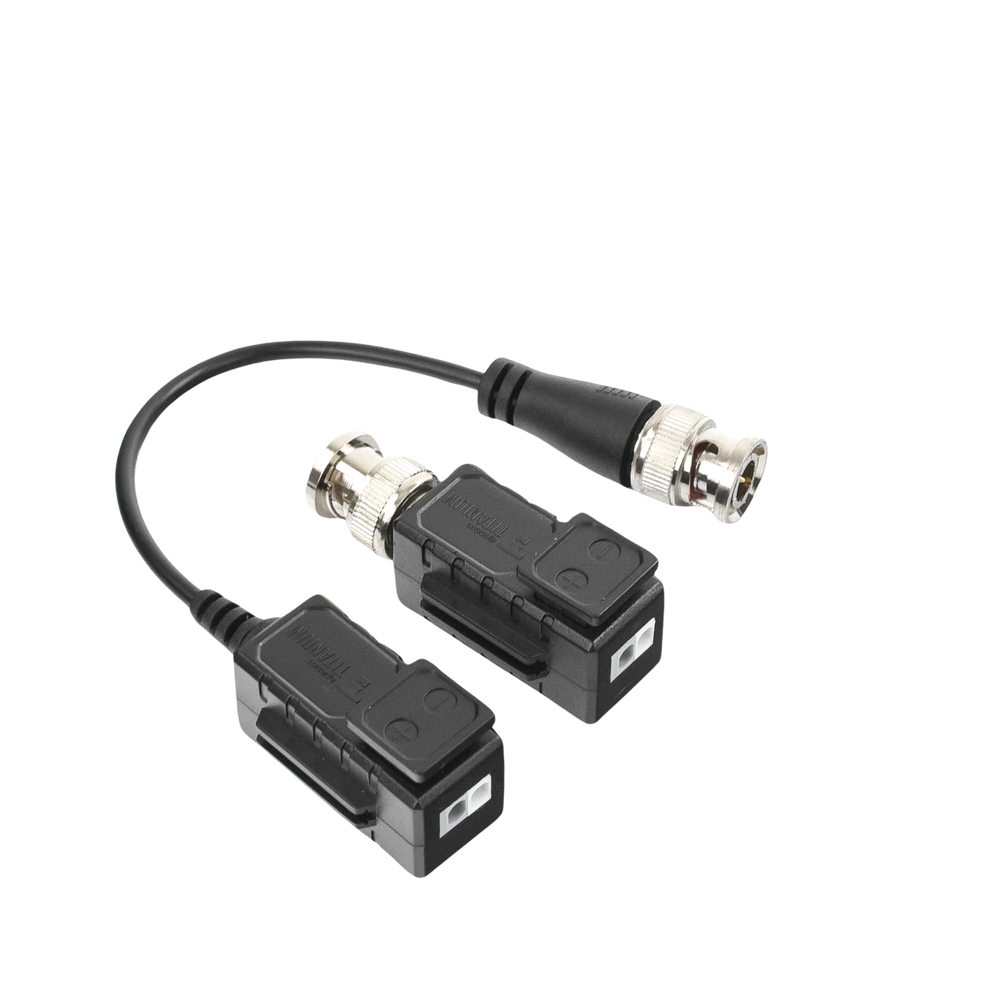

- Passive transceiver kit with push-pin terminals. One of the transceivers has a pigtail.
- Compatible with cameras with HD-TVI / HD-CVI / AHD / CVBS technology
- Compatible with analog cameras (CVBS)
- Supports Coaxitron, Coaxitron Audio and OSD menu
- Real-time transmission over UTP cat 5e/6/6A/7 cable
- Supported video formats NTSC, PAL, SECAM
- Impedance 75 ohms
- BNC male connectors
Physical and Electrical Characteristics:
- They do not require feeding
- Dimensions 35.1(L) x 16.7(W) x 18.7(H) mm (excluding BNC connector)
- Weight: 40 grams.
- Operating temperature: -20°C to 70°C
- Storage temperature: -40° ~ 150°C
- Relative Humidity: 0~95% (non-condensing)
- ABS housing
- Black color.
- 1 year warranty against manufacturing defects
Highlighted Features:
- Anti-static wave filter design
- Noise and crosstalk immunity of 60 dB.
- Exceptional interference rejection
- Built-in surge protection
- Built-in solid-state TVS (transient voltage suppressor).
- 150 meter (492 ft) transmission for TurboHD in 4K
- 200 meter (656 ft) transmission for TurboHD up to 5 MP
- 250 meter (820 ft) transmission for TurboHD up to 2 MP
-
Price per Kit.
- Essential for your CCTV system
500 in stock
MODELO: TT-101-F-TURBO
