TurboHD 8-channel passive video receiver for high-definition video applications over UTP cat5e/6

TurboHD 8-channel passive video receiver for high-definition video applications over UTP cat5e/6

TurboHD or HD-TVI is a high-definition video protocol for video surveillance.
SYSCOM calls it TurboHD, we use the HD-TVI chip from Techpoint in California, USA.

The TurboHD line is an intermediate between analog and IP, it has IP quality but at prices
of an analog system.

TurboHD allows for analog, 720p, 1080p, and in the future, 3.5 megapixel TurboHD. All using the same infrastructure.

Applications:

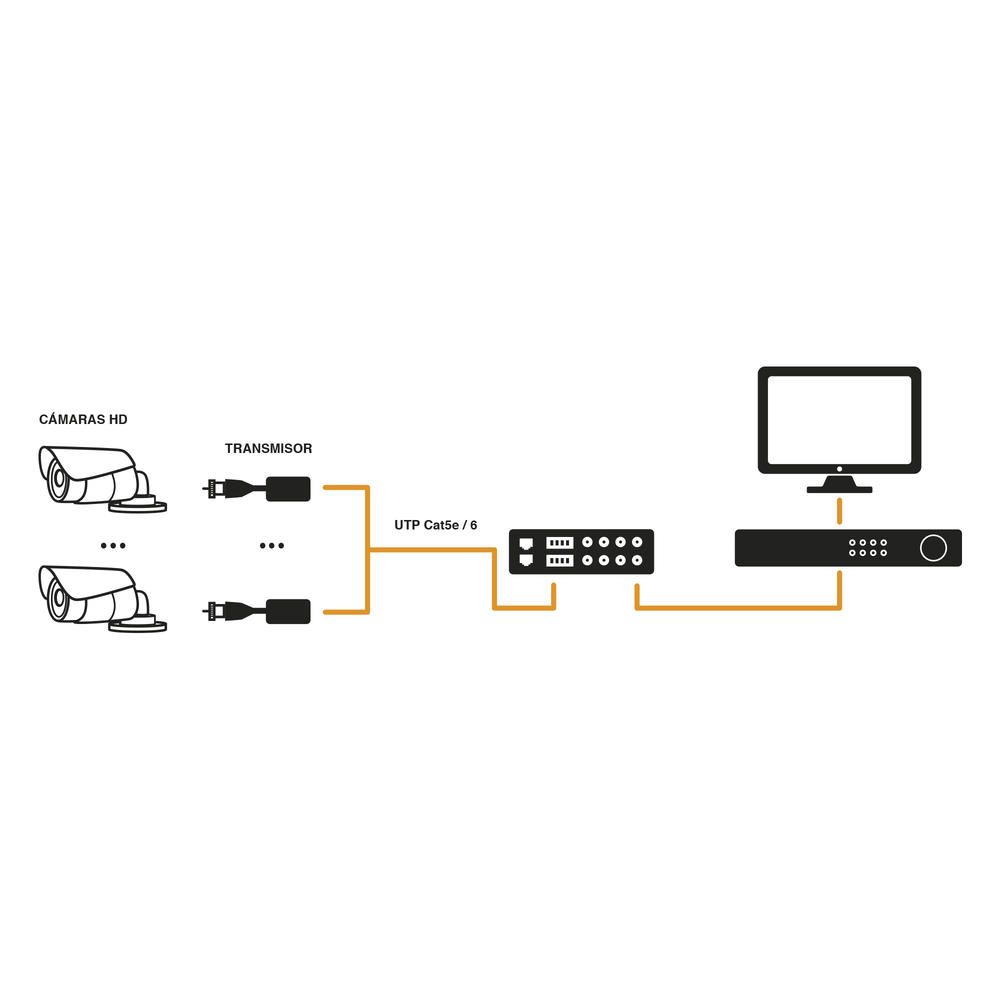

• CCTV monitoring and recording systems

Characteristics :

• TURBOHD 8-channel passive receiver
• Real-time transmission over UTP cat 5e/6 cable
• They do not require feeding
• Supported video formats NTSC, PAL, SECAM
• Compatible with analog / TurboHD (TVI) cameras
• 250 meter (820 ft) transmission for TurboHD in 720p
• 230 meter (754 ft) transmission for TurboHD in 1080p

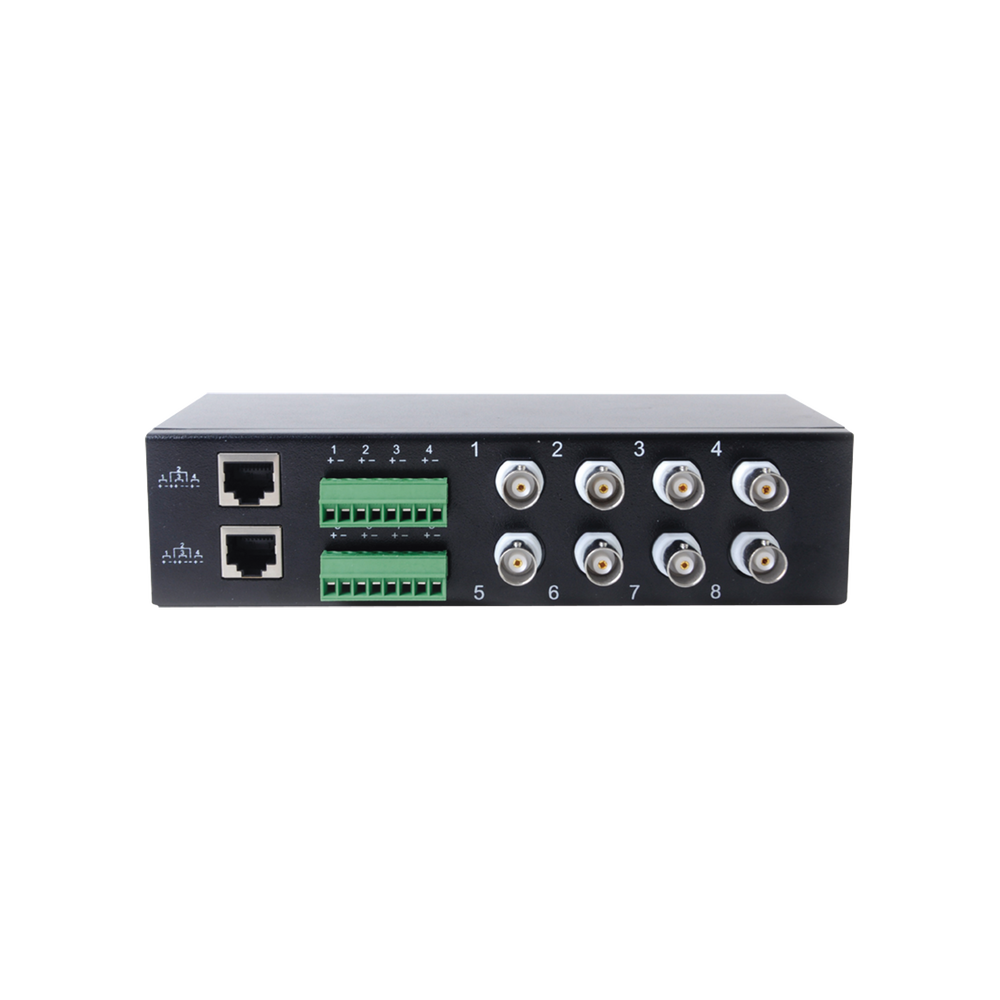

• BNC male connectors
• Pin terminals for UTP cable
• Built-in surge protection
• Anti-static wave filter design
• Noise immunity of 60 dB
• Impedance 75
• Color: Black
• Operating temperature: -20°C to 70°C
• Dimensions ( L x W x H ): 180 x 85 x 44.5 mm
• Weight: 580 g.
