EPCOM TITANIUM
(TRANCEPTOR) 16-CHANNEL PASSIVE VIDEO RECEIVER / 4K Resolution / Compatible with Cat 5e/6 UTP cable / Compatible with HD-TVI/CVI/AHD/CVBS / ALL INCLUSIVE FOR RACK / Built-in surge protection.
(TRANCEPTOR) 16-CHANNEL PASSIVE VIDEO RECEIVER / 4K Resolution / Compatible with Cat 5e/6 UTP cable / Compatible with HD-TVI/CVI/AHD/CVBS / ALL INCLUSIVE FOR RACK / Built-in surge protection.
Couldn't load pickup availability
(TRANCEPTOR) 16-CHANNEL PASSIVE VIDEO RECEIVER / 4K Resolution / Compatible with Cat 5e/6 UTP cable / Compatible with HD-TVI/CVI/AHD/CVBS / ALL INCLUSIVE FOR RACK / Built-in surge protection.
CLICK ON THE VIDEO

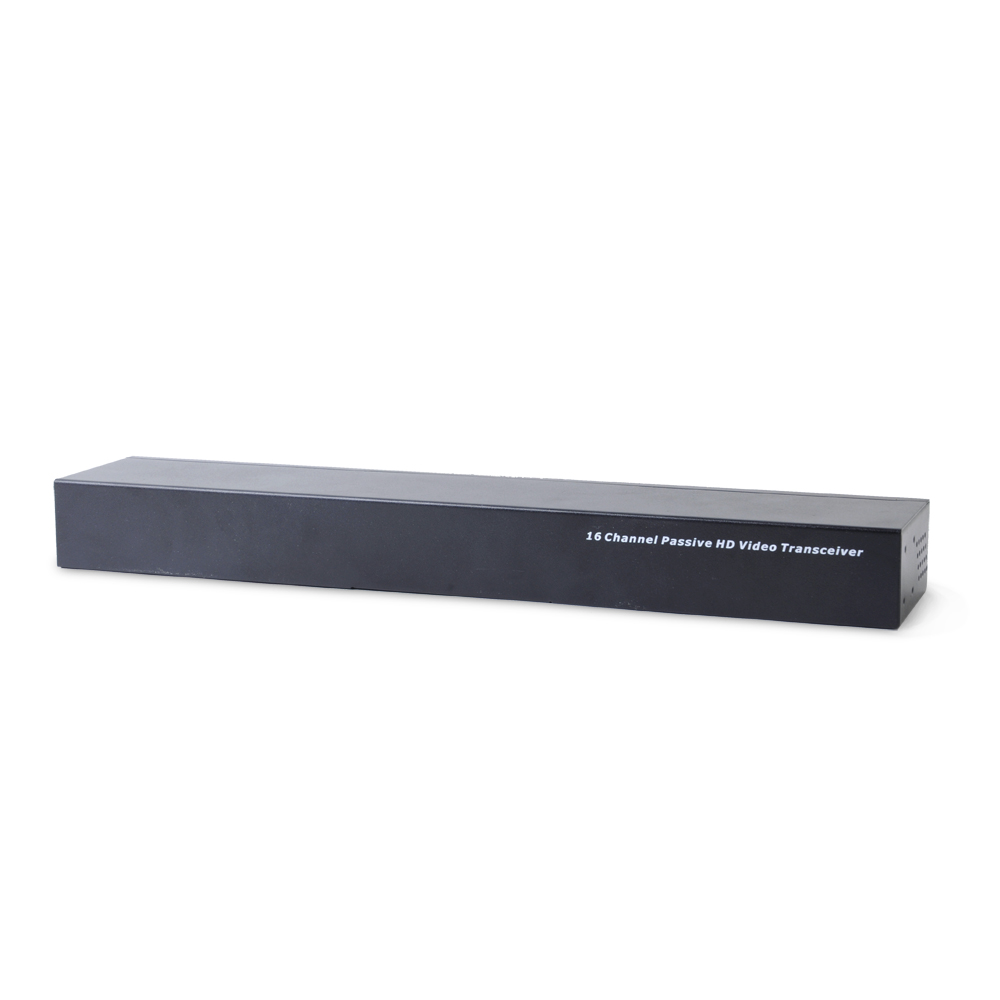

(TRANSCEIVER) 16-Channel Passive Video Receiver, 4K Resolution

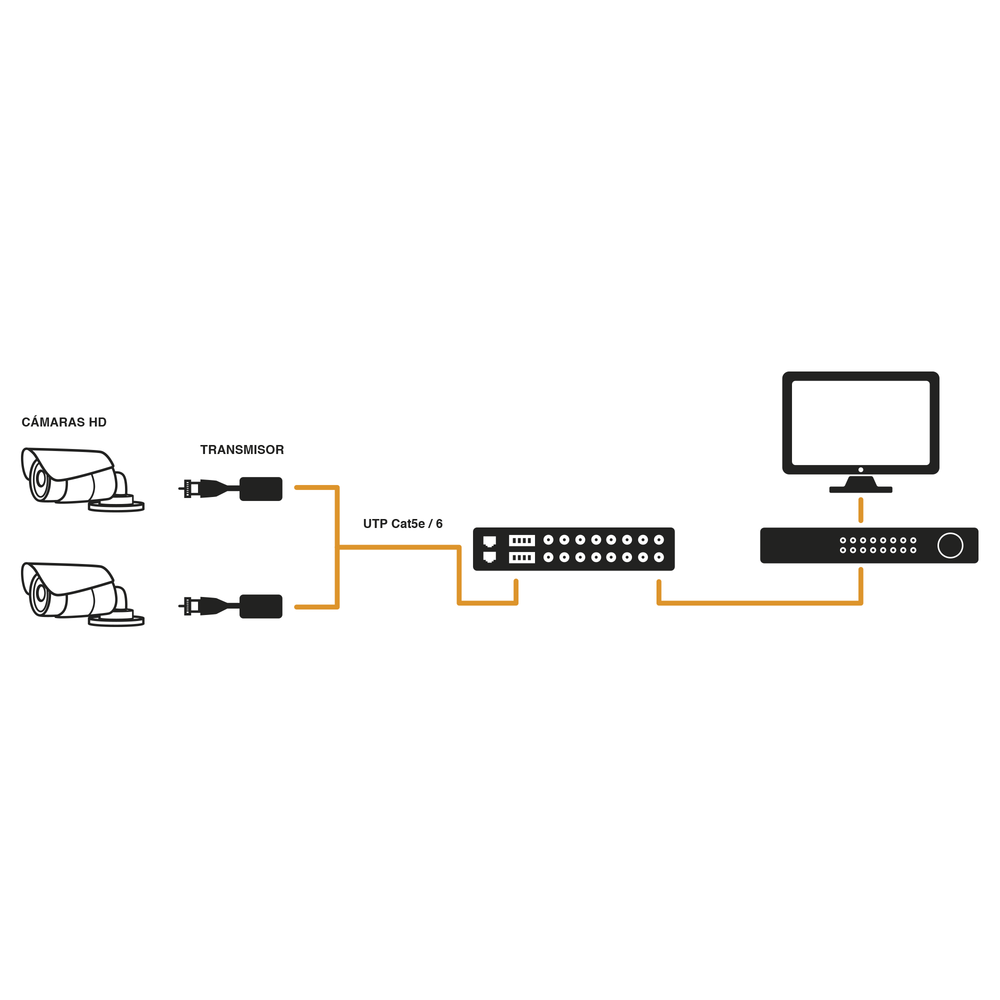

The TT-116-TURBO is a 16-channel PASSIVE video TRANSCEIVER (Balun) that allows you to send video from your analog cameras over the same Cat 5e or 6 network cable (UTP), reaching distances of 130 meters in 4K, 180 meters in 5Mp and 250 meters in 1080P.
The equipment is designed to be placed in your Telecommunications SITE since it has the accessories to be installed in a Standard Rack, allowing to consolidate all the cabling of the CCTV system in a single point resulting in a clean, tidy installation, without added or loose cables.
The TT-116-TURBO contains a built-in surge suppressor to protect equipment from voltage spikes and provide noise immunity to ensure quality signals.
Main Features
- (TRANSCEIVER) 16-channel Passive Video Receiver
- No power required
- Connection by screw-type terminal block or by RJ45
- Real-time transmission over UTP cat 5e/6 cable
- Compatible with cameras with HD-TVI / HD-CVI / AHD / CVBS technology
- 130m in 4K, 180m in 5Mp and 250m in 1080P
- Supports OSD (On Screen Display)
- BNC and RJ45 connectors
- Built-in surge protection
Physical and Electrical Characteristics:
- No power required

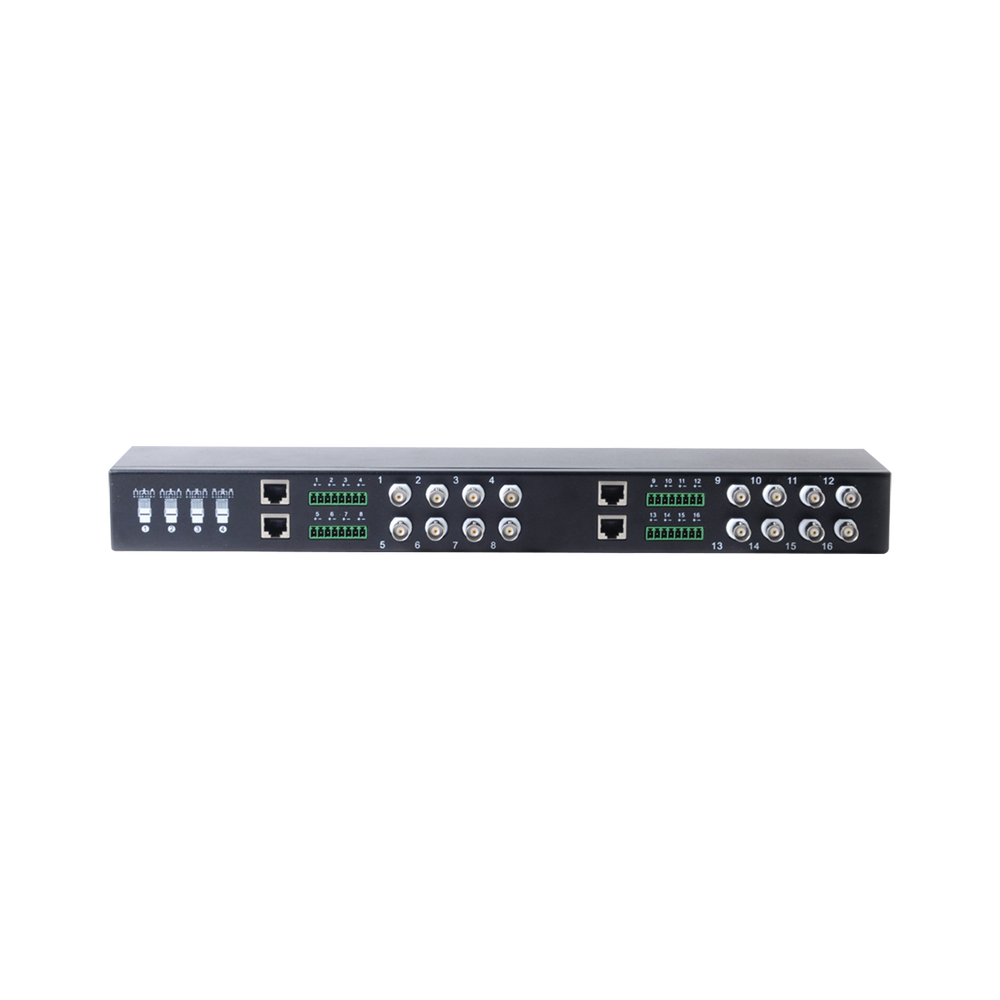

- 16 BNC female connectors
- Screw type terminal block for UTP cable
- RJ45 inputs for UTP cable
- 16 BNC female connectors
- Dimensions 430 mm (L) x 85 mm (W) x 44.5 mm (H) not including connectors and cable
- Net Weight 1.25 Kg.
- Black color
- 1 Year Warranty for manufacturing defects
Highlighted Features:

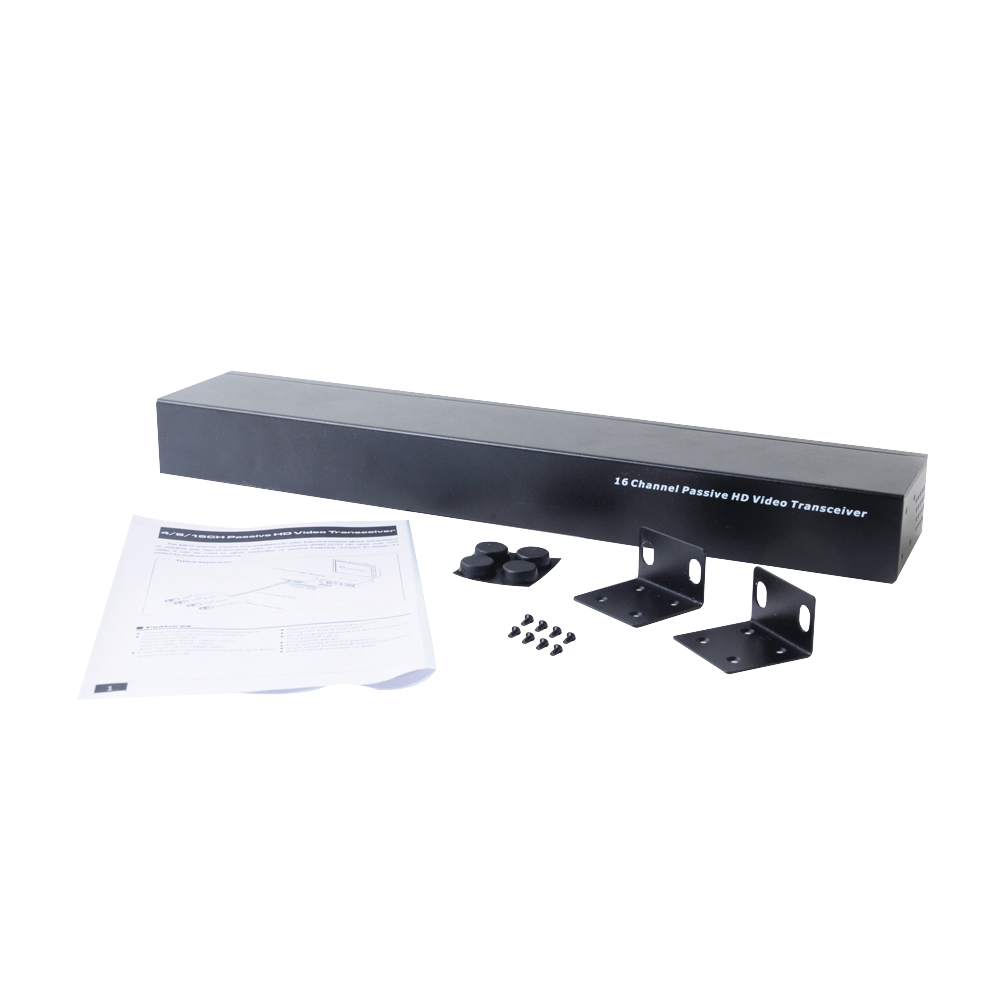

The Kit includes:
- 1 16-channel active receiver
- Rack ears and hardware
Highlights:
- Renewable solid-state surge protection
- Anti-static wave filter design
- Noise immunity of 60 dB
- Supports Coaxitron, Coaxitron Audio and OSD menu
- For more product information, click here.
- Essential for your CCTV system
Out of stock
MODELO: TT-116-TURBO
