• Kit de Torre Arriostrada de Piso de 30 m Altura con Tramo STZ35G Galvanizada por Inmersión en Caliente (No incluye retenida).
1 1

SYSCOM TOWERS

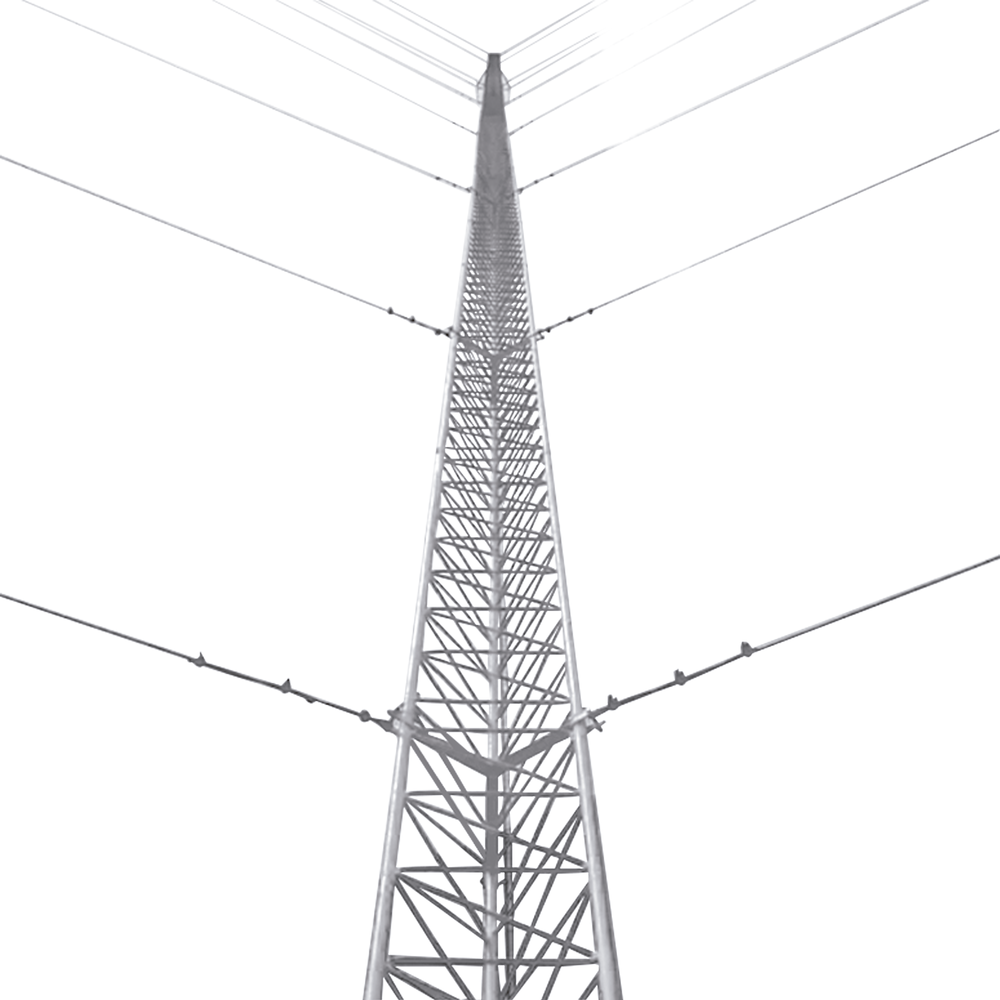

30m High Floor Guyed Tower Kit with STZ35G Hot-Dip Galvanized Section (Does not include retainer).

30m High Floor Guyed Tower Kit with STZ35G Hot-Dip Galvanized Section (Does not include retainer).

$13.015.386 COP
$14.235.579 COP $13.015.386 COP
Sale Sold out
Shipping calculated at checkout.

30m High Floor Guyed Tower Kit with STZ35G Hot-Dip Galvanized Section (Does not include retainer).

Highlighted Features:

  • Product manufactured under ISO 9001:2015 regulations.
  • High Lift / Low Cost.
  • 100% Inspection of Section-Section Assembly.
  • Hot Dip Galvanized according to NMX-H-004-SCFI-2008 .
  • Ideal for any area including high humidity coastal areas or industrial areas.

Physical Characteristics:

  • Maximum Axial Load: 350 Kg.
  • Height: 30 meters (10 sections).
  • Wind resistance: 200 km/hr.
  • Anti-corrosion protection: Hot-dip galvanized (NMX-H-004-SCFI-2008).
  • Application: Outdoors (Wet Areas).

Includes the following components:

Amount
Model
Description
10 STZ-35G Tower section with a 35 cm wide face. Each section includes hardware for assembly.
1 SCZ-35PG 35 cm tower cap with lightning rod clamp.
4 SJB-35G Flange for holding the retainer.
1 SBZ-35G Base for 35 cm tower.
1 SAB-45G Anchor for tower base.
3 SAZ-45G Floor Anchor for Braced Tower
24 NECK-14LS Collar for retaining cable.
72 KNOT-316MS 3/16' Dog Clamp
Does not include guyline. 385 meters of 3/16' ( SRET-474 or SRET-316RS ) guyline or larger diameters are recommended.

12 x 5/8' x 9' turnbuckles recommended. ( TEN- 5/8X9OGS ). Not included.

** FAILURE to use installation accessories such as Flanges, Tower Base, Tower Anchor or Retaining Anchors is considered a loss of equipment warranty and any additional adaptation is the responsibility of the installer.**

Additional accessories (Not included):

New! Lightning Rod + Grounding Cable Kit. LINKEDPRO Brand (Not included)

KLP-TZ30-PRO - All-inclusive! Ideal for 30m towers with corona dipoles, cabling, and electrodes with a 10-year warranty.

Or you can also quote the following Earthing or Lightning Rod components individually:

Recommended Physical Grounding System for Tower and Equipment Mounted on It (Not Included):

Amount Model Description
1 TG45AB 45A Grounding Electrode with Electrode, Filter and H2Ohm Compound
1 S610 Plastic registration.
3 TGCR11 Eye Connector
2 TGAB18 Rod Connector
1 TGBUSG10 Tie Bar with 1000A Capacity Insulators (No Cabinet)
* It is recommended to use 4 AWG ( SLY-287-GRN ) sheathed copper wire to ground the electrode to the tower. 6 AWG ( SLY-291-GRN ) wire may be used for tower-mounted equipment.

Recommended Basic Lightning Rod System for Tower (Not included):
Amount Model Description
1 TGTDPC Lightning Rod Tip with Aluminum Mast (MASTIL1.2)
1 TG45AB 45 Amp electrode. With a bag of impedance enhancing compound (H2OHM), compass and level.
1 S610 Small plastic registration.
1 ANTIOX Terminal protection spray.
3 TGCR11 Eye Connector.
2 TGAB18 Rod Connector.
20 TGAC114

Tower insulator.

*The dipole tip provides a 72° cone of protection beneath the coil. Recommended for areas with low lightning incidence.
*2/0 gauge copper wire is recommended for integration ( SLY-346-BLK ). Considering an electrode installation at a maximum of 3 meters from the tower, approximately 35 meters are used.
See the Physical Ground + Lightning Rod connection diagram in the following DIAGRAM .
Signaling/Lighting System (Not included):
Amount Model Description
2 EIGSLSE Self-contained LED strobe with photocell, solar panel, and battery. Type L-810.
2 HLU3 Mounting for EIGSLSE obstruction lamp

*The signage regulations dictate that the tower must be painted in seven equal-sized stripes: four in a reddish-orange hue and three in white.

Lifeline system (Not included):

Amount Model Description
2 SHE-LV Pair of fastening hardware
1

11 in stock

MODELO: KTZ-35G-030
