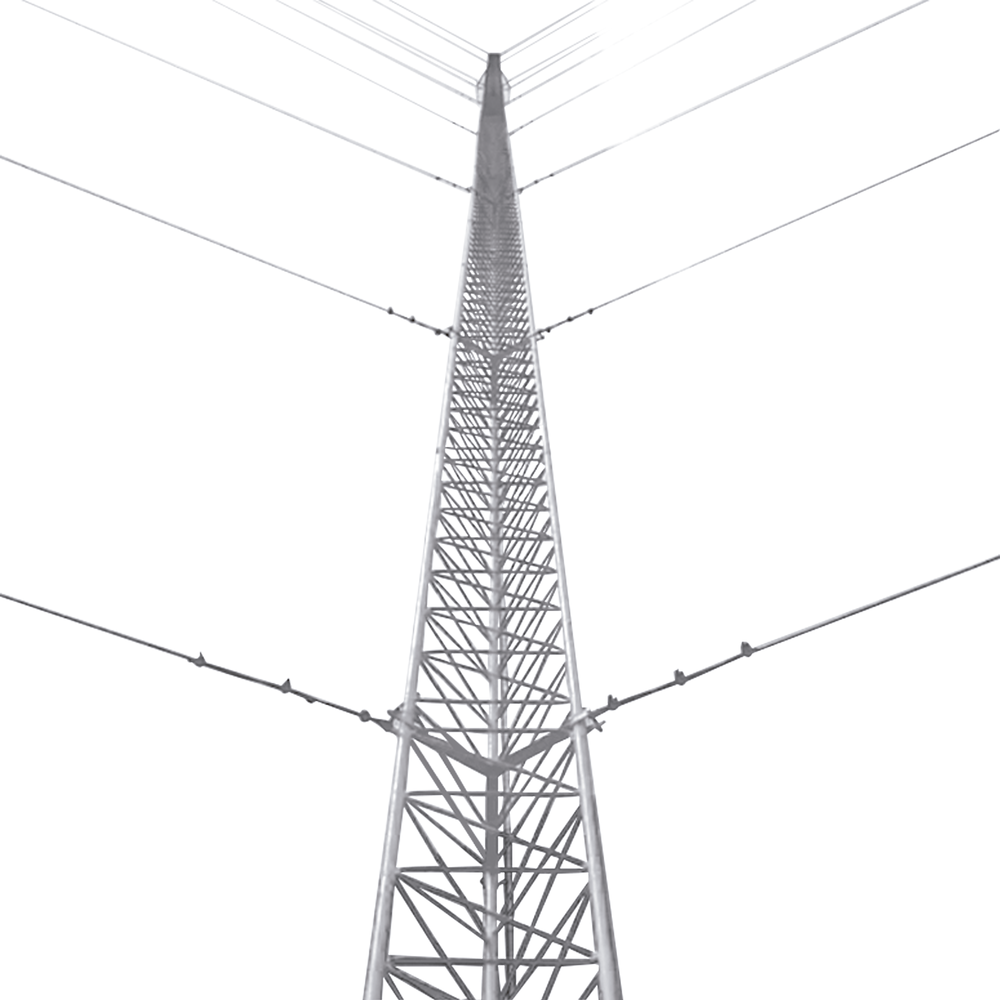

60m High Floor Guyed Tower Kit with STZ45G Hot-Dip Galvanized Section (Does not include retainer).
60m High Floor Guyed Tower Kit with STZ45G Hot-Dip Galvanized Section (Does not include retainer).
Regular price
$40.238.787 COP
Regular price
$42.637.123 COP
Sale price
$40.238.787 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
60m High Floor Guyed Tower Kit with STZ45G Hot-Dip Galvanized Section (Does not include retainer).
Highlighted Features:
- Product manufactured under ISO 9001:2015 regulations.
- High Lift / Low Cost.
- 100% Inspection of Section-Section Assembly.
- Hot Dip Galvanized according to NMX-H-004-SCFI-2008 .
- Ideal for high humidity coastal areas or industrial areas.
Physical Characteristics:
- Maximum Axial Load: 500 Kg.
- Height: 60 meters (20 sections).
- Wind resistance: 200 km/hr.
- Anti-corrosion protection: Hot-dip galvanized (NMX-H-004-SCFI-2008).
- Application: Outdoors (Wet Areas).
Includes the following components:
| Amount | Model |
Description |
| 20 | STZ-45G | Tower section with a 45 cm wide face. Each section includes hardware for assembly. |
| 1 | SCZ-45G | 45 cm tower cap with lightning rod clamp. |
| 7 | SJB-45G | Flange for holding the retainer. |
| 1 | SBZ-45G | Base for 45 cm tower. |
| 1 | SAB-45G | Anchor for tower base. |
| 3 | SAZ-45G | Floor Anchor for Braced Tower |
| 3 | SAZ-60G | Floor Anchor for Braced Tower |
| 42 | NECK-14LS | Collar for retaining cable. |
| 126 | KNOT-14MS | 1/4' Dog Clamp |
Does not include a guyline. 1060 meters of 1/4' guyline ( SRET-635, SRET-635CAM, or SRET-14RS ) or larger diameters are recommended.
21 5/8' x 9' turnbuckles ( TEN- 5/8X9OGS ) are recommended. Not included.
** FAILURE to use installation accessories such as Flanges, Tower Base, Tower Anchor or Retaining Anchors is considered a loss of equipment warranty and any additional adaptation is the responsibility of the installer.**
Additional accessories (Not included):
Recommended Physical Grounding System for Tower and Equipment Mounted on It (Not Included):
| Amount | Model | Description |
| 1 | TG45AB | 45A Grounding Electrode with Electrode, Filter and H2Ohm Compound |
| 1 | S610 | Plastic registration. |
| 3 | TGCR11 | Eye Connector |
| 2 | TGAB18 | Rod Connector |
| 1 | TGBUSG10 | Tie Bar with 1000A Capacity Insulators (No Cabinet) |
* It is recommended to use 4 AWG ( SLY-287-GRN ) sheathed copper wire to ground the electrode to the tower. 6 AWG ( SLY-291-GRN ) wire may be used for tower-mounted equipment.
Recommended Basic Lightning Rod System for Tower (Not included):
| Amount | Model | Description |
| 1 | TGTDPC | Lightning Rod Tip with Aluminum Mast (MASTIL1.2) |
| 1 | TG45AB | 45 Amp electrode. With a bag of impedance enhancing compound (H2OHM), compass and level. |
| 1 | S610 | Small plastic registration. |
| 1 | ANTIOX | Terminal protection spray. |
| 3 | TGCR11 | Eye Connector. |
| 2 | TGAB18 | Rod Connector. |
| 40 | TGAC114 | Tower insulator. |
*The dipole tip provides a 72° cone of protection beneath the coil. Recommended for areas with low lightning incidence.
*2/0 gauge copper wire ( SLY-346-BLK ) is recommended for integration. Considering an electrode installation at a maximum of 3 meters from the tower, approximately 65 meters are used.
*2/0 gauge copper wire ( SLY-346-BLK ) is recommended for integration. Considering an electrode installation at a maximum of 3 meters from the tower, approximately 65 meters are used.
See the Physical Ground + Lightning Rod connection diagram in the following DIAGRAM .
Signaling/Lighting System (Not included):
| Amount | Model | Description |
| 3 | EIGSLSE | Self-contained LED strobe with photocell, solar panel, and battery. Type L-810. |
| 3 | HLU3 | Mounting for EIGSLSE obstruction lamp |
*The signage regulations dictate that the tower must be painted in seven equal-sized stripes: four in a reddish-orange hue and three in white.
Out of stock
MODELO: KTZ-45G-060
