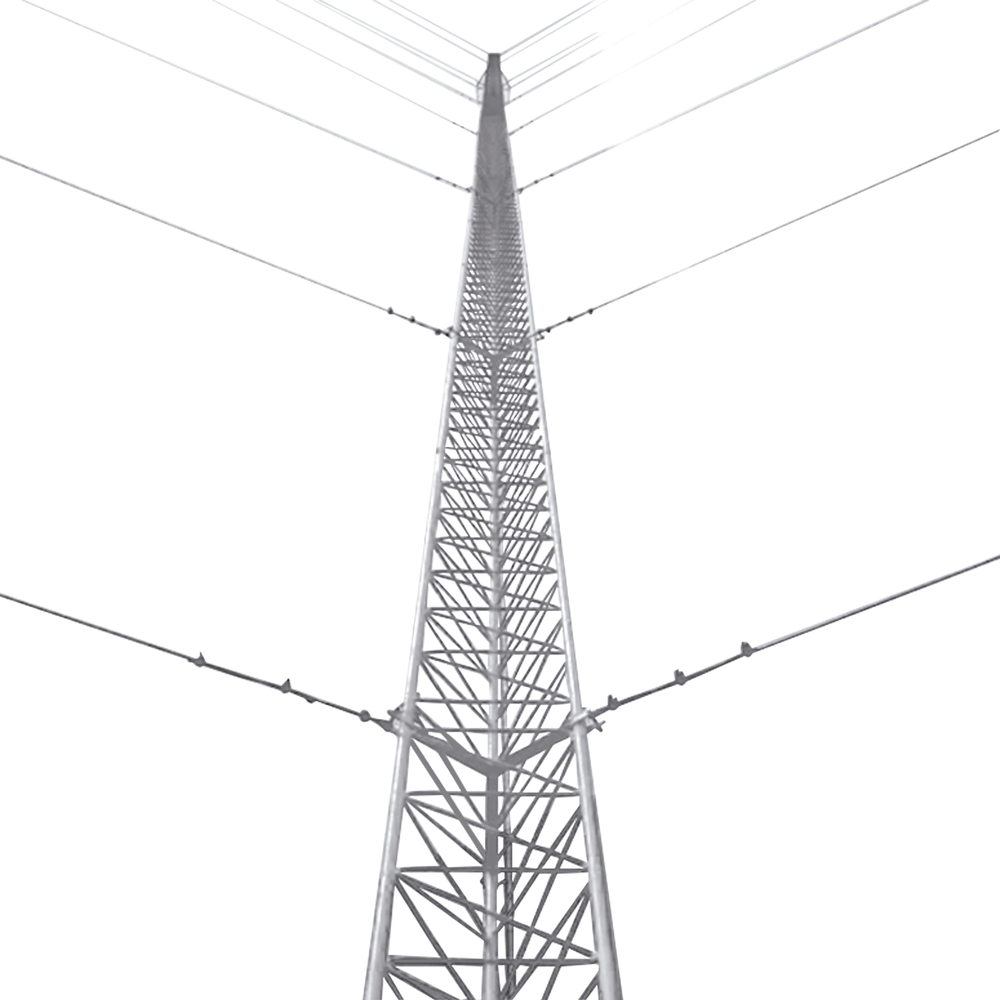

3m Height Floor Braced Tower Kit with STZ45G Hot Dip Galvanized Section (Does not include retainer).
3m Height Floor Braced Tower Kit with STZ45G Hot Dip Galvanized Section (Does not include retainer).
Regular price
$4.659.744 COP
Regular price
$4.736.006 COP
Sale price
$4.659.744 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
3m Height Floor Braced Tower Kit with STZ45G Hot Dip Galvanized Section (Does not include retainer).
Highlighted Features:
- Product manufactured under ISO 9001:2015 regulations.
- High Lift / Low Cost.
- 100% Inspection of Section-Section Assembly.
- Hot Dip Galvanized according to NMX-H-004-SCFI-2008 .
- Ideal for high humidity coastal areas or industrial areas.
Physical Characteristics:
- Maximum Axial Load: 500 Kg.
- Height: 3 meters (1 section).
- Wind resistance: 200 km/hr.
- Anti-corrosion protection: Hot-dip galvanized (NMX-H-004-SCFI-2008).
- Application: Outdoors (Wet Areas).
Includes the following components:
| Amount | Model |
Description |
| 1 | STZ-45G | Tower section with a 45 cm wide face. Each section includes hardware for assembly. |
| 1 | SCZ-45G | 45 cm tower cap with lightning rod clamp. |
| 1 | SJB-45G | Flange for holding the retainer. |
| 1 | SBZ-45G | Base for 45 cm tower. |
| 1 | SAB-45G | Anchor for tower base. |
| 3 | SAZ-45G | Floor Anchor for Braced Tower |
| 6 | NECK-14LS | Collar for retaining cable. |
| 18 | KNOT-14MS | 1/4' Dog Clamp |
Retaining cable not included. 20 meters of 1/4' retaining cable ( SRET-635, SRET-635CAM , or SRET-14RS ) or larger diameters are recommended.
3 x 5/8' x 9' turnbuckles are recommended. ( TEN- 5/8X9OGS ). Not included.
** FAILURE to use installation accessories such as Flanges, Tower Base, Tower Anchor or Retaining Anchors is considered a loss of equipment warranty and any additional adaptation is the responsibility of the installer.**
Additional accessories (Not included):
New! Lightning Rod + Grounding Cable Kit. LINKEDPRO Brand (Not included)
KLP-TZ03-PRO - All-inclusive! Ideal for 3m towers with corona dipoles, cabling, and electrodes with a 10-year warranty.
Or you can also quote the following Earthing or Lightning Rod components individually:
Recommended Physical Grounding System for Tower and Equipment Mounted on It (Not Included):
| Amount | Model | Description |
| 1 | TG45AB | 45A Grounding Electrode with Electrode, Filter and H2Ohm Compound |
| 1 | S610 | Plastic registration. |
| 3 | TGCR11 | Eye Connector |
| 2 | TGAB18 | Rod Connector |
| 1 | TGBUSG10 | Tie Bar with 1000A Capacity Insulators (No Cabinet) |
* It is recommended to use 4 AWG ( SLY-287-GRN ) sheathed copper wire to ground the electrode to the tower. 6 AWG ( SLY-291-GRN ) wire may be used for tower-mounted equipment.
Recommended Basic Lightning Rod System for Tower (Not included):
| Amount | Model | Description |
| 1 | TGTDPC | Lightning Rod Tip with Aluminum Mast (MASTIL1.2) |
| 1 | TG45AB | 45 Amp electrode. With a bag of impedance enhancing compound (H2OHM), compass and level. |
| 1 | S610 | Small plastic registration. |
| 1 | ANTIOX | Terminal protection spray. |
| 3 | TGCR11 | Eye Connector. |
| 2 | TGAB18 | Rod Connector. |
| 2 | TGAC114 | Tower insulator. |
*The dipole tip provides a 72° cone of protection beneath the coil. Recommended for areas with low lightning incidence.
*2/0 gauge copper wire is recommended for integration ( SLY-346-BLK ). Considering an electrode installation at a maximum of 3 meters from the tower, approximately 8 meters are used.
*2/0 gauge copper wire is recommended for integration ( SLY-346-BLK ). Considering an electrode installation at a maximum of 3 meters from the tower, approximately 8 meters are used.
See the Physical Ground + Lightning Rod connection diagram in the following DIAGRAM .
Signaling/Lighting System (Not included):
| Amount | Model | Description |
| 2 | EIGSLSE | Self-contained LED strobe with photocell, solar panel, and battery. Type L-810. |
| 2 | HLU3 | Mounting for EIGSLSE obstruction lamp |
*The signage regulations dictate that the tower must be painted in seven equal-sized stripes: four in a reddish-orange hue and three in white.
Out of stock
MODELO: KTZ-45G-003
