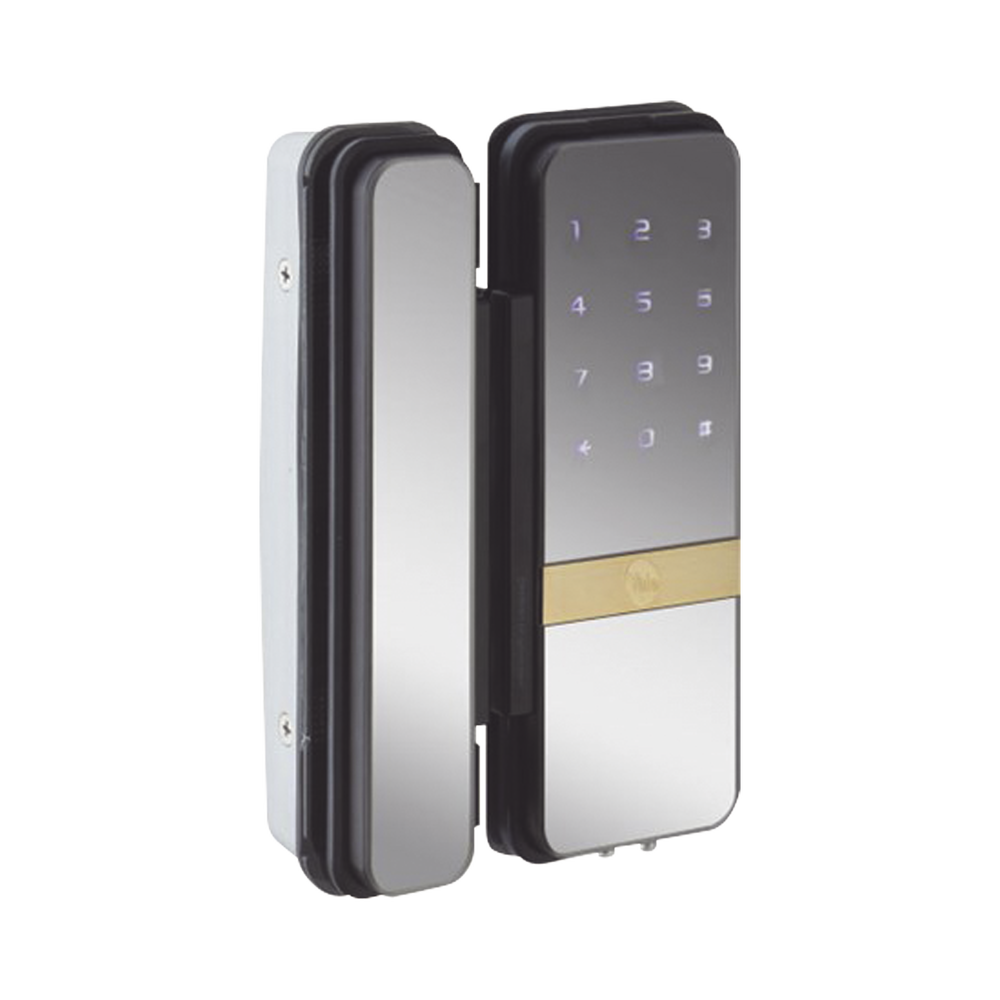

Digital Lock with Touch Keypad for Glass Door

Digital Lock with Touch Keypad for Glass Door

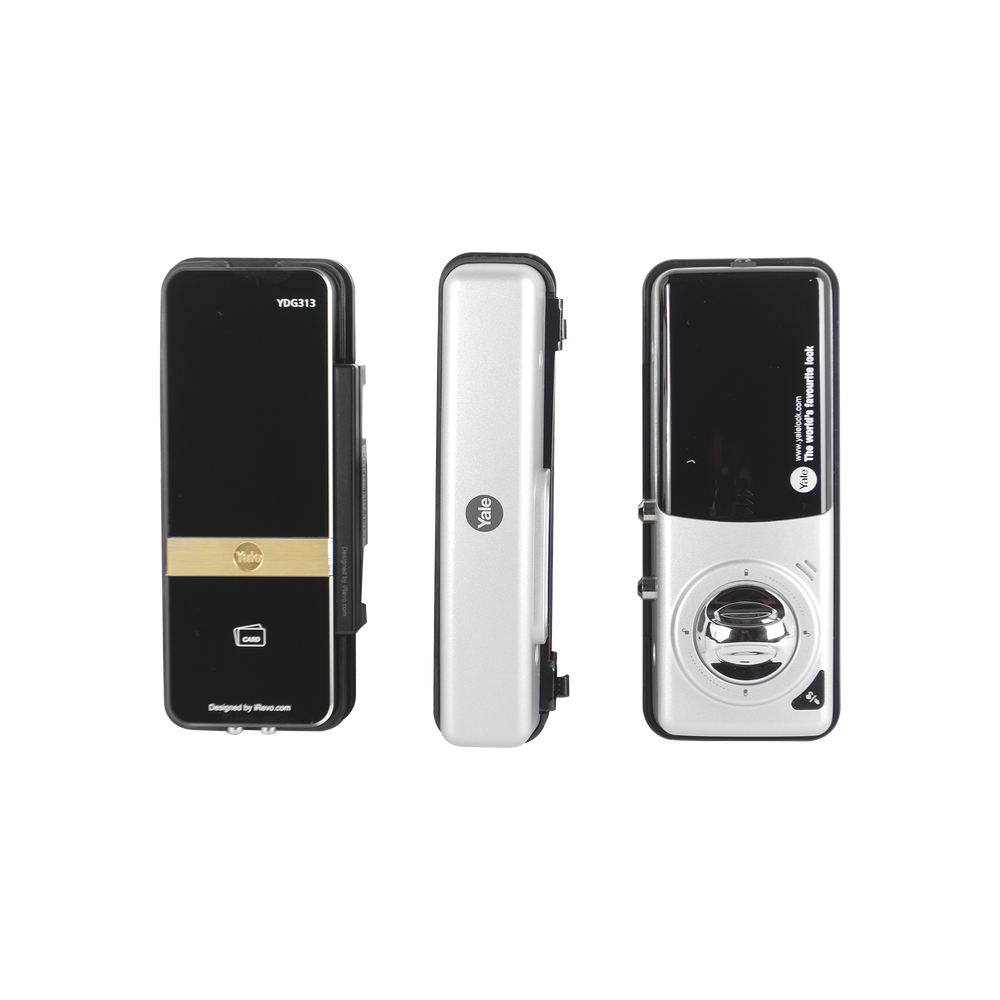

Gateman YDG313 Electronic Digital Lock for Glass Doors with Strike

Digital lock with mirror effect, the touch screen lights up until the
user touches the screen, this increases security since you can see if there is someone behind when activating the lock.

Characteristics:

• 1 code.
• 4 remote controls (requires module 84989 and controls 84994 ) .
• 20 cards (compatible only with model 84782 )
• Clip-type mounting: Installation is achieved using a clip-type bracket and high-strength adhesive tape.
• No drilling required for the door.
• Safety butterfly: The inner butterfly can only be activated when the two buttons located on it are pressed simultaneously.
• Modern, slim and cutting-edge design.
• High temperature alarm.
• Entering random numbers before or after the PIN code.
• Remote control (optional).
• For glass doors 10 mm to 12 mm thick.
• Installation type: Surface mounted.

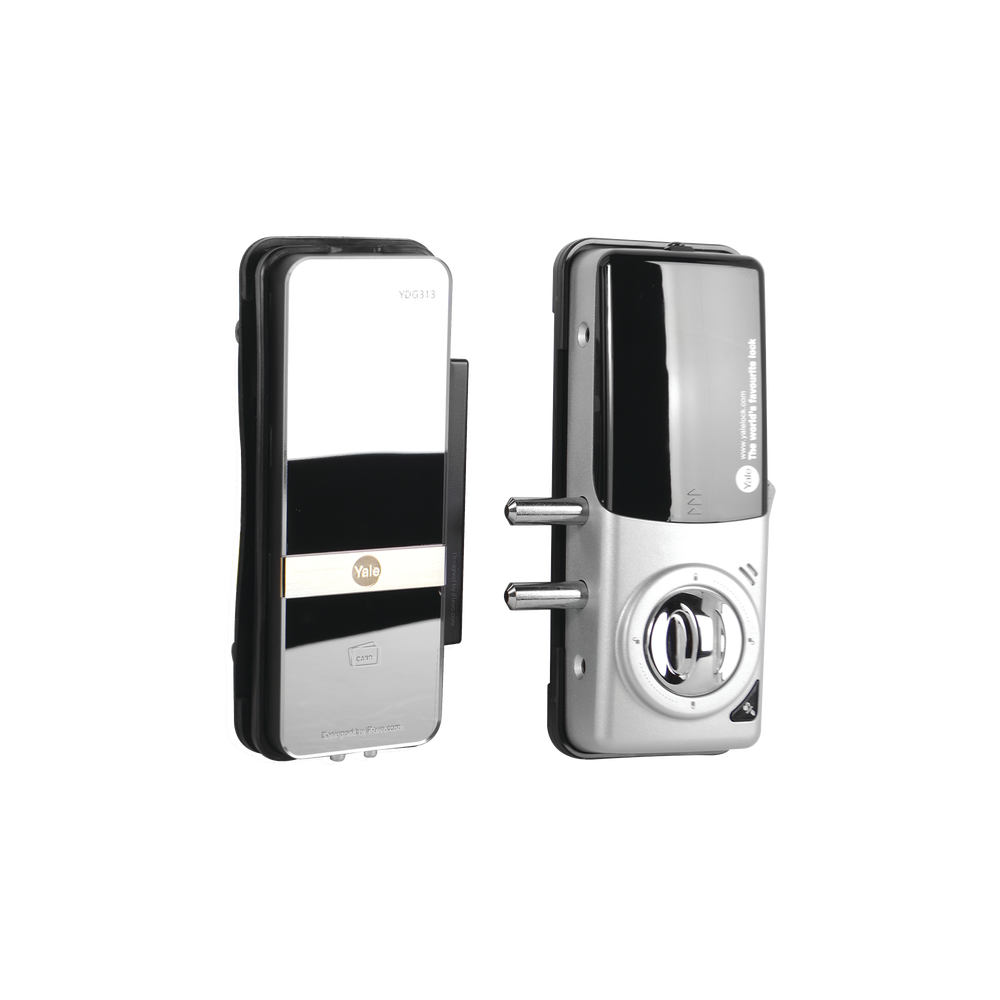

• 2 bolts or pins.
• Works with 4 AA 1.5 Vdc alkaline batteries included (the duration of the
• Battery may vary depending on usage conditions.)
• Operating temperature: 15 to 55 °C
• GAP: 1 cm.
• Counter plate for glass frame door.
• If the master programming key is lost, it is not possible to restore or reset it.
