• Soporte y tapa universal color blanco de PVC auto extinguible, para canaleta TEK100 (5595-10001)
1 4

THORSMAN

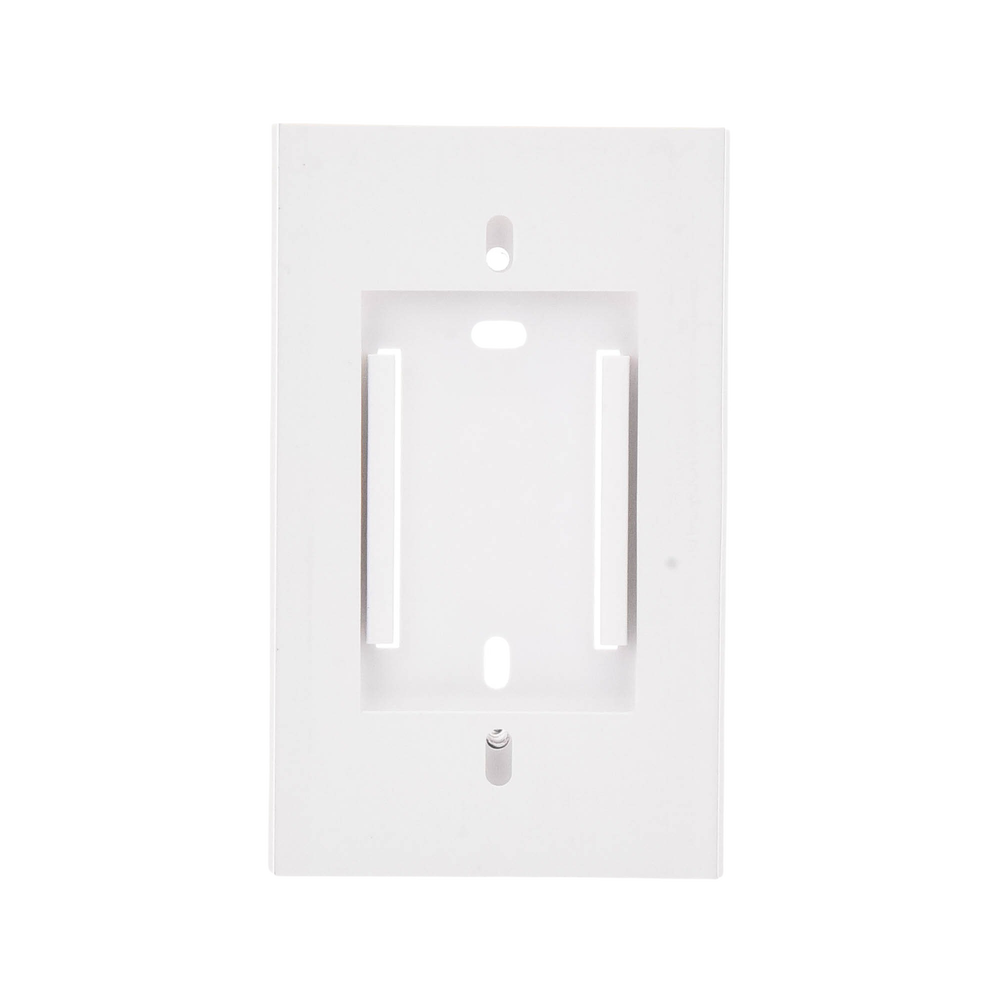

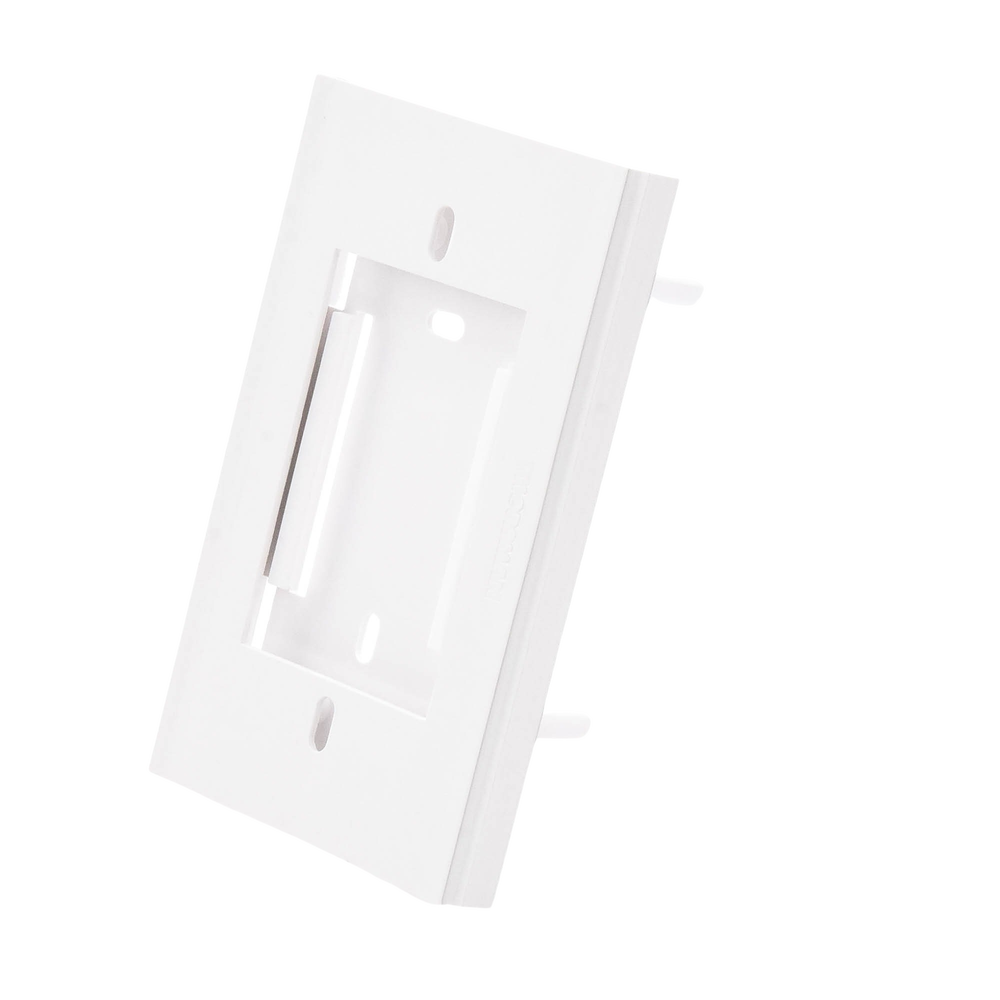

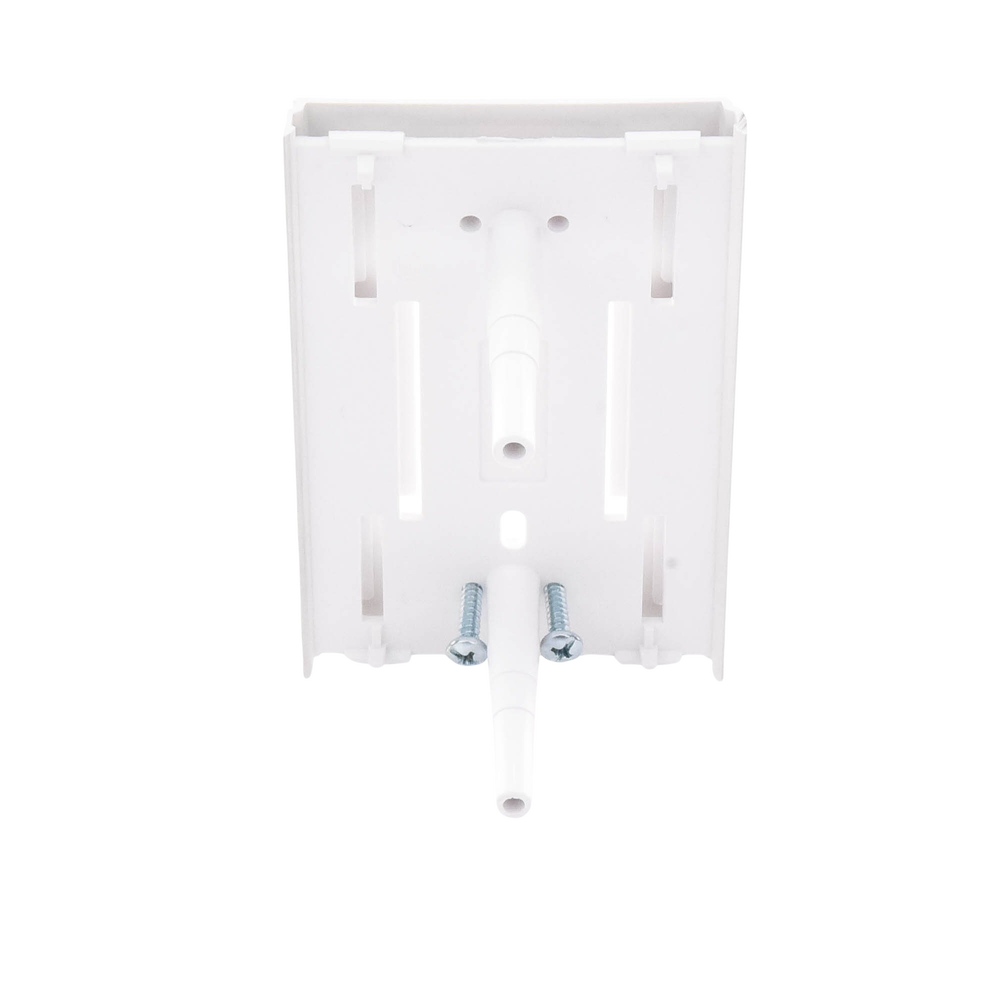

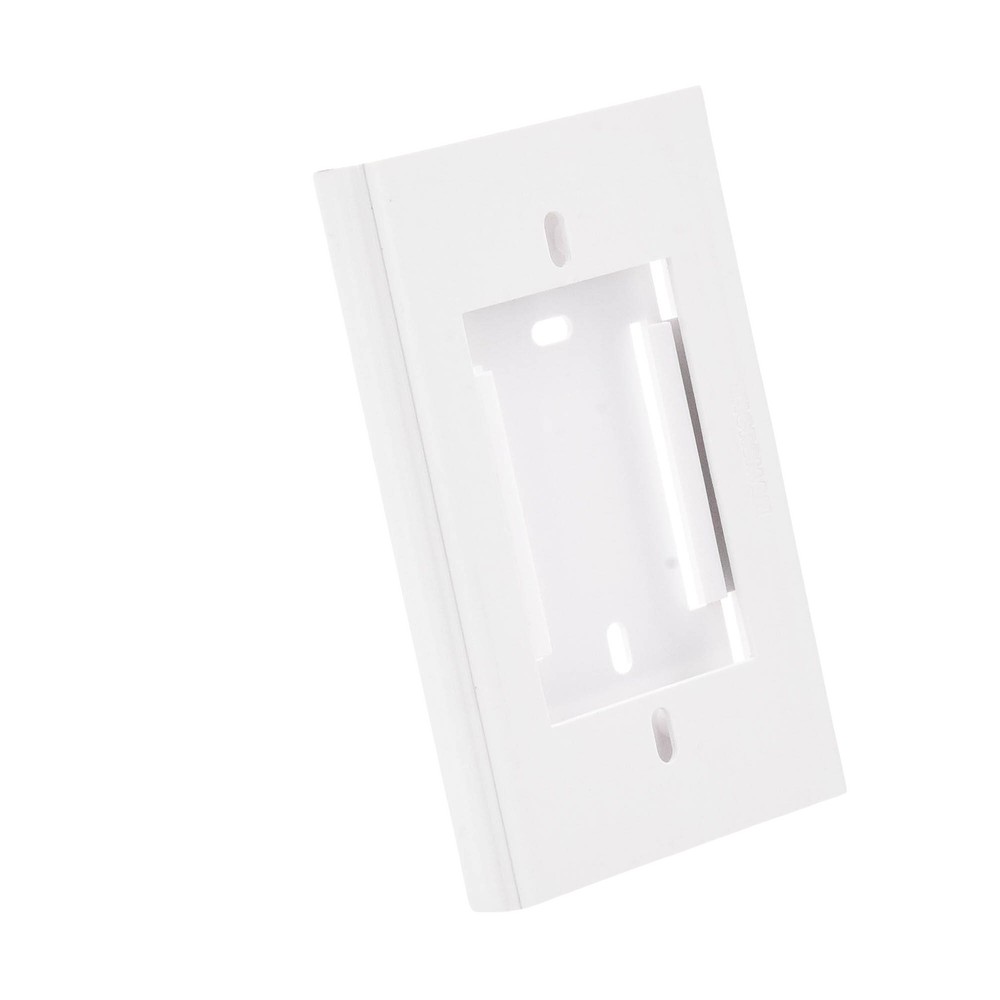

Universal white self-extinguishing PVC support and cover for TEK100 channel (5595-10001)

Universal white self-extinguishing PVC support and cover for TEK100 channel (5595-10001)

$12.305 COP
$13.459 COP $12.305 COP
Sale Sold out
Shipping calculated at checkout.

Universal white self-extinguishing PVC support and cover for TEK100 channel (5595-10001)




General Features:

  • For use in electrical and structured cabling installations.
  • White color.
  • Base channel and cover weight 2.057 kg
  • It has an internal area of ​​4,478 mm2.
  • Working temperature from -20ºc to +85ºc.
  • Resistance to humidity and corrosive atmosphere.
  • High dielectric strength.
  • It complies with the requirements of the NOM-001-SEDE-2005 standard.
  • Certified in .

Materials

  • High impact rigid PVC resistant to tension ASTM D-638-98.
  • ASTM D-635-98 self-extinguishing material.
  • UV resistant ASTM D-635-98.
  • ASTM testing at 250 hrs. No shade change ASTM G-154 (500 hr).


Dimensions (Dimensions in mm):


Installation Example:

Thorsman is the Leading Brand in Mexico Recognized for Channeling and Fastening Products

It offers a wide range of solutions for electrical and structured cabling, voice, and data installations; they provide functionality, distribution, protection, and aesthetics. You can also find them in: electrical cable capacity tables and exposed conduit load capacity tables.

Systems that cover all needs

Hospital

Home

Industry

Office

40% capacity is the maximum recommended by EIA/TIA-569-A for designing structured cabling systems.

Find Thorsman fastening systems, such as cable ties, strapping, nylon and stainless steel ties, that are essential for the security of any installation.

Thorsman's thelecom systems, such as mini power and voice/data floor boxes, as well as configurable 2- and 4-module floor boxes, provide the complete connectivity solution for entertainment centers such as casinos, trade shows, museums, shopping malls, and more.

    14 in stock

    MODELO: TEK-100-UNI
