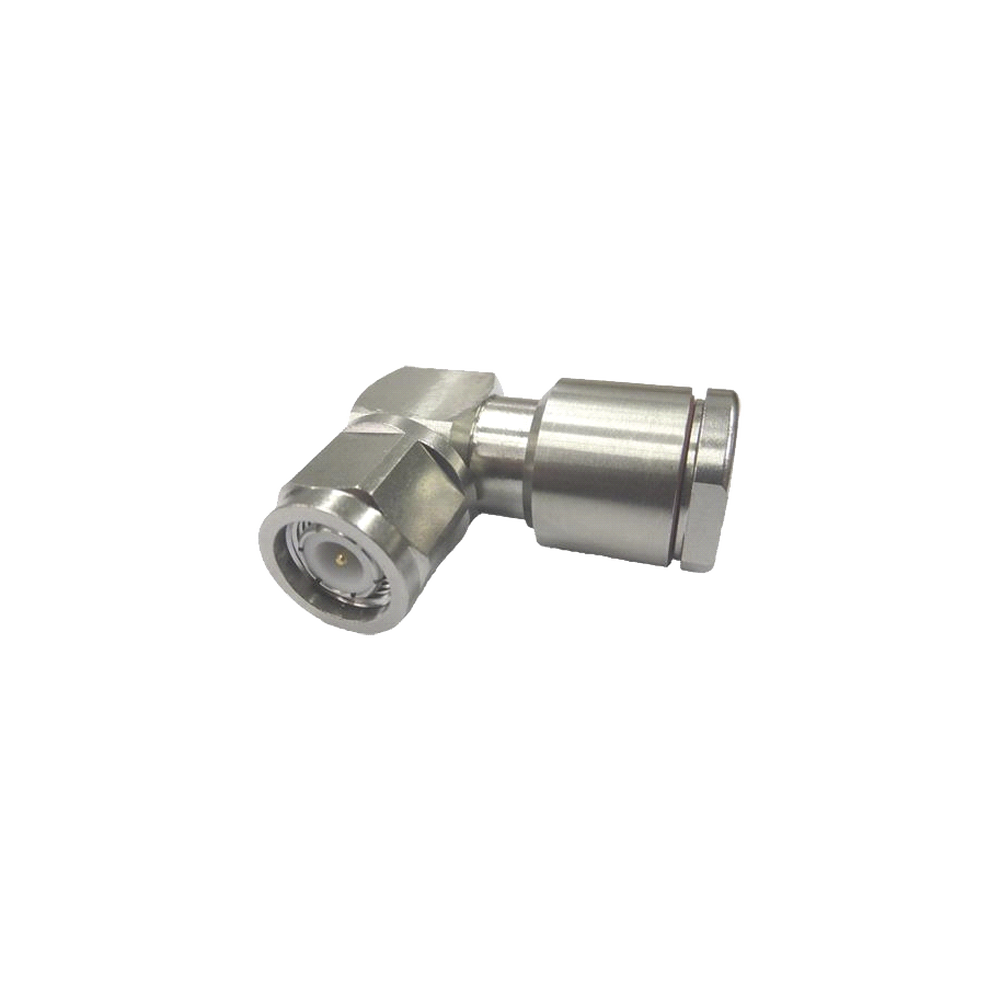

Angled TNC Male Connector for CNT-400, RG-8 Cable

Angled TNC Male Connector for CNT-400, RG-8 Cable

General Specifications
TNC Male Interface
Body Style Right Angle
Brand CNT®
Electrical Specifications
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 500.00 V
DC Test Voltage 1500 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 5.00 kW
Insertion Loss, typical 0.05 dB
