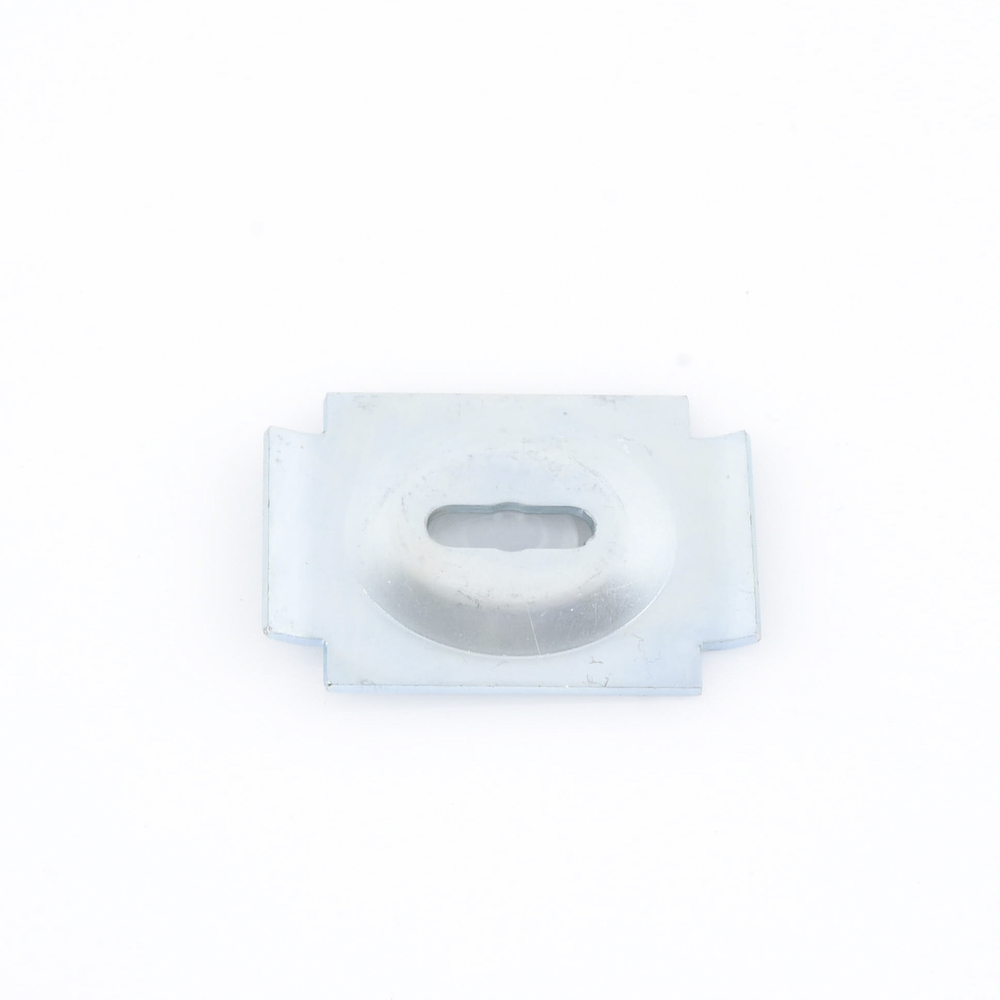

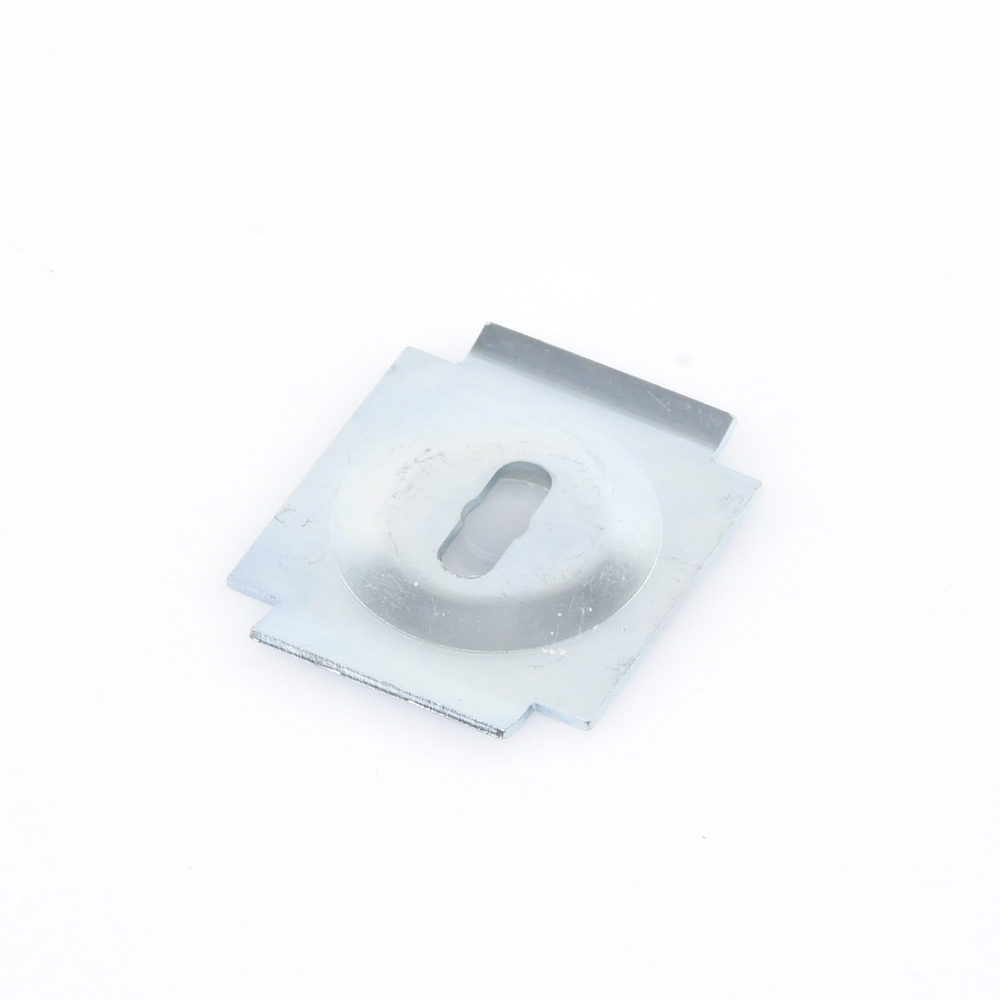

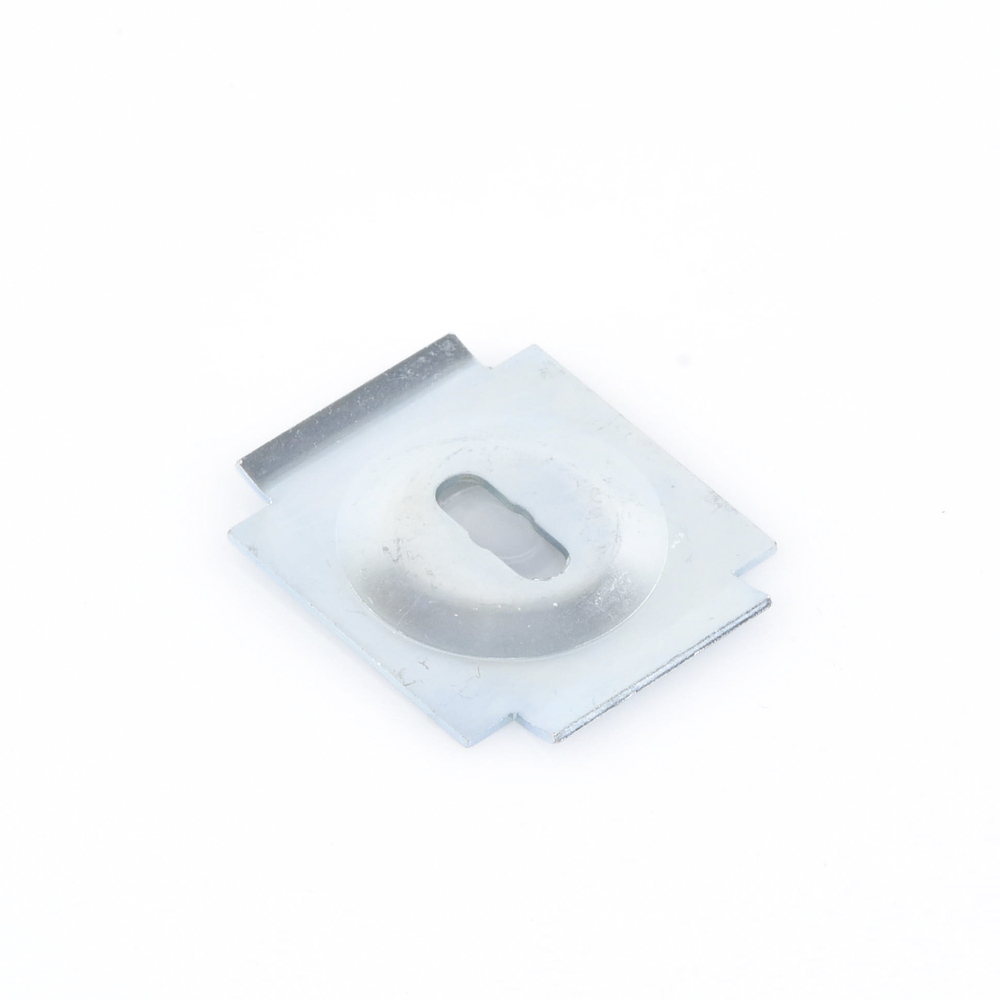

Central suspension, ideal for suspending trays from the ceiling, with Electro Zinc finish

Central suspension, ideal for suspending trays from the ceiling, with Electro Zinc finish

General Characteristics:


The central suspension is an accessory used as a support to suspend 100 mm wide trays from the ceiling, using a 5/16 mm threaded rod.

• Use only for width 100 mm.
• Ideal for fixing to metal structures and small spaces.
• Single-channel fixing with high mechanical resistance.
• Two pieces are required for each bracket.
• For threaded rod maximum 5/16'
• It can also be used as an accessory to secure the single-channel tray (requires a spring nut and a drop-head screw).
• Made of cold-rolled carbon steel sheet.
• Sheet metal gauge 14 (1.9 mm)
• Electrogalvanized finish.
• Available in polyester paint

Installation example:
