600 lbs Electromagnet / 12 VDC or 24 VDC Operation / LED Indicator / Dry Contact Output

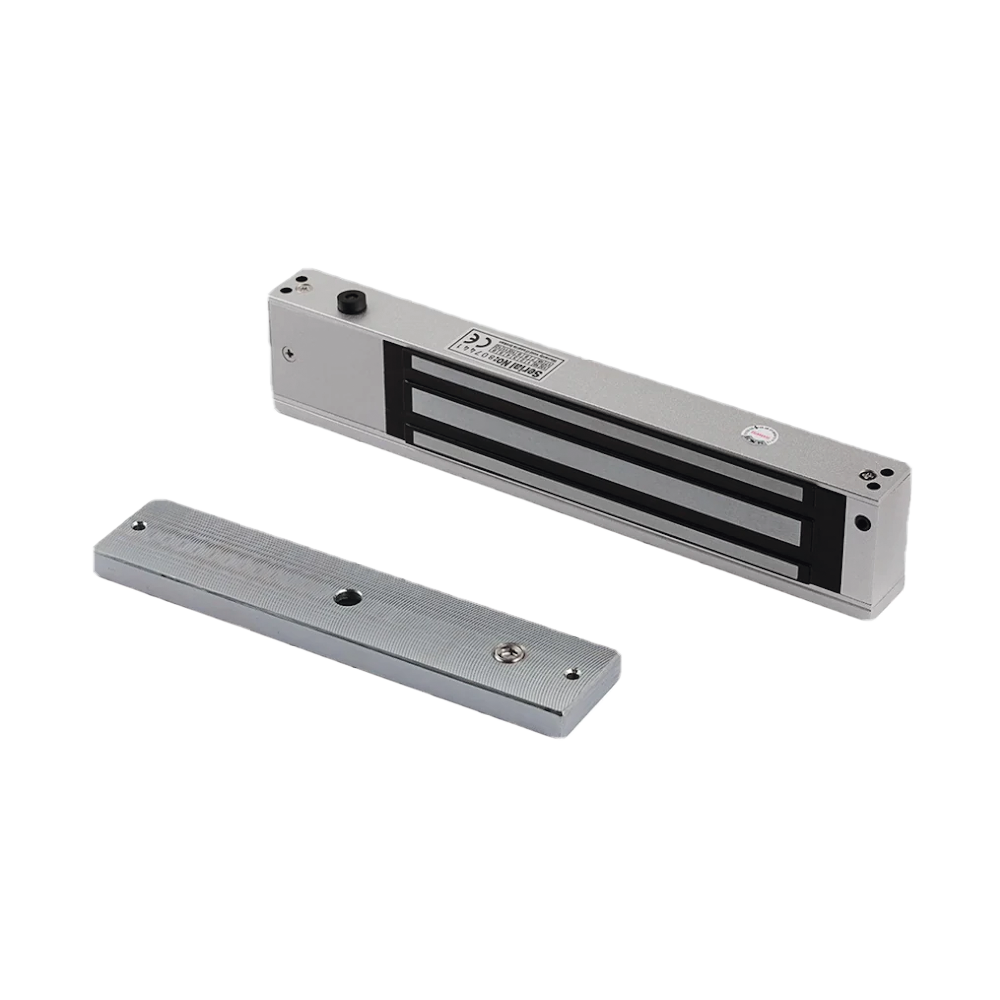

HikVision DS-K4H250S Electromagnet

The magnetic lock is designed for wooden doors, glass doors, and steel doors with a 90° opening angle. The lock has a maximum thrust of 272 kg (599.8 lbs). It can be used to control the opening/closing of doors, and the indicator displays the door status. It also supports test signal output for the door lock output status.

Main features:
  • The magnetic lock supports a static holding force of 272 kg (599.8 lbs).
  • The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC.
  • It is equipped with a voltage dependent internal resistor (MOV).
  • It is applicable to wooden doors, glass doors, metal doors and fire doors.
  • Door lock status signal output (NO\NC\COM).
  • Anti-residual magnetism design.
  • Abrasion resistant materials.
  • The housing is made of aldural and is electroplated with hard anodizing.
  • There is no mechanical failure, and the magnetic lock works by the force of electromagnetism.
  • Stronger magnetic force, double insulation design.
  • Approval: CE, RoHS, UL, FCC-VOC, REACH, MA.
Physical and Electrical Characteristics:
  • Electromagnet Dimensions: 480mm × 48.5mm × 26.5mm (18.90' × 1.90' × 1.04').
  • Board dimensions: 180 mm × 38 mm × 11 mm (7.1' × 1.5' × 0.4' ).
  • Maximum clamping force: 272 kg clamping force.
  • Input voltage: 12 VDC / 24 VDC.
  • Working current: 12V/500mA, 24V/250mA.
  • Signal output: Dry contact signal output; supports a maximum power rating of 3A; NO output during locking and NC output during unlocking.
  • Red LED Indicator: Door is unlocked.
  • Green LED Indicator: The door is locked.
  • Suitable door: Wooden door, glass door, metal door, fire door.
  • Working temperature: -10°C to 55°C (-14°F to 131°F).
  • Working humidity: 0 to 95% (relative humidity).
  • Shell: Hard anodized electroplating operated.
  • Lock body: Eco-friendly zinc with electroplating operated.
  • Armor plate: Galvanized ecological zinc.
  • Weight: 2100 g.

    Abrasion resistant, LED indicating door status, Made of zinc with galvanic coating.

Low stock: 4 left

MODELO: DS-K4H250S
