ANDREW / COMMSCOPE

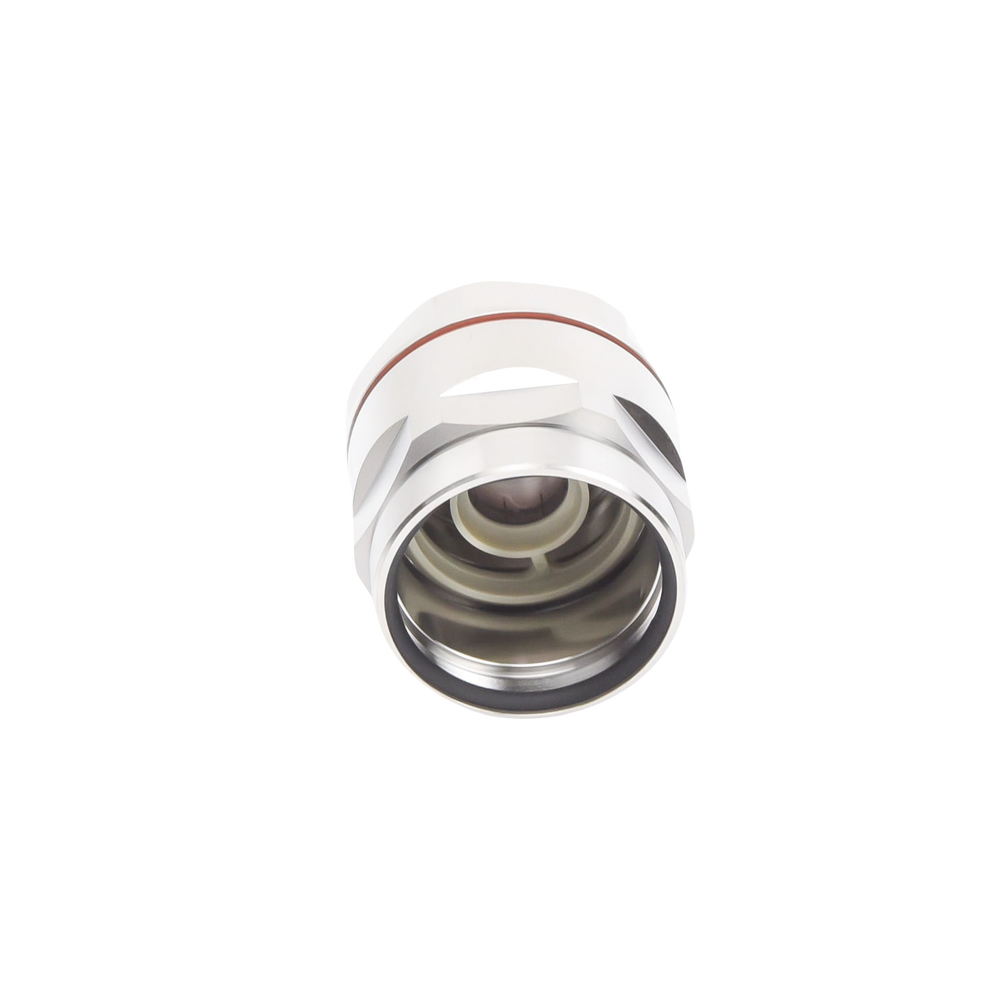

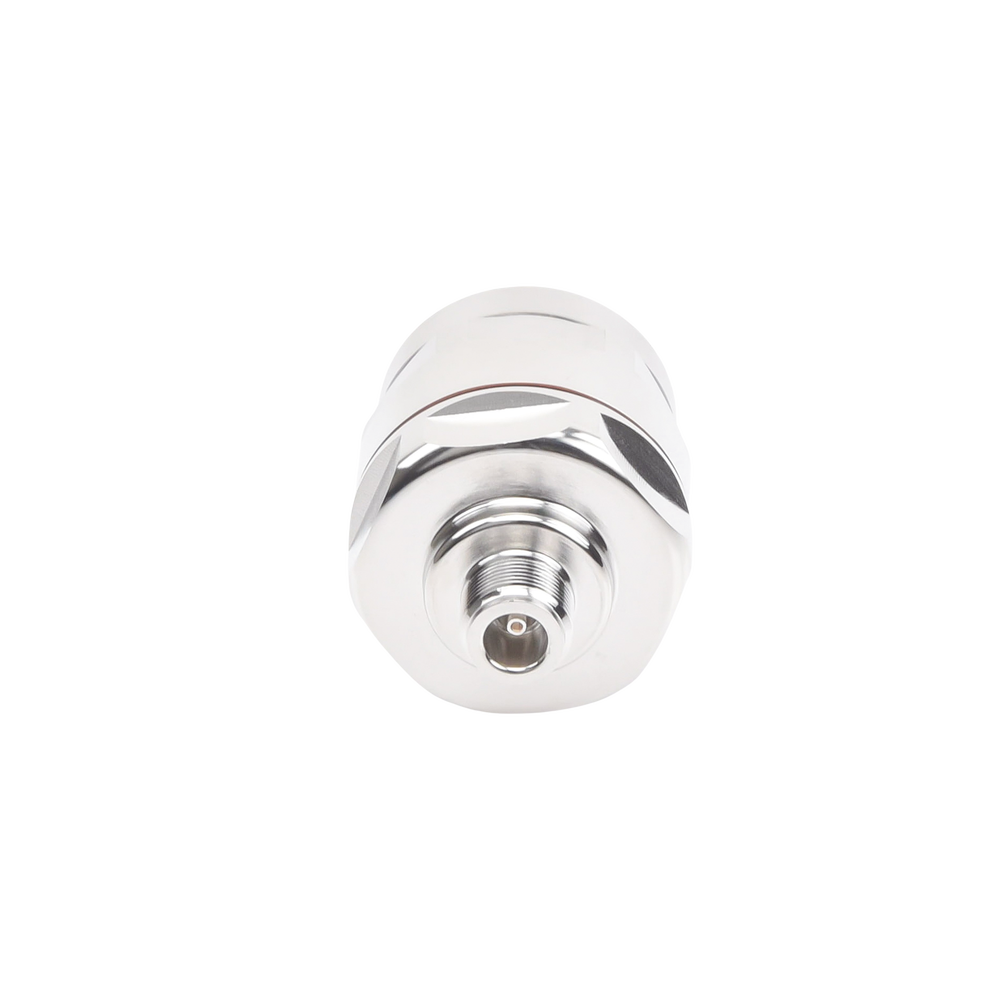

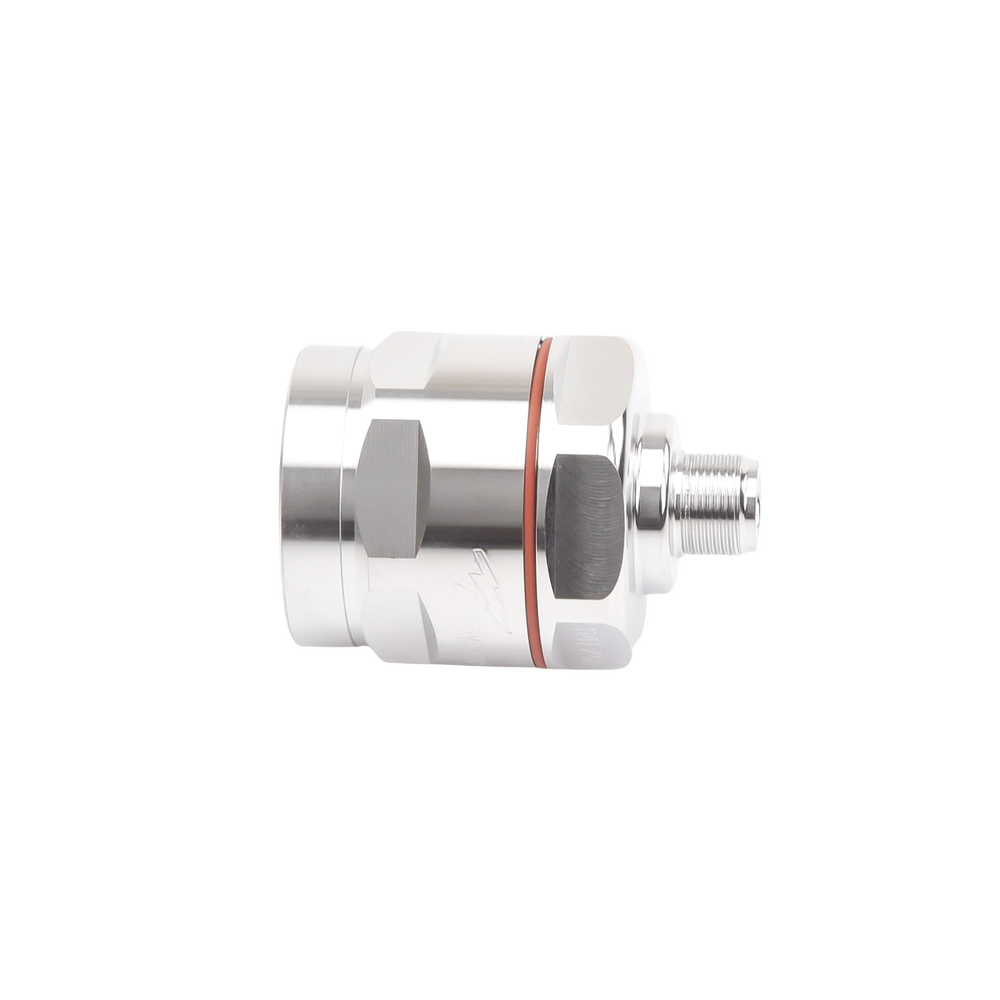

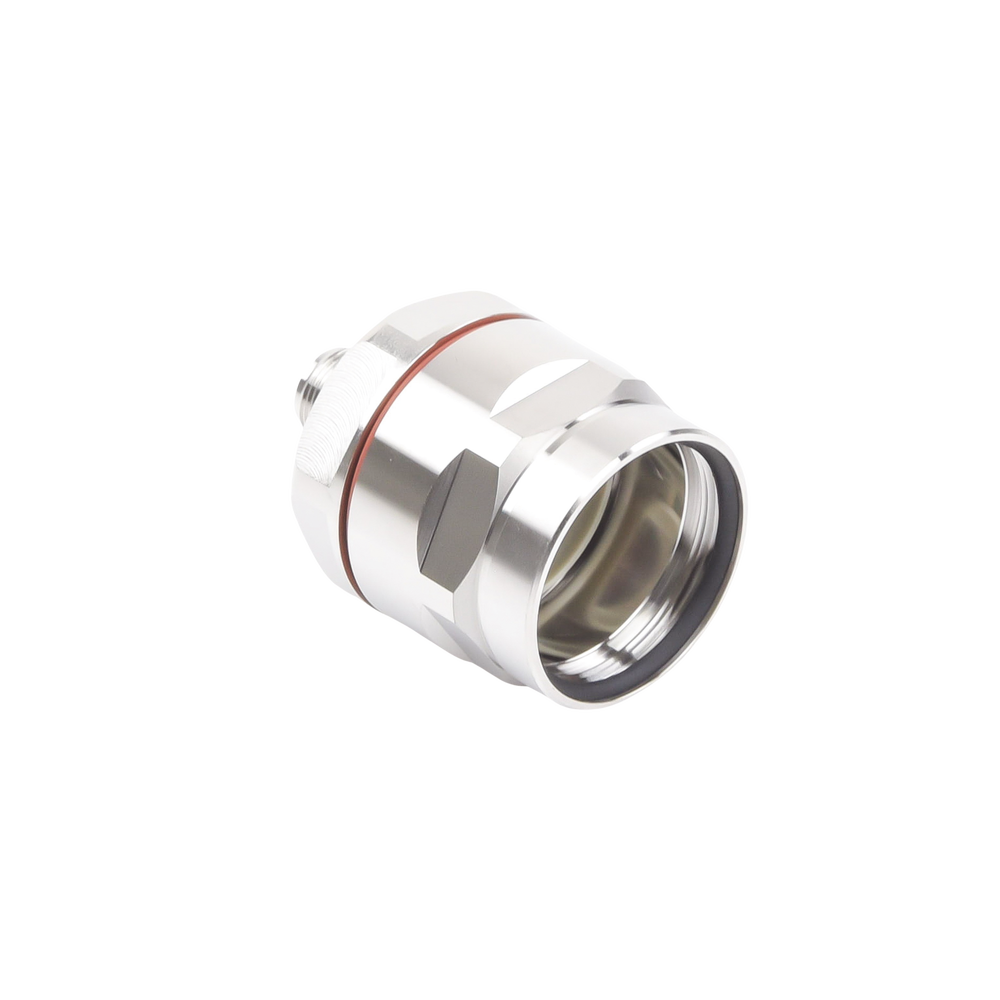

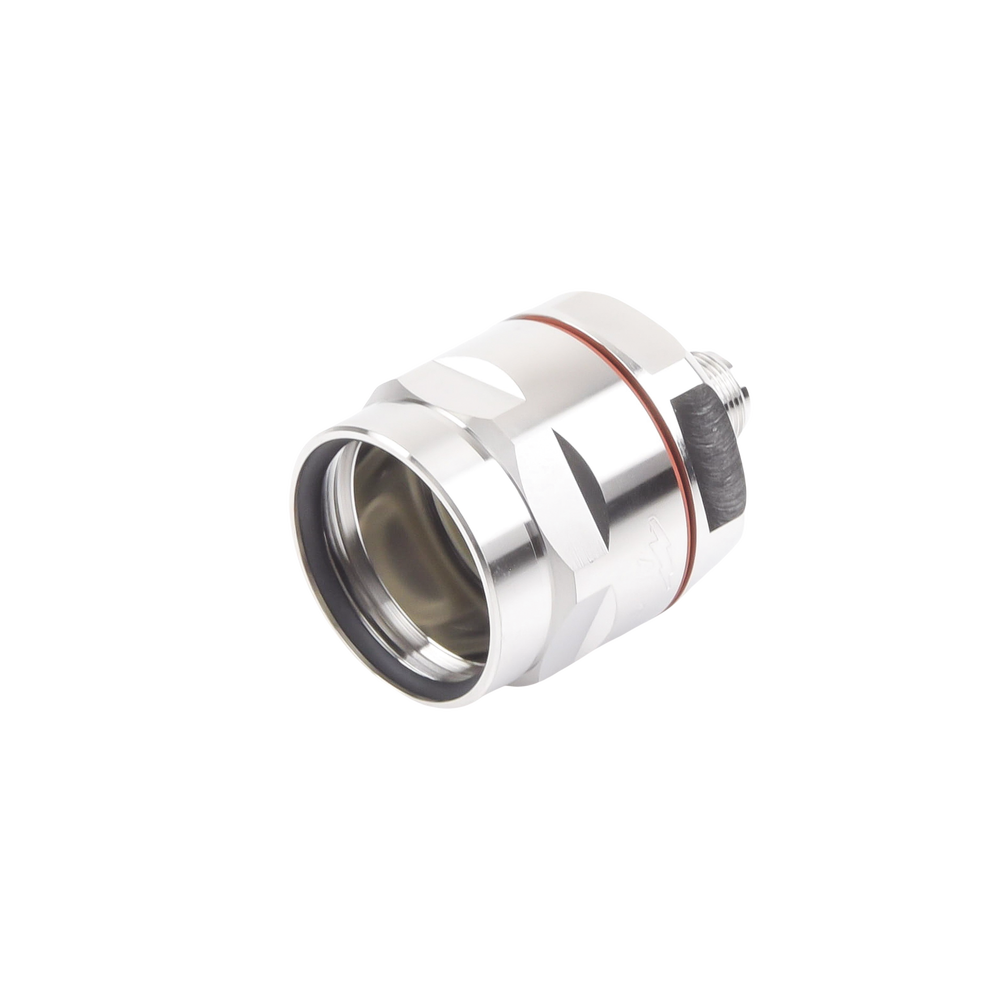

N Female connector for AVA6-50 cable

Name: N Female connector for AVA6-50 cable
Brand: ANDREW / COMMSCOPE
SKU: 114-EZNF
Price: 534865.24 COP
Availability: OutOfStock

$534.865 COP

~~$767.895 COP~~ $534.865 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

Electrical Specifications
Connector Impedance	50 ohm
Operating Frequency Band	0 – 3300 MHz
Cable Impedance	50 ohm
3rd Order IMD, typical	-116 dBm @ 1800 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
RF Operating Voltage, maximum (vrms)	707.00 V
DC Test Voltage	2000 V
Outer Contact Resistance, maximum	0.30 mOhm
Inner Contact Resistance, maximum	2.00 mOhm
Insulation Resistance, minimum	5000 MOhm
Average Power	0.6 kW @ 900 MHz
Peak Power, maximum	10.00 kW
Insertion Loss, typical	0.05 dB

Out of stock

MODELO: 114-EZNF
