2-line SMB IP phone with 3 programmable feature keys and 3-way conferencing, 5 VDC

2-line SMB IP phone with 3 programmable feature keys and 3-way conferencing, 5 VDC

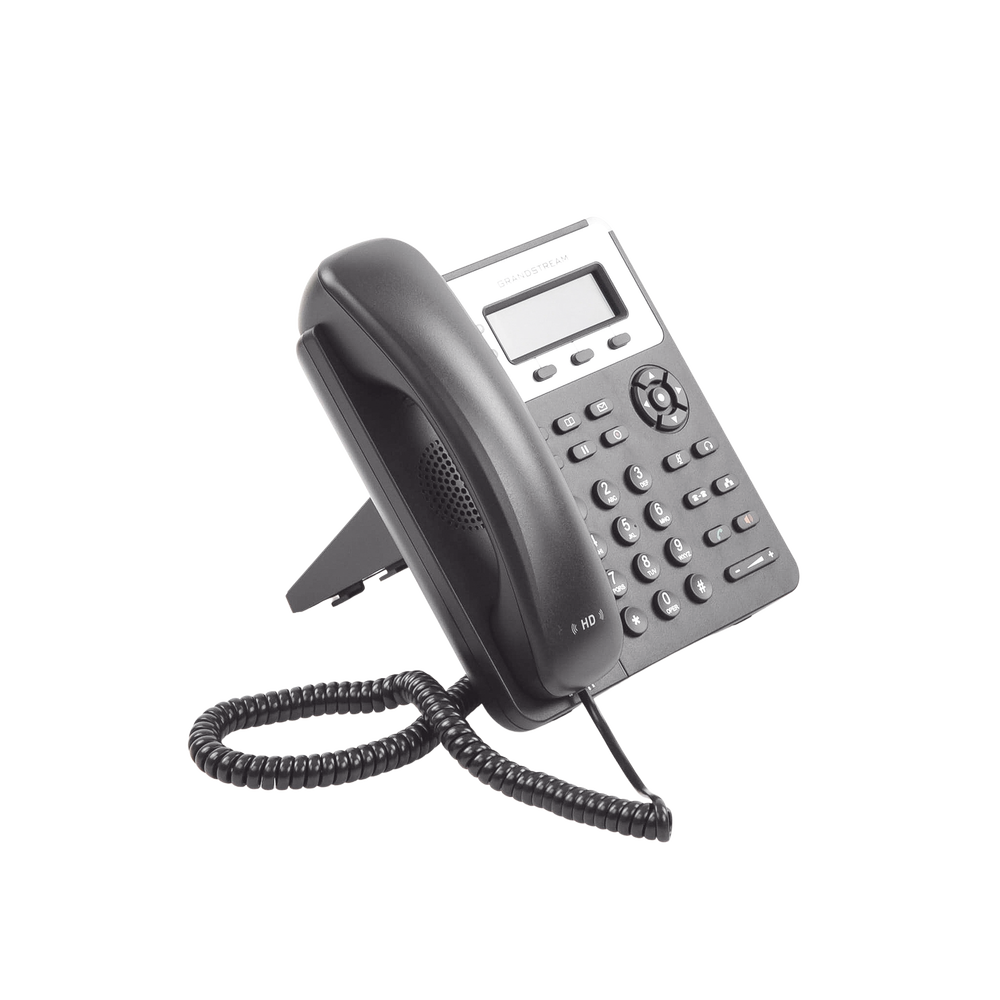

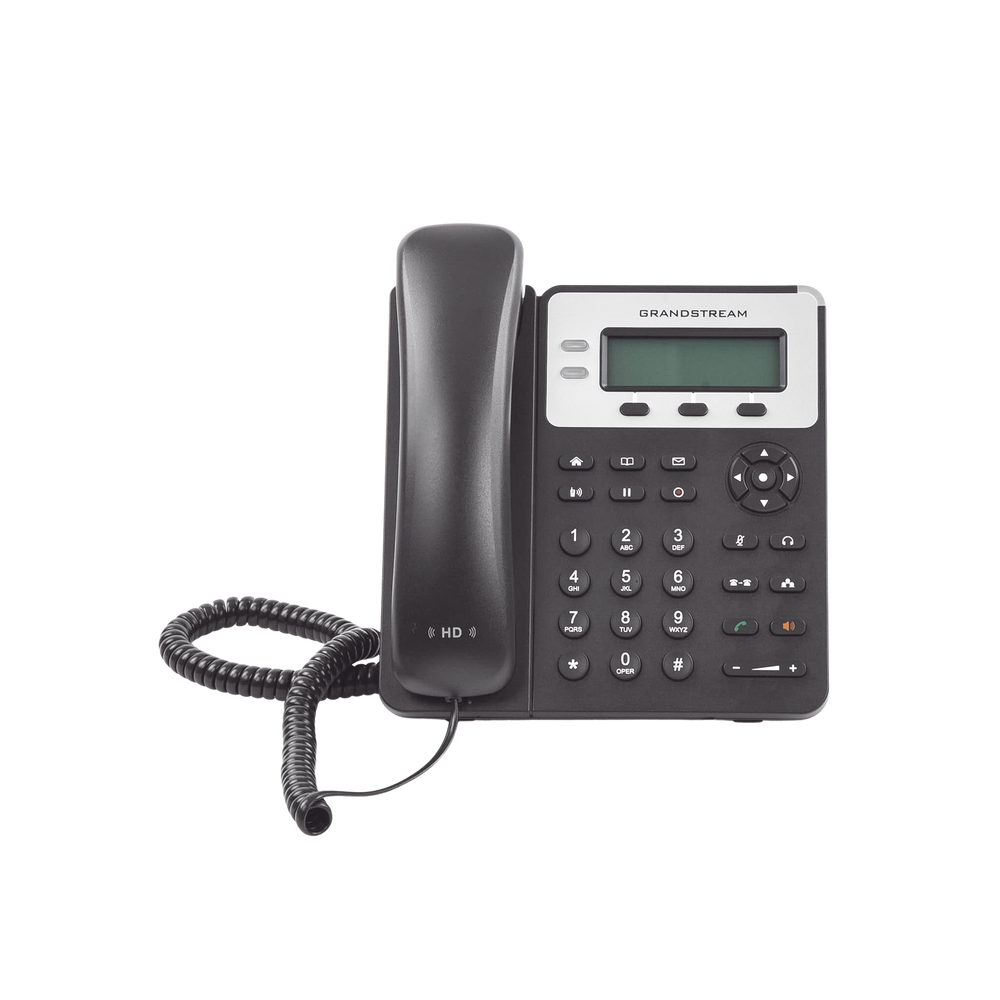

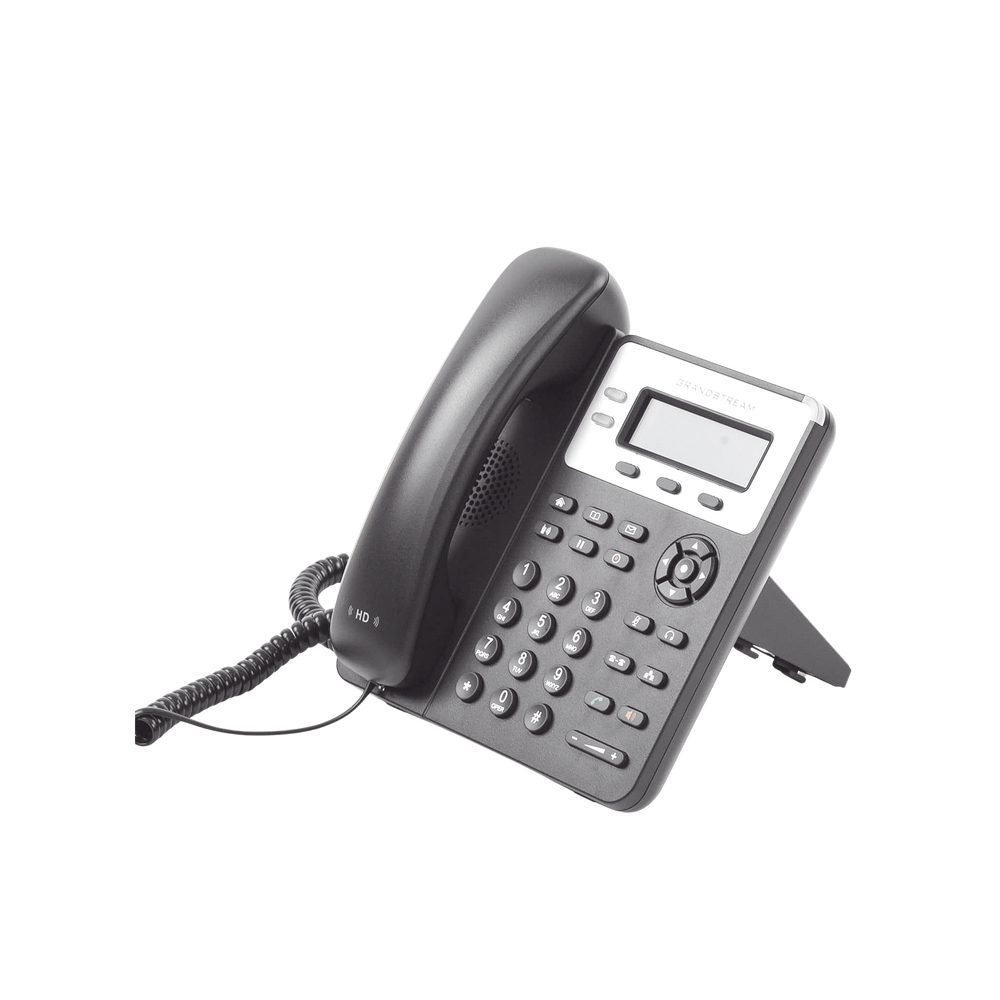

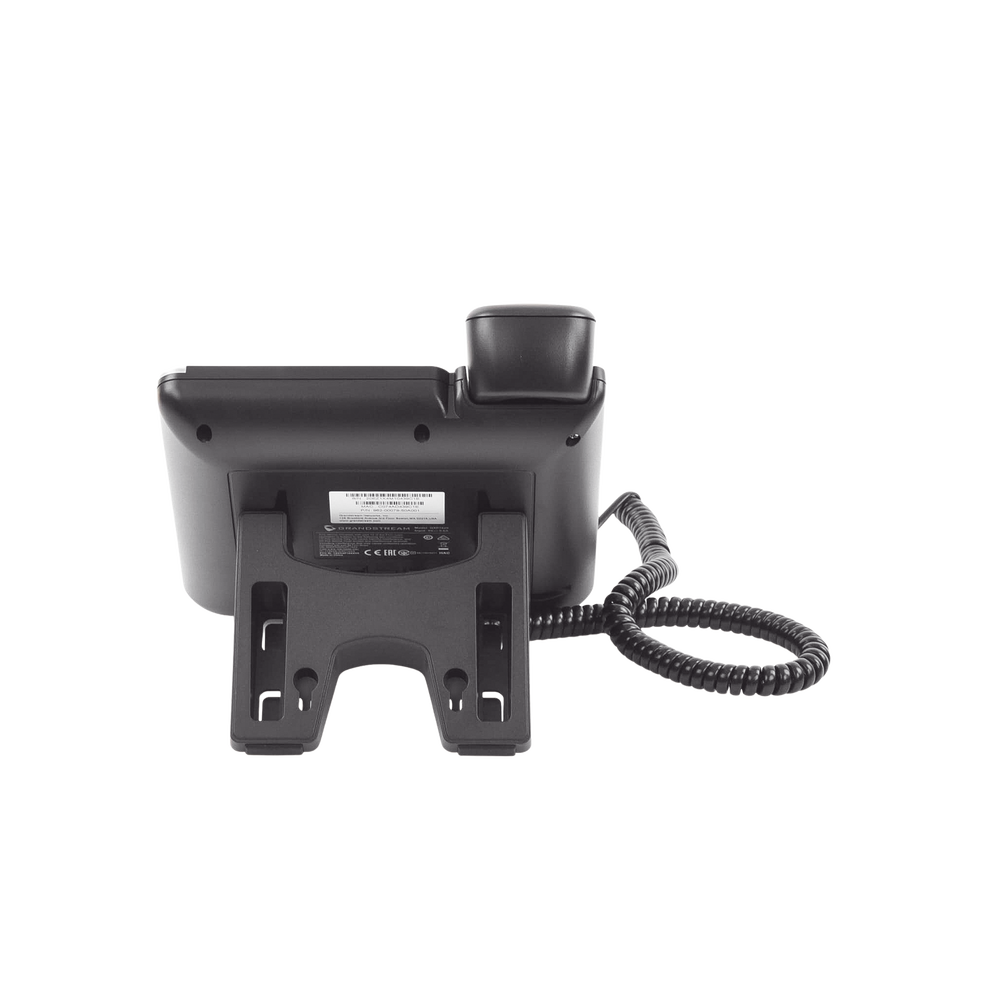

The GXP1620 is Grandstream's standard IP phone for small businesses. This Linux-based model offers two lines, three programmable XML keys, HD audio, and three-way conferencing. A 132 x 48 LCD screen creates a clear display for easy viewing. It includes dual 10/100 Mbps network ports. Additional features such as multi-language support, Electronic Hook Switch support for Plantronics headsets, and call waiting make the GXP1620 a reliable, easy-to-use, and high-quality IP phone.

Main:

- 2 Lines (SIP accounts), 3 programmable XML function keys and 3-way conferencing.

- 132 x 48 backlit LCD graphic display.

- HD Audio.

- Dual network ports.

Telephone functions:

Hold, Transfer, Forward (Unconditional/No Answer/Busy), 3-way Conference, Call Park/Retrieve, Downloadable Phonebook (XML, LDAP, up to 500 contacts), Call Waiting, Call History (up to 200 records), Auto Dial on Hook, Auto Answer, Click to Dial, Flexible Dial Plan, Hot Desking, Custom Music Ringtones, Server Redundancy, and Failover.

Codecs:

Support for G.711μ/a, G.722 (wideband), G.723 (pending), G.726-32, G.729 A/B, In-band and Out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC.

Interfaces:

- Dual 10/100 Mbps switched Ethernet ports with auto-sensing.

- RJ9 headset connector (allows EHS with Plantronics headsets).

Security:

User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control.

Quality of service:

Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Languages:

Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP

Accordance:

FCC: Part 15 (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1.

Physical and electrical characteristics:

- Universal power supply; Input: 100-240VAC 50-60Hz; Output: 5VDC, 600mA.

- Base or wall mountable.

- Dimensions: 209 x 184.5 x 76.2 mm.

- Weight: 0.74 kg.

- Operating temperature: 0~40ºC.

Package contents:

GXP1620 telephone, corded handset, stand base, universal power supply, network cable, Quick Installation Guide, brochure, GPL License.

*1 year warranty.
