2-Line SMB IP Phone, 1 SIP Account, 3 Programmable Feature Keys, and 3-Way Conferencing. 5VDC

2-Line SMB IP Phone, 1 SIP Account, 3 Programmable Feature Keys, and 3-Way Conferencing. 5VDC

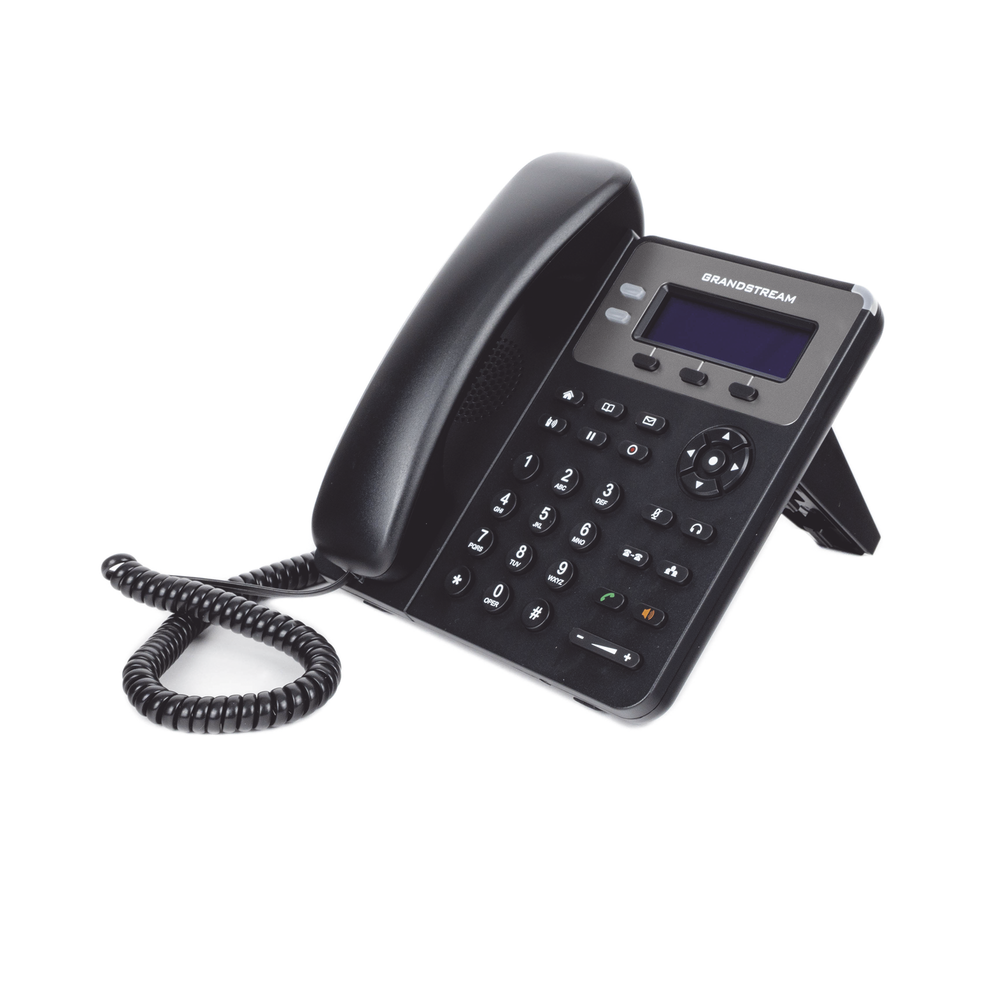

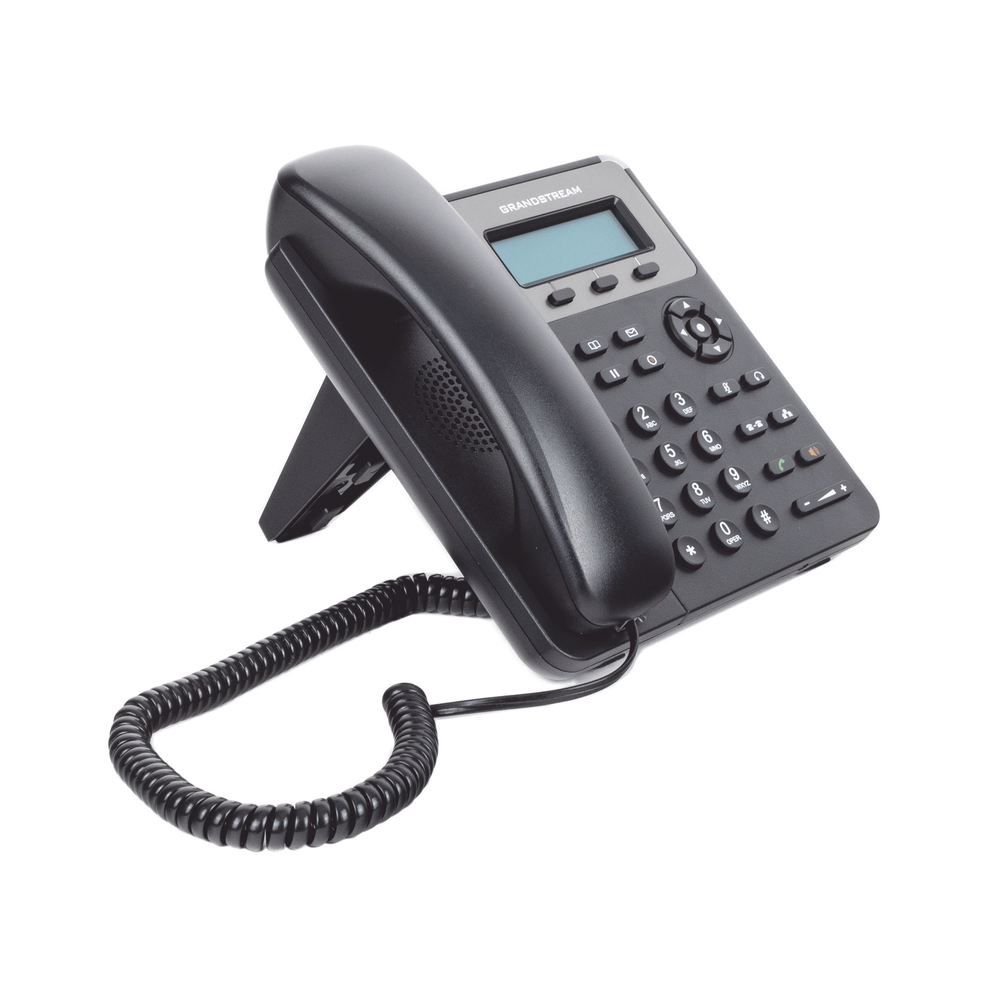

The GXP1610 is a simple-to-use IP phone for small and medium-sized businesses (SMBs) and home offices. This Linux-based model offers a single SIP account, up to two call states, and three programmable XML keys. A 132 x 48 LCD provides a clear display for easy viewing. Additional features such as dual switched 10/100 Mbps ports, multi-language support, Electronic Hook Switch support for Plantronics headsets, call waiting, and 3-way conferencing make the GXP1610 a reliable, easy-to-use, and high-quality IP phone.

Main:
- 1 Line (SIP account), 3 programmable XML function keys and 3-way conference.
- 132 x 48 LCD graphic display.
- Dual network ports.

Telephone functions:
Hold, Transfer, Forward (Unconditional/No Answer/Busy), 3-way Conference, Call Park/Retrieve, Downloadable Phonebook (XML, LDAP, up to 500 contacts), Call Waiting, Call History (up to 200 records), Auto Dial on Hook, Auto Answer, Click to Dial, Flexible Dial Plan, Hot Desking, Custom Music Ringtones, Server Redundancy, and Failover.

Codecs:
Support for G.711μ/a, G.722 (wideband), G.723 (pending), G.726-32, G.729 A/B, In-band and Out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC.

Interfaces:
- Dual 10/100 Mbps switched Ethernet ports with auto-sensing.
- RJ9 headset connector (allows EHS with Plantronics headsets).

Security:
User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x Media Access Control.

Quality of service:
Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Languages:
Spanish, English, German, Italian, French, Portuguese, Russian, Croatian, Simplified and Traditional Chinese, Korean, Japanese.

Protocols and standards:
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP

Accordance:
FCC: Part 15 (CFR 47) Class B, CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1.

Physical and electrical characteristics:
- Universal power supply; Input: 100-240VAC 50-60Hz; Output: 5VDC, 600mA.
- Base or wall mountable.
- Dimensions: 209 x 184.5 x 76.2 mm.
- Weight: 0.74 kg.
- Operating temperature: 0~40ºC.

Package contents:

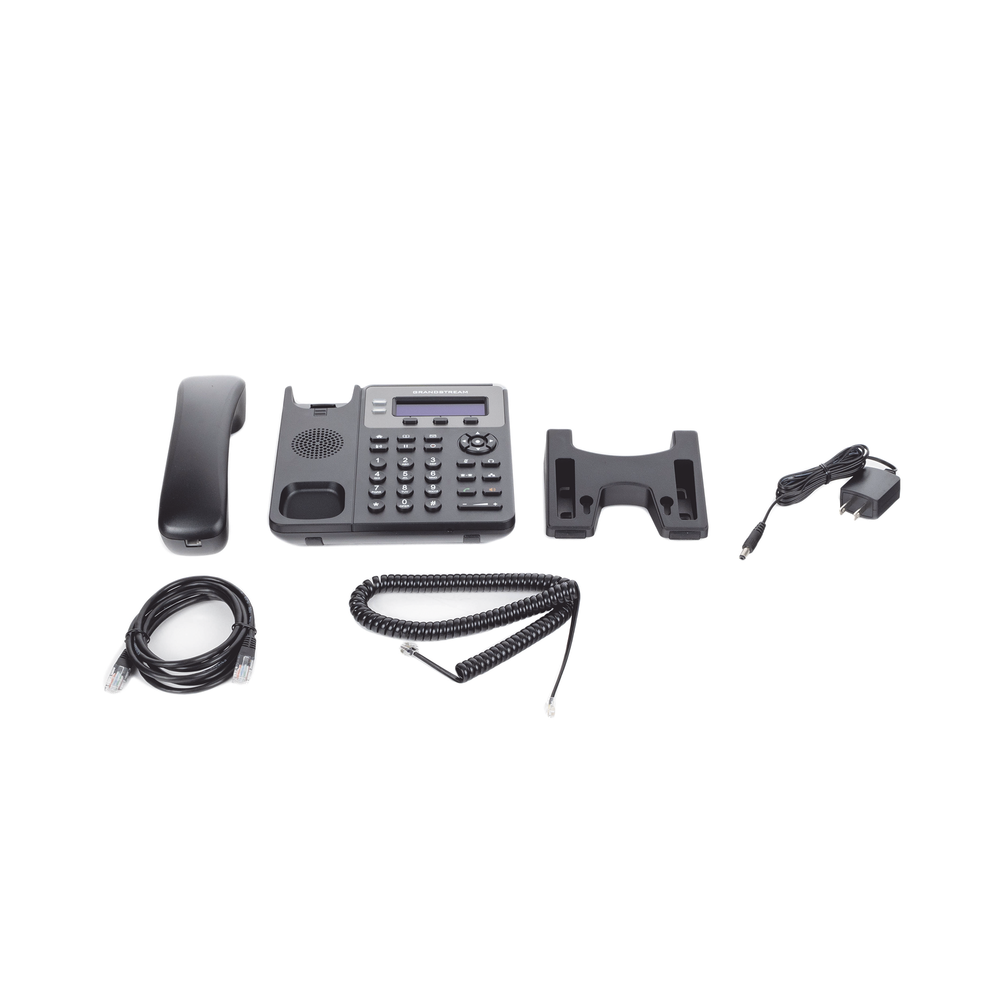

GXP1610 telephone, corded handset, stand base, universal power supply, network cable, Quick Installation Guide, brochure, GPL License.

*1 year warranty.
