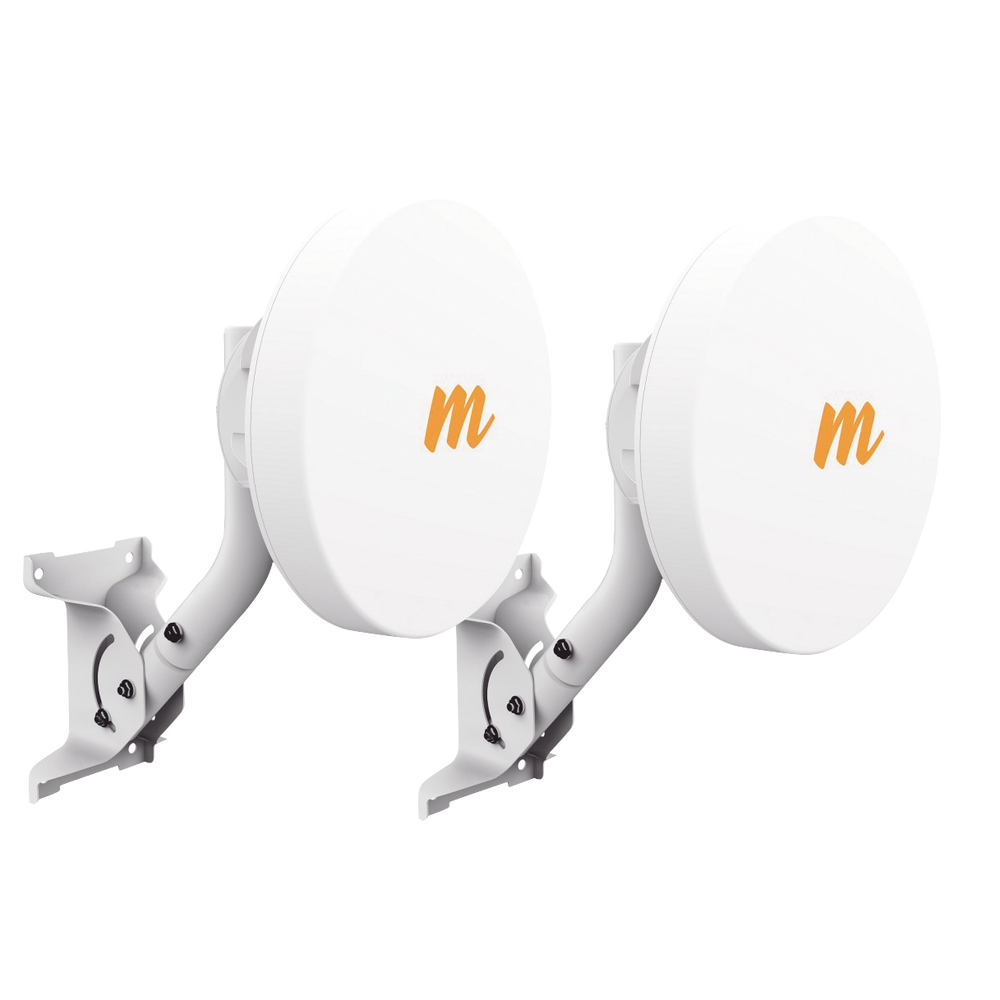

PTP 2-Radio Backhaul Kit up to 750 Mbps, 4.9 - 6.2 GHz, Integrated 20 dBi Antenna, 2x2:2 MIMO, IP55, High Capacity and Low Latency, Cloud Monitoring

PTP 2-Radio Backhaul Kit up to 750 Mbps, 4.9 - 6.2 GHz, Integrated 20 dBi Antenna, 2x2:2 MIMO, IP55, High Capacity and Low Latency, Cloud Monitoring

Mimosa Networks Direct Support Link (Help Center)
http://backhaul.help.mimosa.co/home

Mimosa Networks Warranty Process Link (Help Center)
http://mimosa.co/warranty.html

High Speed ​​Point-to-Point Backhaul Solutions
B5-Lite 20 dBi Antenna, 2x2:2 MIMO 802.11ac


Some general features of the B5-Lite.

(INCLUDES COMPLETE LINK OF TWO AP + ST RADIOS IN THE SAME BOX)

• MIMO and Modulation: 2x2:2 MIMO OFDM up to 256 QAM.
• Maximum transmission power : 23 dBm.
• DL/UL bandwidth management : 50/50, 75/25, 25/75% and automatic on-demand traffic direction.
• IP55 outdoor .
• Temperature range : -40 to 55 °C (-40 to 131 °F).
• Extremely lightweight for easy installation on towers or masts.
• Maximum power consumption : 15 W, ideal for solar-powered systems.
• Power supply: 48-56 Vdc, via passive PoE injector POE48V (included).
• Network interface : Gigabit Ethernet.

• Frequency : 4.9 - 6.2 GHz.
• Distance: up to approximately 5 km for maximum performance.
• Maximum performance: up to 750 Mbps aggregate speed in DL/UL.
• 20 dBi antenna , 14° dual polarization 45° V/H.
• Dimensions : Diameter 260.33 mm (10.24”), Width 153.31 mm (6.03”).

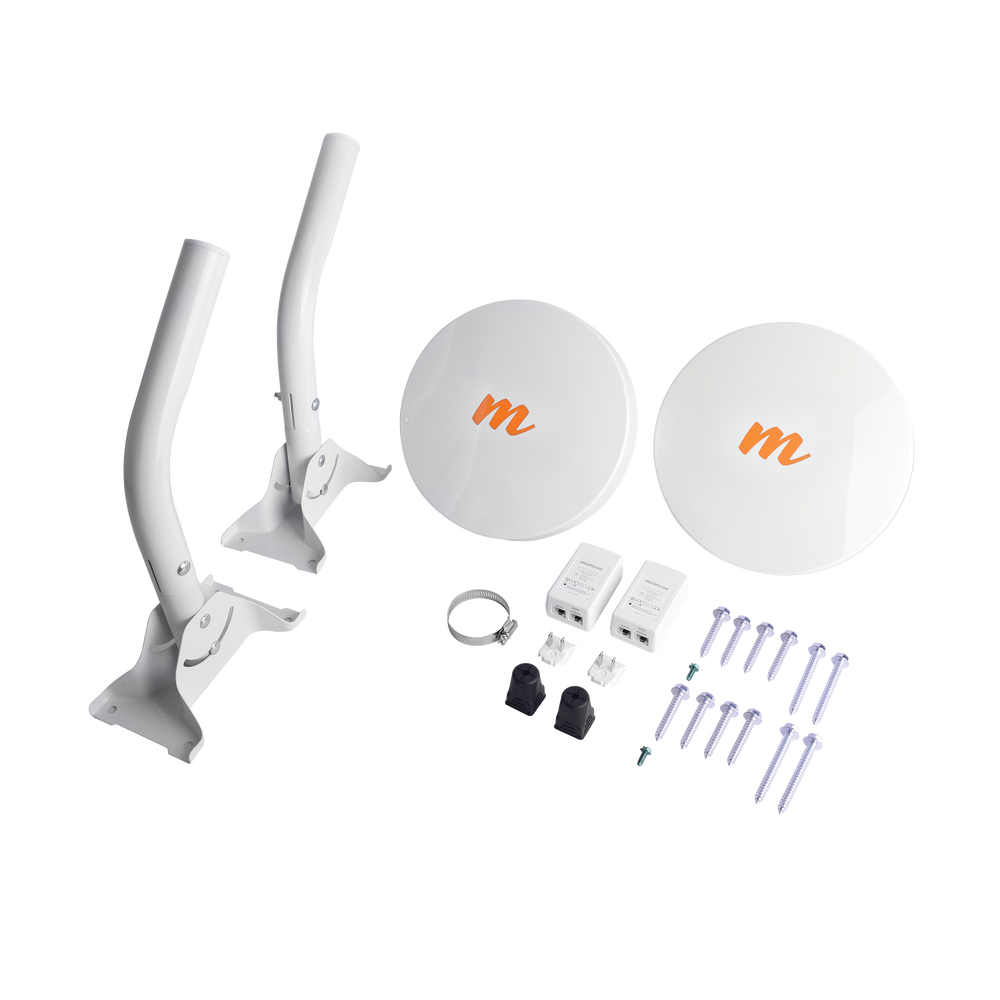

Wide frequency range (4.9 - 6.2) Ghz, Ideal for PTP, Links monitored via Mimosa Cloud, Gigabit Ethernet interface., Includes mounting and PoE injector.
