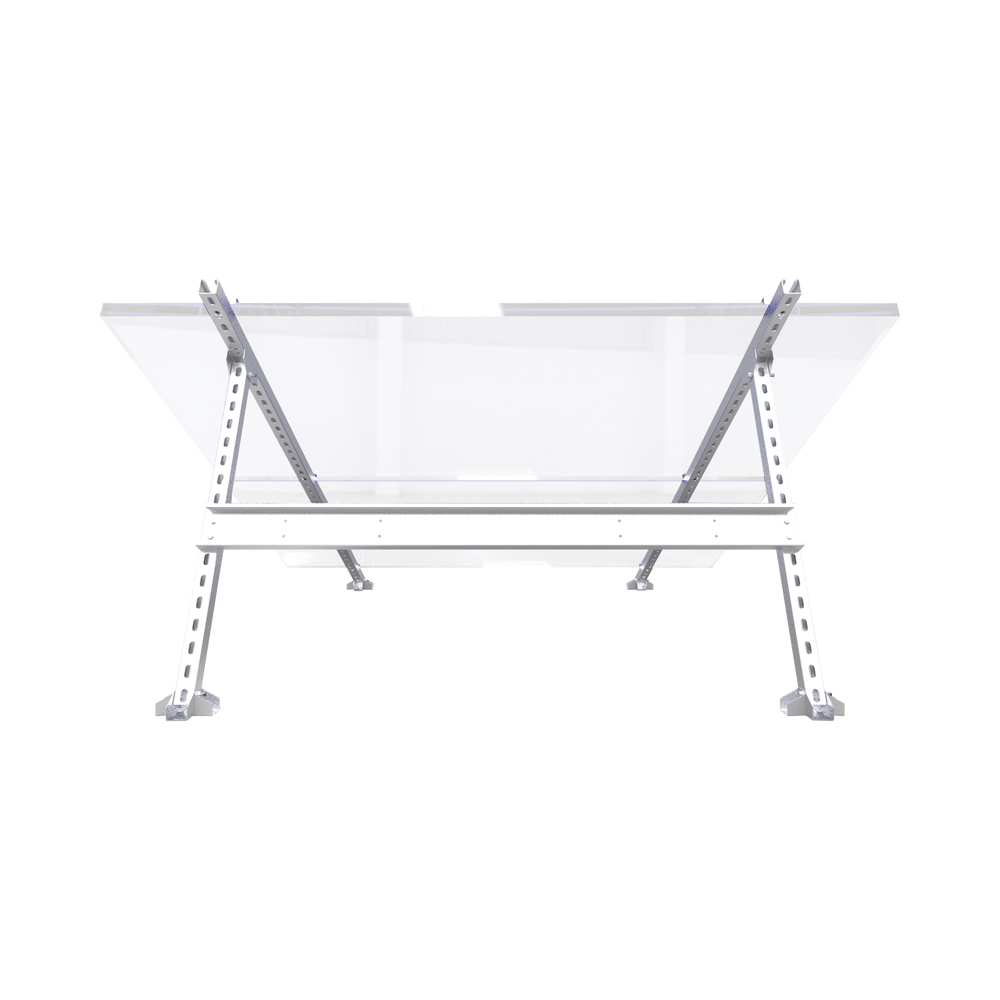

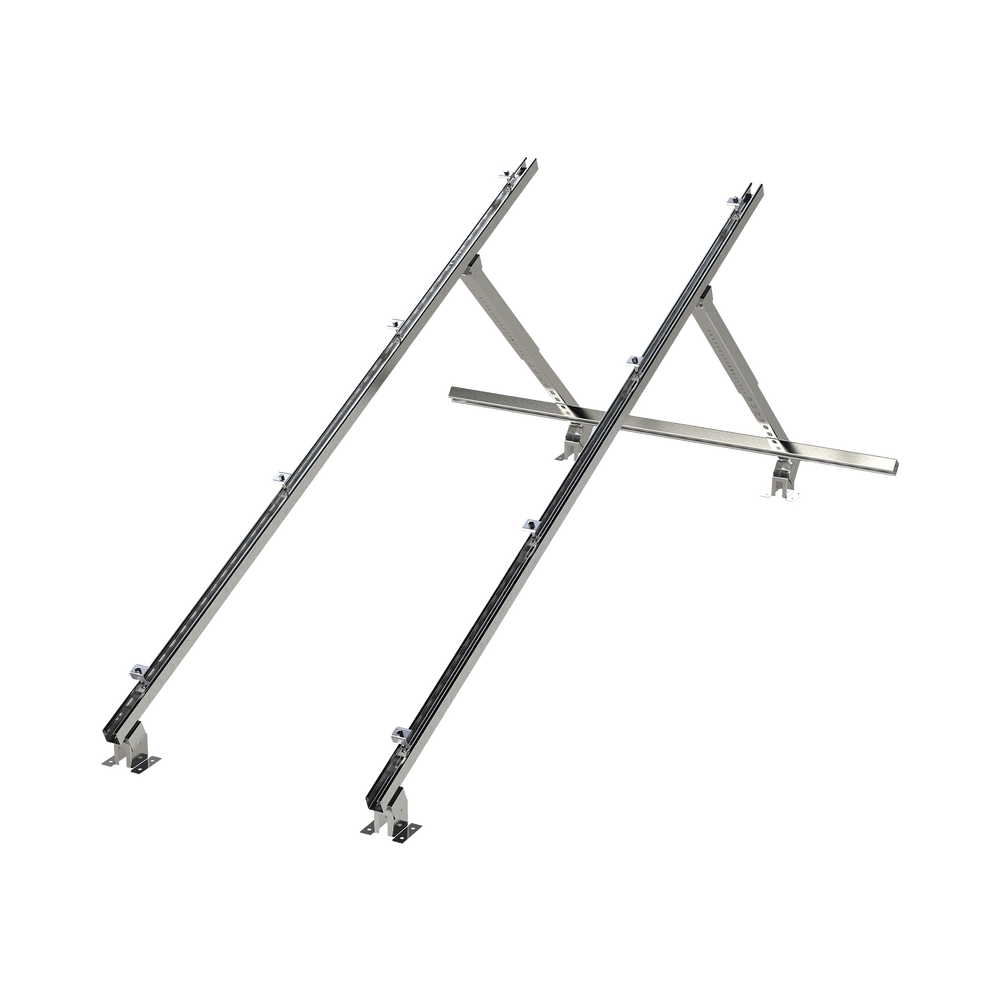

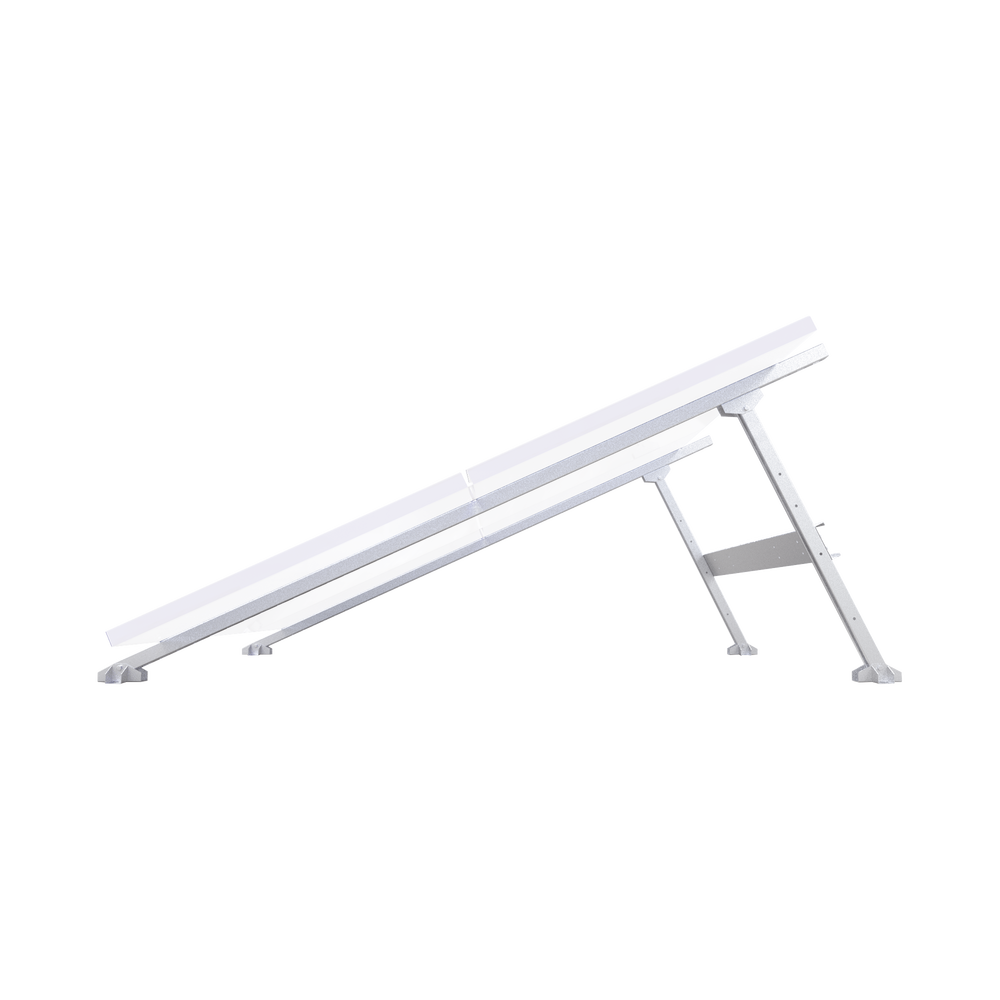

Universal Steel Mount for Interconnecting Photovoltaic Modules on Sheet Metal or Concrete Roofs (See Compatibility).

Universal Steel Mount for Interconnecting Photovoltaic Modules on Sheet Metal or Concrete Roofs (See Compatibility).

Functional Features:

• Main components galvanized to prevent rust generation.
• Preparing to install on the Roof.
• Ideal for interconnected systems or 24Vdc systems.
• Easy assembly and adjustment.
• Includes 6 expanding anchors measuring 3/8' x 3' (1/2' anchor).
• The mount is made of galvanized steel and is fully compatible with the panels' aluminum frame.
• Adjustment angle from 15° to 40°.

Compatible with:

• 2 EPL-26024 cells.
• 3 PRO-15012 cells.
• 3 PRO-12512 cells.
• 2 PRO-8512 cells
• 2 PRO-5012 cells
• 2 EPL-33024 cells
• 2 EGE-340M-72 cells.
• 2 EGE-375M-72 cells.
• 1 cell EGE450W144M(M6)

Photovoltaic modules must be installed horizontally.

Recommendations:

• Make sure the installation is performed by a trained professional.
• The equipment must be properly anchored depending on the type of roof, slab or floor.
• Periodically check that the hardware is properly tightened.
• Schedule a maintenance plan to remove excess dust and dirt from your installed equipment.

Equipment Included:

• 6-SCREWS 5/16' x 2.5'
• 4-SCREWS 5/16' x 0.75'
• 8-SCREWS 5/16' x 3'
• 18-NUTS 5/16'
• 8-3/8' DRILL ANCHORS
