PWM Solar Charge and Discharge Controller, 12/24 V 10 A, Configurable Parameters

.

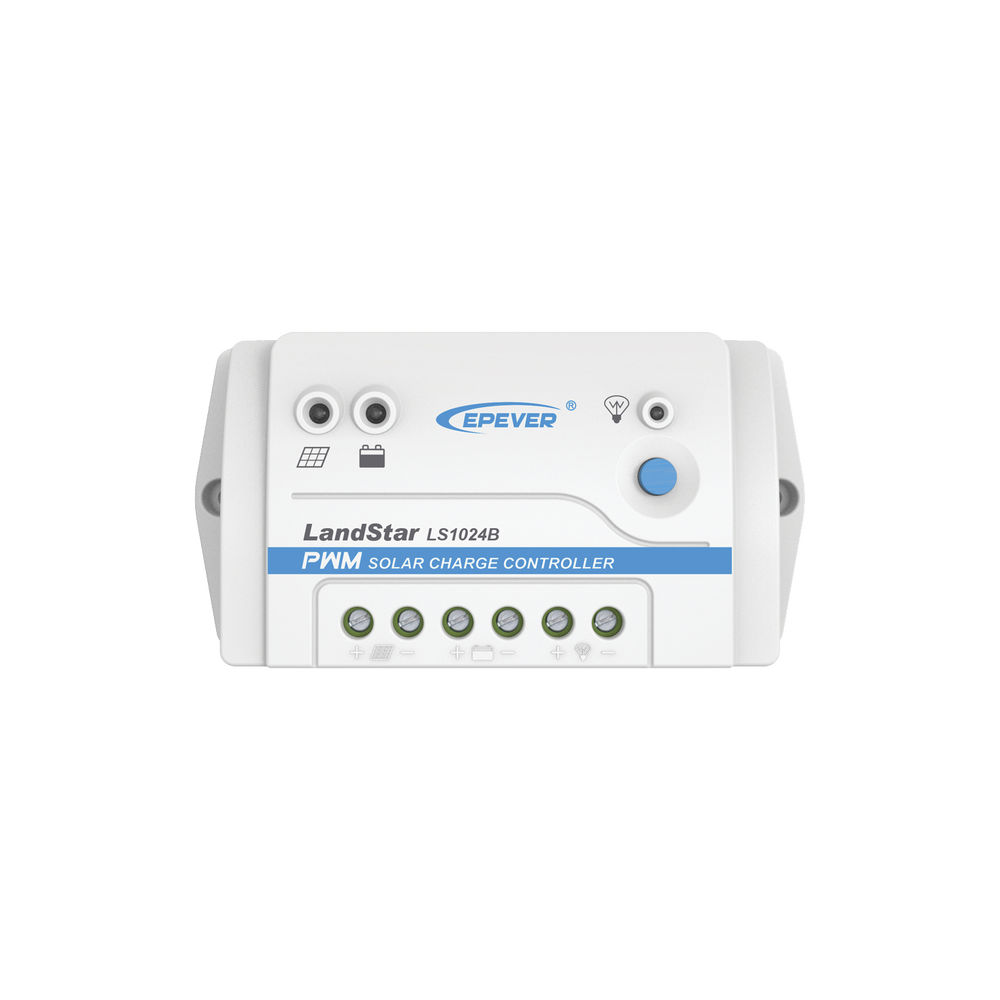

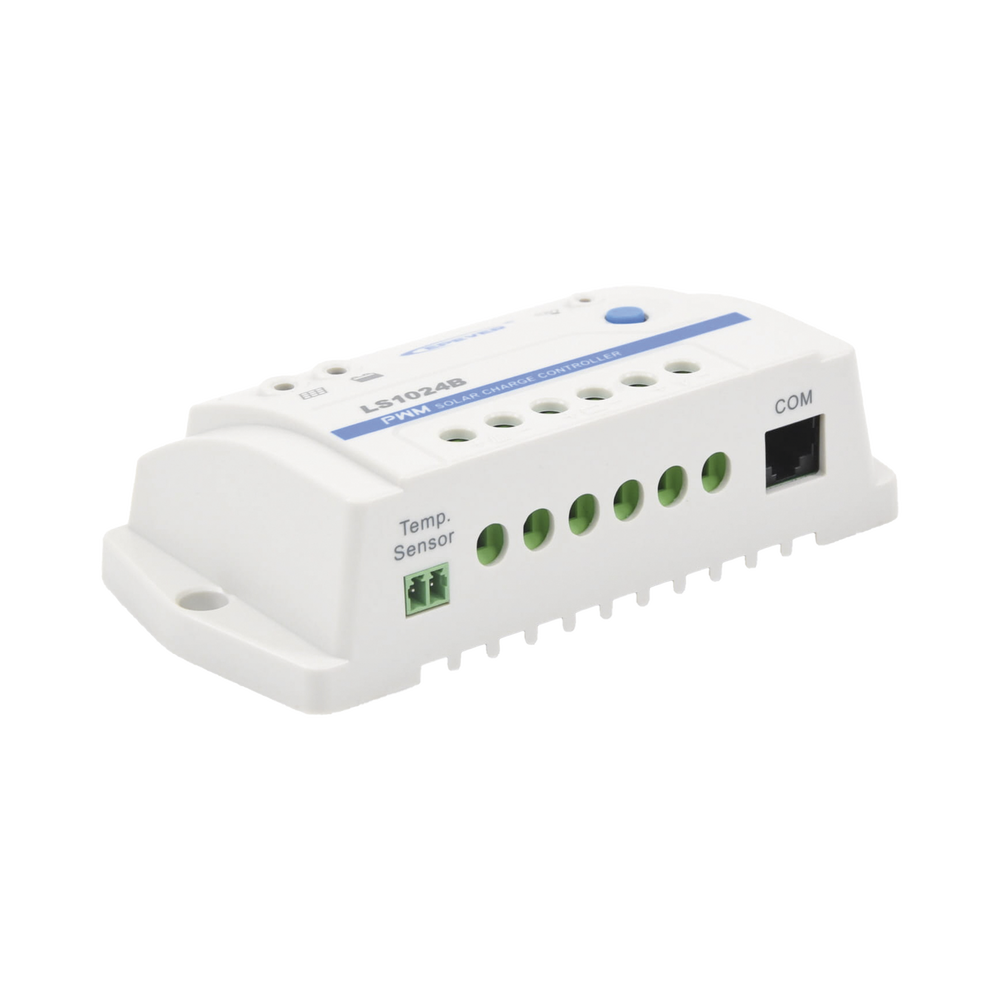

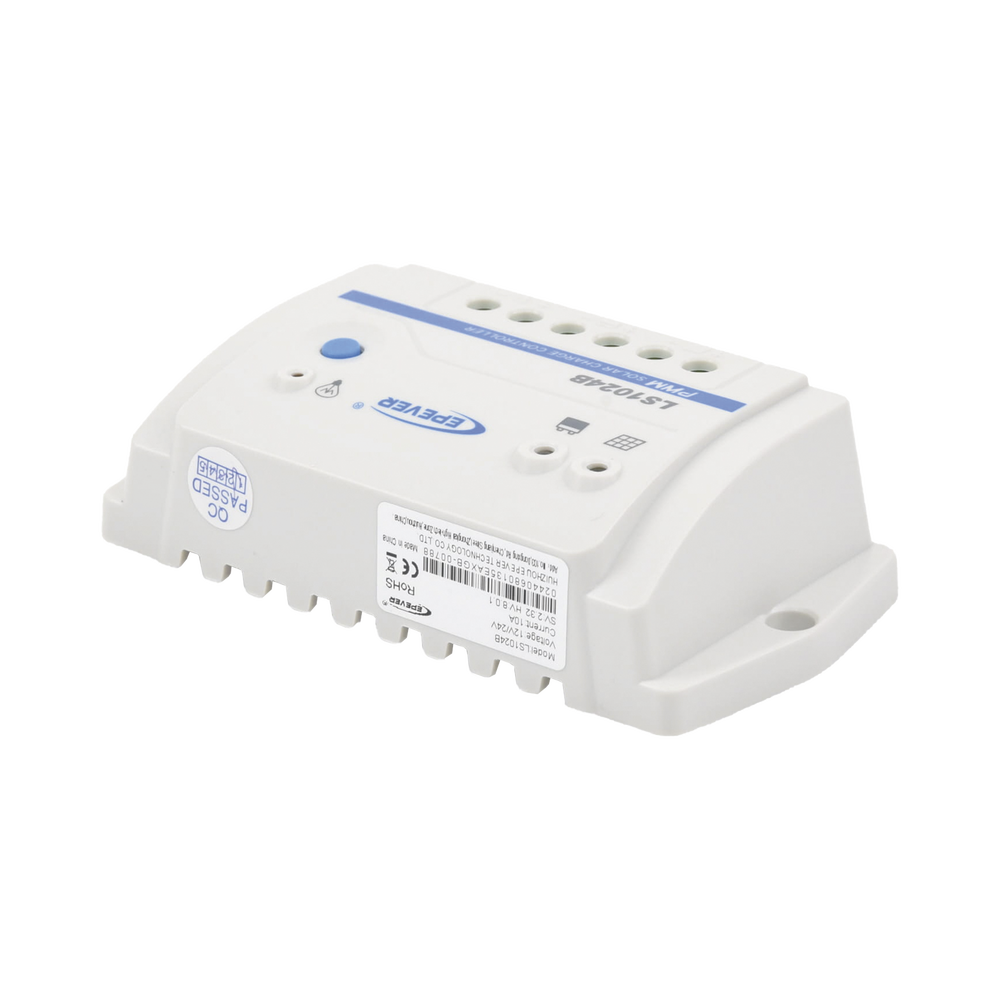

LS-B charge controllers

The LandStar-B series is a series of PWM charge controllers designed to work in a wide range of off-grid PV applications. It has an operating voltage of 12 or 24 Vdc, in three different charging capacities: 10, 20 and 30 A.

Thanks to its communication port, this series features the ability to program charging parameters according to the type of battery used in the installation, program different charging operating modes to create operating schedules, or simply automate the on/off of a load.

To configure charging parameters, a monitor or the EPEVER communication cable is required:

  • MT-50 Remote Monitor for EPEVER controllers.
  • CC-USB-485-150U Communication cable for EPEVER controllers.
Main features:
  • PWM technology.
  • Indicator LEDs: PV, Battery, Charge.

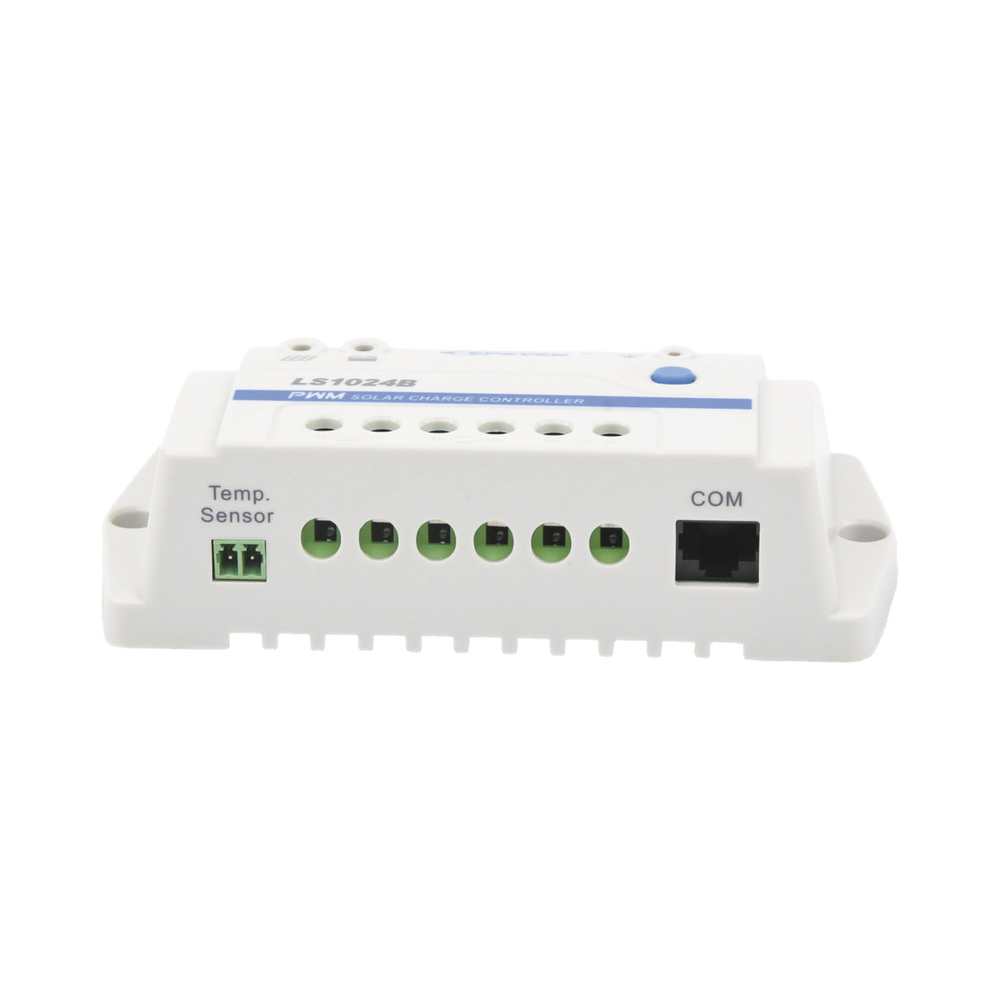

  • RS-485 communication port.
Physical and Electrical Characteristics:
  • Nominal voltage: 12/24 Vdc with automatic detection.
  • Charging current: 10 A
  • Battery Type: Gel, Sealed, Flooded, Programmable.
  • Weight: 0.13 kg
  • Dimensions: 138.6 x 69.3 x 37mm
Protections:
  • Short circuit PV arrangement.
  • Overload.
  • Load output short circuit.
  • Reverse polarity PV array.
  • Reverse battery polarity.
  • Overheating.
  • Nominal voltage error.
