EPCOM TITANIUM

4-channel kit for transmitting POWER (from 36 Vdc to 12 Vdc) and VIDEO (HD-TVI) at distances of up to 250 meters.

Name: 4-channel kit for transmitting POWER (from 36 Vdc to 12 Vdc) and VIDEO (HD-TVI) at distances of up to 250 meters.
Brand: EPCOM TITANIUM
SKU: KIT-TT-4-PV-TURBO
Price: 841673.00 COP
Availability: OutOfStock

$841.673 COP

~~$920.580 COP~~ $841.673 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

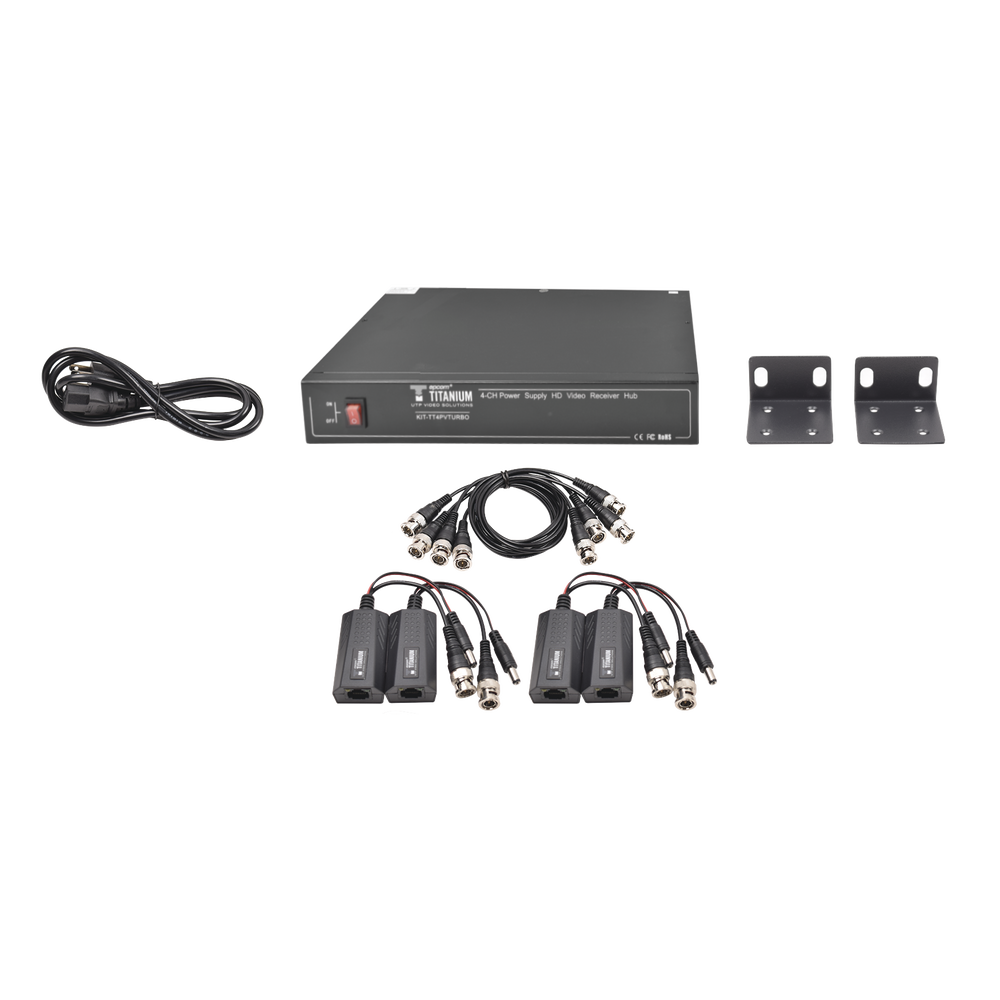

4-channel kit for transmitting POWER (from 36 Vdc to 12 Vdc) and VIDEO (HD-TVI) at distances of up to 250 meters.

KIT-TT-4-PV-TURBO

4-channel kit for POWER transmission

PTZs and motorized lenses cannot be controlled via video signal (For use with coaxitron technology) . TURBOHD or HD-TVI is a high-definition video protocol for video surveillance. SYSCOM calls it TURBOHD, and we use the HD-TVI chip from Techpoint in California, USA. The TURBOHD line is a hybrid of analog and IP, offering IP quality but at the prices and installation costs of an analog system.

Characteristics

Supports up to: 2MP (1080p)
Maximum connection distance: 250 meters
Easy and simple installation
Recommended for sending video signals and camera voltage, NOT recommended for PTZ.
Real-time streaming

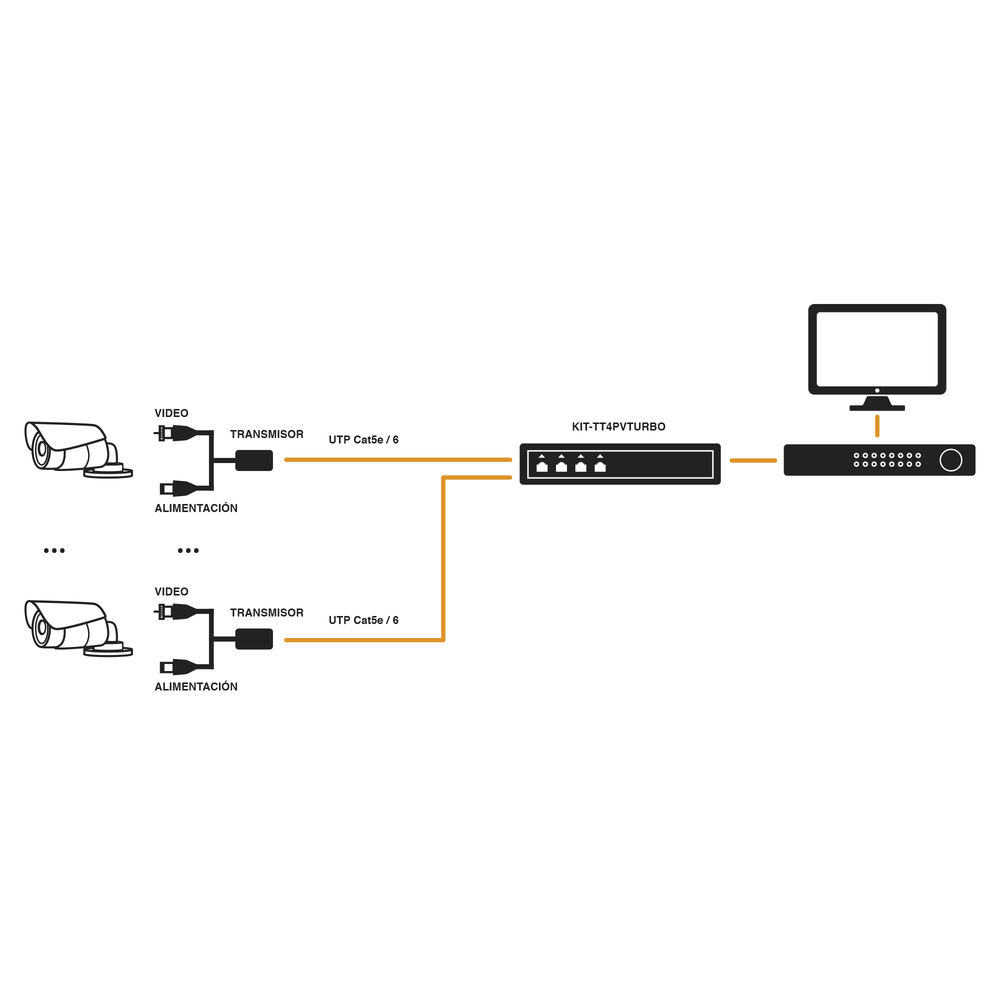

The receiver sends 36V DC, ensuring the voltage reaches 250 meters using 100% copper cable. The transceiver receives the 36V DC and regulates it to 12V DC to power the camera without compromising performance.
If you require compatible transmitters for this KIT, we recommend the TT4816PVTURBO model kit.
