• Kit de TRANSCEPTOR ACTIVO DE 8 CANALES / VIDEO+PODER en un solo Cable UTP / 150 metros en 4K, 200 metros en 5 MP/ Envía 36 Vcc y Recibe 12 Vcc / TODO INCLUIDO PARA RACK / Compatible con cámaras HD-TVI/CVI/AHD/CVBS / INSTALACIÓN LIMPIA
1 3

EPCOM TITANIUM

8-CHANNEL ACTIVE TRANSCEIVER KIT / VIDEO + POWER in a single UTP Cable / 150 meters in 4K, 200 meters in 5 MP / Sends 36 Vdc and Receives 12 Vdc / ALL INCLUSIVE FOR RACK / Compatible with HD-TVI / CVI / AHD / CVBS cameras / CLEAN INSTALLATION

8-CHANNEL ACTIVE TRANSCEIVER KIT / VIDEO + POWER in a single UTP Cable / 150 meters in 4K, 200 meters in 5 MP / Sends 36 Vdc and Receives 12 Vdc / ALL INCLUSIVE FOR RACK / Compatible with HD-TVI / CVI / AHD / CVBS cameras / CLEAN INSTALLATION

$1.178.343 COP
$1.288.813 COP $1.178.343 COP
Sale Sold out
Shipping calculated at checkout.

8-CHANNEL ACTIVE TRANSCEIVER KIT / VIDEO + POWER in a single UTP Cable / 150 meters in 4K, 200 meters in 5 MP / Sends 36 Vdc and Receives 12 Vdc / ALL INCLUSIVE FOR RACK / Compatible with HD-TVI / CVI / AHD / CVBS cameras / CLEAN INSTALLATION

KIT-TT-8-PV-TURBO

4-channel kit for POWER transmission

PTZs and motorized lenses cannot be controlled via video signal (For use with coaxitron technology) . TURBOHD or HD-TVI is a high-definition video protocol for video surveillance. SYSCOM calls it TURBOHD, and we use the HD-TVI chip from Techpoint in California, USA. The TURBOHD line is a hybrid of analog and IP, offering IP quality but at the prices and installation times of an analog system.

...

Characteristics

  • Supports up to: 2MP (1080p)
  • Maximum connection distance: 250 meters
  • Easy and simple installation
  • Recommended for sending video signals and camera voltage, NOT recommended for PTZ.
  • Real-time streaming
  • The receiver sends 36V DC, ensuring the voltage reaches 250 meters using 100% copper cable. The transceiver receives the 36V DC and regulates it to 12V DC to power the camera without compromising performance.
  • If you require compatible transmitters for this KIT, we recommend the TT4816PVTURBO model kit.
...

Physical and Electrical Specifications

  • Input voltage at the receiver: 110-220 Vac; 50/60 Hz
  • Power consumption: 150 W
  • Power output per channel: 18.5 W
  • Receiver voltage output: 36Vdc
  • Transceiver voltage output: 12Vdc.
  • BNC and RJ45 connectors
  • Dimensions: 351 x 183 x 44.5 mm (Not including mounting)
  • Weight: 2,280 Kgs.
...

Certifications

  • EC
  • FCC
  • RoHS

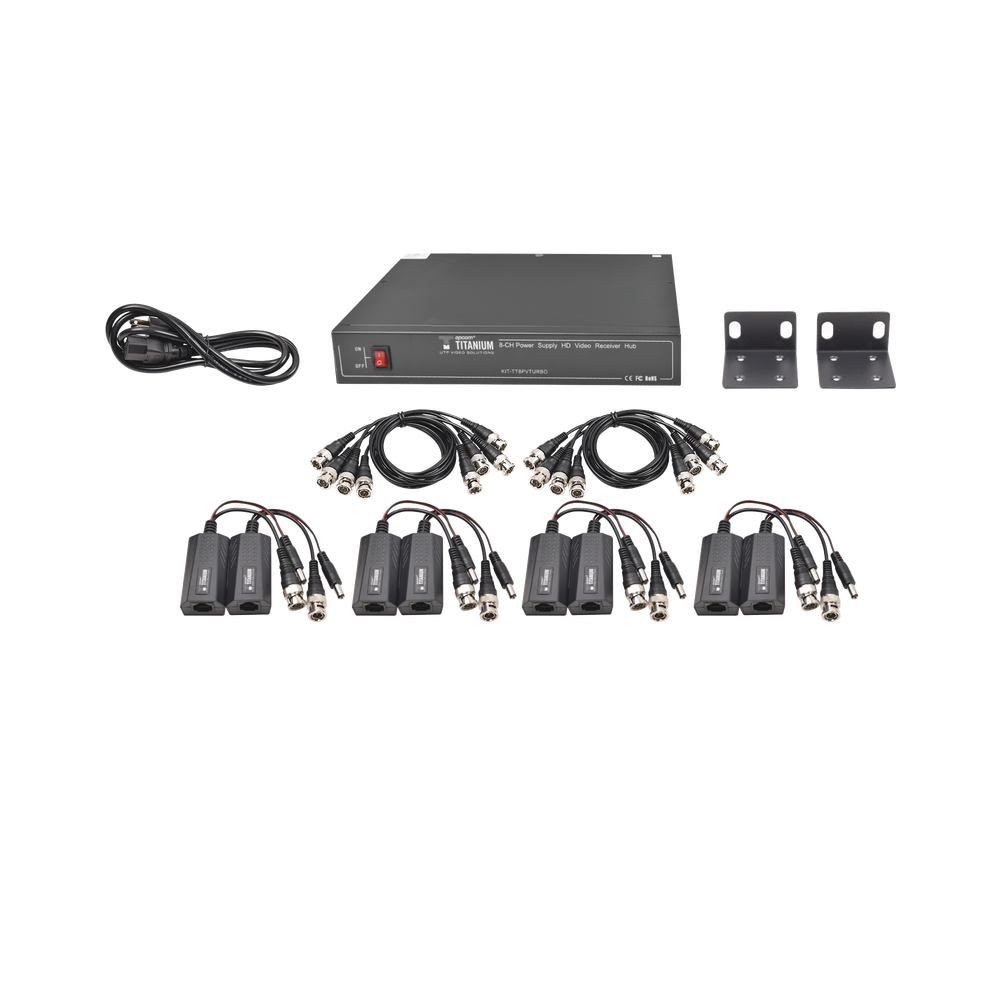

The kit includes:

  • 1 8-channel active receiver
  • 8 video/voltage transceivers
  • 8 BNC cables for LOOP




    Out of stock

    MODELO: KIT-TT-8-PV-TURBO
