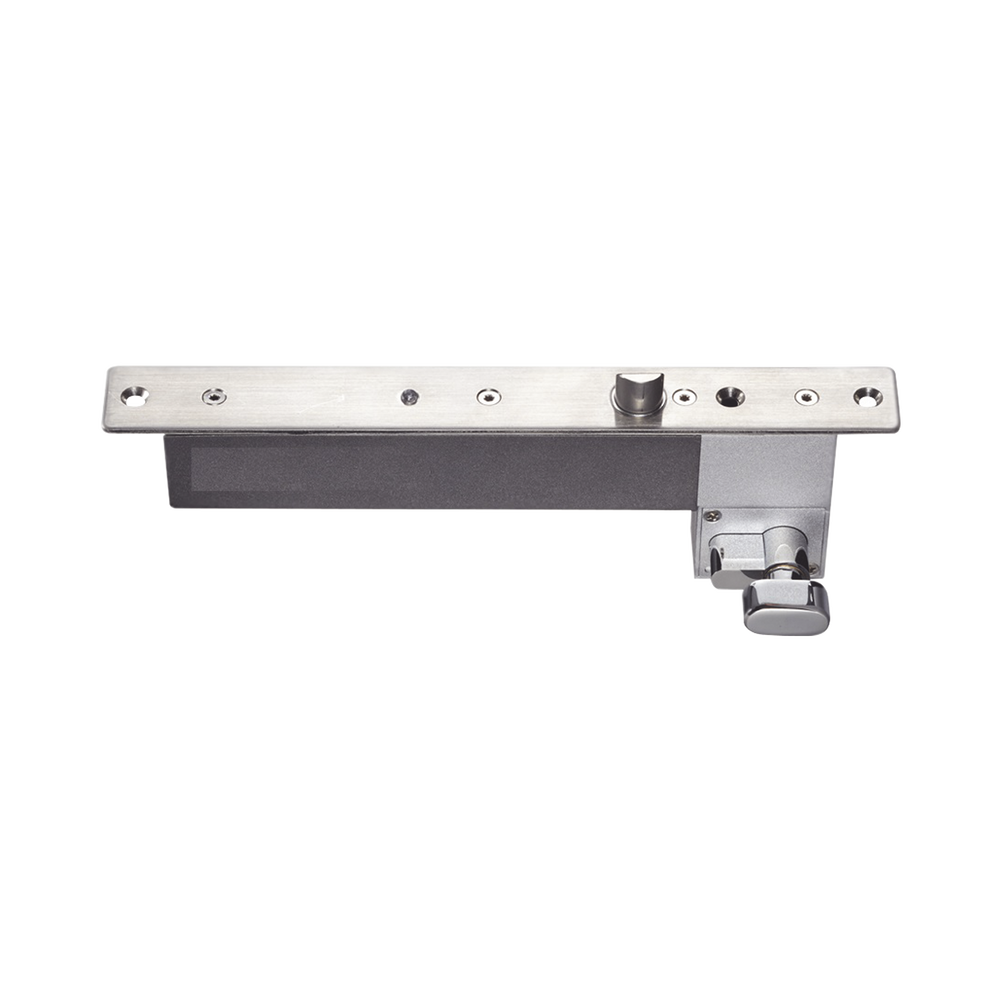

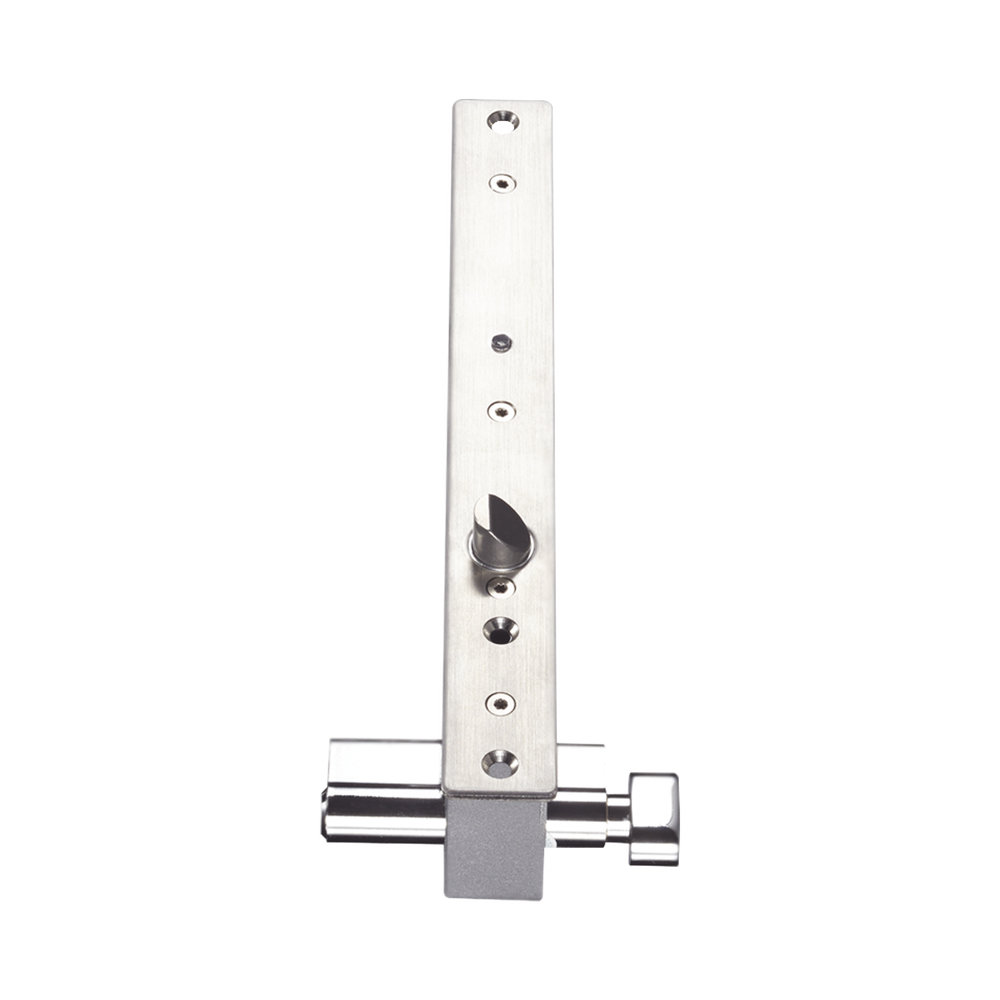

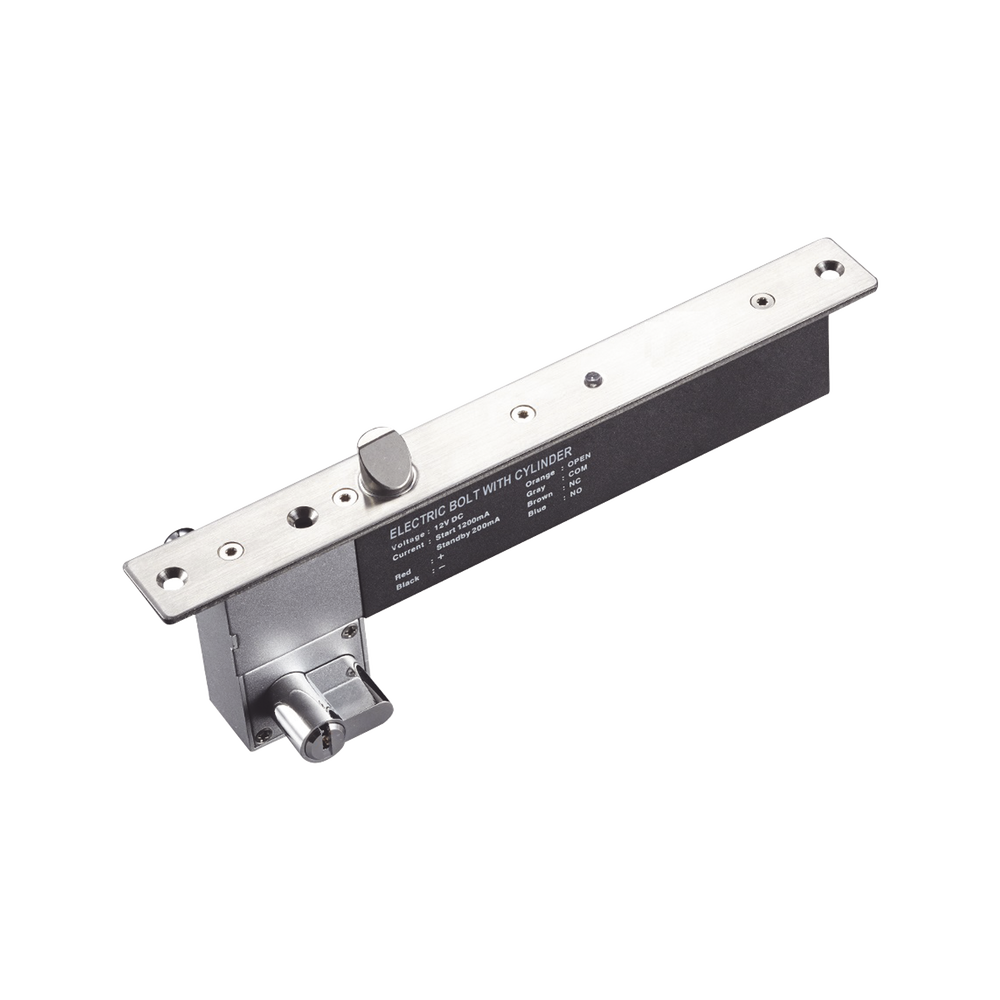

Electric Sliding Bolt Lock, Fail Secure, Emergency Key Release

Electric Sliding Bolt Lock, Fail Secure, Emergency Key Release

• Closed on fail: Opens when energized.
• Sliding bolt.
• With key option for manual opening in case of emergency.
• Supply voltage: 12 VDC.
• Current consumption: 1200 mA in operation, 200 mA in standby.
• Includes LED.
• Tested for over 500,000 cycles.
• Door sensor output: NC, NO, COM.
• Bolt dimension: 16mm.
• Lock dimensions: 270 x 30 x 48 mm.
• Plate dimensions: 100 x 25 x 2.5 mm.
• Weight: 1.8 Kg.
• Warranty: 1 year.
