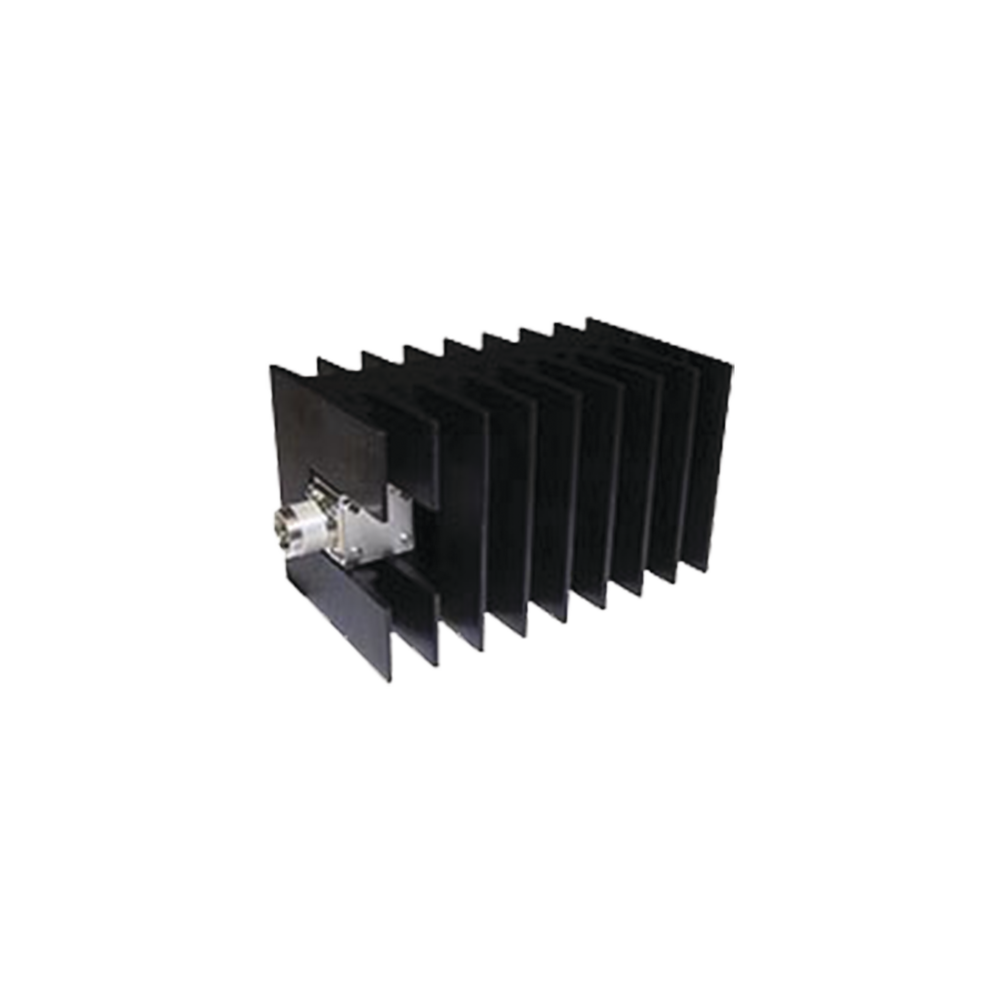

Convection Dry Cooling Terminal Load, 150 Watt, Series 150-ST, N Female.

Convection Dry Cooling Terminal Load, 150 Watt, Series 150-ST, N Female.

Convection Dry Cooling Terminal Load, 150 Watt, 150-ST Series.

• World renowned for its high quality, rugged construction and conservative power ratings.
• The use of non-magnetic materials and plates provides safety when used in high magnetic fields such as MRI.
• Wide variety of connectors.
• Convection cooled.
• Robust and reliable, it provides years of trouble-free use.
• Compact size, threaded mounting holes for fixed installations.
• Power Range: 100 Watt.
• Frequency Range & VSWR: CD-1 GHz @ 1.10:1 max / 1-2.4 GHz @ 1.25:1 max
• Impedance: 50 Ohm.
• Temperature Range: -40°C to +40°C.
• Product Type: Dry (Convection Cooled).
• Operating Position: Vertical
• Connectors: N Female (Options in BNC, TNC, 7-16 DIN, MD).
• Finish: Black Anodized Fins and Silver Triple Alloy Connector.
• Dimensions (L x W x D): 101.6 x 101.6 x 171.45 mm.
• Weight: 2.30 kg.

*Ask for delivery time.
