Dipole Antenna, 406-512 MHz Unity Gain.

Dipole Antenna, 406-512 MHz Unity Gain.

Dipole Antenna, 406-512 MHz Unity Gain.

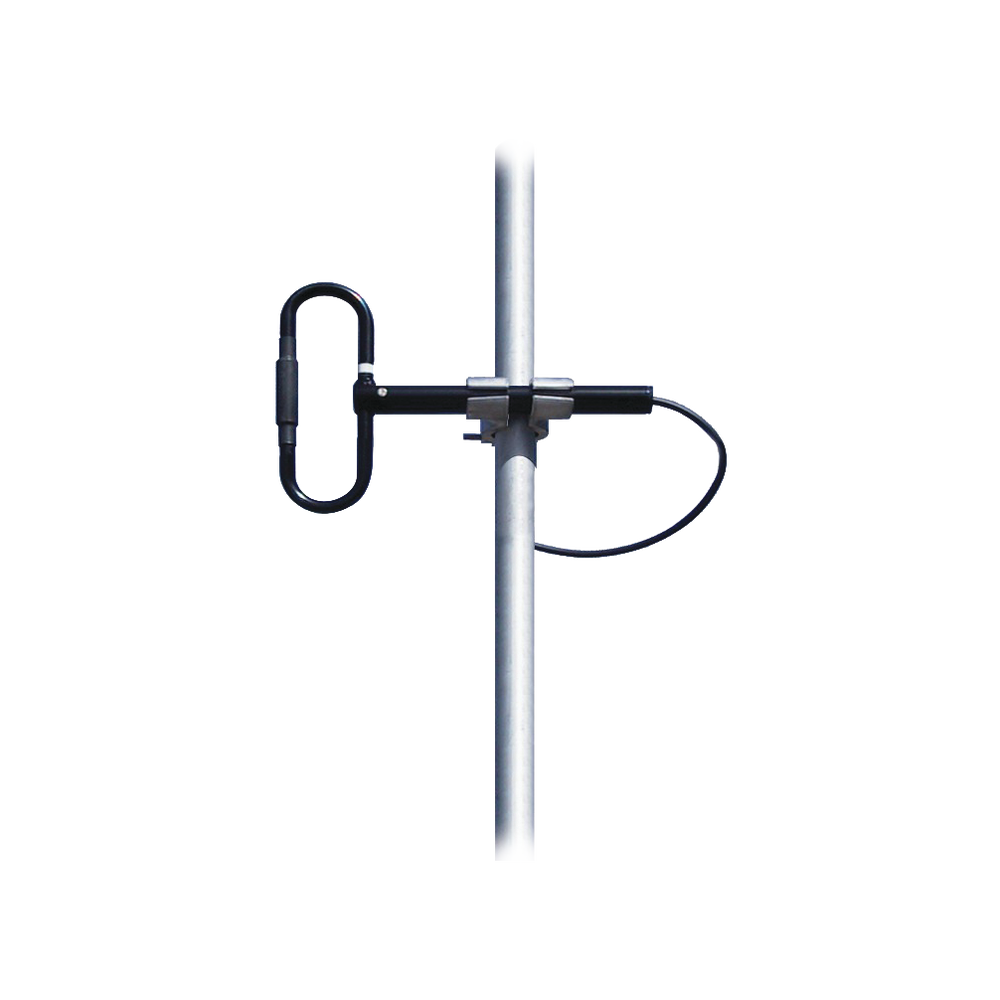

• The Telewave ANT450D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimal performance.
• The antenna horizontal pattern is field adjustable, for any current or future coverage requirements.
• The wide bandwidth and high efficiency of these antennas make them ideal for many applications, including trunking, business, public safety, government, and amateur radio.

Specifications

• Specific Frequency: 406-512 MHz
• Antenna Pattern: Adjustable
• Gain dBd: 1 dBd / 2.5 dBd
• Gain dBi: 3.1 dBi / 4.6 dBi
• Polarization: Vertical
• Vertical Beamwidth: 71 deg
• Horizontal Beamwidth: 66 deg
• Maximum VSWR: 1.5:1
• Maximum Power: 500 W
• Lightning Protection: DC Ground
• RF Connectors: N Male
• Connector: Placement Pigtail
• Jumper Included: Forks
• Type of Hardware Included: Clamp set for 1.5-2.5' OD
• Maximum Rated: Wind Velocity 175 mph
• Item Height: 13 in
• Item Length: 12 in
• Item Weight: 6 lb

*Ask for delivery time.
