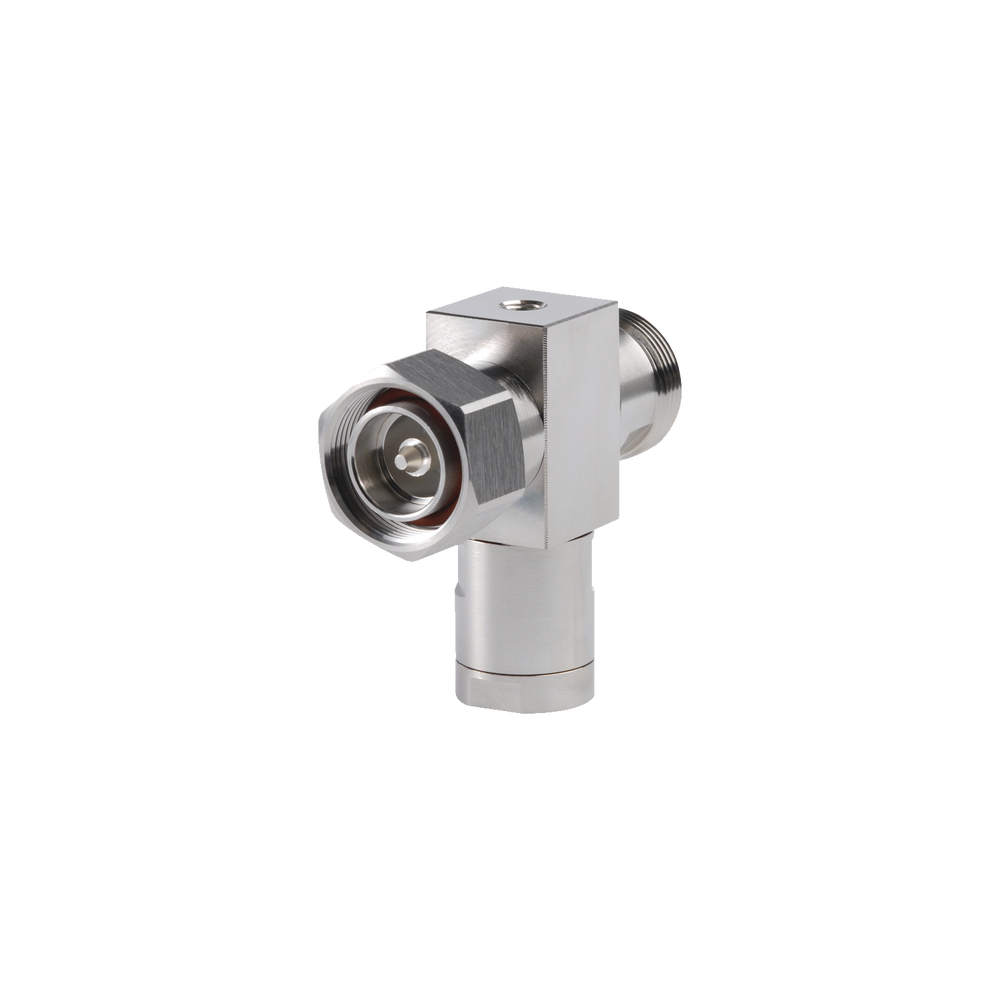

Arrestor Plus® Dual Band Quarterwave Surge Arrestor (T-shaped), 806–960 MHz and 1700–2170 MHz, with interface types DIN Female and DIN Male

General Specifications
  • Device Type: DC Block
  • Interface: 7-16 DIN Female
  • Interface 2: 7-16 DIN Male
  • Harmonized System (HS) Code: 854420 (Coaxial cable and other coaxial electrical conductors)
Electrical Specifications
  • Operating Frequency Band:
    - 1710 – 2000 MHz
    - 2000 – 2170 MHz
    - 806 – 960 MHz
    - 960 – 1710 MHz
  • 3rd Order IMD -117.0 dBm | -160.0 dBc
  • 3rd Order IMD Test Method Two +43 dBm carriers
  • Average Power 3000.0 W @ 900 MHz
Physical Characteristics
  • Dimensions (Height x Length x Width);
    (74.23mm x 76.97mm x 36.07mm) | (2.92 in x 3.03 in x 1.42 in)
  • Weight 434.99 g | 0.96 lb
  • Attenuation, Ambient Temperature 20 °C | 68°F
  • Average Power, Ambient Temperature 40 °C | 104°F

    Out of stock

    MODELO: APT-DFDM-DB
