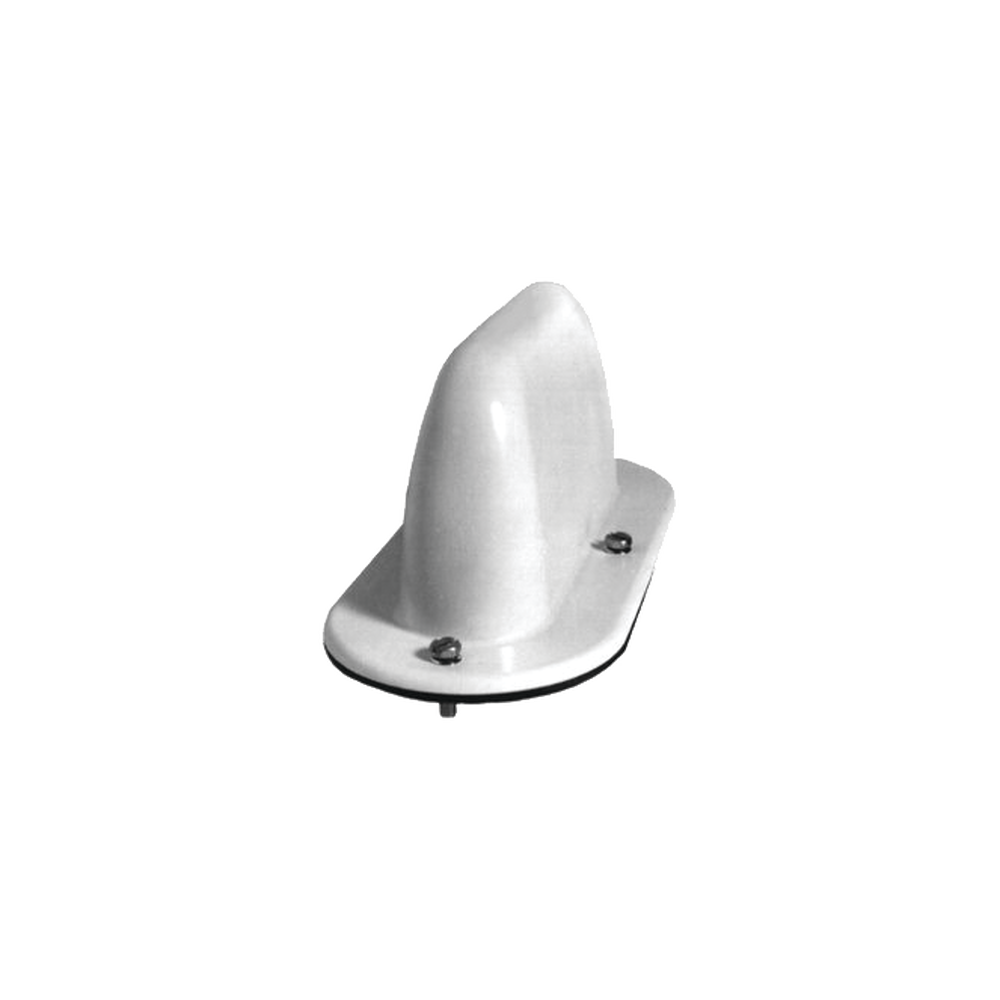

Silhouette Transit Antennas, Frequency 470-488 MHz, Unity Gain

Silhouette Transit Antennas, Frequency 470-488 MHz, Unity Gain

Our Antenna Specialists® Silhouette antennas are designed for transit vehicle installations including buses, police vehicles, fire-fighting engines, railroad equipment, airport service vehicles, and construction equipment. These low profile multi-band antennas provide wideband coverage of specific frequencies without field tuning required.* They are housed in a high impact molded ASA radome for long-lasting performance under severe environmental conditions. A GPS multi-band model is also available.

Features

• Rugged - high impact molded ASA radome assures long, reliable performance and protection against the elements
• High Performance - when mounted on a flat surface, maximum radiation is vertical and omnidirectional
• Disguised Appearance - low profile for minimum exposure to theft or vandalism
• Wideband Coverage - requires no field tuning*
• GPS Tracking Support Capability - AST800/1900GPS model

• Model: ASPB572
• Frequency Range: 470-488 MHz
• Bandwidth: 18 MHz
• Gain: Unity
• Termination: UHF female bulkhead
• Dimensions: 3.4”H x 8”L x 3.5”W

• Maximum Power: 100 watts
• Polarization: Vertical
• Nominal Impedance: 50 ohms
• VSWR: < 2.0:1
• Radome Material: White, high impact molded ASA
• Cable: Sold separately. Call factory for cable assembly options.
• Connector Options: See Mechanical Specifications
• Mount Method: Standard 1-5/16” roof hole mount Supplied with screws and weather-proof gasket.
