ANDREW / COMMSCOPE

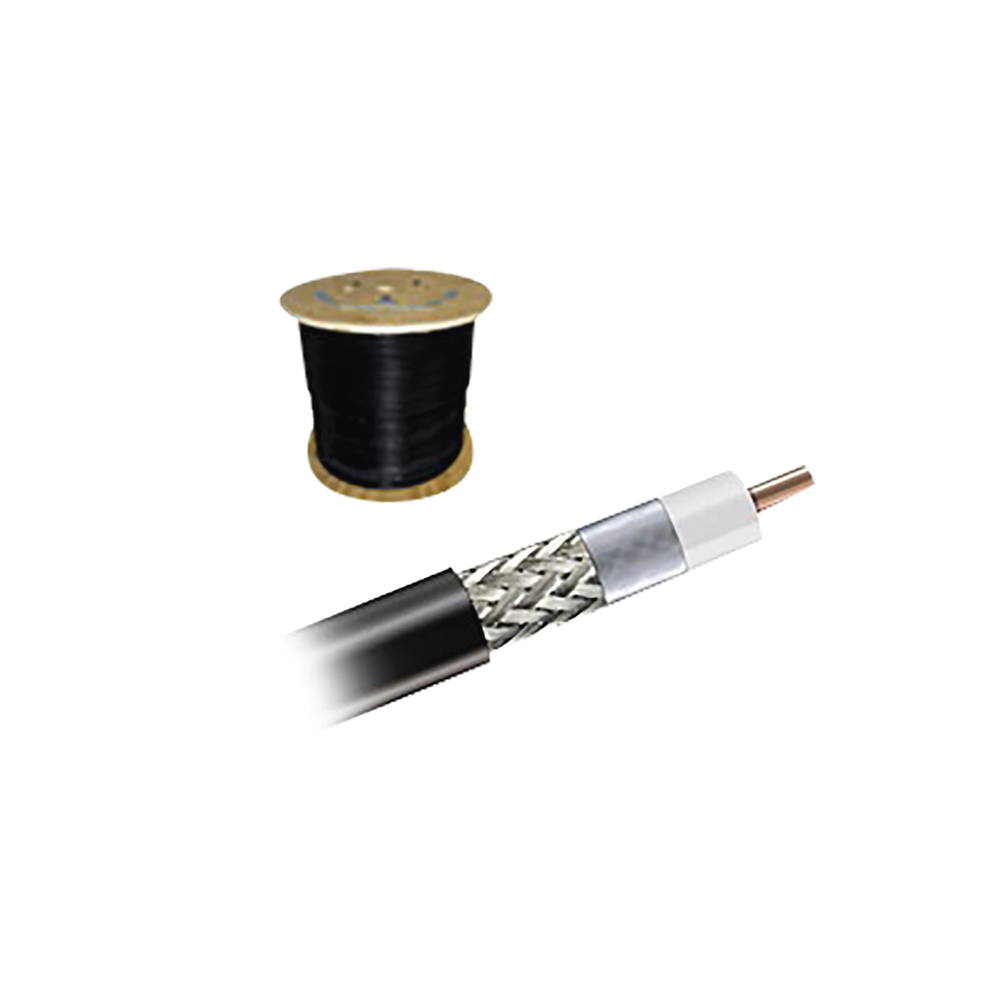

CNT-195-FR coaxial cable with tinned copper braid, 50 Ohms
CNT-195-FR coaxial cable with tinned copper braid, 50 Ohms
Regular price
$3.603.165 COP
Regular price
$3.940.962 COP
Sale price
$3.603.165 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
CNT-195-FR coaxial cable with tinned copper braid, 50 Ohms
| Electrical Specifications | |
| Cable impedance | 50 ohm |
| Ability | 79.7 pF/m | 24.3 pF/ft |
| DC resistance, Inner conductor | 25,500 ohms/km | 7,780 ohms/kft |
| DC resistance, Outer Conductor | 16,080 ohms/km | 4,900 ohms/kft |
| DC Voltage Test | 1500 V |
| Jacket Spark Voltage Test (rms) | 3000 V |
| Maximum frequency | 37.90 GHz |
| Operating frequency | 30 – 6000 MHz |
| Power tip | 2.5 kW |
| Effectiveness of the Shield | >90 dB |
| Speed | 75% |
Share
Out of stock
MODELO: CNT195FR/1000
