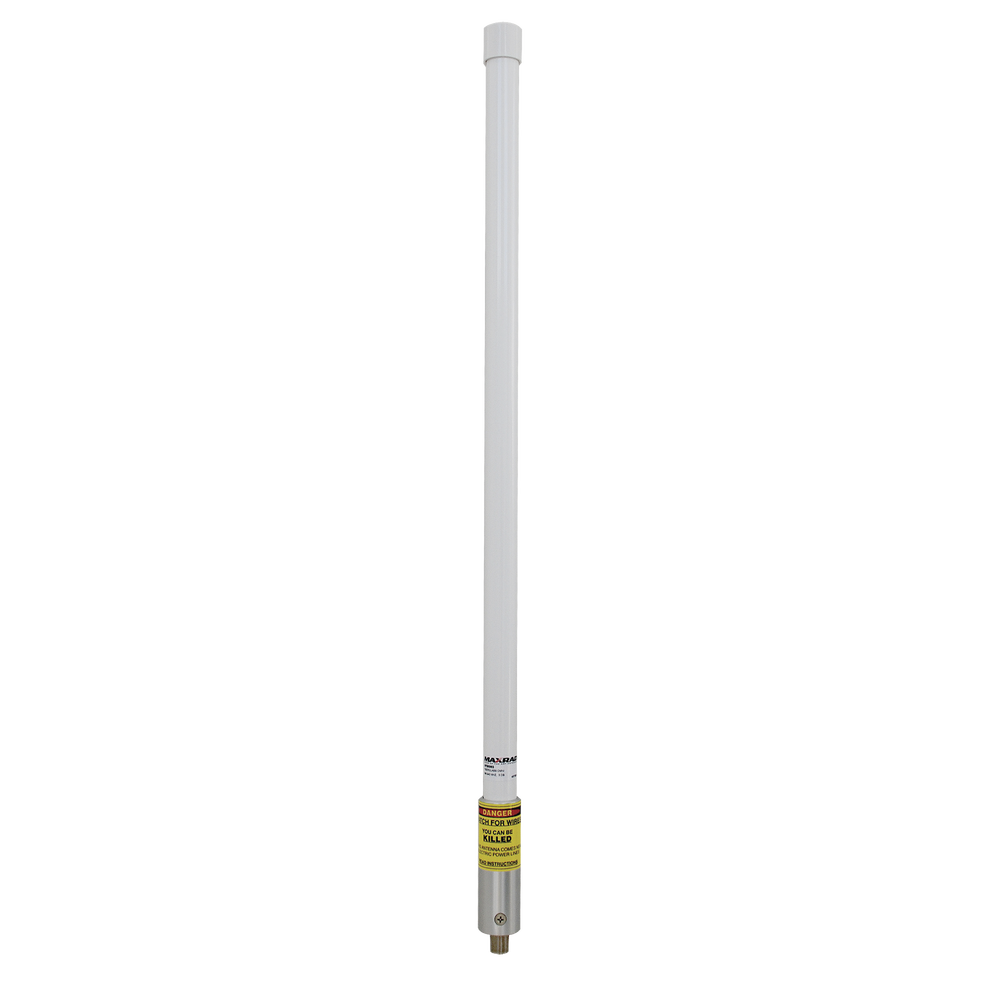

MAXRAD Fiberglass Base Station (MFB) Omnidirectional Antenna

MAXRAD Fiberglass Base Station (MFB) Omnidirectional Antenna

Model: MFB8355
Frequency Range: 824-896 MHz
Factory Tuned Frequency: 835 MHz
Gain: 5 dB
Bandwidth @ 1.5:1 VSWR: 20 MHz
Vertical Beamwidth @ 1/2 Power: 22°
Height: 48”
Weight: 1.75 lbs
Bending Moment at Rated Wind: 14.2 ft-lbs
Side Thrust at Rated Wind: 8.0 lbs.
Equivalent Flat Plate Area: .22 sq ft

Features

• White ultra-violet resistant pultruded fiberglass radome
• Thick walled aluminum mounting base
• Unity/3 dB/5 dB/7 dB models
• UPS shippable
• Exceptional value
