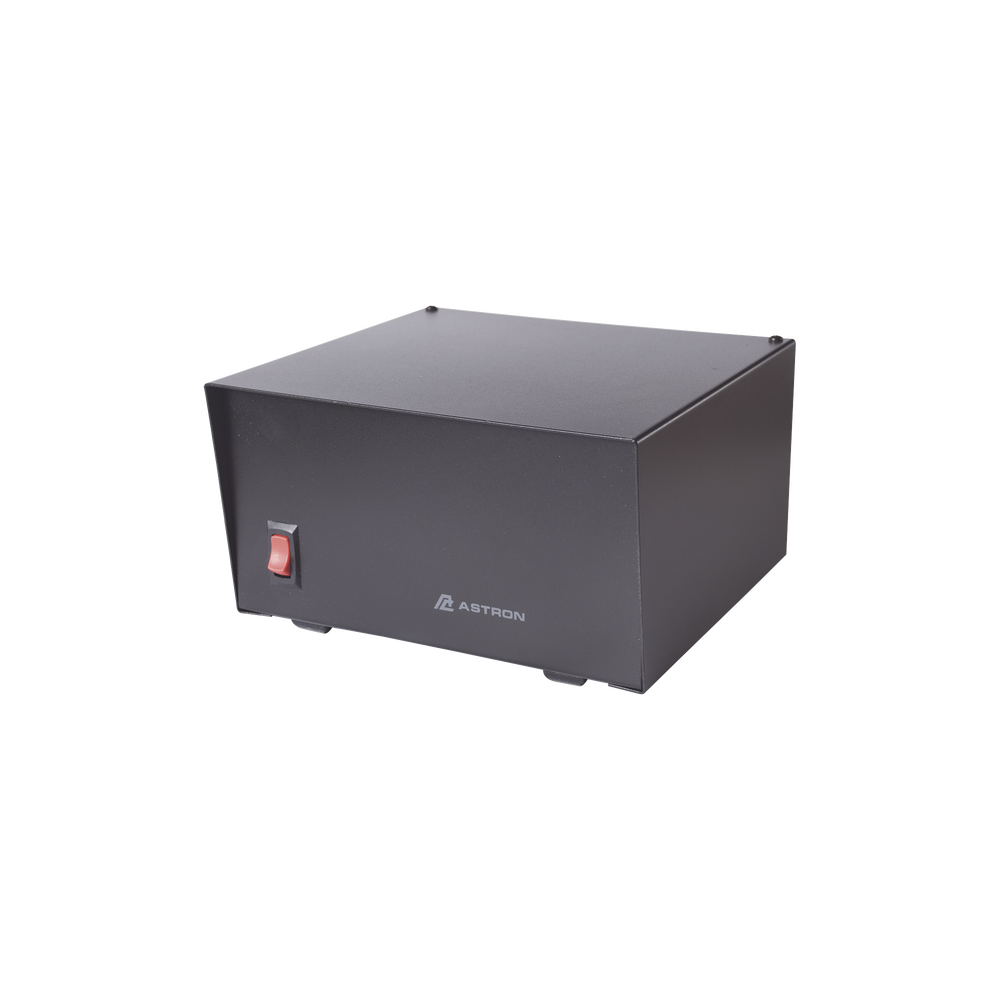

ASTRON power supply, 10 amp, 220 V battery

ASTRON power supply, 10 amp, 220 V battery

Special Features:

• Electronically regulated solid state

• Foldback current limiting; protects the power supply from excessive current and continuous output short circuit.

• Lever overvoltage protection

• Maintain low regulation and ripple at low line input voltage

• Heavy-duty heat sink

• Chassis mount fuse

• Three-conductor power cable

• Made in the USA.

Performance Specifications:

• Input voltage: 105-125Vac

• Output voltage: 13.8 Vdc ± 0.05 volts (internally adjustable: 11-15 Vdc)

• Ripple less than 5 mV peak to peak (full load and low line)

• Continuous duty: 7.5 amps

• ICS: 10 amps

• Dimensions: 4 x 7.5 x 10.75 inches

• Weight: 11 pounds
