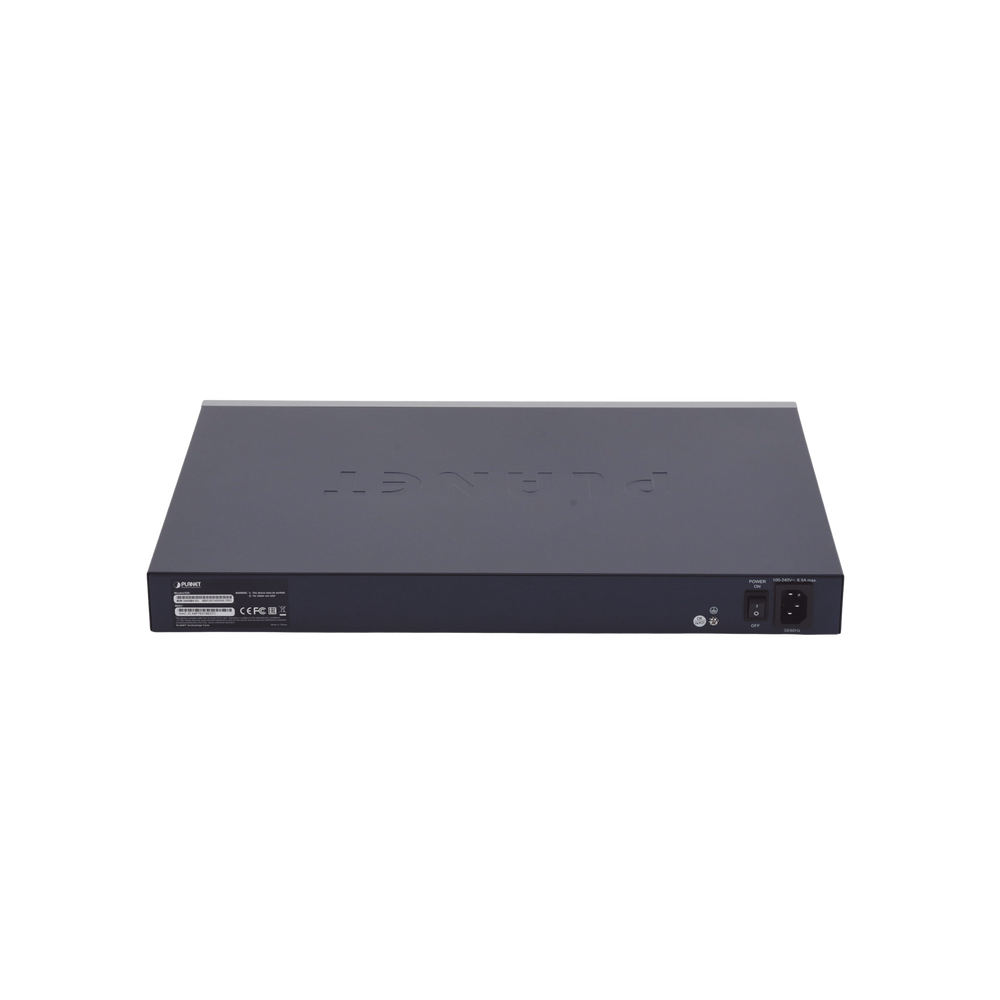

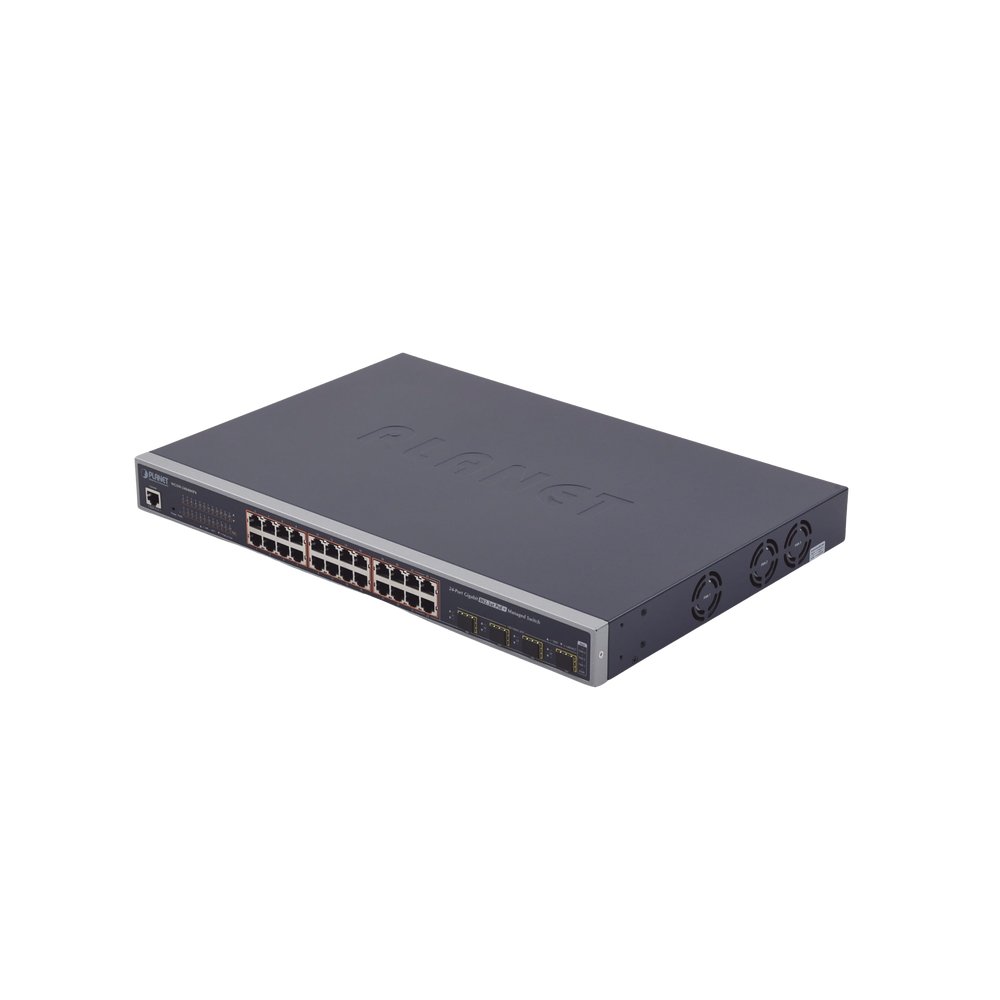

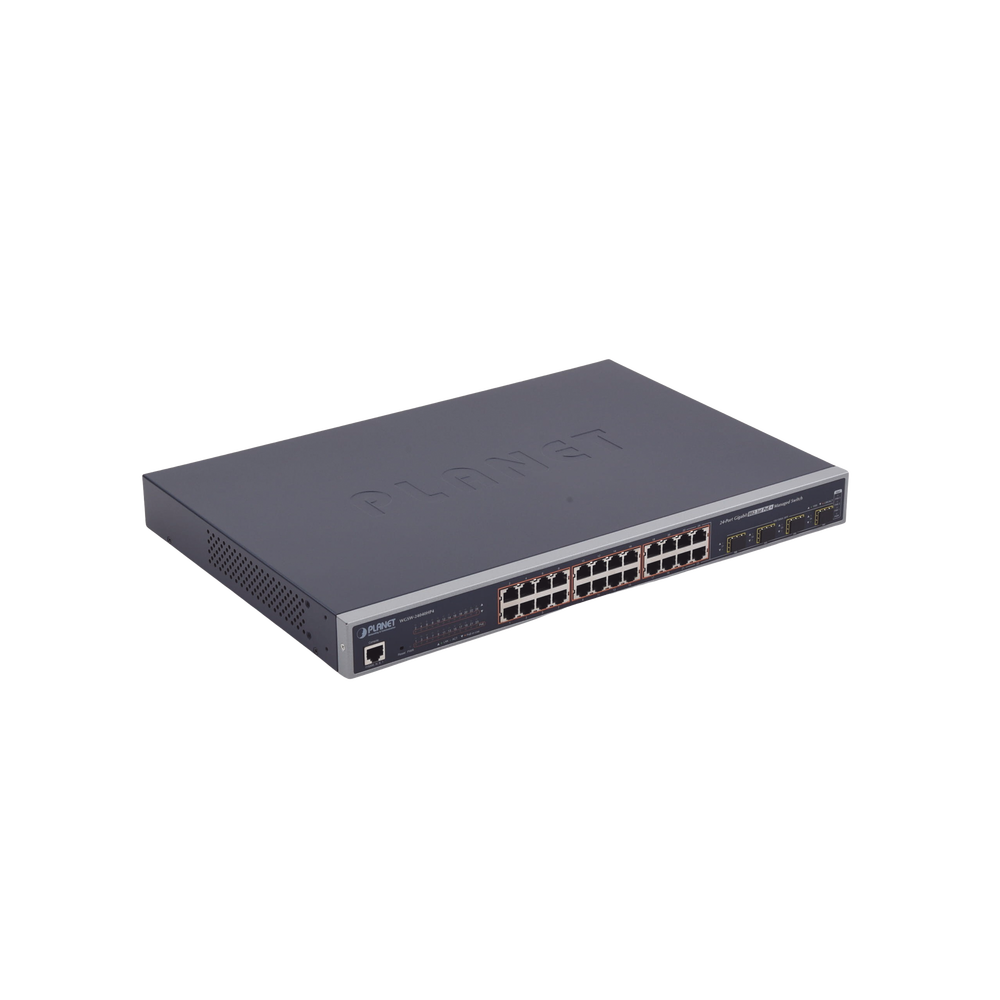

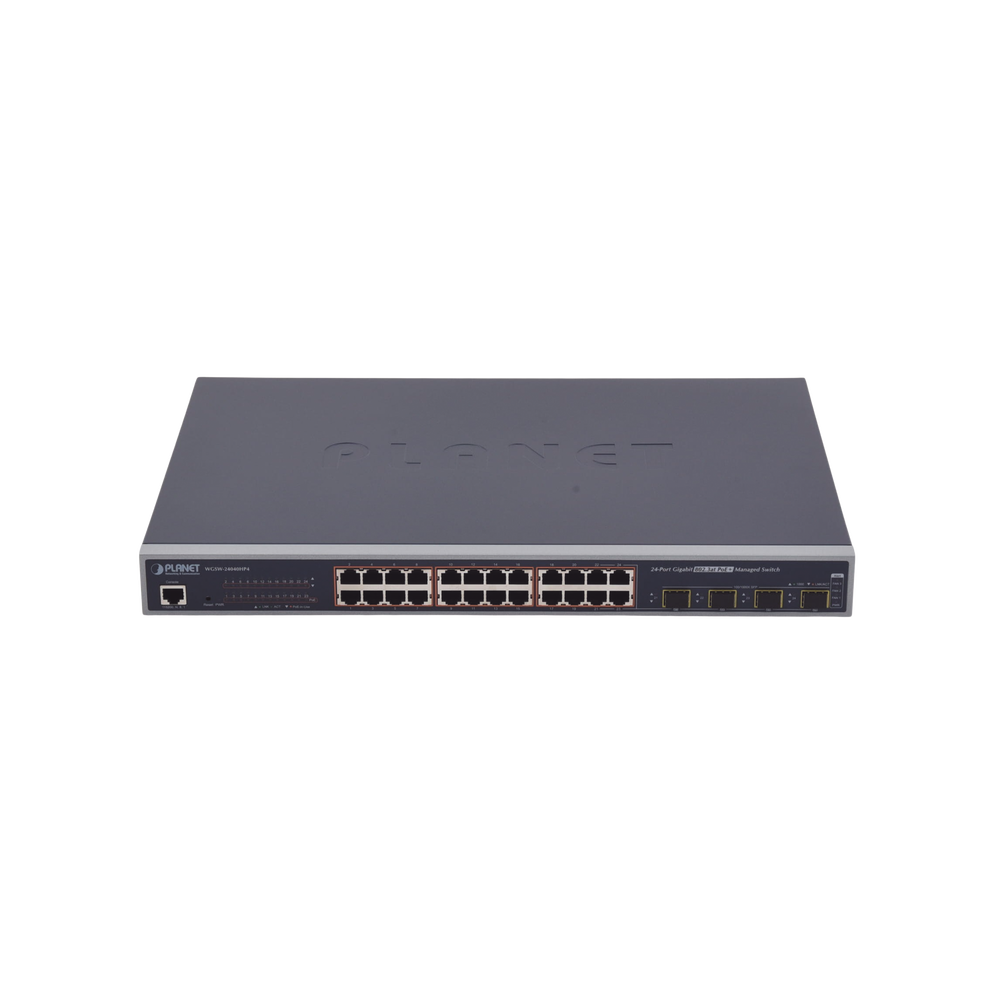

24-port 10/100/1000T PoE+ Managed L2+ Switch with 4 Gigabit TP/SFP combo ports

24-port 10/100/1000T PoE+ Managed L2+ Switch with 4 Gigabit TP/SFP combo ports

Ports:
- 24 10/100/1000BASE-T RJ45 Ports.
- 4 1000BASE-X SFP interfaces, shared with ports 21 to 24.

PoE:
- Powers 802.3af PoE and 802.3at PoE+ devices.
- Total power: 440W.

PoE Functions:
- Automatic reboot of PoE devices that stop responding.
- Device feeding by calendar.
- Monitoring consumption by device.
- Overheating protection system.

Layer 3 Functions:
- Up to 8 VLAN interfaces.
- Routing table of up to 32 entries.
- IPV4 / IPV6 static routing.

Layer 2 Functions:
- Port Configuration, Port Status, Port Mirroring, VLAN, Link Aggregation, QoS, IGMP Snooping, Access Control, Bandwidth Control, SNMP MIBs, SSH, SSL.

Performance:
- 35.7 Mpps.

Administration:
- Console, Telnet, Web interface. SNMP v1, v2c, v3.

Warranty:
- 2 years.

Physical and electrical characteristics:
- Power supply: 100~240 VAC, 482W.
- Protection: 6KV DC ESD protection.
- Operating temperature: -0 ~ 50ºC
- Dimensions: 440 x 300 x 44.5 mm (W x D x H), 1U rack
