• Transceptor individual con PIGTAIL (Ballun) TurboHD HD-TVI/HD-CVI/AHD / CONECTOR 100% COBRE
1 1

EPCOM TITANIUM

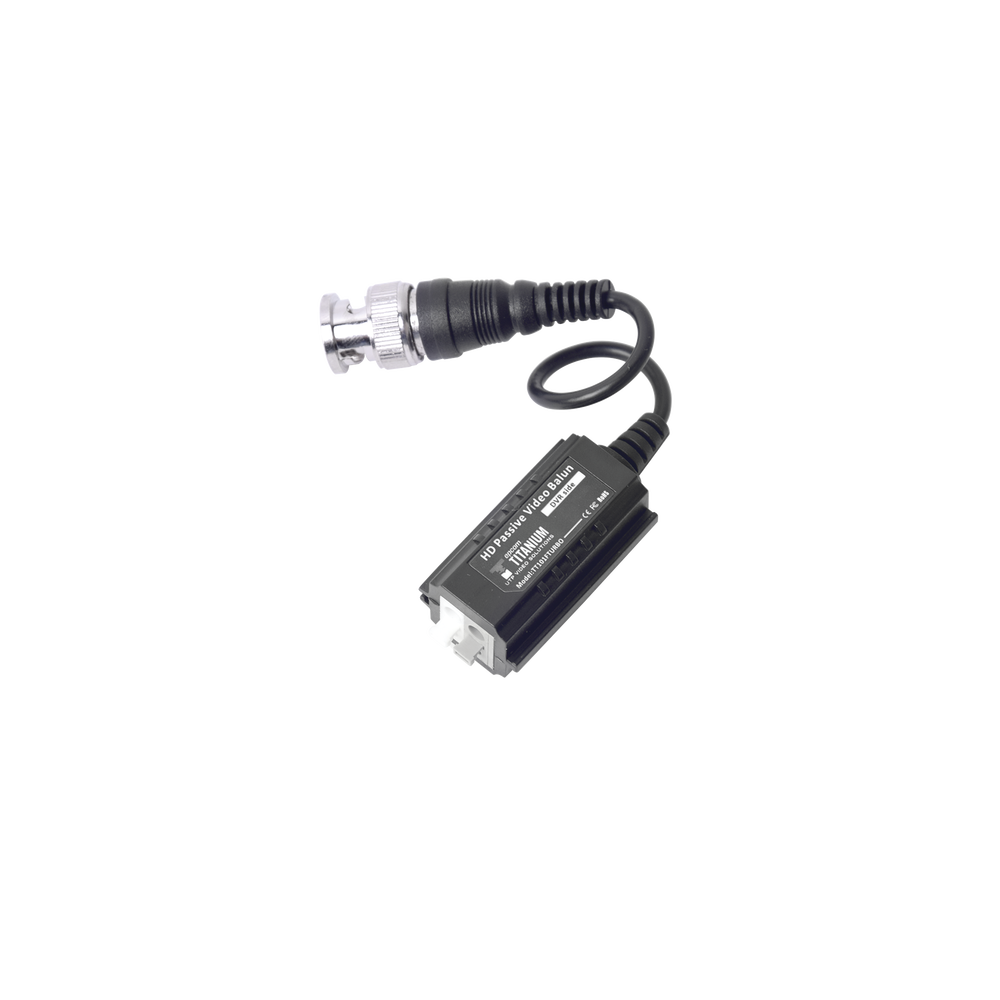

Individual transceiver with PIGTAIL (Ballun) TurboHD HD-TVI/HD-CVI/AHD / 100% COPPER CONNECTOR

Individual transceiver with PIGTAIL (Ballun) TurboHD HD-TVI/HD-CVI/AHD / 100% COPPER CONNECTOR

$12.384 COP
$13.545 COP $12.384 COP
Sale Sold out
Shipping calculated at checkout.

Individual transceiver with PIGTAIL (Ballun) TurboHD HD-TVI/HD-CVI/AHD / 100% COPPER CONNECTOR

100% Copper Connector
- Competitors use Zinc Alloy

Copper connectors offer greater conductivity, better performance at high frequencies (HD video and long distances) and much lower attenuation.
Real RF Shielded Cable
- Competitors use power cable

Shielded RF cable offers increased noise immunity.


TurboHD or HD-TVI is a high-definition video protocol for video surveillance.
SYSCOM calls it TurboHD, we use the HD-TVI chip from Techpoint in California, USA.
The TurboHD line is an intermediate between analog and IP, it has IP quality but at prices
of an analog system.

TurboHD allows for analog, 720p, 1080p, and in the future, 3.5 megapixel TurboHD. All using the same infrastructure.

Applications:
  • CCTV monitoring and recording systems

Characteristics :
  • TURBOHD Passive Transceivers
  • Real-time transmission over UTP cat 5e/6 cable
  • They do not require feeding
  • Supported video formats NTSC, PAL, SECAM
  • Compatible with analog / TurboHD (TVI) cameras
  • 250 meter (820 ft) transmission for TurboHD in 720p
  • 230 meter (754 ft) transmission for TurboHD in 1080p
  • BNC male connectors
  • Pin terminals for UTP cable
  • Built-in surge protection
  • Anti-static wave filter design
  • Noise immunity of 60 dB
  • Impedance 75 ohms
  • Color: Black
  • Operating temperature: -20°C to 70°C
  • Dimensions ( L x W x H ): 35.1 x 16.7 x 18.7 mm
  • Weight: 40 grams.

    Out of stock

    MODELO: TT101FTURBO/1P
