Ultra-compact 1-port FXS Analog Telephone Adapter (ATA)

Ultra-compact 1-port FXS Analog Telephone Adapter (ATA)

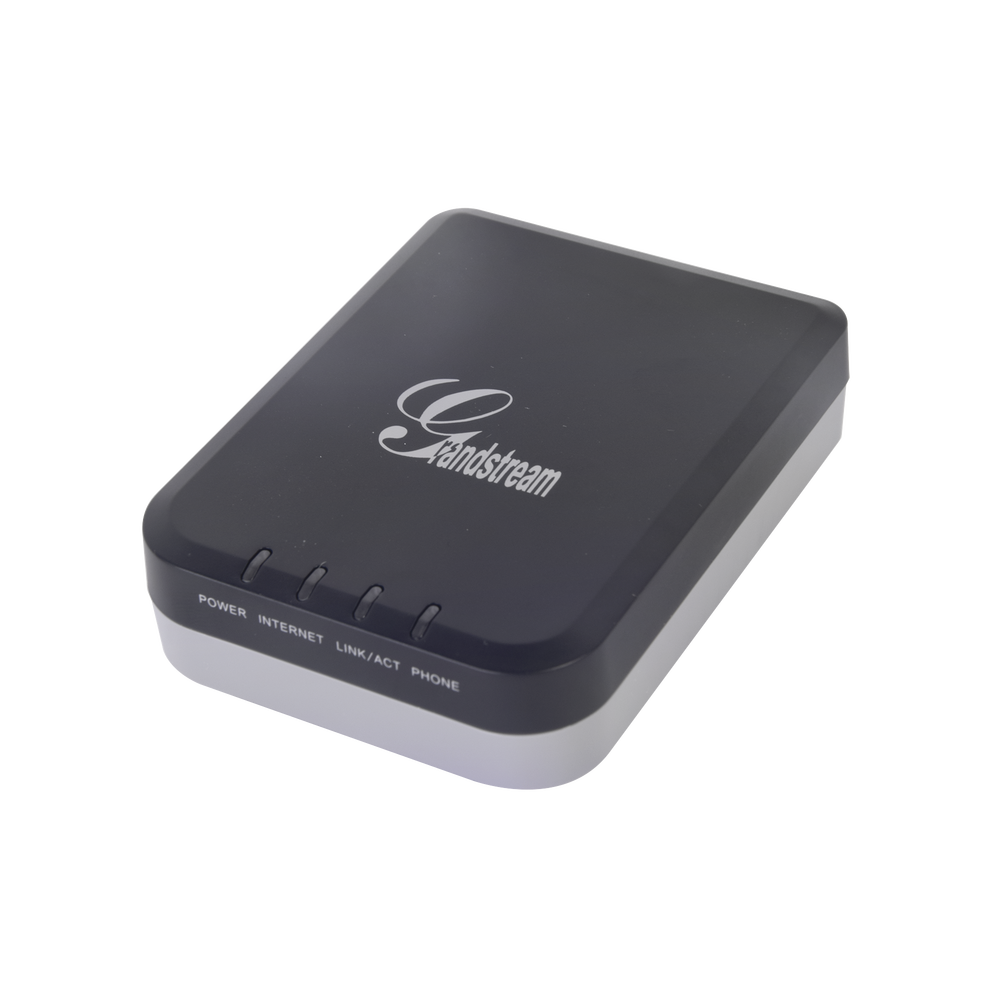

The HT701 is the next generation of IP ATAs (analog telephone adapters) for residential and consumer users requiring a highly durable device. Its ultra-compact size offers superior voice quality, rich features, strong security protection, excellent manageability, and automated provisioning. Its unparalleled affordability also enables service providers to offer high-quality IP Voice services at an extraordinarily competitive price. The HT701, a single-port ATA, is ideal for large-scale deployments of commercial Voice over IP services.

Interfaces:

- 1 FXS port (RJ-11) for connecting a conventional analog telephone.

- 10/100 Mbps LAN network port (RJ-45).

- LED indicators for Adapter, LAN, Phone and Line Status.

- Rear reset button.

Voice, fax and modem:

- 1 Line, 1 SIP account and 3-way conference.

- Telephone features: Caller ID with blocking, call waiting, dual line, attended or blind transfer, forwarding (Forward), holding (HOLD), do not disturb.

- Fax over IP: Compatible with T.38 protocol for Fax up to 14.4 kbps.

- Voice codecs: G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, dynamic jitter buffer, line echo cancellation.

Administration and security:

- Failover in case the primary SIP Server loses connection, it automatically switches to the secondary Server.

- Supports SYSLOG, Telnet and remote administration using web browser.

- SRTP, TLS, SIPS, HTTPS security.

- Layer QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Di Serv, MPLS).

Accordance:

FCC (Part 68 & 15B), C-Tick, AS/NZS CISPR22, CISPR24, CE, EN55022, EN55024, TBR21, EN60950, EN61000-3-2, EN61000-3-3, UL (power adapter).

Physical and electrical characteristics:

- Supported temperature range: 0°C to 40°C.

- Power supply: 12 Vdc, 0.5 A

- Dimensions: 25 x 65 x 86 mm.

- Weight: 0.31 kg.

*1 year warranty.
